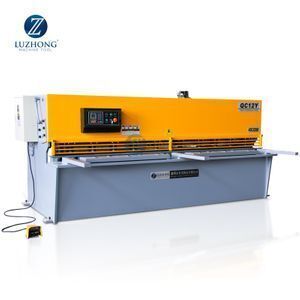

Price of Shearing QC12Y 6x4000 Electric Hydraulic Shearing Machine

Product details
Warranty:1 Year;Condition:New;
Blade Length (mm):4000 mm;material strength:450kn/cm;
Voltage:380V;Key Selling Points:Competitive Price;
Weight (KG):2500 KG;Name:Price of Shearing Machinery QC12Y 6x4000 Hydraulic Shearing Machine;
Rated Power:7.5kw;Place of Origin:Shandong China;
Between column:4220mm;plate thickness:6mm;
Max. Cutting Thickness (mm):6 mm;shear angle:1°30';
Throat Depth (mm):500 mm;Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram,Trade Assurance;
Supply Ability:100 Set/Sets per Month Price of Shearing Machinery QC12Y 6x4000 Hydraulic Shearing Mach;Brand Name:Luzhong Machine;
Applicable Industries:Manufacturing Plant;Port:Any port in China;
Power (kW):7.5 kW;After-sales Service Provided:Online support,Video technical support;
Automatic Level:Semi-automatic;Dimension(L*W*H):477x260x180 CM;
Maximum cutting width:4000mm;back guage stroke:20-550mm;
Packaging Detail:Plywood case Price of Shearing Machinery QC12Y 6x4000 Hydraulic Shearing Machine;Max. Cutting Width (mm):4000 mm;
Certification:CE ISO;Travel times:15Mm-1;

Price of Shearing Machinery QC12Y 6x4000 Hydraulic Shearing Machine

Product Description

The main performance characteristics:

1 Sheet plate welded structure is adopted with hydraulic transmission and accumulator return, typical of an easy operation reliable performance and nice appearance .

2 Indication by indicator is prompt for adjustment of blade clearance. for a handy and prompt adjustment .

3 Alignment device with lighting and control device for shearing stroke are set. with a handy and prompt adjustment .

4 Rolling material support ball is provided. to minimize fish tail with sheet bar and to reduce frictional resistance.

5The rear stopper is fitted with electric adjustment and manual adjustment devices. and digital display device is available for display of size of stopper and times of shearing.

Application:

Hydraulic shearing machine is the sheet metal industry under the cutting tool, Widely used in industrial machinery, metallurgical industry, automobile, shipbuilding, electrical appliances, engineering equipment, sheet metal processing, steel pipe welding, electronic industry, aerospace industry, agricultural machinery manufacturing, dining furniture machinery industry.

Product main technical parameters:



Model

Plate thickness

Plate width

Material strength

Shear angle

Back gauge stroke

Travel times

Between column

Main motor power

Outline dimension

QC12Y

mm

mm

KN/cm

°

mm

Mm-1

mm

kw

mm

4X2500

4

2500

450

1°30’

20-500

18

2700

5.5

3120X1450X1550

4X3200

4

3200

450

1°30’

20-550

12

3410

5.5

3520X1560X1670

4X4000

4

4000

450

1°30’

20-550

12

3410

5.5

4340X1620X1660

4X6000

4

6000

450

1°30’

20-800

8

6270

7.5

6460X2100X3100

6X2500

6

2500

450

1°30’

20-550

18

2720

7.5

3000X1600X1610

6X3200

6

3200

450

1°30’

20-550

15

3420

7.5

3840X1700X1680

6X4000

6

4000

450

1°30’

20-550

15

4220

7.5

4300X1610X1680

6X6000

6

6000

450

1°30’

20-800

8

6280

11

6500X2200X2200

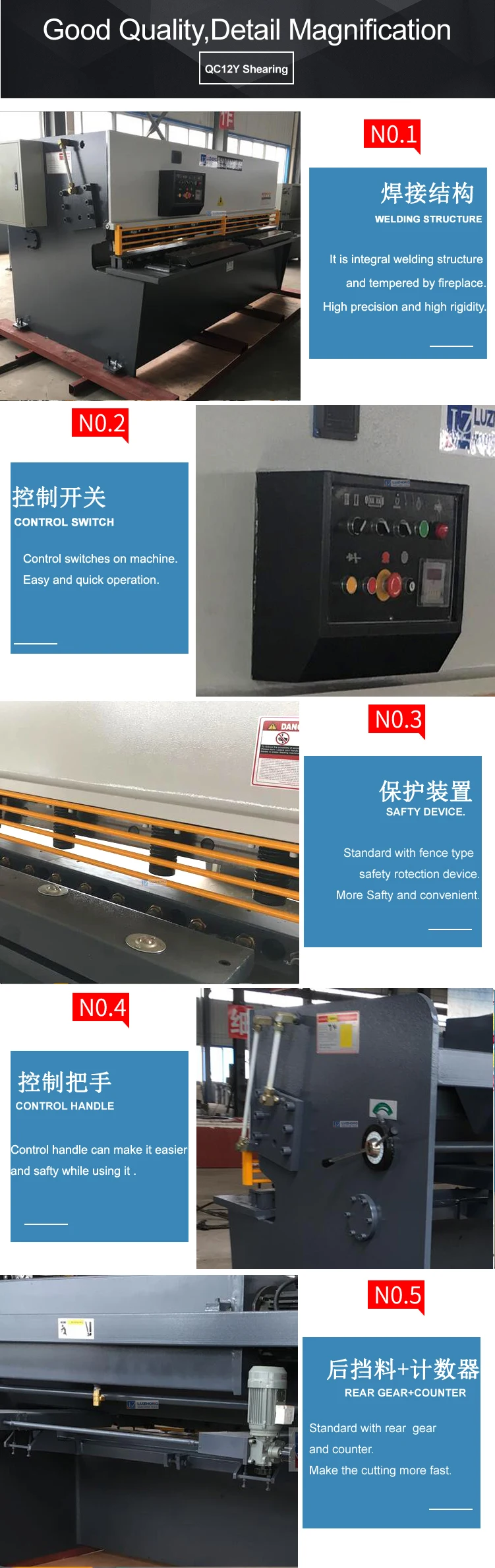

Details Display







Related Products
+





Company Information

Shandong Luzhong Machine Tool Co., Ltd. is a large scale manufacturing

enterprise with glorious chievement and long history .Founed in 1992 ,company covers an area of 30 thousand square meters, the construction covers area of 250 thousand square meters.



Our main products are : CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machine ,Drilling Machine ,Milling Machine and others metal cutting machine tools .All the products above have passed CE ,ISO ,SGS ,TUV certificates .



FAQ



1:How can I choose the most suitable machines ?

A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .

You can also send us the products drawing ,we will choose the most suitable machines for you .


2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .



3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.



4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.



5: What's the Payment Terms ?

A : T/T ,30% initial payment when order ,70% balance payment before shipment ;

Irrevocable LC at sight .



5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
