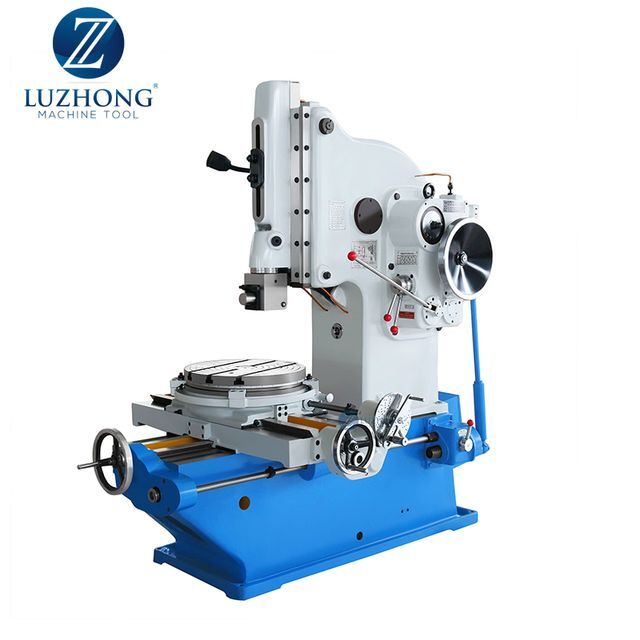

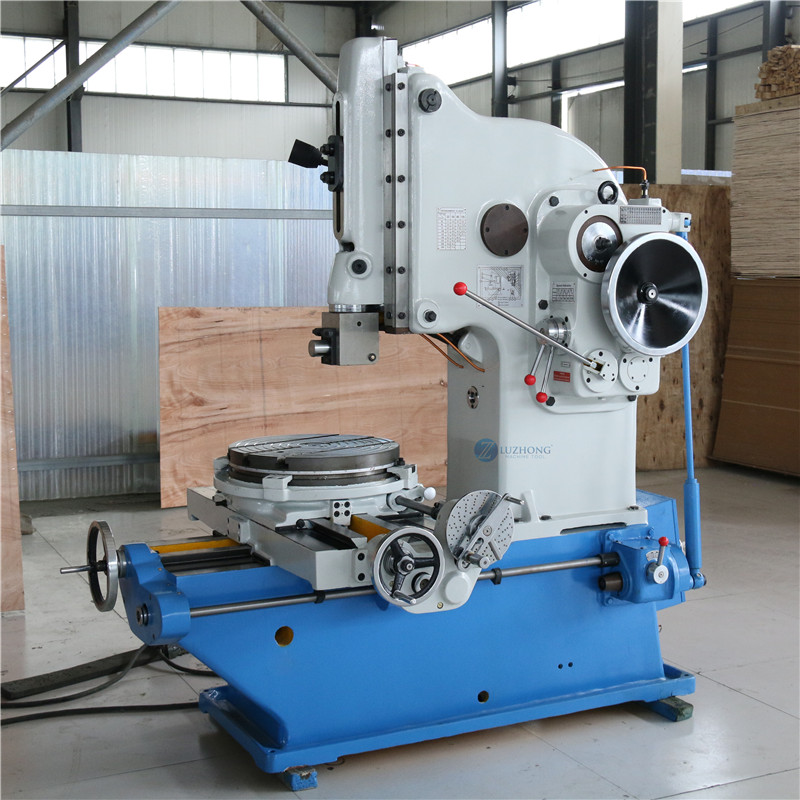

Automatic Grooving B5020 B5032 Keyway Vertical Grooving Machine

Supplier: Shandong Luzhong Machine Tool Co., Ltd.
Region: Shandong, China
Contact: Ms Wenjing Pan
Price: $9900.00 / 1 - 4 sets
$9700.00 / 5 - 9 sets
$9390.00 / >=10 sets
Min. Order: 1 set

Click here to contact

Product details

Core Components Warranty:	13 months	port:	Qingdao Port Automatic Grooving B5020 B5032 Keyway Vertical Grooving Machine
Ram Maximum Slotting Length:	320	Main selling point:	competitive price
Warranty:	1.5 years	Ram tilt angle:	0-8
Mechanical test report:	if	Supply capacity:	100 sets/month automatic slotting B5020 B5032 keyway vertical slotting machine
Weight (kg):	2200kg	payment terms:	L/C,Western Union,D/P,D/A,MoneyGram,Trade Assurance
The maximum rotation angle of the table:	360	Showroom location:	Philippines, Indonesia, none
Ram exercise frequency:	20.32.50.80	Applicable industries:	manufacturing plant
Marketing Type:	New Products 2020	Packaging Details:	Plywood Box Automatic Grooving B5020 B5032 Keyway Vertical Grooving Machine
maximum. RAM stroke:	340	Ram vertical adjustment distance:	315
Video external inspection:	if	Health status:	new
Table diameter:	630	Core components:	motor
Rotary feed range of worktable:	0.052-0.783	brand:	Lu Zhong
place of origin; place of origin:	Shandong China	Terms of trade:	FOB/CIF
Voltage:	220V	Name:	Automatic Grooving B5020 B5032 Keyway Vertical Grooving Machine

Product Description

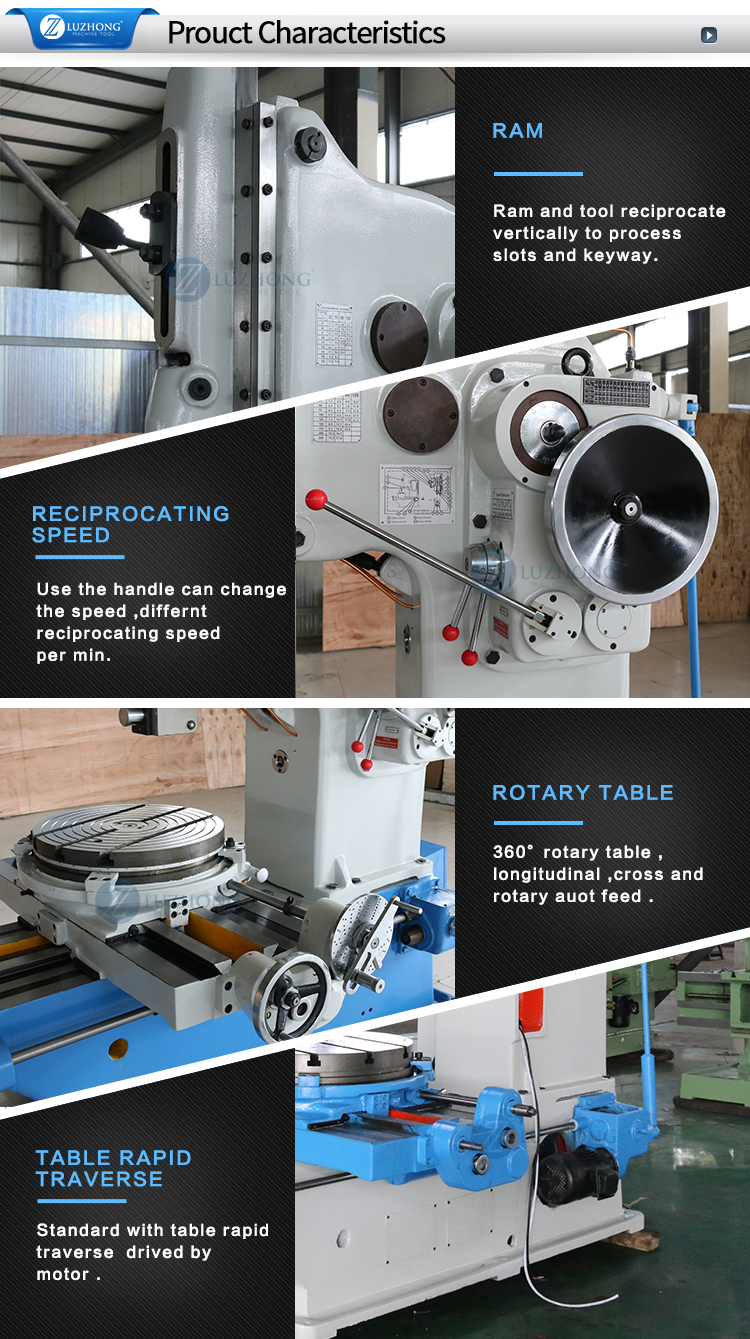

Main performance features:

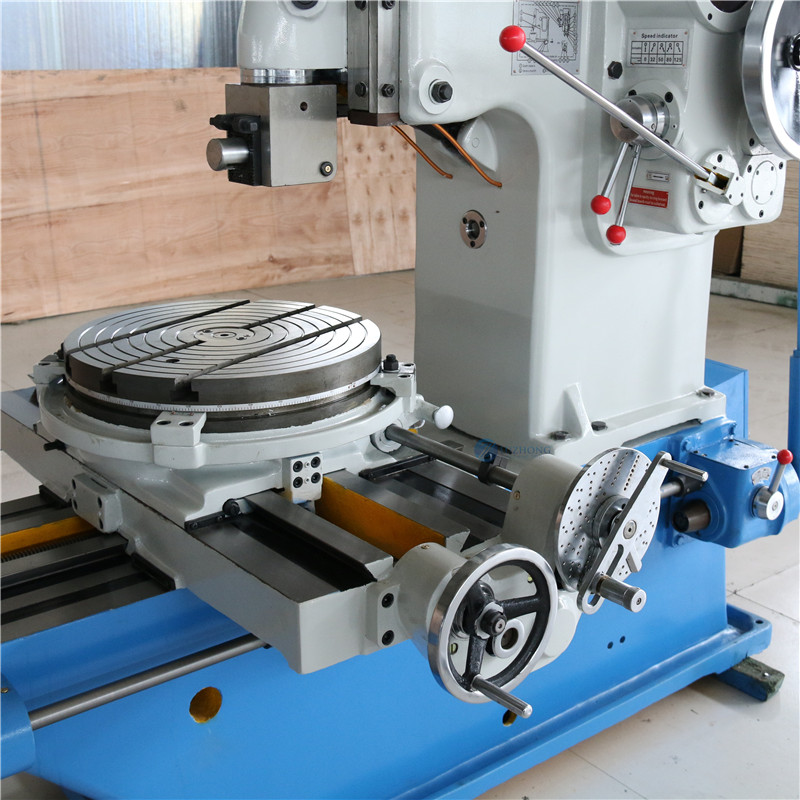

1. The machine table has three different feeding directions: vertical, horizontal and rotary.
Therefore, the workpiece is clamped once, and several surfaces in the machine tool are processed.
2. Hydraulic transmission mechanism, ram reciprocating motion and table hydraulic feeding device.
3. The speed of each stroke of the ram is the same, and the moving speed of the ram and the table is adjustable
continuously.
4. Hydraulic console has cylinder reversing oil reversing mechanism, in addition to hydraulic and manual feeding,
There's even a single motor for quick vertical, horizontal and rotational movement.
5. The hydraulic feed slotting machine is used for the instantaneous feed of the knife at the end of the work, so it is better than
Mechanical slotting machines use drum feed.
application:
1. This machine is used to interpolate plane, forming surface, keyway, etc., and can insert slope in 10° mold
other work matters within the scope of,
2, suitable for single or small batch production enterprises.
Main technical parameters of the product:

Specification	unit	B5032	B5020
maximum. RAM stroke	mm	340	220
Ram maximum slot length	mm	320	200
Ram exercise frequency	times/min	20.32.50.80	32.50.80.125
Ram inclination angle	°	0-8	0-8
Ram vertical adjustment distance	mm	315	230
Distance from head bearing surface to forearm bed	mm	600	485
Table diameter	mm	630	500
The distance from the lower end of the carriage to the worktable	mm	490	320
maximum. Longitudinal movement distance of worktable	mm	630	500
maximum. The horizontal movement distance of the table	mm	560	500
The maximum rotation angle of the table	°	360	360
Vertical and horizontal table feed range	mm	0.08-1.21	0.08-1.21
Rotary feed range of worktable	mm	0.052-0.783	0.052-0.783
Motor Power	kilowatt	4	3
Motor speed	rpm	960	1430
machine weight	Kilogram	3000	2200
Dimensions	mm	226114952245	191613051995
