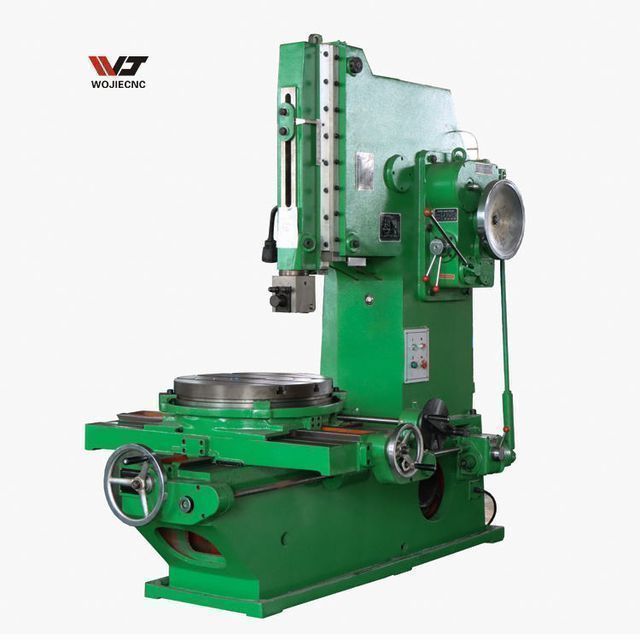

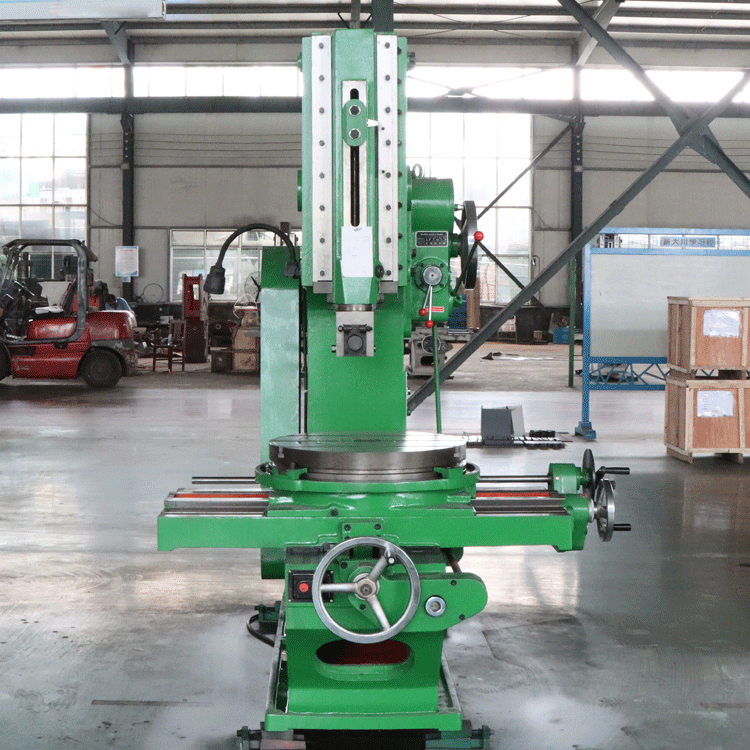

Vertical slotting machine B5032 slotting machine tool price

Click here to contact
Product details
product name:Vertical slotting machineVoltage:customer request
Packaging Details:The machine will be packed by plywood case B5032 slotting machine cutter priceThe maximum groove length of the ram:320mm
Health status:newMarketing Type:New Products 2020
Processing type:metal processingMechanical test report:if
Package preview:Motor speed:960 rpm
Table rotary feed range:0.052-0.783mmtype:Slotting machine
Showroom location:Egypt, Turkey, USA, Italy, France, Germany, Vietnam, Philippines, Brazil, Peru, Saudi Arabia, Pakistan, Mexico, Russia, Spain, Thailand, Morocco, Kenya, Chile, United Arab Emirates, Colombia, Sri Lanka, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Tajikistan, MalaysiaMain selling points:competitive price
Table diameter:630mmbrand:my jay
Warranty:1 yearApplicable industries:Manufacturing plants, machinery repair shops, retail stores
Core components:Engines, Bearings, Gearboxesport:Qingdao or Shanghai port
Slider movement frequency:20.32.50.80 (times/minute)After-sales service provided:Online support, video technical support, free spare parts
RAM trip:340mmDimensions (L*W*H):1930*1365*2270mm
place of origin; place of origin:Shandong ChinaRam vertical adjustment distance:315mm
Local service location:Egypt, Turkey, United Kingdom, United States, Italy, France, Germany, Vietnam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, Mexico, Russia, Spain, Thailand, Japan, Malaysia, Morocco, Kenya, South Korea, Chile, United Arab Emirates , Colombia, Sri Lanka, Romania, Bangladesh, South Africa, Kazakhstan, TajikistanAfter warranty service:Video technical support, online support
Supply capacity:100 sets per monthweight:2500 kg
Core component warranty:13 monthsPower (kW):3
Video shipment inspection:ifpayment terms:L/C, D/A, D/P, T/T, Western Union, B5032 slotting machine tool price
Certification:International Organization for Standardization
Product Description
Main performance characteristics:

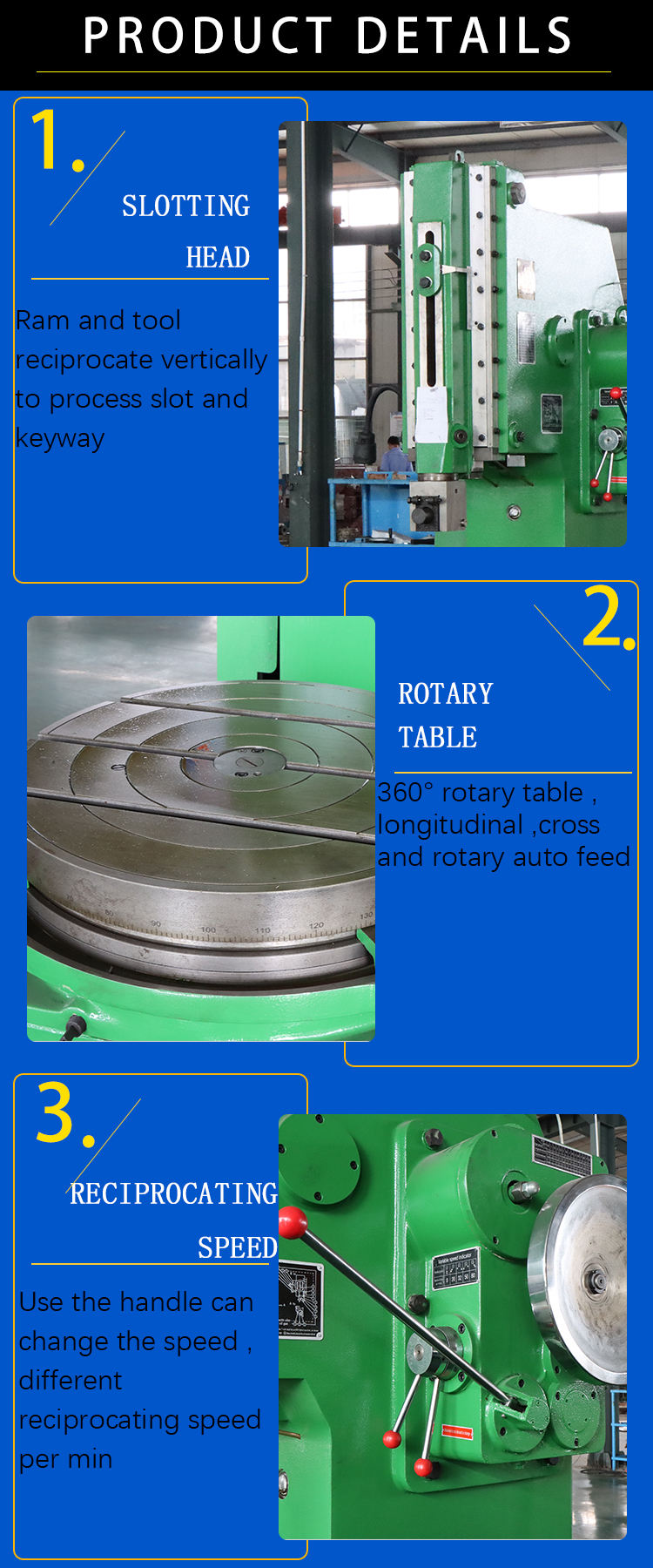

1. The machine tool table has three different feed directions (longitudinal, horizontal and rotary), the workpiece is clamped at one time, and the machine tool can process multiple surfaces
2. Ram reciprocating hydraulic transmission mechanism, table hydraulic feeding device.
3. The speed of each stroke of the ram is the same, and the moving speed of the ram and the worktable is adjustable
continuously.

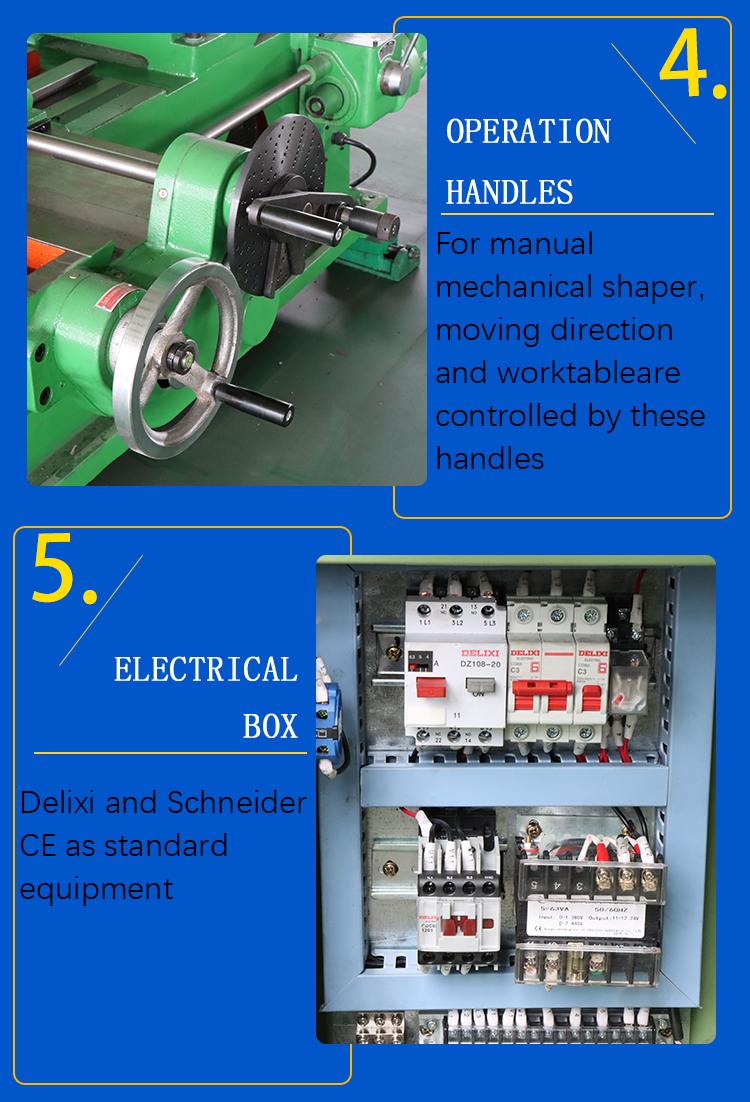

4. The oil pressure control surface has an oil pressure reversing oil reversing mechanism. In addition to oil pressure and manual feeding, there is also a single motor to drive vertical, horizontal and rotary rapid movement.
5. The slotting machine with hydraulic feed feeds instantaneously at the end of the work, so it is better than mechanical slotting machine with drum feed.

application:
1. This machine is used for interpolating planes, forming surfaces, keyways, etc., and can insert inclinations and other work items within the range of 10° molds,
2. Suitable for single piece or small batch production enterprises.

The main technical parameters of the product:
thing
unit
B5020E
B5032E
B5040E
slot length
mm
200
320
Ram reciprocating times per minute
number/min
32,50,80,125
20,32,50,80
20,32,50,80
Ram inclination
°
0-8
0-8
0-8
table diameter
mm
500
630
630
Adjust the vertical distance of the slider
mm
215
370
380
The distance from the holding surface to the front end of the column
mm
480
600
600
Working surface & the distance from the bottom surface of the slide holder
mm
320
470
620
maximum. Longitudinal travel of workbench
mm
440
560
560
maximum. Horizontal travel of workbench
mm
520
535
535
maximum. Table rotation angle
°
360
360
360
Longitudinal and horizontal feed range of worktable
mm
0.054-1.24
0.054-1.24
0.054-1.24
Table rotary feed range
°
0.035-0.805
0.035-0.805
0.035-0.805
Maximum size of grooving tool (LengthXLigh)
mm
25x40
25x40
25x40
maximum. Grooving force
KN
8
8
8
The maximum load capacity of the workbench
Kilogram
500
500
500
Table center T-slot
mm
18H8
18H8
18H8
Main motor power
kilowatt
3
3
3
Main motor speed
m/min
960
960
960
Fast forward motor power
kilowatt
0.75
0.75
0.75
Rapid movement motor speed
m/min
1390
1390
1390
net weight
Kilogram
2500
2500
2900

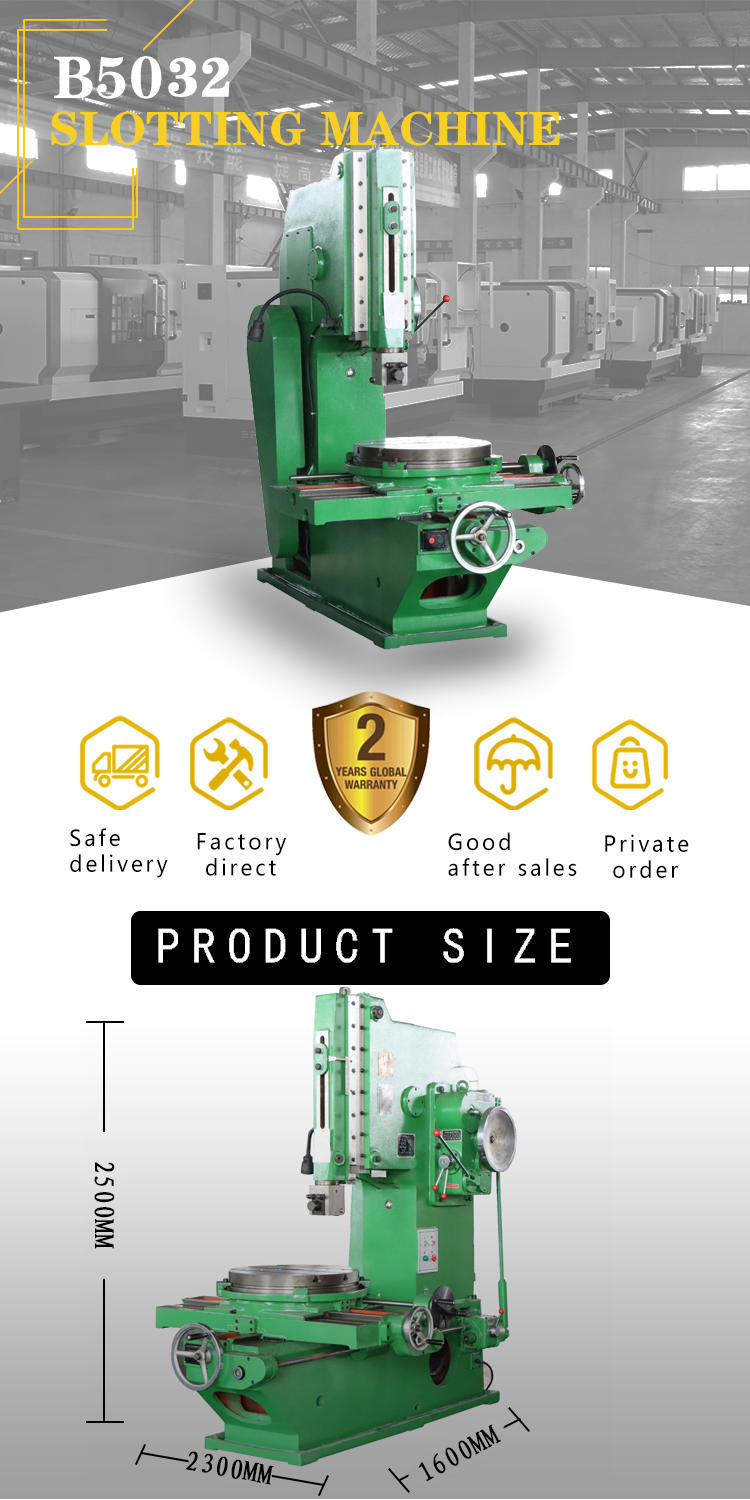

Machine size (length*width*height)
mm
1930x1365x2270
1930x1365x2270
1975x1370x2310
Working precision:
The flatness of the machined surface of the workpiece to be measured
0.015mm
Verticality of the processed surface of the workpiece to be measured
0.025mm
Surface roughness of the workpiece to be measured
6.3
The verticality of the processed side of the workpiece to be measured relative to the base
0.02mm
