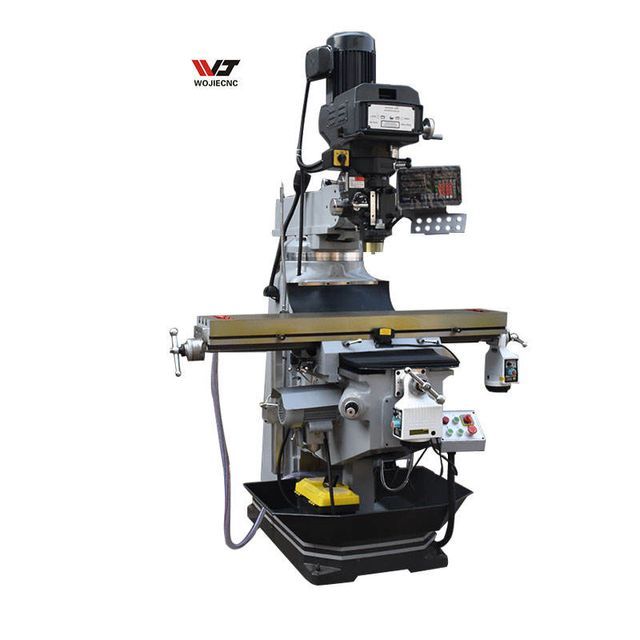

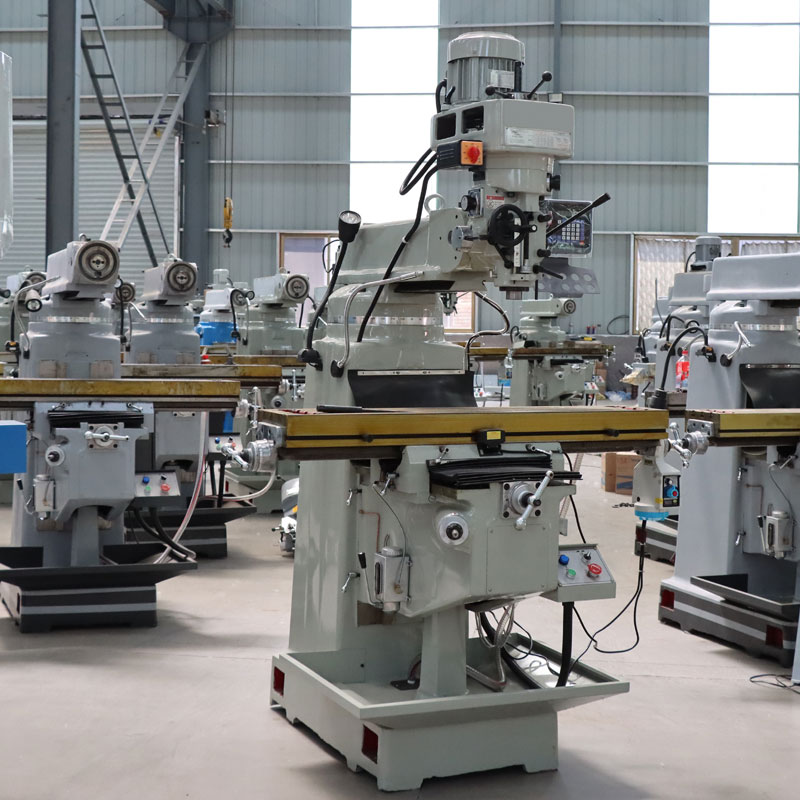

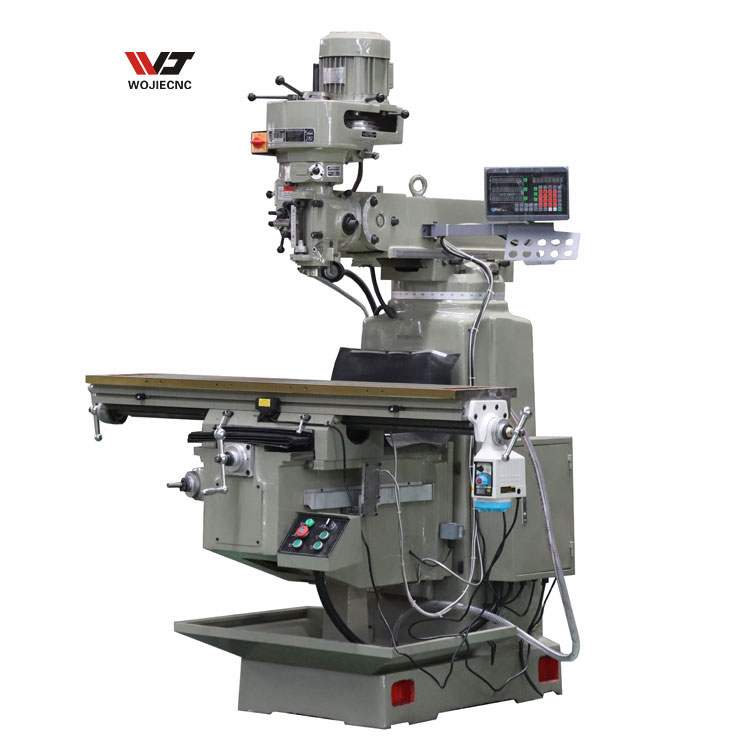

High precision Taiwan turret head milling machine X6325 cheap price

Supplier: Zaozhuang Wojie CNC Machinery Co., Ltd.
Region: Shandong, China
Contact: Ms Wendy Zhong
Price: $1700.00 / 1 - 2 sets
$1500.00 / >=3 sets
Min. Order: 1 set

Click here to contact

Product details

Spindle speed range (rpm):	40 - 4500 rpm	Mechanical test report:	if
Voltage:	client needs	accurate:	high precision
Spindle motor power (kW):	2.2	Marketing Type:	New products in 2023
Showroom location:	South Korea, Chile, United Arab Emirates, Colombia, Sri Lanka, Romania, South Africa, Ukraine, Kyrgyzstan, Uzbekistan, Tajikistan, Japan, Malaysia, Egypt, Turkey, United Kingdom, United States, Italy, France, Germany, Philippines, Brazil, Peru, Indonesia, Pakistan, Mexico, Russia	payment terms:	L/C, Western Union, D/P, D/A, T/T, high precision Taiwan turret milling machine X6325 cheap price
Spindle taper:	R8/iso40, ISO40/R8	Packaging Details:	The machine will be packed in a plywood case. High precision Taiwan turret head milling machine X6325 cheap price
Package preview:		model:	X6325
port:	Qingdao port or Shanghai port	brand:	my world
Table travel (mm):	1270*254	type:	common
Table travel (Z) (mm):	400	Core component warranty:	13 months
Main selling points:	high productivity	color:	custom made
Year:	2023	Health status:	new
Core components:	Bearings, motors, pumps, gears	Origin:	Shandong Province, China
Table travel (X) (mm):	780	Warranty:	1 year
Table travel (Y) (mm):	400	Supply capacity:	30 sets per month
Applicable industries:	Mechanical repair shop, manufacturing plant, retail	Video outbound inspection:	if
Processing capacity:	relaxing work	Dimensions (LWH):	155016502250
Number of axes:	3	Weight (kg):	1400
Whether CNC:	normal	Name:	X6325 Turret Milling Machine

Product Description

Applications
The X6325 gears and headstock are precision machined to ensure and maintain a high level of
Precision in milling, drilling, boring or grinding applications.

Product main technical parameters

Specification	unit	X6325
working desk size	mm	1270x254 (10”x50”)
Table travel	mm	780/400/420
T-slot (quantity-width-pitch)	mm	3/16/50
Spindle taper		Standard: R8 Optional: ISO40
Spindle speed range	Rotating speed	Standard: 16 steps, 50HZ:65-4500 ,60HZ:80-5440 Optional: 65-4000 variable
Spindle travel	mm	127
Spindle feed range	mm	0.04, 0.08, 0.15 (3 steps)
Distance from spindle nose to worktable surface	mm	90-510
main motor power	kilowatt	2.2

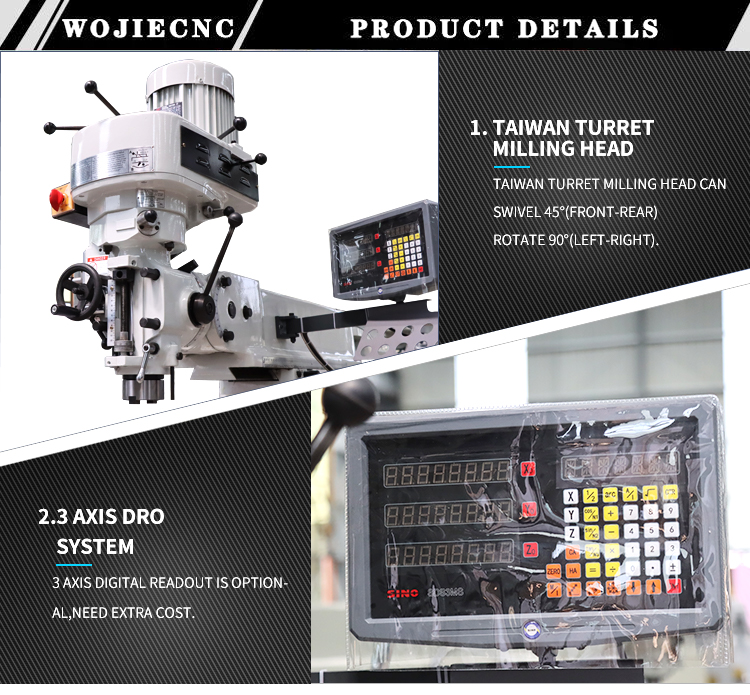

Head rotation (left-right)	°	±90°
head rotation (front-back)	°	±45°
weight	Kilogram	1400
Dimensions	mm	1550x1650x2250

Standard Accessories Optional Accessories
Power supply for work lights
Cooling system 3-axis digital readout
Milling chuck machine vise
Drill Chuck Indexing Head
Tie bar turntable

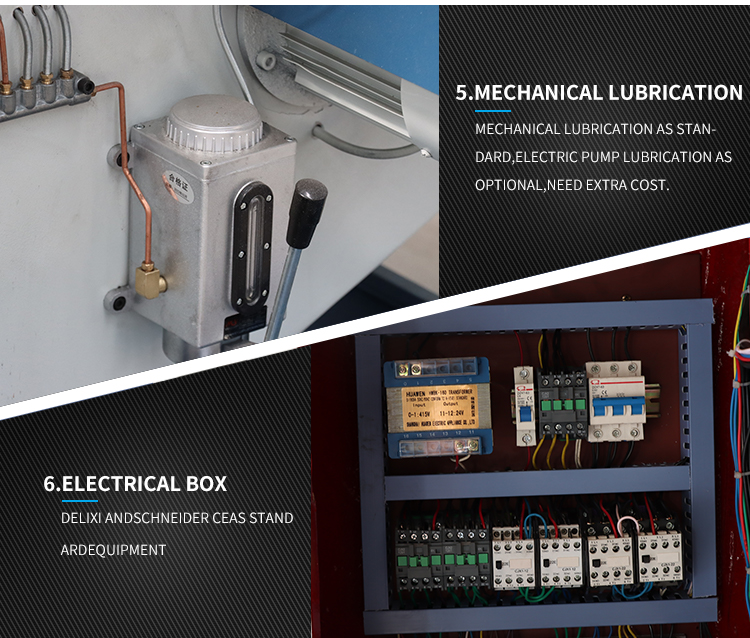

Oil collector plate clamp kit
Tools and Toolboxes
Reducer sleeve
