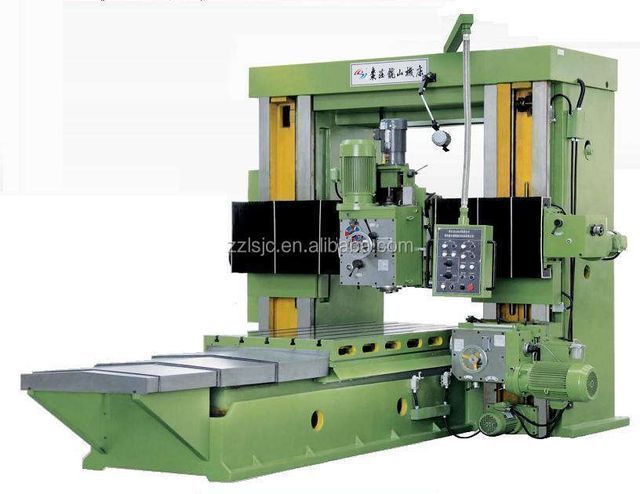

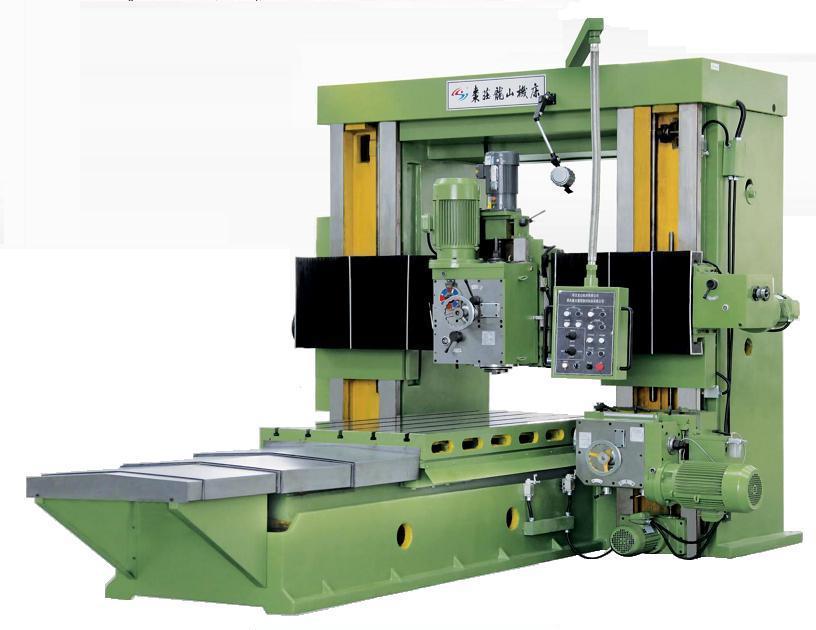

Double column gantry milling machine/plano miller/plano milling machine

Supplier: Zaozhuang Longshan Machine Tool Co., Ltd.
Region: Shandong, China
Contact: Mr Gary Song
Price: $33000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Showroom location:	Vietnam, Russia	Certification:	ISO9001:2015
State of health:	new	Package preview:
Table travel (mm):	3000	Dimensions (LWH):	to workpiece
color:	negotiable	After warranty service:	Video technical support, online support
Packaging Details:	plywood case	Number of axes:	6
payment terms:	wire transfer	After-sales service provided:	Engineers available to service machinery overseas
Voltage:	Negotiable	model:	X20
Types of:	double column	port:	Qingdao, Shanghai or negotiable
Table travel (Z) (mm):	0 mm	CNC or not:	normal
Processing capacity:	relaxing work	Supply capacity:	100 sets per year
Applicable industries:	Manufacturing plants, energy and mining	Spindle speed range (rpm):	100 - 685
place of origin; place of origin:	Shandong China	brand:	Longshan
Flat milling cutter:	Flat grinder	Table travel (X) (mm):	3000mm
Warranty:	Normal operation for 1 year	Local service location:	Vietnam, Russia
Weight (kg):	14000	Spindle taper:	BT50
Main selling points:	multifunctional	Table travel (Y) (mm):	0 mm
Spindle motor power (kW):	7.5

The core technology comes from Taiwan, with scientific and reasonable structural design, advanced functional units, strong cutting function, high work efficiency, safe and reliable action, and long service life.

1. The guide rail of the fuselage adopts heat treatment process and mechanical lubrication to reduce friction and prolong the service life of the machine.

2. The workbench is infinitely variable.

3. Rectangular or flat V bed guide rails, rigid bed/beam/column to ensure the stability of the machine during strong cutting.

4. The milling head can move vertically/horizontally or rotate ±30°.

It is used in machining, mold and other industries, especially for the processing of planes/end faces/slopes/T slots/combined guide rails of large/medium/small mechanical parts.

Specification					X20 Series Heavy Duty Surface Milling Machine
					X2014-20	X2014-30	X2014-40	X2014-60	X2016-30	X2016-40	X2016-60	X2020-40	X2020-60			X2025-40	X2025-60
table	Dimensions (W x L) mm				1000 × 2000	1000 × 3000	1000 × 4000	1000 × 6000	1200 × 3000	1200×4000	1200 × 6000	1600×4000	1600×6000			2000 × 4000	2000 × 6000
	Feed speedmm/min				30-300								0-390
	Rapid feed speed mm/min				2500
	Motor power mm				4	5.5					7.5	5.5	7.5
	maximum. Load kg				4000	5000	6000	7000	7000	8000	10000	8000	12000			10000	14000
maximum. Workpiece size			Length mm		2000	3000	4000	6000	3000	4000	6000	4000	6000			4000	6000
			Width mm		1400				1600			2000				2500
			Height mm		800				1200			1500
Column spacing mm					1450				1620			2020				2520
milling head		Motor power kw			7.5											11
		Spindle taper			ISO50
		Spindle speedr/min			100-685 (6 gears)											66-660 (level 8)
		swing angle			± 30°
Spindle box feed motor power kw															1.5
Distance from spindle nose to worktable surface				vertical mm	0-800				0-1200			0-1500
				Horizontal mm	100
Recommended milling disc diameter mm					Φ160									Φ200
Dimensions			Length mm		6080	8080	10080	14080	8080	10080	14080	10080	14080			10080	14080
			Width mm		2630	2630	2630	2630	3230	3230	3230	3630	3630			4300	4300
			Height mm		2800	2800	2800	2800	3000	3000	3000	3500	3500			3500	3500
