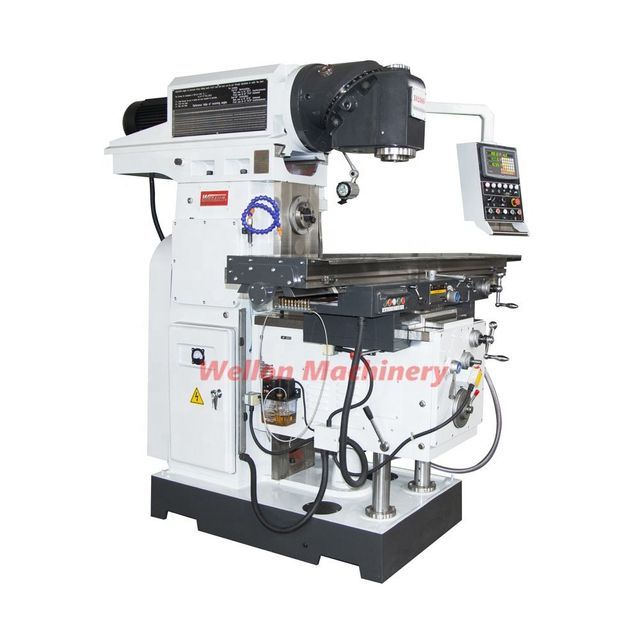

UM1480 Made in China Universal Milling Machine / Rotary Head Universal Milling Machine
- 3000.00 1 - 2 units
- 2900.00 >=3 units
| Main selling points: | competitive price | Marketing Type: | 2020 New Products |
| payment terms: | L/C, T/T | model: | UM1480 |
| Applicable industries: | Hotels, Clothing Stores, Building Materials Stores, Machinery Repair Shops, Manufacturing Plants, Food and Beverage Factories, Farms, Restaurants, Household, Retail, Food Stores, Printing Shops, Construction, Energy and Mining, Food and Beverage Stores, Advertising Agencies | Processing: | Machining |
| Table travel (X) (mm): | 1600 | Voltage: | client needs |
| color: | blue | Table travel (mm): | 1600mm |
| Table travel (Z) (mm): | 600 | Packaging Details: | in plywood case |
| Spindle taper: | ISO50 | Name: | Drilling and Milling Machine |
| Number of axes: | 3 | Key words: | Milling Machine Manual |
| Table travel (Y) (mm): | Chapter 495 | Type of machine: | universal horizontal |
| Health status: | new | Video outbound inspection: | if |
| Dimensions (L*W*H): | 2300x2300x2270 | Function: | Milling Drilling Tapping Milling Chamfering |
| Processing capacity: | relaxing work | After Warranty Service: | Video technical support, online support |
| Core component warranty: | 1 year | Showroom location: | not any |
| Local service locations: | Türkiye, Indonesia | Certification: | CE certificate |
| type: | general purpose, vertical | Mechanical test report: | if |
| Warranty: | 3 years | Spindle speed range (rpm): | 50 - 1520 rpm |
| Origin: | Shandong Province, China | After-sales service provided: | Online support, free spare parts, on-site maintenance and repair services |
| product name: | Horizontal universal milling machine | Year: | 2021 |
| Model: | UM1480 | Core components: | Motors, gears, gearboxes |
| Weight (kg): | 4100 | brand: | Willon |
feature:

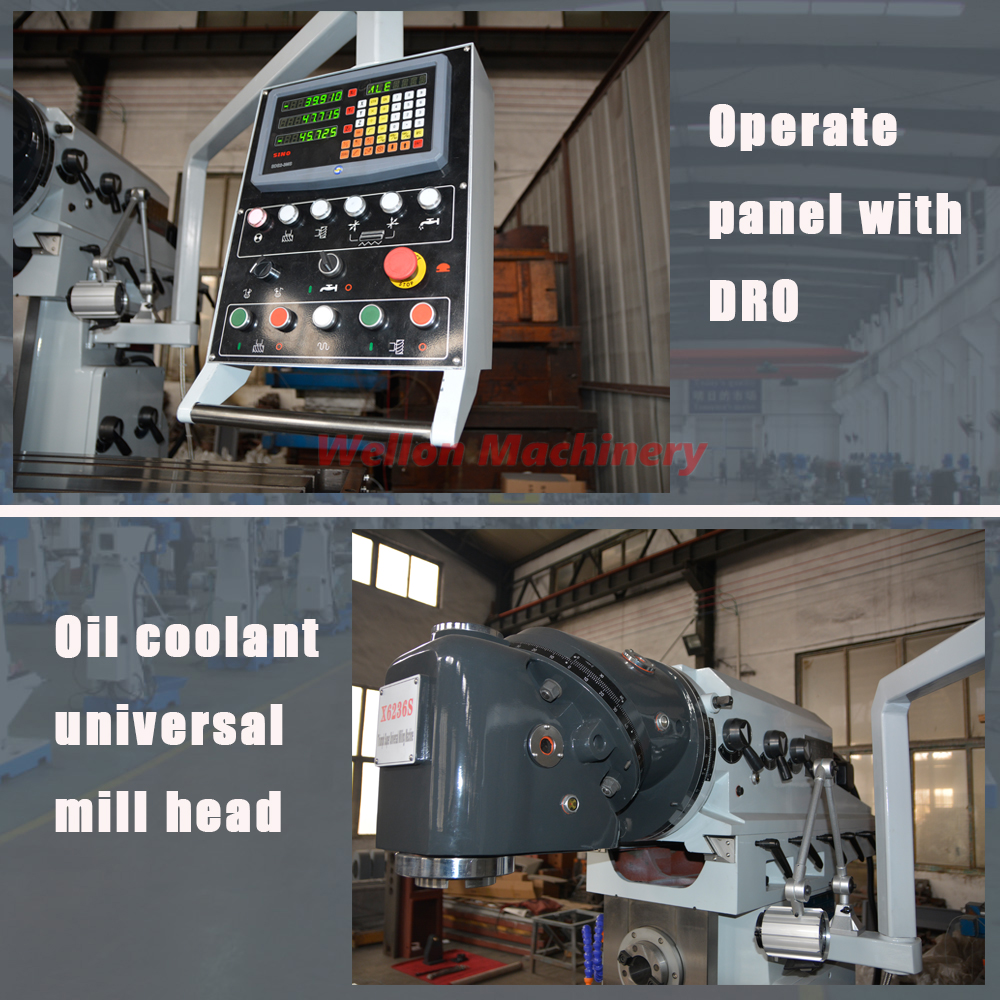

The two-joint milling head can rotate 360 degrees, and can perform multi-directional point milling.

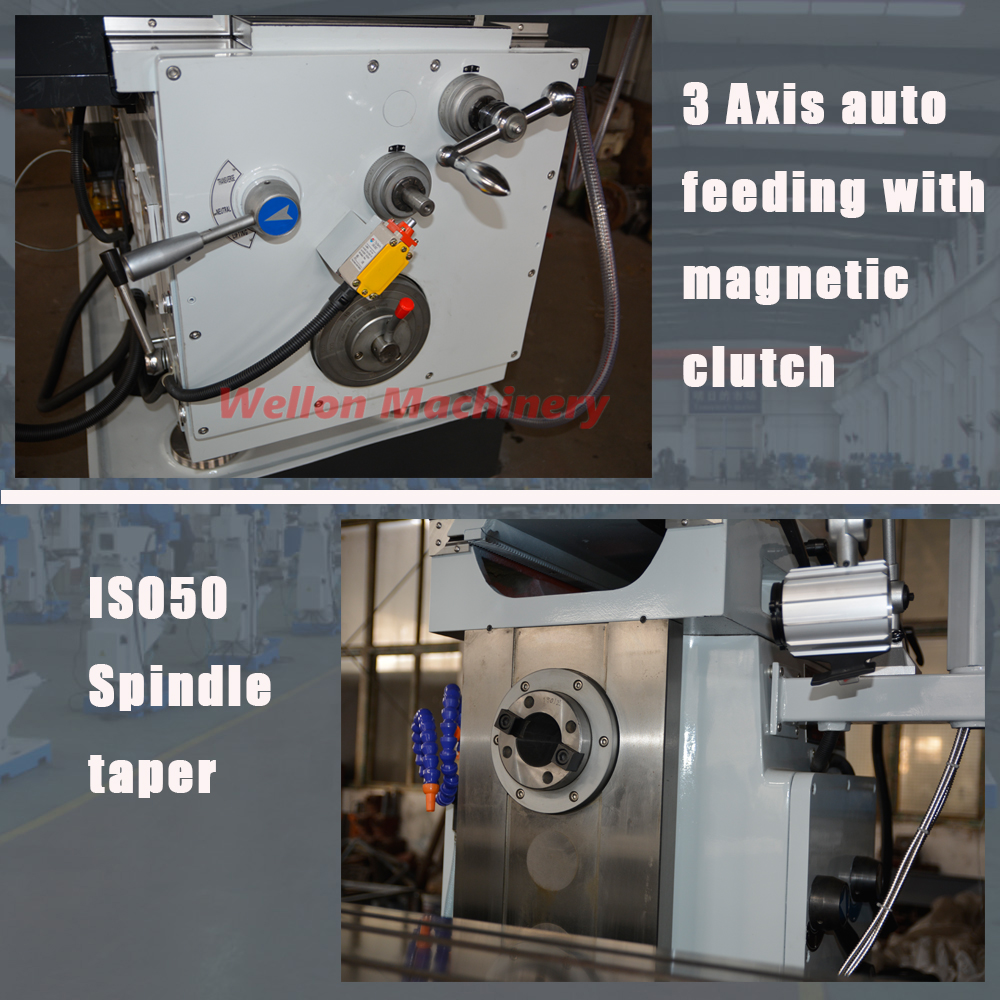

The speed change of XYZ axis adopts fire pin type, gear transmission and automatic feeding.
Technical Parameters:
|
Model |
UM1480 |
|
Spindle taper |
ISO50 |
|
Distance from spindle to column surface |
0-1000mm |
|
Distance from spindle end face to worktable surface |
50-650mm |
|
Horizontal spindle center to table distance |
440 mm |
|
Spindle speed range |
12 levels 50-1520rpm (vertical) 12 levels 60-1850rpm (horizontal) |
|
table size |
2000×400mm |
|

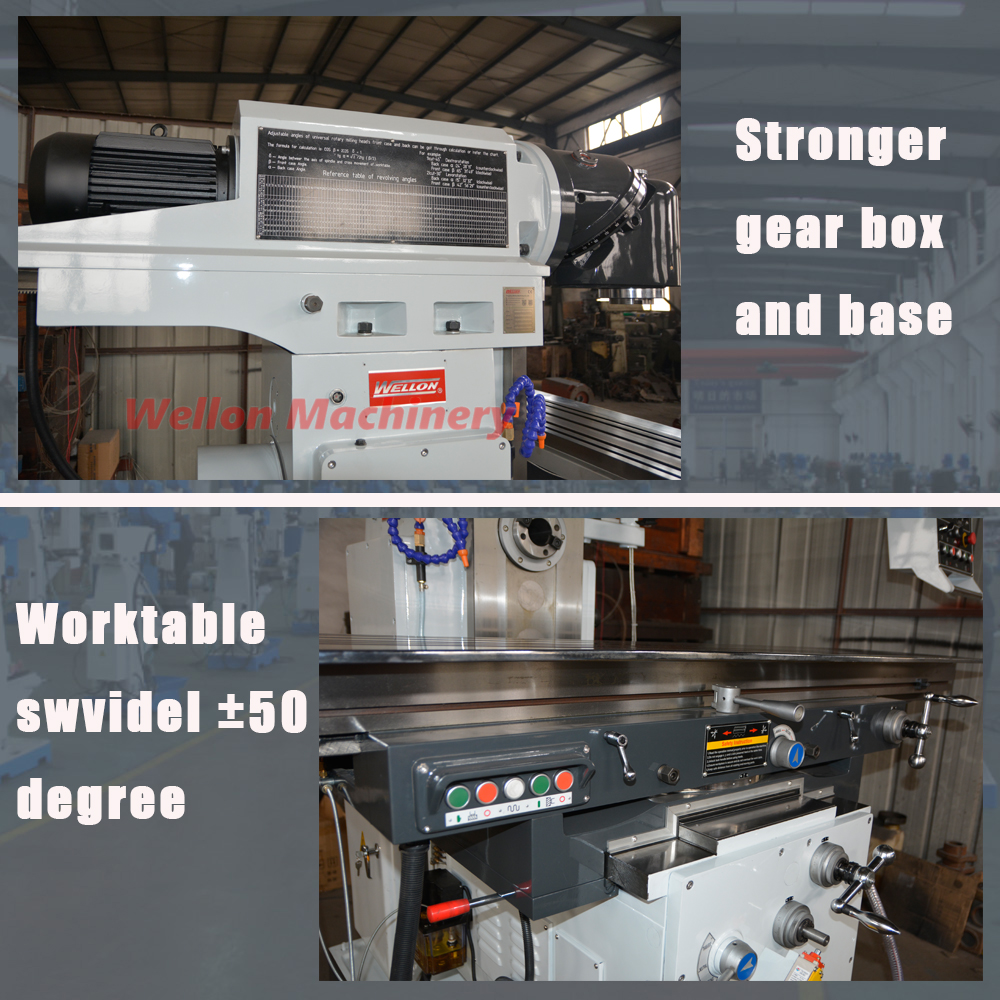

Table rotation angle |
45° |
|

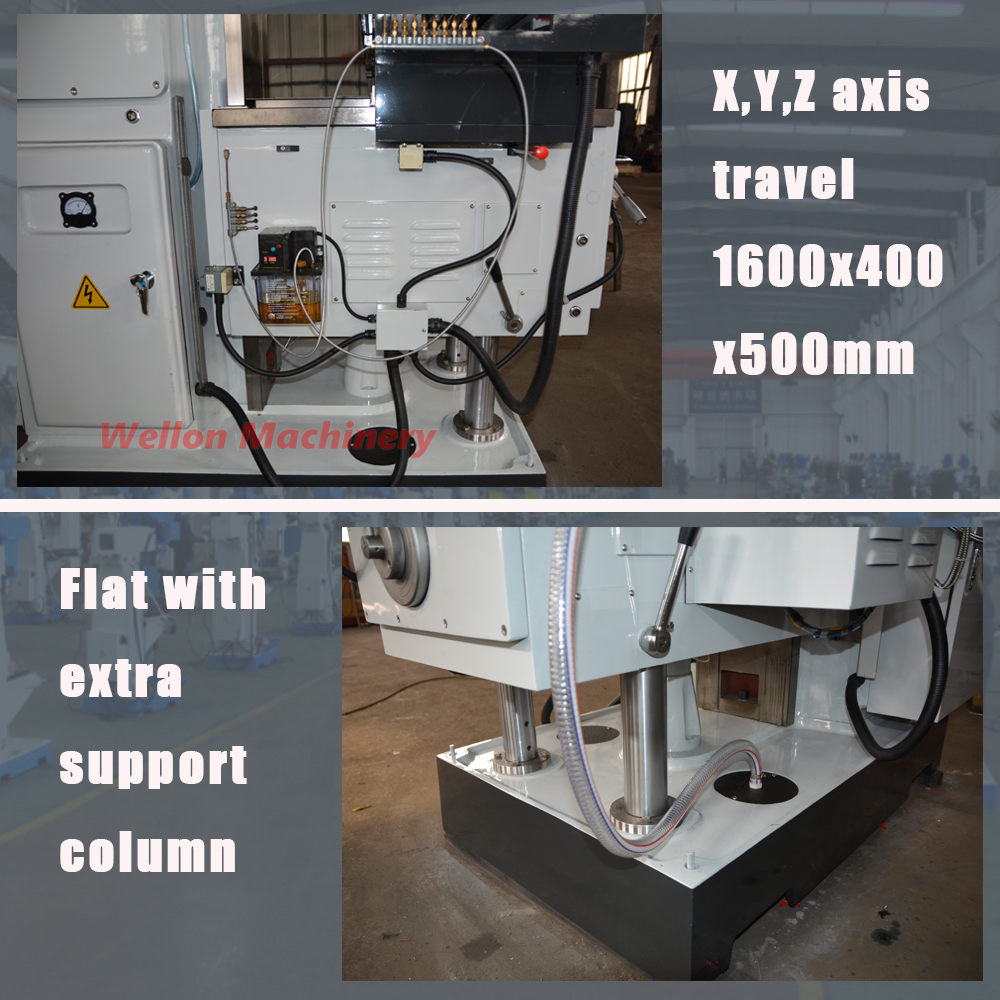

Table stroke X axis |
1600mm |
|
Cross Y axis |
495 mm |
|
Vertical Z axis |
600mm |
|
X, Y axis feed |
8 steps 22.4-560mm/min |
|
Z axis feed |
8 steps 11.2-280mm/min |
|
Table T-slot |
3 |
|
width |
18mm |
|
distance |
90mm |
|
main motor |
Vertical 7.5kw Horizontal 5.5kw |
|
Feeding motor |
3 kW |
|
coolant pump motor |
90 watts |
|
Dimensions |
2300×2300×2270mm |
|
net weight |
4100 kg |
