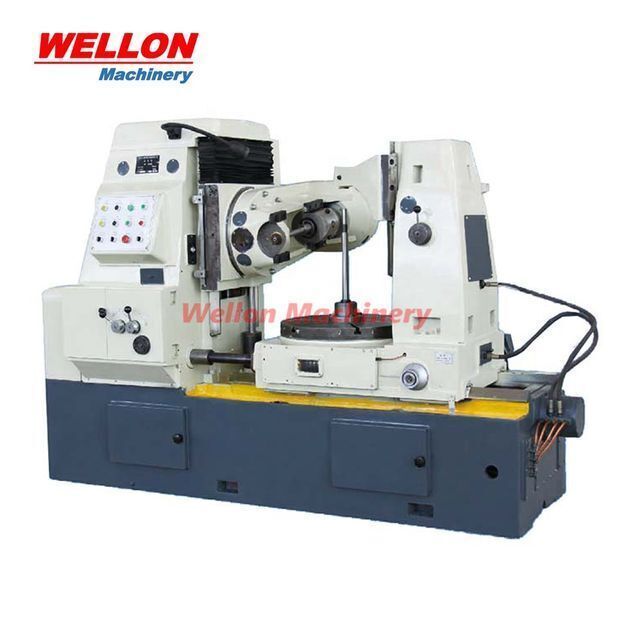

High Precision Gear Hobbing Machine Price Y3180E
- 18000.00 1 - 4 units
- 16000.00 >=5 units
| Packing: | Wood Box; | After Warranty Service: | Video technical support,Online support; |
| Condition: | New; | Machinery Test Report: | Provided; |
| Selling Units: | Single item; | Keyword: | Hobing Machine; |
| Product type: | Pfauter Gear Hobbing Machine; | After-sales Service Provided: | Online support,Video technical support,Free spare parts; |
| Single package size: | 120X150X210 cm; | Voltage: | Customized Optional; |
| Marketing Type: | New Product 2020; | Local Service Location: | Indonesia,India; |
| Product name: | Gear Shaping Hobbing Machine; | Key Selling Points: | Easy to Operate; |
| Packaging Detail: | In plywood case; | Name: | Gear Hobbing Machine; |
| Showroom Location: | None; | CNC or Not: | Normal; |
| Certification: | ISO CE; | Brand Name: | WELLON; |
| Warranty: | 1 Year; | Core Components: | Motor; |
| COLOR: | Customers' Require; | Type: | Gear Hobbing Machine; |
| Video outgoing-inspection: | Provided; | Weight (KG): | 5500; |
| Single gross weight: | 1300.0 KG; | Warranty of core components: | 2 years; |
| Machine Type: | Horizontal Structure; | Processing: | Cast; |
| Applicable Industries: | Hotels,Manufacturing Plant,Machinery Repair Shops,Food & Beverage Factory,Farms,Retail,Food Shop,Printing Shops,Construction works ,Energy & Mining; | Feature: | Steady; |
| Place of Origin: | Shandong China; | Gear Material: | Steel; |
Features:
1.The machine is suitable for large batch and single production of cylindrical spur and helical gears, worm gears and sprocket.
2.The machine is characterized by good rigidity, high strength, high working accuracy, and easy in operation and maintain.
3. The machine can be operated not only with forward and backward cutting, but also with axial or radial feed.
Technical Parameter :
|
Item |
Y3180E |
|
Max workpiece dia |
with rear column:550m |
|
without rear column:800mm |
|
|
Max module |
10mm |
|
Max workpiece width |
300mm |
|
Min number of teeth of workpiece |
12 |
|
Tool head max vertical travel |
350mm |
|
Distance from hob cutter center to worktable face |
max585mm |
|
min235mm |
|
|
Spindel taper |
morse5 |
|
Hob cutter |
max dia 180mm |
|
max length 180mm |
|
|
Arbor dia |
22 27 32 40 |
|
Distance from hob cutter axes center to worktable axes center |
max 550mm |
|
min 50mm |
|
|
Worktable hydraulic move distance |
50mm |
|
Worktable aperture |
80mm |
|
Worktable dia |
650mm |
|
Spindle rotate step,range |
8step 40-200r/min |
|
Worktable move speed |
less than 500m/min |
|
Main motor power and rotate speed |
N=5.5KW 1500r/min |
|
Machine weight |
5500kg |
|
Machine size |
2752X1490X1870mm |
