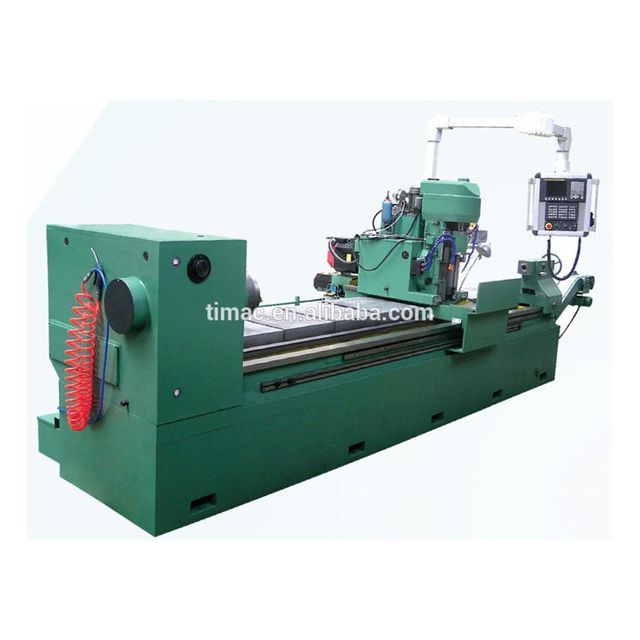

CNC spline shaft milling machine (horizontal gear hobbing machine) schedule
-
Supplier: Zhengzhou Timeway Machine Tool Co., Ltd. -
Region: Henan, China -
Contact: Mr David Cheung -
Price: $125900.00 / 1 - 1 sets
$120000.00 / >=2 sets -
Min. Order: 1 set
| warranty period: | 1 year | Warranty: | 1 year |
| Supply capacity: | 100 sets per year | Showroom location: | Vietnam, Peru, Thailand, Argentina, Romania, Malaysia |
| type: | Hobbing machine | Marketing Type: | normal product |
| Weight (kg): | 15000 | Origin: | China |
| Health status: | new | weight: | 16000-23500kg |
| Video shipment inspection: | if | CNC spline shaft milling machine: | diameter. 400x3000-6000mm |
| Applicable industries: | Manufacturing plants, machine repair shops, construction works | Certification: | ISO9001:2008, CE, TUV |
| Mechanical test report: | if | Core component warranty: | 1 year |
| Core components: | engine | CNC or not: | CNC |
| Dimensions (L*W*H): | 6600~8800x2200x2220mm | payment terms: | L/C, Western Union, T/T |
| port: | Chinese port | Packaging Details: | wooden box (fumigation) |
| brand: | Tiamc, time and space | Voltage: | base on needs |
| CNC gear hobbing machine: | diameter. 300x3000-6000mm | Main selling points: | automatic |
| After-sales service provided: | Engineers available to service machinery overseas |
feature:
1. This machine is used for hobbing straight teeth, helical spline shafts, straight teeth, and helical cylindrical gear workpieces of various tooth shapes, and can also hob straight teeth, helical gears, connecting shaft gears, and cutting conical flowers. Keys, conical bottom splines and stepped gears.
2. The machine adopts the electronic gear box to control the index, and the adjustment drive and the movement of the hob are automatically completed by CNC. And the cutting efficiency is high, and cold cutting can be realized under cold wind conditions.
3. This machine can automatically complete single indexing, single indexing, single cutting, and single cutting with a board knife.
4. It is suitable for cutting various toothed spline shafts and gears in the machinery manufacturing industry.
| Specification | HMK6030 | HMK6040A |
| Maximum machining diameter | Φ300mm | Φ400mm |
| Maximum modulus to be processed | 10mm | 12mm |
| workpiece length | 3000~6000mm | 3000~6000mm |
| Maximum processing length | 2500~5500mm | 2500~5500mm |
| Processing teeth range | Arbitration | Arbitration |
| Machine center height | 470mm | 470mm |
| Maximum installable milling cutter size | Φ180x230mm | Φ200x240mm |
| Maximum stroke of tailstock sleeve | 70mm | 70mm |
| Milling head adjustment angle | ±45(degrees) | ±45(degrees) |
| Number of reels to be rolled | 4~6 axis | 4~6 axis |
| the number of axes to follow | 4 axis | 4 axis |
| gear to be processed | Straight / Helical | Straight / Helical |
| Overall Dimensions (LxWxH) | 6600~8800xx2200x2220mm | 6600~8800x2200x2220mm |
| machine weight | 16000~23000kg | 16500~23500kg |
-
