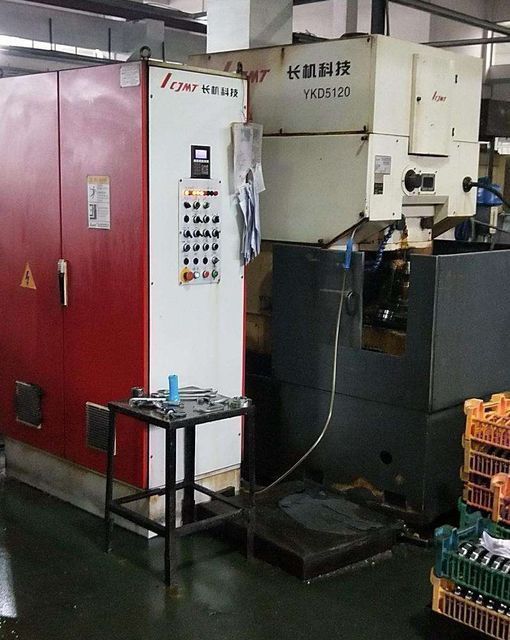

200mm gear shaper YKD5120D

Supplier: Lianglu Transmission Machinery Plant
Region: Chongqing, China
Contact: Mr hao Guo
Price: $30000.00 /set
Min. Order: 1 set

Click here to contact

Product details

CNC or not:	CNC	Weight (kg):	8500
Core Components Warranty:	Not available	After Warranty Service:	Online support
place of origin; place of origin:	Chongqing, China	Power (kW):	13
payment terms:	L/C,Western Union,T/T	year:	2020
Core components:	motor	Showroom location:	not any
Video external inspection:	Not available	Main selling point:	Sustainable
Health status:	used	Voltage:	380v
Warranty:	1 year	brand:	Yangtze
After-sales service provided:	Online support	Applicable industries:	manufacturing plant
type:	Gear Shaping Machine	Dimensions (LWH):	200200300
Mechanical test report:	Not available	Marketing Type:	normal product

t It is mainly used for processing internal and external cylindrical gears, helical gears, straight-sided internal splines and end face connecting rods. Inverted bevel gears can be processed by YKD5120×3.

The main movement is driven by a stepless AC variable frequency motor.

Both circular feed (X axis) and radial feed (C1 or C2 axis) are driven by AC servo motors.

The machine has the following functions: the cutter stops at its highest position, cuts with a small number of teeth, and retracts the cutter obliquely.

Specification	YKS5120×3	YKS5120B×3	YKD5120×3
maximum. Outer diameter (mm)	200	200	200
maximum. Inner diameter (mm)	100+ days	100+ days	100+ days
maximum. Module(mm)	6	6	6
maximum. Face width(mm)	50	50	50
maximum. journey(mm)	60	60	60
Travel speed (str/min)	125~1250	125~1250	125~1250
Unloading amount (mm)	≥0.3	≥0.3	≥0.3
Axial sliding stroke range of cutter head	-	-	-
Stroke position adjustment amount (mm)	30	30	30
Spindle diameter (mm)	85	85	85
Table diameter (mm)	300	300	250
Table tilt angle	-	-	±12°
Distance between tool spindle axis and table (mm)	-55~175	-55~175	-55~175
Distance from the front end of the spindle to the table surface (mm)	245~335	190~280	185~275
Total power (kw)	13.3	15.2	13.3
Total weight (kg) approx.	9000	9000	9000
