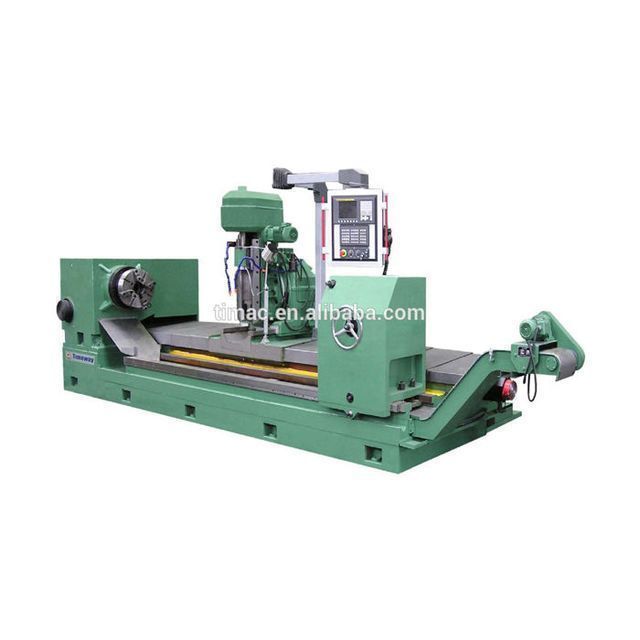

CNC Spindle Milling Machine (Horizontal Gear Cutting Machine)

Supplier: Zhengzhou Timeway Machine Tool Co., Ltd.
Region: Henan, China
Contact: Mr David Cheung
Price: $65000.00 / 1 - 2 sets
$62000.00 / >=3 sets
Min. Order: 1 set

Click here to contact

Product details

Warranty:	1 year	port:	Chinese port
payment terms:	L/C, Western Union, T/T	Certification:	ISO9001:2008, CE, TUV
Showroom location:	United States, Italy, Peru, Pakistan, Russia, Thailand, South Korea, Uzbekistan, Australia	After-sales service provided:	online support
Core components:	engine, gearbox	Weight (kg):	13000
Voltage:	upon request	weight:	13000 kg
Dimensions (LWH):	5100x2135x1990mm	Packaging Details:	wooden box (fumigation)
CNC or not:	CNC	State of health:	new
place of origin; place of origin:	China	Mechanical test report:	if
Marketing Type:	normal product	Supply capacity:	100 sets per year
Core component warranty:	1 year	Power (kW):	30
brand:	Tiamc, time and space	Applicable industries:	Clothing stores, building materials stores, manufacturing plants, machinery repair shops, food and beverage factories, construction projects, energy and mining, advertising agencies
CNC gear hobbing machine:	diameter. 160x3000mm	CNC spline shaft milling machine:	diameter. 160x3000mm
Types of:	Hobbing machine	Video shipment inspection:	if
Main selling points:	competitive price

Product Description

feature:

1. This machine is used for hobbing spur splines of various tooth shapes, it can also be used for cutting straight collecting shaft gears, and it can also be used for cutting tapered splines and stepped gears.

2. All mechanical systems and parts have high rigidity, compact structure, and perfect protection functions. The hob speed is steplessly adjustable from 60-600r/min, and can also reach 200-600r/min. The maximum speed of the workpiece is 100 rpm, and the cutting efficiency is quite high. .

3. In addition, dry cutting can be realized under air-cooled conditions.

Specification	HMK6016
Maximum machining diameter	Φ160mm
Maximum modulus to be processed	5 mm
workpiece length	3000mm
Maximum processing length	2750mm
Processing teeth range	4~60(tooth)
Machine center height	370mm
Maximum installable milling cutter size	Φ130x200mm
Maximum stroke of tailstock sleeve	50mm
Milling head adjustment angle	±15(degrees)
Number of reels to be rolled	2 axis
the number of axes to follow	2 axis
gear to be processed	straight teeth
Overall Dimensions (LxWxH)	5100x2135x1990mm
machine weight	13000 kg
