Y3150 gear hobbing machine large module hobbing machine for sale

Supplier: Henan Wadley CNC Machinery Co., Ltd.
Region: Henan, China
Contact: Ms Wadley Li
Price: $7300.00 / 1 - 9 sets
$6500.00 / >=10 sets
Min. Order: 1 set

Click here to contact

Product details

Max module:	5/6MM	Voltage:	380V
Warranty:	1 year	type:	Hobbing machine
Gear Accuracy:	High	Main selling point:	competitive price
Mechanical test report:	if	Power (kW):	5.5KW
Key words:	Gear hobbing machine Y3150	Gear Material:	cast iron/steel
Gear capacity:	spur gear	Weight (kg):	2800
Health status:	new	Packaging Preview:
Supply capacity:	1000 sets per month	maximum. Workpiece diameter:	500mm
Model:	Y3150/Y3180	port:	Qingdao, gear hobbing machine
Core Components Warranty:	1 year	Showroom location:	not any
Packaging Details:	Y3150 gear hobbing machine large module gear hobbing machine standard export packaging for sale	payment terms:	L/C,T/T,Gear hobbing machine
product name:	Modular gear hobbing machine	Applicable industries:	retail
brand:	wadley machine	CNC or not:	normal
Dimensions (LWH):	2440x1270x1920mm	Marketing Type:	normal product
place of origin; place of origin:	Henan, China	color:	White and green
Core components:	gear	Video external inspection:	if
Type of machine:	Hobbing machine

Product Description

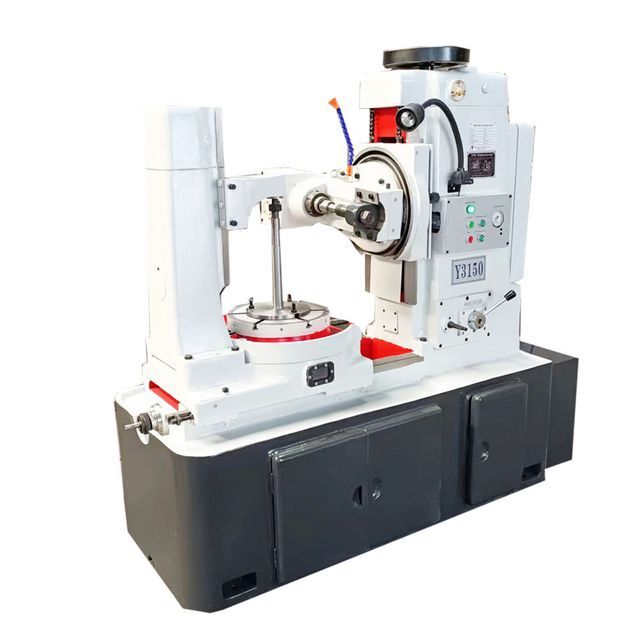

Y3150 Gear Hobbing Machine.

1. Easy to operate and maintain.

2. The machine has the characteristics of good rigidity, high working precision, convenient operation and maintenance, etc. 3. The machine tool can not only cut forward and reverse, but also feed axially or radially.

4. This machine is suitable for large-scale single-piece production of cylindrical straight, helical gears, worm gears and sprockets. 5. According to the special needs of users, the tool can be raised or lengthened to expand the precision range of the machine tool.

Product parameters

Model	Y3150	YK3150	Y3180	YK3180
Maximum workpiece diameter (mm)	350/500	350/500	550/800	550/800
control method	Mechanical	KND/GSK	hydraulic	KND/GSK
Maximum modulus (mm)	5/6	5/6	8/10	8/10
Maximum processing width (mm)	250	250	300	300
Hob diameter (mm)	160	160	180	180
Hob hole diameter (mm)	Φ22, Φ27, Φ32	Φ22, Φ27, Φ32	Φ22, Φ27, Φ32, Φ40	Φ22, Φ27, Φ32, Φ40
Maximum hob diameter X length (mm)	160*160	160*160	160*160	180*180
Table diameter (mm)	520	520	650	650
Main motor power (kw)	4	4	5.5	5.5
Net weight/GW(kg)	2500	2700	5500	5700

Yes3150 gear hobbing machine

(1) This machine tool is suitable for batch, small batch and individual production of cylindrical gears and worm gears, and is suitable for hobbing spline shafts within a certain parameter range.
(2) The rigidity of the machine tool is good, the thermal deformation is extremely small, high-speed cutting and load cutting can be realized, and the production efficiency is extremely high.
(3) The machine tool is easy to adjust, with automatic shutdown mechanism, reliable safety mechanism and automatic lubrication system.

Four types to choose from

Details display

control box.

(1) One-button operation, fast and practical, without strict operation skills. (2) The design is simple, safe and practical, and the voltage can be customized. (3) Mechanical control and intelligent control, two options of Y3150 and yk3150.

Roulette.

(1) High-frequency quenching table. (2) High hardness, no deformation, sturdy and durable. (3) When rotating, the processing progress of the gear can be observed at any time.

hob shaft.

(1) High hardness and low loss at room temperature and high temperature. (2) High strength and toughness, remarkable processing effect. (3) High wear resistance, good thermal conductivity and heat resistance.

Hob Knife.

(1) According to the application, it can be divided into gear hob, worm gear hob, fixed hob, etc. (2) It rotates at a fixed speed ratio and cuts the tooth profile of each adjacent position in turn. (3) Special hob can process splines, sprockets and other workpieces with different tooth shapes
