Y5150K Gear Shaper Universal Gear Shaper Manual

Supplier: Xi'an Oulang Mechanical And Electrical Technology Co., Ltd.
Region: Shaanxi, China
Contact: Ms Flika Lee
Price: $8800.00 /set
Min. Order: 1 set

Click here to contact

Product details

gross weight:	6000kg	Video external inspection:	if
Mechanical test report:	if	Supply capacity:	10 sets per month
Showroom location:	not any	Health status:	new
Minimum order quantity:	1 set	Numbering. :	Y5150K
Packaging Preview:		Package:	wooden box
product name:	Gear Shaping Machine	Core Components Warranty:	3 years
Weight (kg):	8000	type:	Gear Shaping Machine
CNC or not:	CNC	Origin:	China
Card:	Aurang	Local service location:	not any
Packaging Details:	Wooden case or customized	After-sales service provided:	Online support, video technical support, free spare parts, on-site installation and commissioning training, on-site maintenance and repair services
After Warranty Service:	Video technical support, online support, spare parts, on-site maintenance and repair services	brand:	Aurang
Main selling point:	high accuracy	Certification:	EU standard
place of origin; place of origin:	Shaanxi, China	port:	Shanghai
Machine size:	2910mmx2120mmx2926mm	Warranty:	5 years
Core components:	PLC, bearing, gearbox, gear, CNC control system	Dimensions (LWH):	2910mmx2120mmx2926mm
Power (kW):	17kW	Applicable industries:	Energy and Mining, Automobile Industry, Motorcycle, Construction Machinery,
Marketing Type:	normal product	harbor:	Shanghai
Voltage:	380V	payment terms:	L/C,D/P,D/A,T/T
Max module:	6mm

Product Description

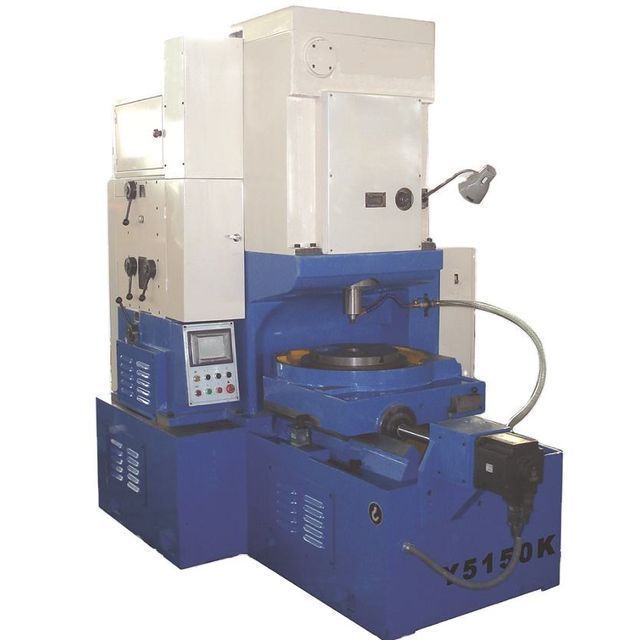

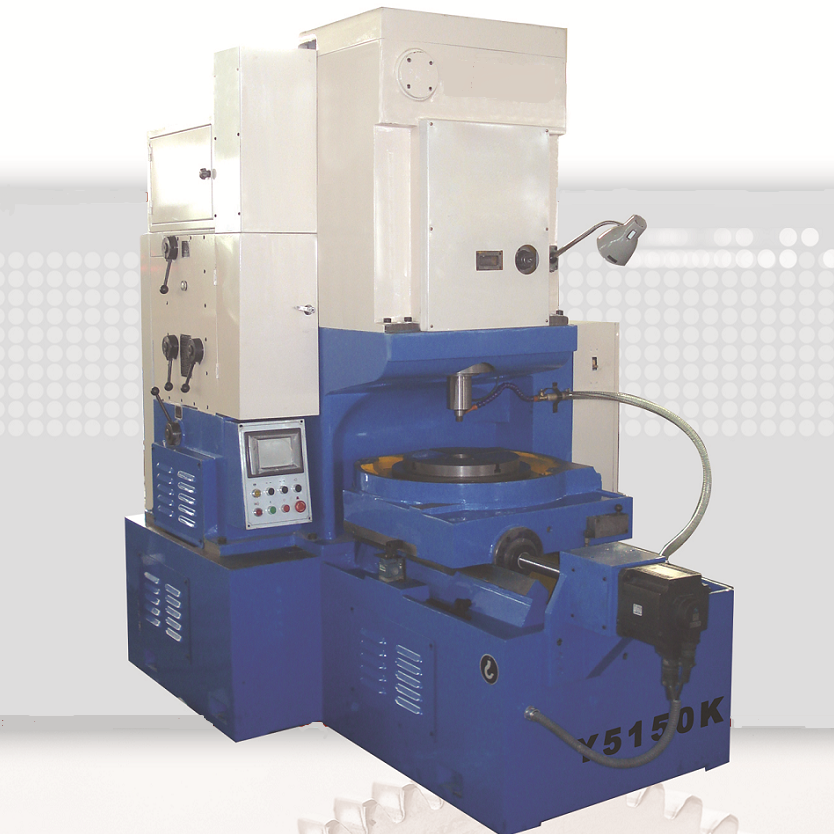

Y5150K Gear Shaper Universal Gear Shaper Manual

Features:
1. Mainly used for the processing of large and medium-sized internal and external cylindrical gears and helical gears (special accessories).
2. According to special requirements, the machine can be equipped with accessories such as cutting racks, shaft gears, helical gears, and pinion bevel gears.
3. The machine has the characteristics of stable operation, low noise, various functions, strong adaptability, convenient installation and simple operation.

Specification

Model	Y5150K
Number of control axes	1/PLC
maximum. Diameter: External Gear	Ø 500 mm
maximum. Diameter: Internal Gear	Ø 600 mm
maximum. module	6 mm
maximum. tooth width	100 mm
maximum. Tool shaft stroke length	110 mm
Tool shaft teeth per minute	80~320 force/min
rotary feed	0~2mm/str
radial feed
maximum. Radial stroke
unloader	≥0.5mm
Neck diameter	Ø 31.75 mm
maximum. Spindle diameter	Ø 80 mm
Table diameter	Ø 380 mm
Workbench drilling path	Ø 80 mm
maximum. table speed	6 rpm
Distance from tool center to table center	0~320mm
The distance between the tool mounting surface and the work surface	50~250mm
main motor	5.5kW
drive motor power	8.5kW
Dimensions LxWxH	2910x2120x2926 mm
weight	6000 kg

According to the special requirements of users, we can design and manufacture helical gears, rack accessories processing accessories, gear processing accessories, deburring devices and automatic feeding devices. This machine tool is especially suitable for mass production of automobiles, motorcycles, construction machinery, production of professional gears and various production batches in the machine tool industry.
