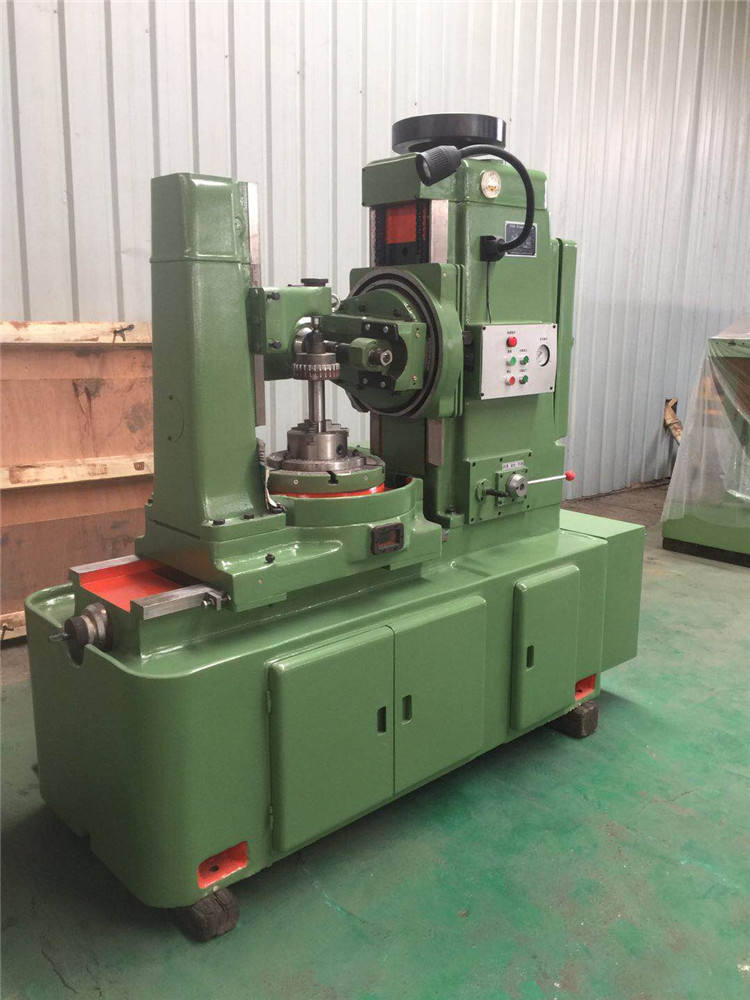

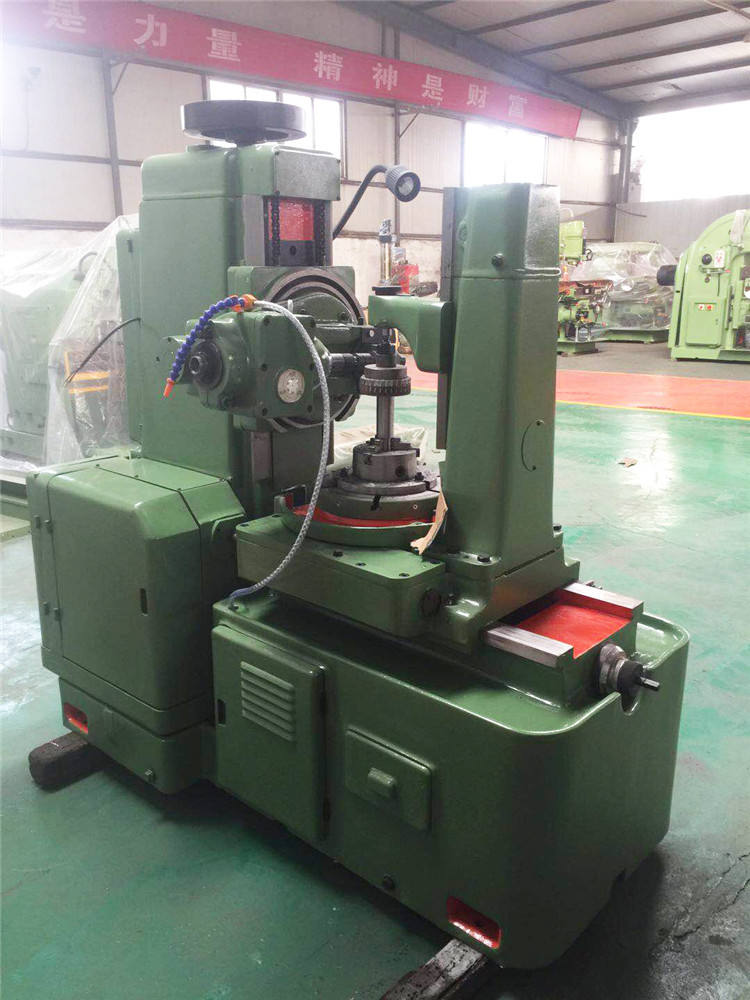

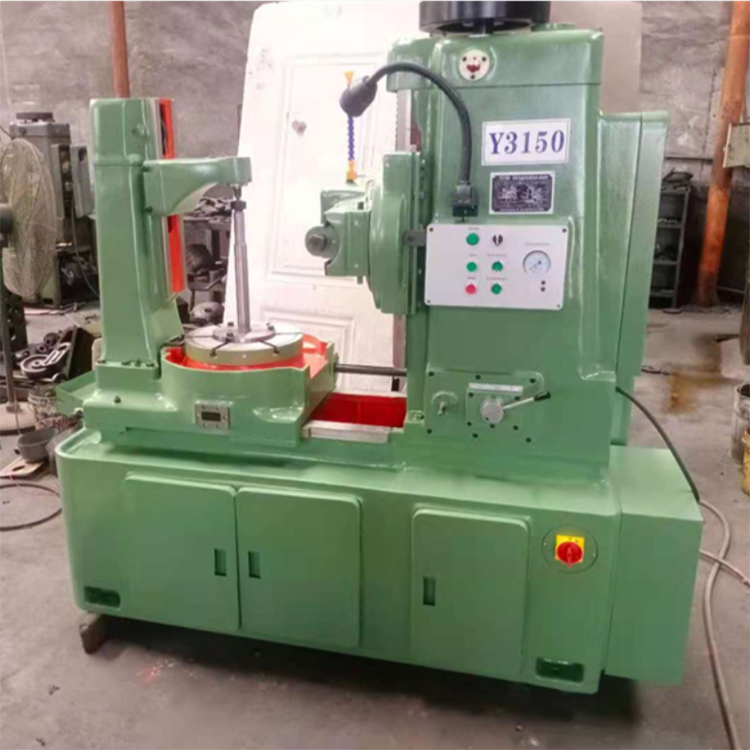

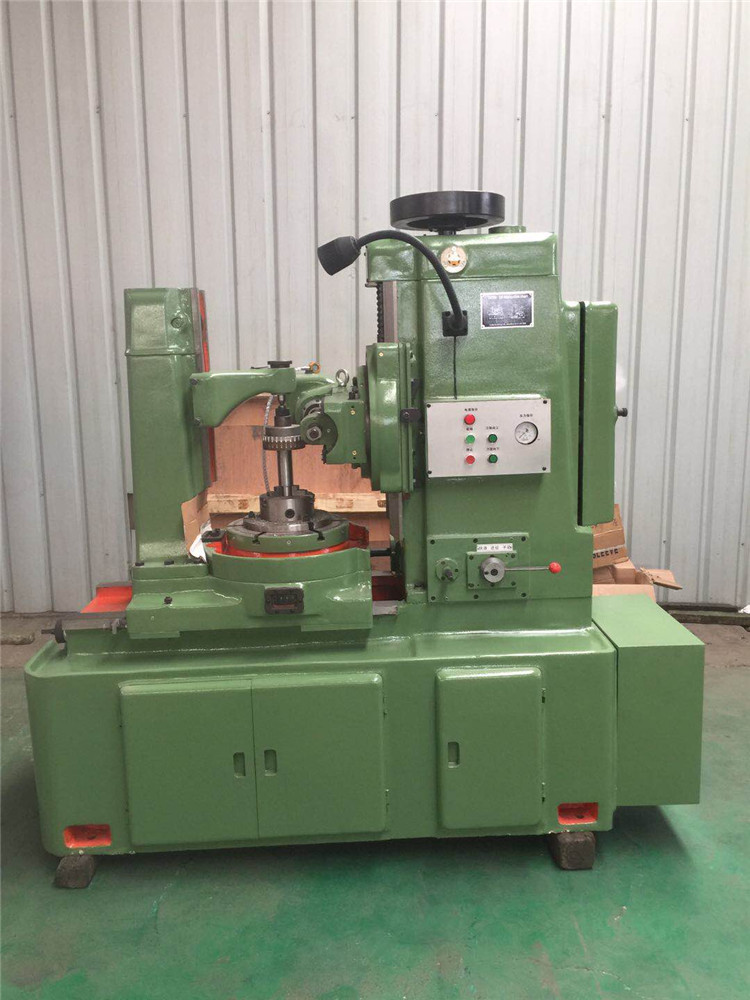

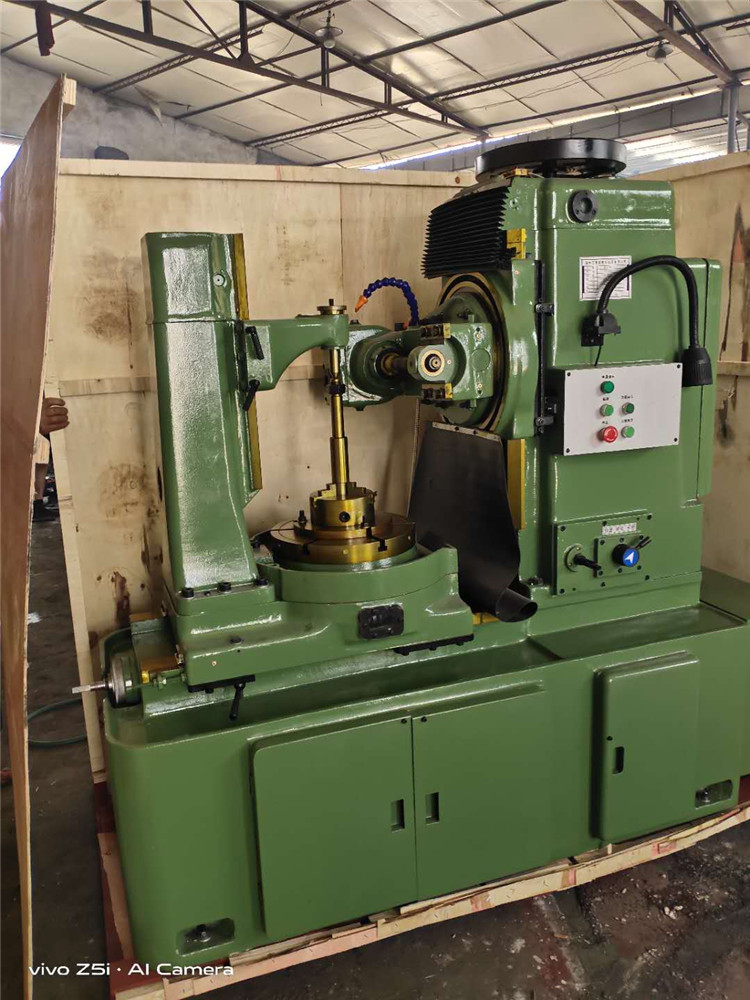

Y3150 machining cylindrical gear machine hobbing machine for sale

Gear hobbing machines are widely used in various machinery manufacturing industries such as automobiles, tractors, machine tools, construction machinery, mining machinery, metallurgical machinery, petroleum, instrumentation, aircraft and spacecraft. It is a gear machining machine used for machining various cylindrical gears, bevel gears and other toothed parts. There are many types of gear processing machines, such as small machine tools that process gears with a diameter of several millimeters, large machine tools that process more than ten meters in diameter, and high-precision machine tools that process high-efficiency precision gears. mechanical tools.
The machine has automatic shutdown structure, safety device and automatic lubrication system. According to the special order of users, imported hydraulic components can be equipped. It is also available with a tangential tool holder for machining worm gears with tangential feed.

Features of Y3150E gear hobbing machine:

1. The machine is equipped with a hydraulic balance device to balance the cutting resistance of the tool holder.
2. Easy to adjust, with automatic parking mechanism and automatic lubrication system
3. The hydraulic lift of the tailstock is convenient, fast and flexible.
4. The machine tool has sufficient rigidity. When hobbing, it can be machined to the required tooth depth at one time, or it can be cut in several times (layered cutting). In layer cutting, changes must be made according to certain rules. For the second cutting amount, if the appropriate cutting speed, feed rate and reasonable depth of cut are selected, and the workpiece is accurately installed, the machine tool can cut seven-grade precision gears.
