Universal Gear Hobbing Machine Y3150

Supplier: Henan Wadley CNC Machinery Co., Ltd.
Region: Henan, China
Contact: Ms Wadley Li
Price: $7500.00 /set
Min. Order: 1 set

Click here to contact

Product details

Port:	Qingdao/Shanghai;	Max Module:	5/6MM;
Video outgoing-inspection:	Provided;	Certification:	CE;
Type:	Gear Hobbing Machine;	Applicable Industries:	Manufacturing Plant,Construction works ;
Warranty:	1 Year;	Gear Material:	Cast Iron/Steel;
Payment Terms:	L/C,T/T,Western Union,MoneyGram;	Showroom Location:	None;
Power (kW):	5.5;	Max diameter of hob:	120MM;
Marketing Type:	Ordinary Product;	Weight (KG):	2500;
Main motor speed:	1430 r/min;	Machine Type:	Hydraulic Gear Hobbing Machine;
Warranty of core components:	1 Year;	Max diameter of workpiece:	500mm;
Key Selling Points:	High-accuracy;	Diameter of workingtable hole:	60mm;
Place of Origin:	Henan China;	Product name:	Gear Shaping Hobbing Machine;
CNC Control System:	GSK/Fanuc;	Local Service Location:	None;
CNC or Not:	Normal;	Supply Ability:	50 Set/Sets per Month;
Brand Name:	Wadley;	Packaging Detail:	Standard import and export wooden box packaging;
Voltage:	380V;	Machinery Test Report:	Provided;
Package Preview:	;	Core Components:	PLC,Gear;
Dimension(LWH):	200011001900;	Diameter of worktable mandrel:	30mm;
Condition:	New;	After Warranty Service:	Video technical support,Online support;

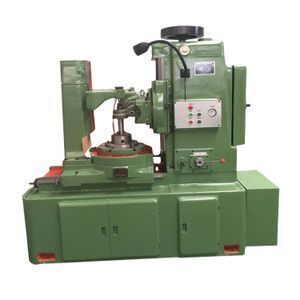

Universal Gear Hobbing Machine Y3150

Product Description

Product Introduction:

Y3180/Y3150 series gear hobbing machine is fixed by vertical column and adopts the traditional layout of horizontally moving working table, suitable for processing cylindrical gears, worm wheel and short spline shaft in bulk, in package, or in single workpiece. The machine has the following characteristics:

Raised height for vertical column and increased stroke: The vertical column is made higher (180/130mm increased axial stroke in head slide than Y3180/Y3150 of the same kind) to enable processing of larger tooth width.
Service life of cutting tools is increased by electric tool leap. The longest stroke reaching 180mm, such electric tool leap takes longer hob and greatly increases life the hob.
High precision and long service life: The machine adopts the worm gear of a high precision over five grade and uses bronze alloy material which is of high abrasion resistance, enabling long service life and steady accuracy.
Higher tool speed allowed: Rolling bearings replace the traditional bearings along the hobs to allow greater rotating speed of the tools.
Backlash balancing cylinder is involved as the tool post moves in the axial direction, effectively reducing the space between lead screws and eliminating vibration.
Convenient hydraulic powered structure reduces the non-cutting time as well as the times to use the cutting tools.
External support of the small column tailstock adopts the hinge structure and can be easily opened outward, convenient to hang components of larger diameters(Y3180).

Product Features:
1, The machine is suitable for large and single production of cylindrical spur and helical gears, worm gears and sprocket.

2, The machine is characterized by good rigidity, high working accuracy, easy in operation and maintain.

3, The machine can be operated not only with forward and backward cutting, but also with axial or radial feed.

4, According to the special needs of users, can be raised or extended tool to expand the scope of the processing machine accuracy.

5, Easy in operation and maintain.

Machine Parameter

Model	Y3150	Y3180
Max workpiece diameter(with rear column/without rear column)	350mm/500mm	550mm/800mm
Max hobbing modulus	8mm	10mm
Max Processing Width	250mm	300mm
Min processing gear	Z/K=6	Z/K=8
Max vertical travel of tool post	300mm	350mm
Max swiver angel of tool post	±240°	±240°
Distance between cutter axis and worktable	235-535mm	235-585mm
Spindle taper	Morse 5	Morse 5
Hob diameter	160mm	180mm
Max axial movement of cutter	--------	50mm
Hob abor diameters	Φ22,Φ27,Φ32MM	Φ22,Φ27,Φ32,Φ40MM
Distance between hob axis center and worktable	30-330mm	50-550mm
Worktable aperture	80mm	80mm
Taper bore of workpiece mandrel	Morse 5	Morse 5
Worktable diameter	520mm	650mm
Spindle rotate speed and range	9Level 40-250R/Min	8Level 40-200R/Min
Rapid travel speed of tool post slide	≤540MM/Min	≤540MM/Min
Worktable rapid moving speed	≤500MM/Min	≤500MM/Min
Distance between worktable	400-600mm	400-600mm
Axial feed rate and degree	12Level 0.4-4MM/R	12Level 0.4-4MM/R
main motor power and synchro-speed	N=4Kw 1500R/Min	N=5.5Kw 1500R/Min
Machine weight	4500kg	5500kg
Overall dimension	244013701800MM	275214901870MM

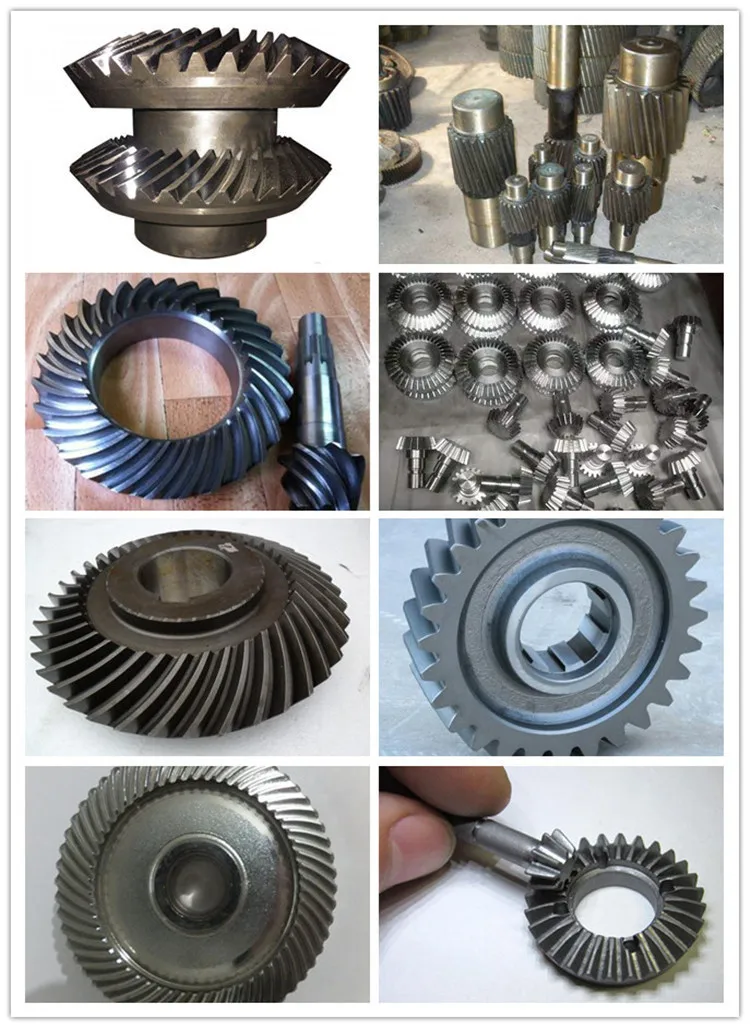

Application
