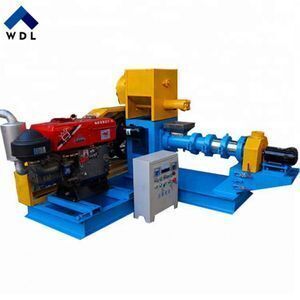

Diesel Engine Floating Fish Feed Pellet Machine / Fish Feed Pellet Extruder Machine

Product details
Type:Feed Pellet Machine;Production capacity:100-500kg/h;
Screw diameter:40-120mm;Applicable Industries:Farms;
Name:Floating fish pellet machine;Supply Ability:500 Set/Sets per Month;
Condition:New;Cuttinh power:0.4-3kw;
Brand Name:WDL;Dimension(L*W*H):1460*1020*1250MM;
Certification:CE ISO SGS;Warranty:1 Year;
Payment Terms:L/C,T/T,Western Union,MoneyGram;Port:Qingdao,Floating Fish Feed Pellet Making Machine;
Place of Origin:Henan China;Motor:Single/three phase electric;
Weight:386 kg;Material size:60-80 mesh;
Pellet size:1-20mm;Machine structure:Cutter, screw, mould die, etc;
Packaging Detail:Non fumigation export wooden package,Floating Fish Feed Pellet Making Machine;Voltage:220V/380V;
After-sales Service Provided:Online support;Material:Wheat, flour, corn, bone powder, etc.;
Usage:Fish;

Diesel Engine Floating Fish Feed Pellet Machine / Fish Feed Pellet Extruder Machine

Product Description



Introduction of Floating Fish Feed Pellet Making Machine

This Floating Fish Feed Pellet Making Machine is widely used for producing maize flour, soybean flour or compound powder, wheat bran into high grade aquatic feed pellets for fish, catfish, shrimps, dog,.cat etc. The puffing fish feed pellets can float on the water surface for over12 hours without water polution.



Requirement of Raw Material

Type: Flour, corn starch, rice bran, meat meal, bone meal, fish meal, etc.

Size: about 60-80 mesh which were crushed and well mixed.

Moisture contentabout 20%-25%

Starch content: ≥30%



Usages of Final Pellets

Aquatic feed pellets: fish, shrimp, frog, etc.

Pet feed pellets: dog, cat, rabbit, chicken, goose, duck, pig, etc.



Features of Floating Fish Feed Pellet Making Machine

  • Fish feed pellet machine adopting international advanced technology, the pellets are very even.
  • We can get the different size and length of pellet diameter ( diameter from 1mm to 8mm).
  • The electric heating device improve the feed expansion rate.
  • High temperature and high pressure can kill the salmonellosis and bacterial infections.
  • Fish feed machine can get the higher-protein animal feed, and easy to digest.

Technical Date of Floating Fish Feed Pellet Making Machine



Technical Data

Model

Capacity

Main power

Feeding power

Screw diameter

Cutter power

Pellet size

DGP50

60-80kg

11kw

0.4kw

Φ50mm

0.4kw

1-8mm

DGP60

100-150kg

15kw

0.4kw

φ60mm

0.4kw

1-8mm

DGP70

180-250kg

18.5kw

0.4kw

φ70mm

0.4kw

1-8mm

DGP80

300-350kg

22kw

0.4kw

φ80mm

0.6kw

1-8mm

DGP90

400-450kg

37kw

1.1kw

φ90mm

0.6kw

1-8mm

DGP120

500-700kg

55kw

1.1kw

φ120mm

1.5kw

1-8mm

DGP135

800-1000kg

75kw

1.1kw

φ133mm

2.2kw

1-8mm

DGP160

1200-1500kg

90kw

1.5kw

φ155mm

2.2kw

1-8mm

DGP200

1800-2000kg

132kw

1.5kw

φ195mm

3.0kw

1-8mm

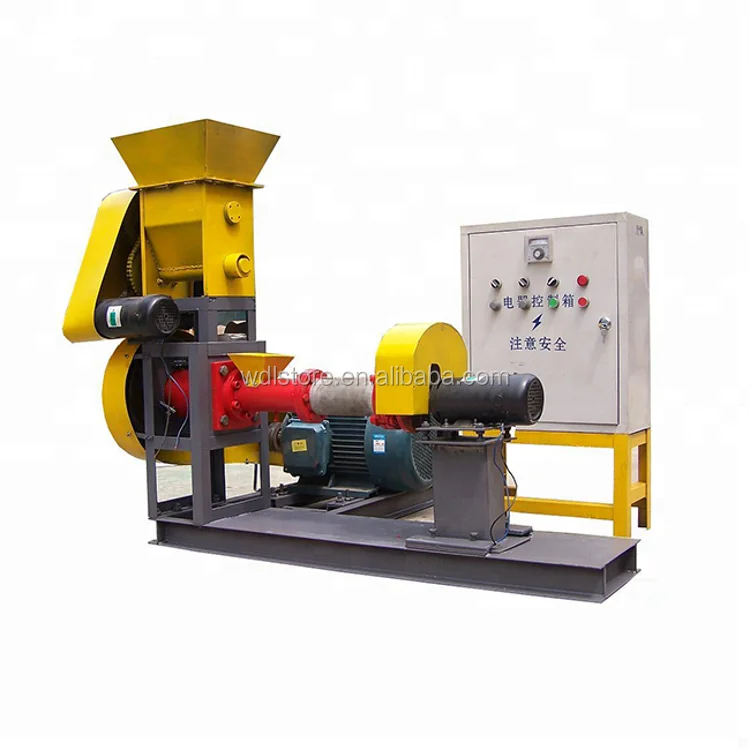

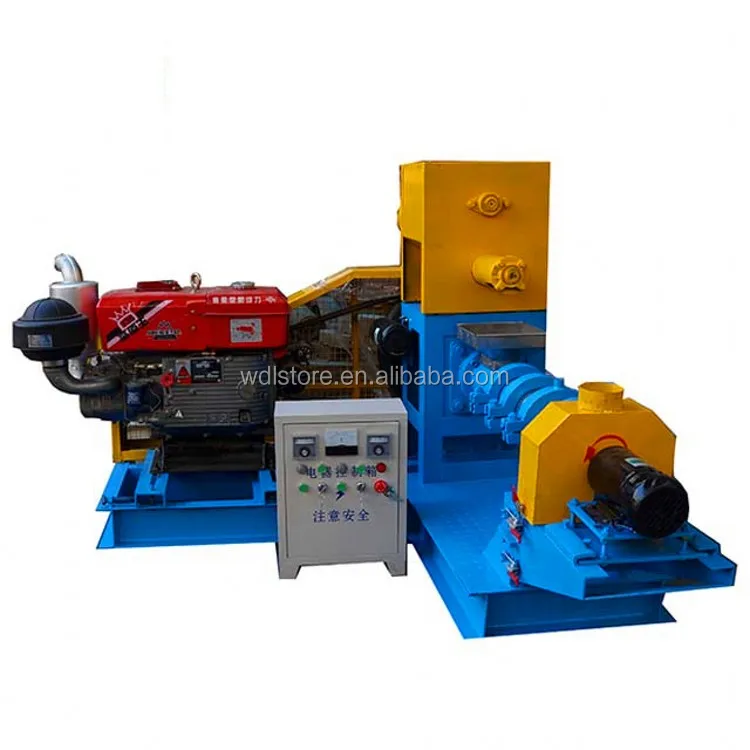

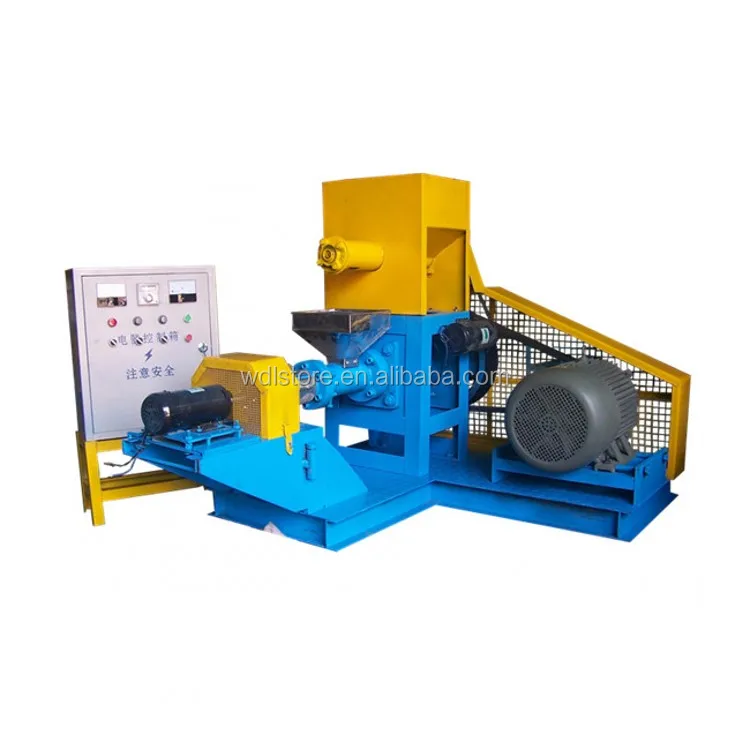

 Display of Floating Fish Feed Pellet Making Machine



Finished of Floating Fish Feed Pellet Making Machine





If you have interest in our products, pls kindly write me email or call me directly.We will offer you best price and service in 24 hours.
