New Design High Quality Poultry Feed Grinder Mixer

Product details
Origin:Henan, Chinaweight:350 kg
payment terms:L/C, T/T, Western UnionSupply capacity:20 sets per month
Voltage:220V/380Vengine:custom made
Certification:International Organization for StandardizationInstall:Engineer's Guide
Material:stainless steel or carbon steel or cast steelapplication:feedlot
type:Grinders and Blenders, Blendersport:Qingdao Tianjin Shanghai
usage:Livestock and poultry pellet machineHealth status:new
color:blue or green or customizedDimensions (L*W*H):1800*1000*2300mm
Key words:grinding mixercapacity:0.5-1.5 tons/hour
After-sales service provided:On-site installation and commissioning training video technical support online supportraw material:cereals
Packaging Details:Standard wooden case and film packing or according to your requirements.Warranty:one year
brand:Haihua

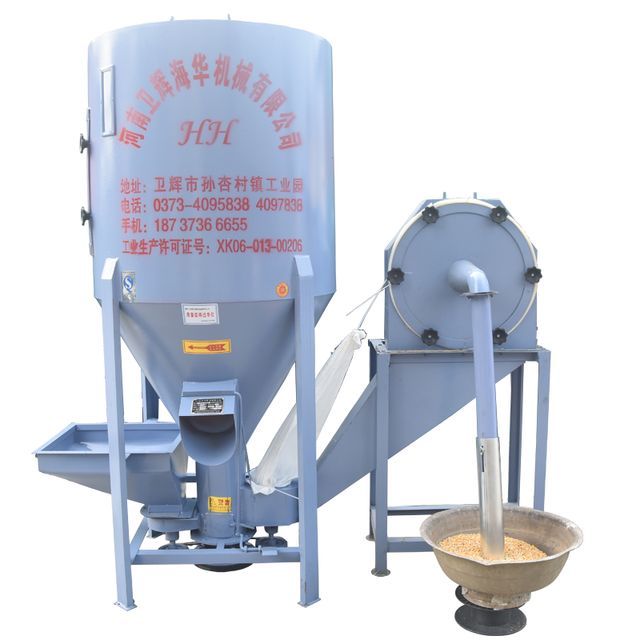

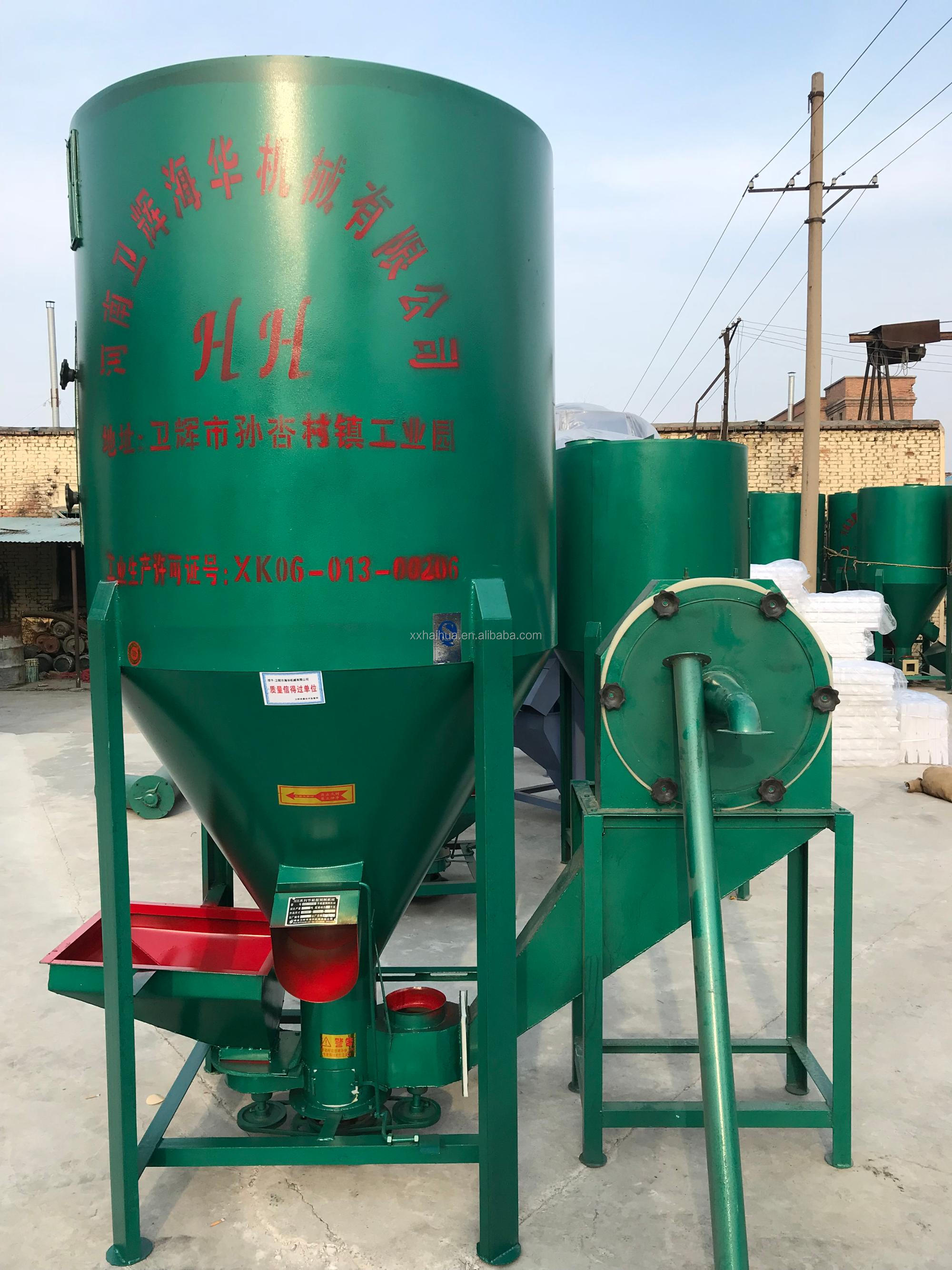

New Design High Quality Poultry Feed Grinder Mixer

Product Description

Haihua series vertical feed mixers mainly include 500, 750, 1000, 1500, and 2000, which are divided into self-priming type and spiral lifting type. This is a small feed processing equipment specially designed for rural farmers, small farms, and small and medium feed mills. It integrates vertical lifting, mixing chamber and horizontal conveying. It has the characteristics of simple and compact structure, small one-time investment, economical and practical, and convenient maintenance. It is convenient and does not require a special production site.



Technical Parameters:



Model

mixer

strength

(kilowatt)

Material

and

thickness

Grinder power

(kilowatt)

Crushing chamber diameter

Material

and

thickness

Dimensions (mm)Output(T/H)Weight(KG)
HH-2503

Q235/1.8mm

7.5530

Q235/2.75mm

1600*800*1950

0.4-0.8

260

HH-250

(single

stage

electrical)

3Q235/1.8mm3400

Q235/2.75mm

1580*800*1950

0.3-0.5

240
HH-5003Q235/1.8mm7.5~11530

Q235/2.75mm

1800*1000*2300

0.5-1.5

280/340

HH-500

(single

stage

electrical)

3Q235/1.8mm3400

Q235/2.75mm

1780*1000*2300

0.3-0.6

270
HH-10003Q235/1.8mm7.5~11530

Q235/2.75mm

2050*1250*2750

1.0-2.0

360/400/420
HH-15004Q235/1.8mm11~15530

Q235/2.75mm

2250*1450*2900

1.5-2.5

480/520/540
HH-20004Q235/2.35mm11~15530

Q235/2.75mm

2500*1700*3100

1.5-3.0

560/580
HH-30005.5Q235/2.35mm15530

Q235/2.75mm

2600*1800*3600

2.0-3.5

650





Working Standards:



The shell of the feed grinder is welded with high-quality materials, and the feed port is on the top of the grinder. It can be matched with a variety of feeding structures, and the hammer heads are arranged symmetrically. When the feed mixer is working, the material enters the crushing chamber, and under the action of the high-speed rotating hammer and the friction of the sieve plate, the material is gradually crushed and centrifugally separated. Under the action of force and air flow, it is discharged through the bottom outlet.



product information

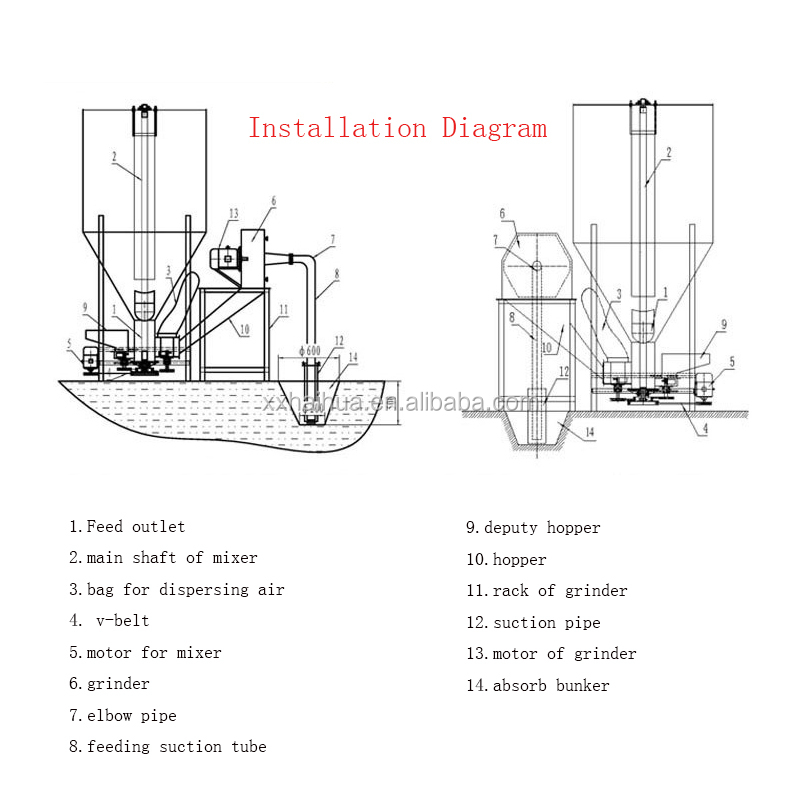

Installation diagram:

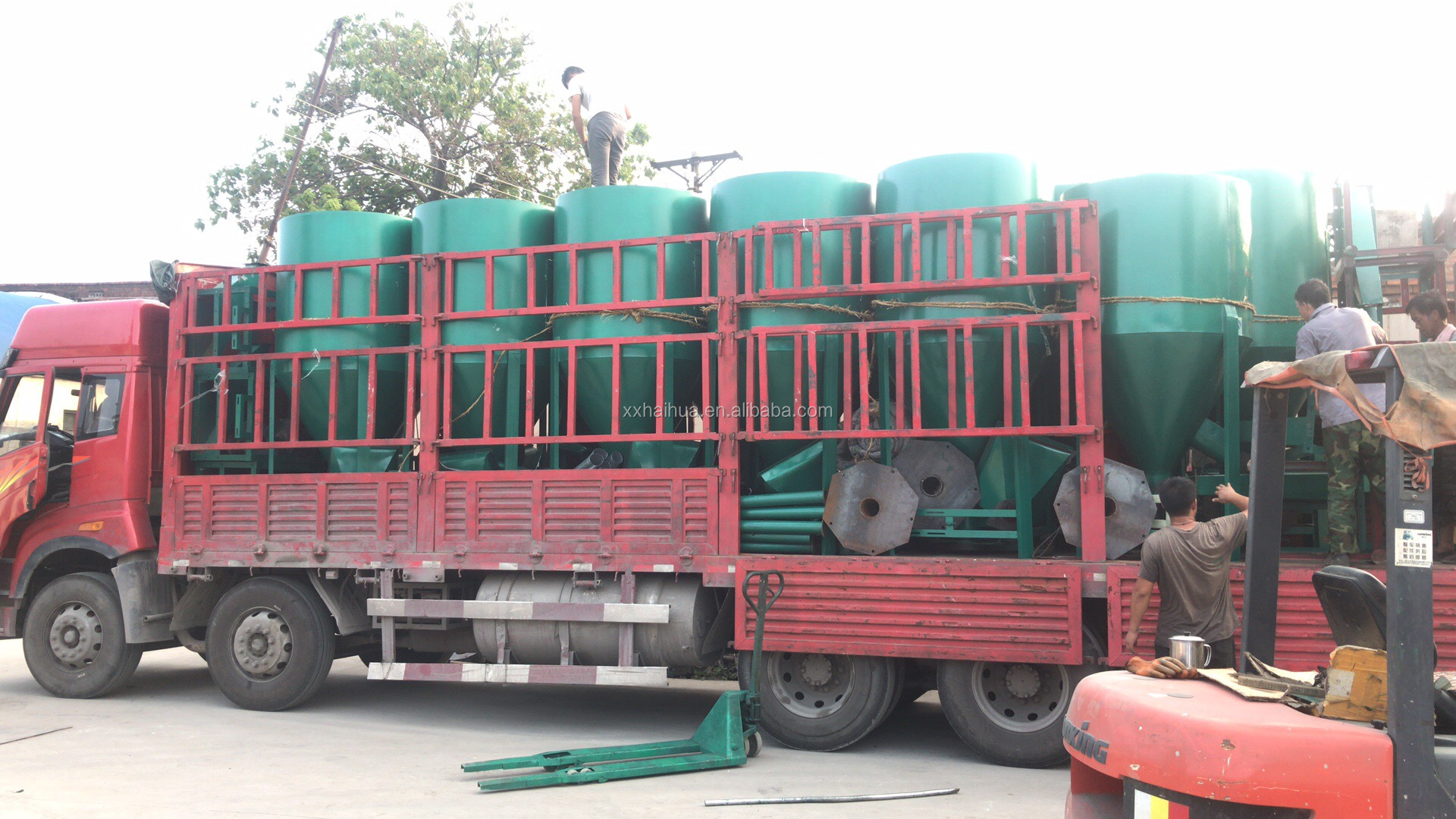

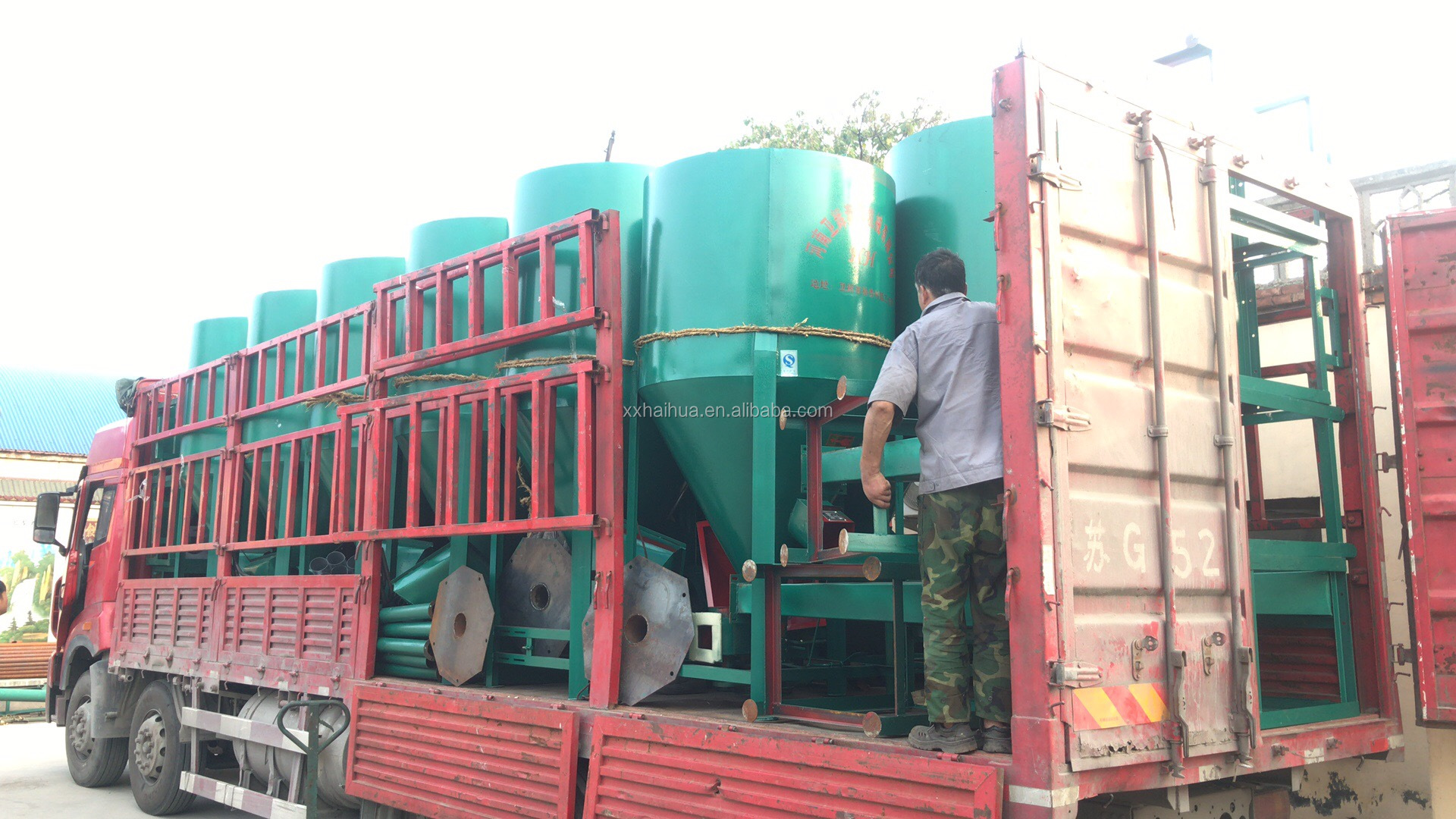

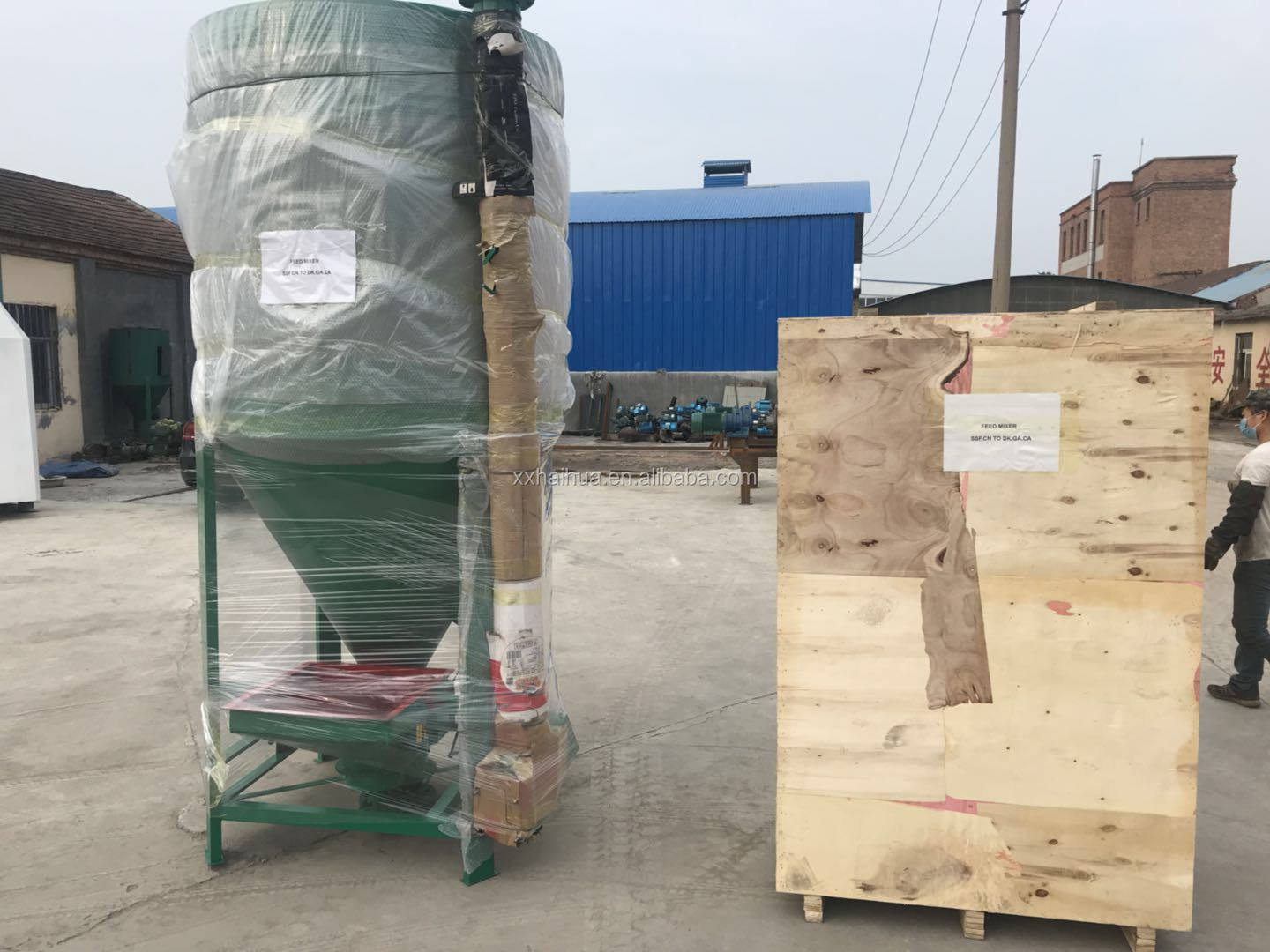

Packaging and Shipping



Professional packaging and transportation according to customer requirements, such as export wooden box packaging, bare packaging, container transportation and bulk cargo transportation, etc.
