Cylinder grinder/rectifier 3M9735A Products from Zhengzhou Timeway Machine Tool Co., Ltd.

Product Details

brand:	Timak Time Road	Packaging details:	Wooden box/plywood box
Main selling points:	competitive price	Name:	Cylinder block surface grinder
port:	port of china	Showroom location:	Philippines, Pakistan, Morocco, Colombia, Kazakhstan, Japan
Model:	3M9735A	Core components:	PLC, engine, bearing, gearbox, motor, pressure vessel, gear, pump
Weight (kg):	2300	Supply capacity:	300 sets per month
Mechanical test report:	if	Type of machine:	Cylinder head surface grinder
Key words:	Cylinder head surface grinder	Warranty:	1 year, 1 year
payment terms:	L/C, Western Union, T/T, MoneyGram	Core component warranty:	1 year
Applicable industries:	Building materials stores, manufacturing plants, machine repair shops, farms, retail, construction engineering, energy and mining	Key words:	Cylinder head surface grinding
product name:	Cylinder head surface grinder	Video outbound inspection:	if
type:	Cylinder head and block surface grinders	After-sales service provided:	Online support
Health status:	new	Marketing type:	Hot Products of 2022
color:	Customer choice	Place of origin:	Henan, China

one stop shopping

You can click on the picture to view the products you are interested in

Product Description

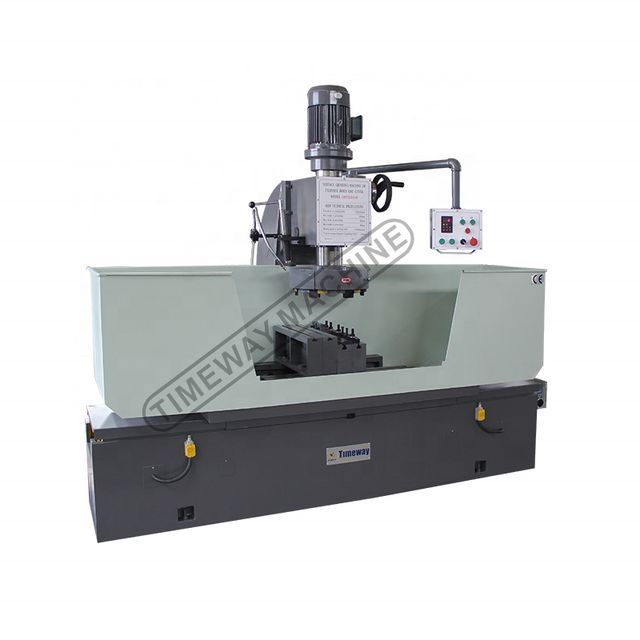

Cylinder grinder

feature:

Cylinder block grinding machine
1. This machine is mainly used for grinding and milling the connecting surfaces of cylinder blocks and cylinder heads of various engines (cars, tractors, tanks, ships).
2. Due to long-term use of the engine, the connection surface between the cylinder block and the cylinder head will be deformed, causing the engine to fail to operate normally.
3. The connection surface between the cylinder block and the cylinder head can be processed with precision by grinding or milling.
4. If equipped with an electromagnetic chuck, this machine can also grind the surface of other parts.
5. This machine adopts (1400/700r/min) two-speed motor 1400r/min, which is used to grind the surface of the cylinder block or cylinder head made of cast iron. And use 700r/min to mill the surface of aluminum material. Grinding wheel feed is manual. When the handwheel rotates 1 step, the grinding wheel feeds 0.02mm. The pulley is of unloading type so that the main shaft only bears torsional moment.
6. The machine tool workbench adopts Y801-4 motor rotation drive. On the host panel,
The appropriate feed speed can be obtained by rotating the potentiometer thread, and the operation is convenient and reliable.

Specification

Specification	3M9735Ax130	3M9735Ax150
maximum. Grinding length	1300mm	1500mm
maximum. Grinding width	350mm	350mm
Maximum grinding height	600mm	800mm
Grinding head vertical movement distance	120mm	120mm
Workbench lateral movement speed	40-900mm/min	30-900mm/min
Grinding disc diameter	360mm	360mm
Spindle speed	1400/700 rpm	1400/700 rpm
Motor power cooling	0.4kW	0.4kW
main motor power	1.5/2.4kW	1.5/2.4kW

Machine details

Positive customer reviews

our service

1. Free replacement of accessories during the warranty period. Cost price of out-of-warranty replacement parts. 2. Provide quick response and reply to technical issues at any time during the entire life cycle of the machine. 3. Some areas have overseas after-sales service centers. 4. Provide engineers overseas services according to customer requirements (relevant costs shall be borne by the customer).
