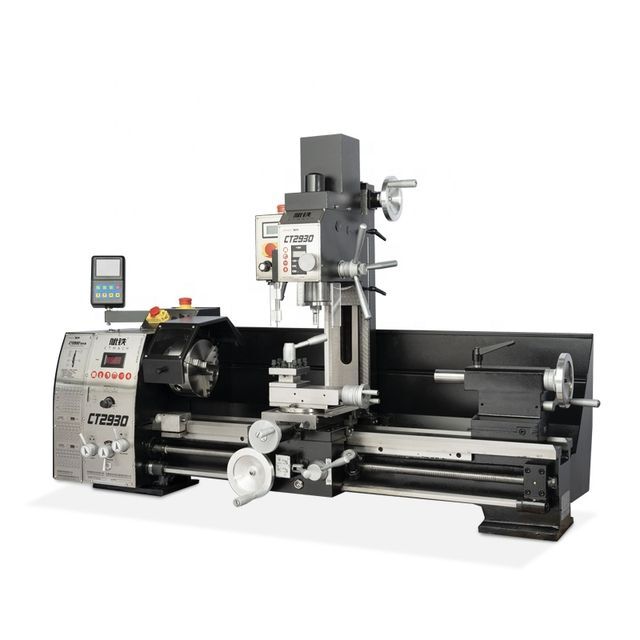

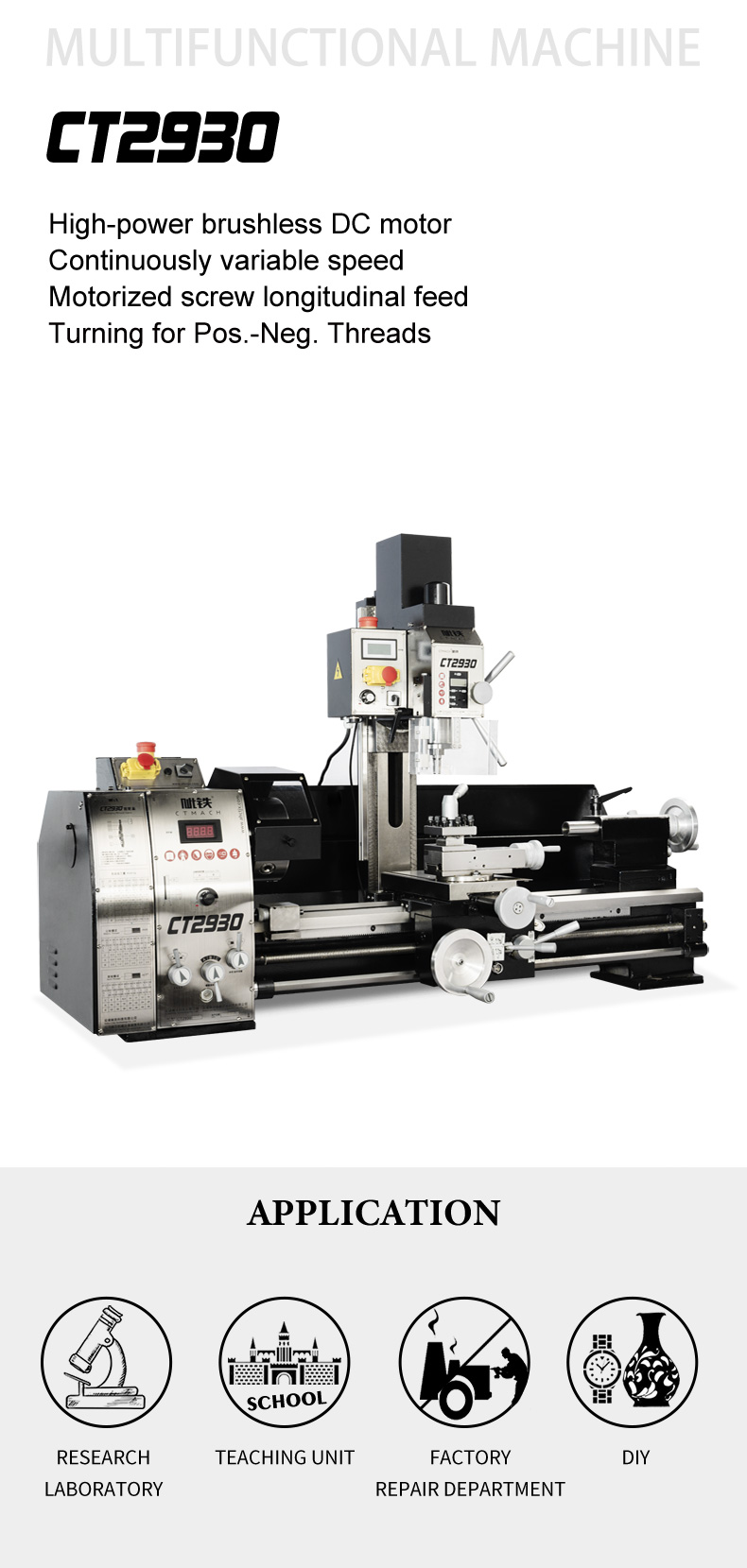

Multipurpose machine 3 in 1 CT2930 variable speed cheap price 1.5 years 1500w+1100w 220/380v CN; ANH CTMACH 290kg

Click here to contact

Product details

Main selling point:	multifunctional	Packaging Details:	Standard wooden case
Sales unit:	single product	Minimum order quantity:	1 set
Weight (kg):	290	Watts:	1500w+1100w
Marketing Type:	New Products 2020	Core components:	Engines, Bearings, Gearboxes, Motors, Gears
Single package size:	145X75X97 cm	Applicable industries:	Building Materials Stores, Manufacturing Plants, Mechanical Repair Shops, Farms, Home Use, Retail, Construction, Energy and Mining
brand:	CTMACH	After-sales service provided:	Video technical support
Core Components Warranty:	1.5 years	Voltage:	220/380v
Video external inspection:	if	Packaging Preview:
Health status:	new	size:	14007001030mm
Showroom location:	not any	Warranty:	1.5 years
Mechanical test report:	if	Gross weight per piece:	310.000 kg
net weight:	290kg	place of origin; place of origin:	Anhui, China

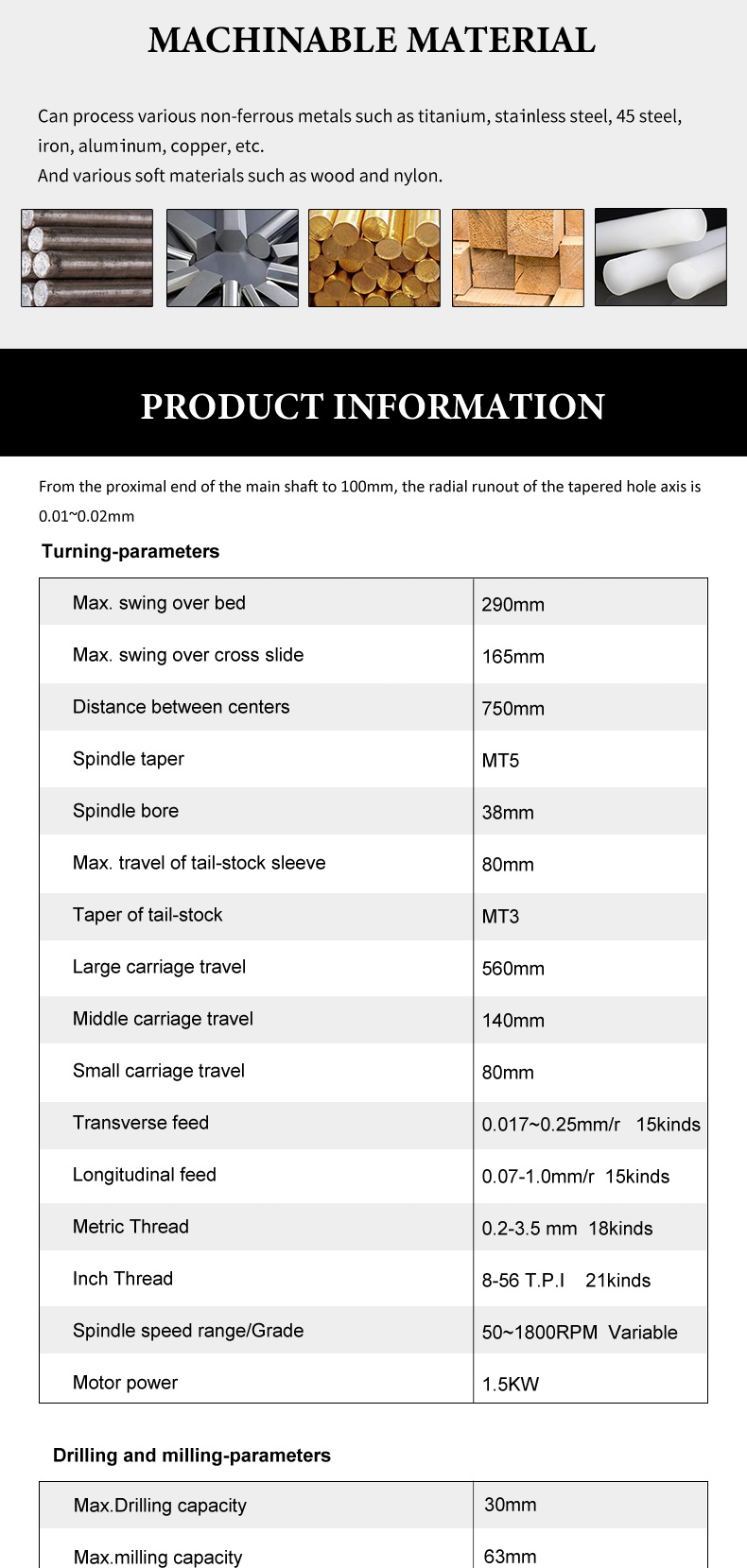

lathe
Maximum workpiece turning diameter of bed	290mm
bed width	180mm
distance between two tops	750mm
Tool holder maximum workpiece turning diameter	165mm
Spindle diameter	38mm
Spindle taper	MT5

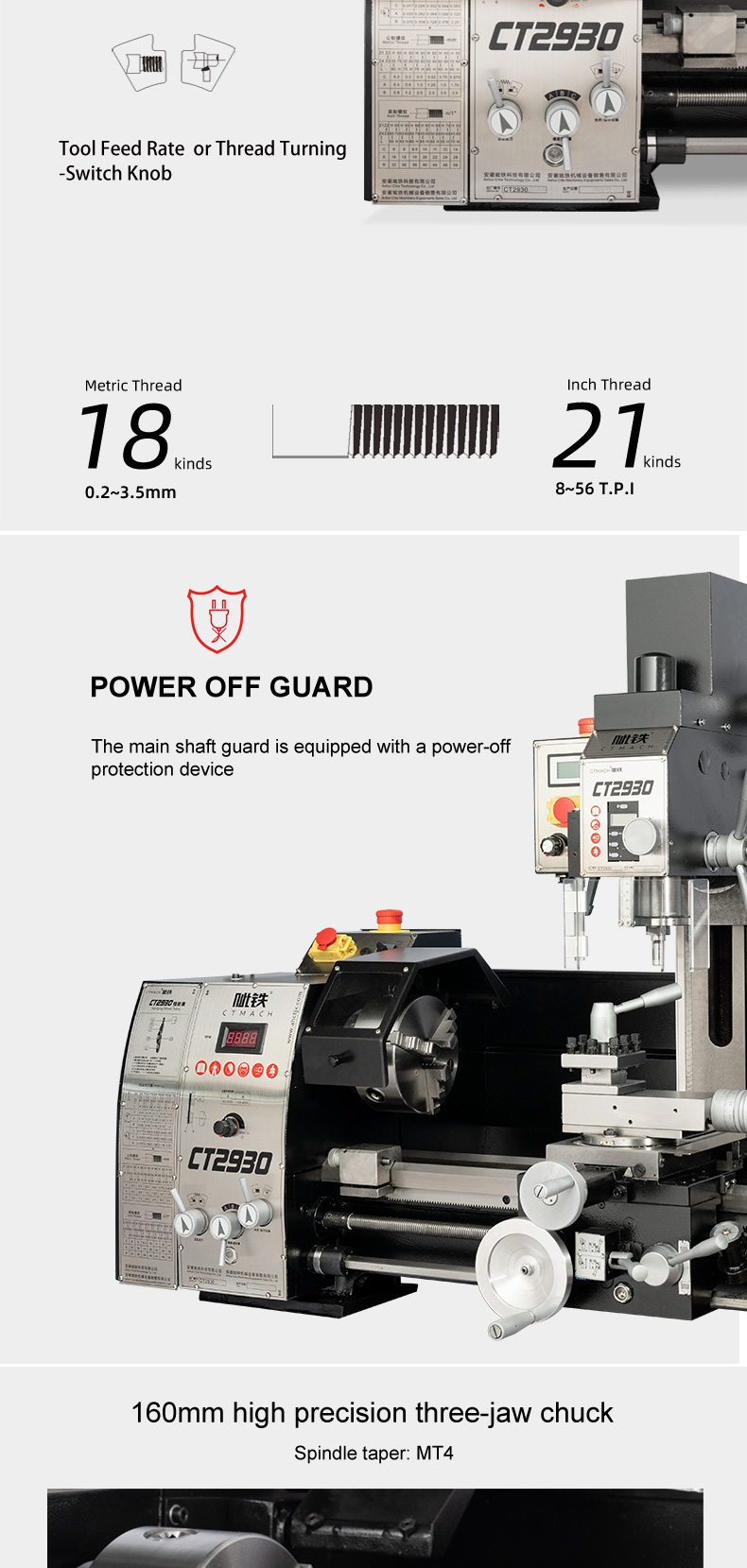

Machining Metric Thread Pitch Range/Type	0.2-3.5mm/18
Machining inch pitch range/type	8-56TPI/21
Each longitudinal turret spindle feed/series	0.07-0.4mm/r
Feed per spindle/turret	0.02-0.28mm/r
Longitudinal stroke of small tool holder	80mm
CRRC itinerary	140mm
Big mop trip	560mm
Tailstock sleeve stroke	80mm
Tailstock sleeve taper	MT3
Spindle speed range/grade	50-1800rpm/variable
motor	1.5kW

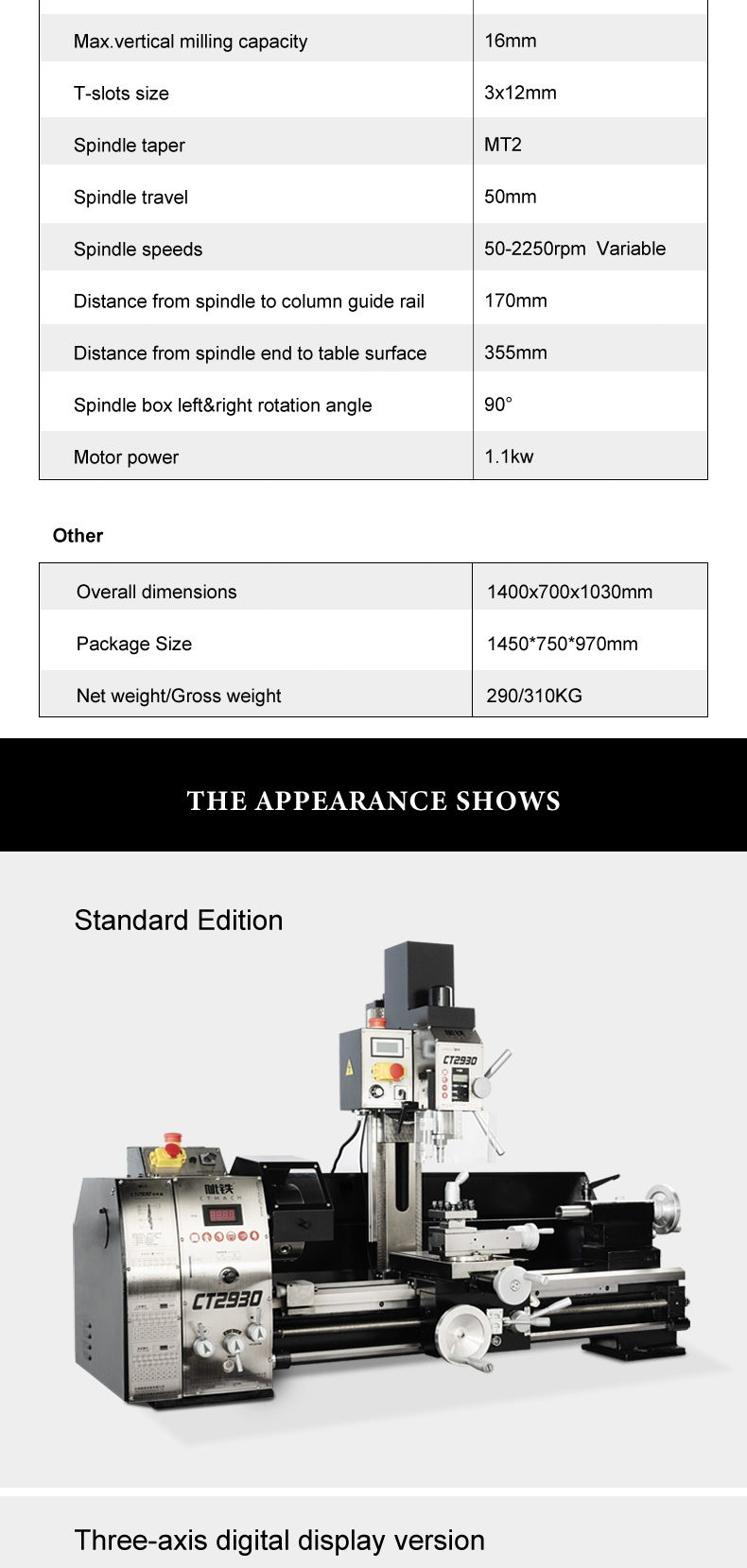

Drilling and Milling
Maximum hole diameter	30mm
End mill diameter	16mm
Maximum face mill diameter	63mm
Distance from spindle end to table	355mm
Distance from spindle centerline to cylinder surface	170mm
Spindle box left and right inclination	±90°
Drilling and milling spindle taper	MT2
Spindle speed range/grade	50-2250rpm/variable
Table T-slot width	12mm
Spindle sleeve stroke	50mm
motor	1.1kw

Net weight/GW	290/310kg
Machine size	1400×700×1030mm
Package dimensions	1450×750×970mm
