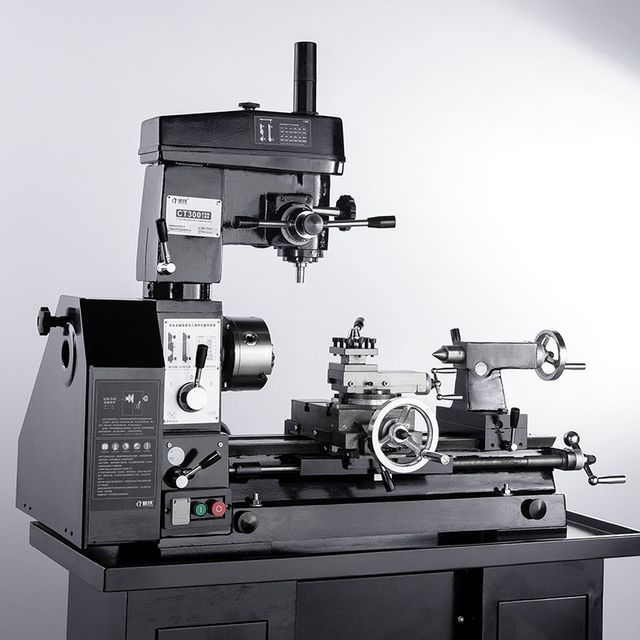

Metal Lathe Mill Combination CT300 HQ300 3 in 1 Benchtop Lathe with Digital Display Factory Price
-
Supplier: Anhui Citie Technology Co., Ltd. -
Region: Anhui, China -
Contact: Mr MACH -
Price: $1180.00 / 1 - 2 sets
$1080.00 / 3 - 4 sets
$990.00 / >=5 sets -
Min. Order: 1 set
Product details
| Marketing type: | New products for 2023 | type: | Drilling and milling lathe |
| Video outbound inspection: | if | Supply capacity: | 225 sets per month |
| payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram | Power (kW): | 0.75 |
| Packaging details: | Standard export wooden box | brand: | China Machinery Industry Federation |
| Weight (kg): | 200kg | Applicable industries: | Building Materials Stores, Manufacturing Plants, Machinery Repair Shops, Restaurants, Household, Retail, Construction Engineering, Energy and Mining, Food and Beverage Stores, Others |
| Dimensions (length*width*height): | 1160*580*600mm | Spindle speed range (rpm): | 160 - 1600 rpm |
| Place of origin: | Anhui, China | Health status: | new |
| Core component warranty: | 1.5 years | Voltage: | 110V 220V 380V 400V |
| Warranty: | 1.5 years | Drilling speed: | 1mm/sec |
| Power (Watts): | 750 | Main selling points: | competitive price |
| maximum. Drilling diameter (mm): | 20mm | port: | Shanghai Guangzhou Yiwu Ningbo Qingdao |
| Package preview: | Mechanical test report: | if | |
| Whether CNC: | normal | Showroom location: | not any |
| model: | CT300 | Core components: | Bearings, gears, motors, gearboxes, PLC, pressure vessels, engines, others |
feature

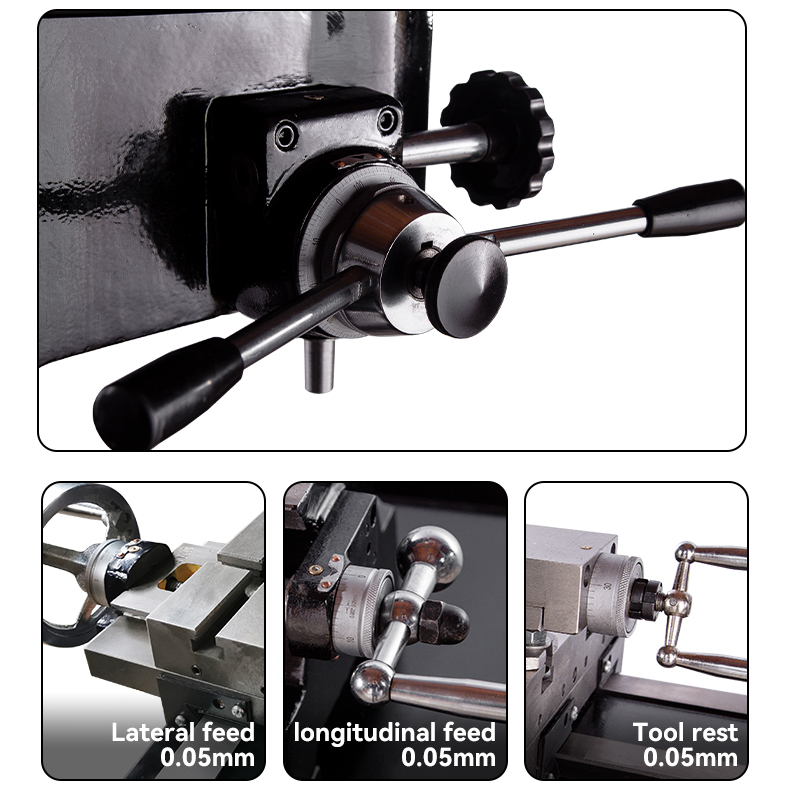

Compact, versatile combination machine. Adjustable height drill/mill heads increase productivity. Fine feed handles and clutches for precision milling. The spindle box provides two-step feed. The spindle is supported by high-precision bearings. T-slot cross slide. Adjustable grid for slides. Powered longitudinal feed enables thread processing. High precision chuck.
product specifications
Turning parameters | ||
maximum. Swinging around on the bed | 300mm | |
maximum. Tool holder rotation diameter | 140mm | |
Maximum processing length | 500mm | |
Spindle taper | MT4 | |
Spindle hole | 26mm | |
maximum. Tailstock sleeve travel | 50mm | |
Tailstock taper | MT3 | |
Mid-car journey | 200mm | |
Traveling in a pony carriage | 80mm | |
Metric thread/grade | 0.5～3mm/14 | |
Imperial thread/grade | 11~40T.PI/20 | |
Cross feed/grade | 0.05~0.5mm/manual | |
Longitudinal feed/grade | 0.05~0.5mm/2 | |

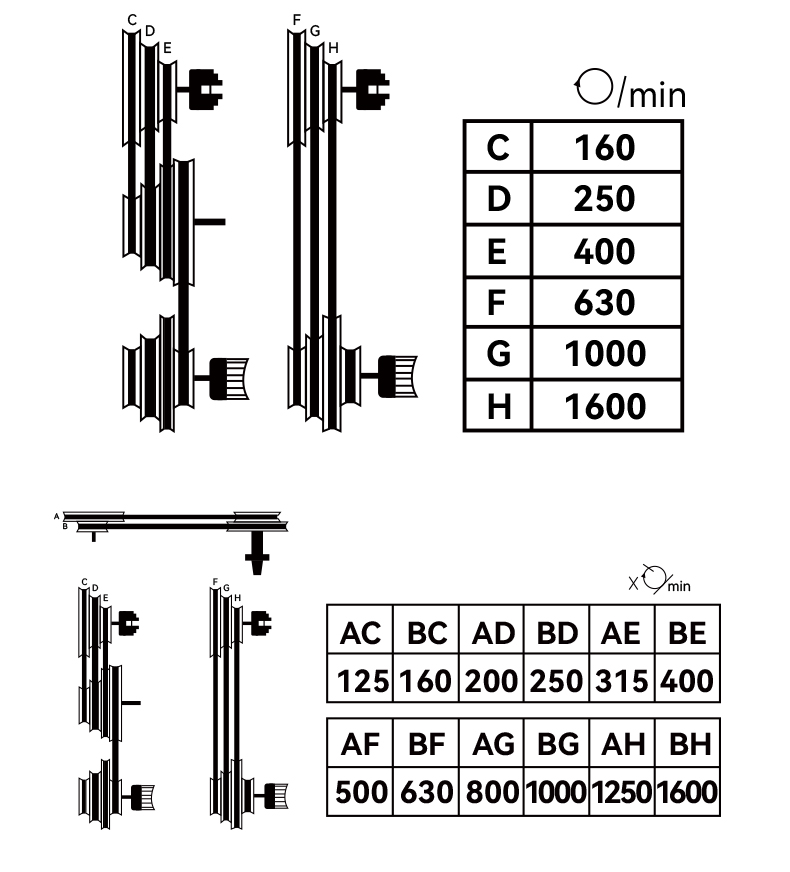

Spindle speed range/level | 160~1600 rpm (6) | |

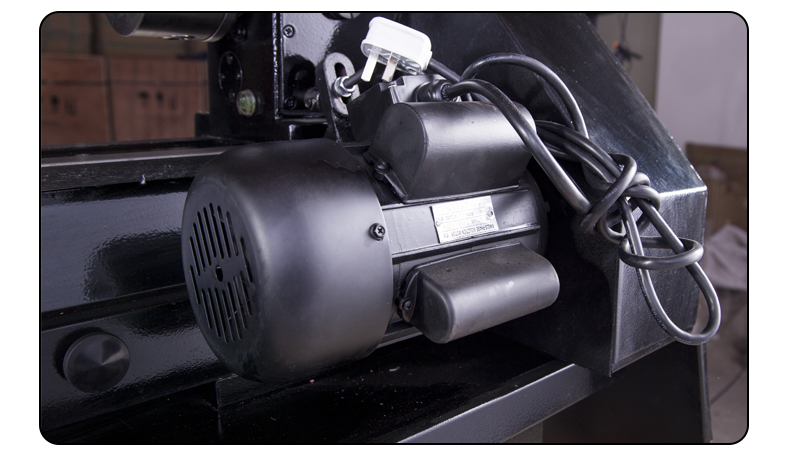

Motor Power | 750 watts | |
Drilling and milling parameters | ||
Maximum drilling capacity | 20mm | |
working desk size | 200x150mm | |
T-slot size | 12mm | |
Drilling and milling head box vertical lifting stroke | 80mm | |
Spindle taper | MT3 | |
Spindle travel | 80mm | |
Distance from spindle to column guide rail | 175mm | |
Distance from spindle end face to worktable | 240～320mm | |
Spindle speed | 125~1600 rpm (12) | |
Spindle box rotation angle | 360° | |
other | ||
Net weight Gross weight | 200/210kg | |
Dimensions | 1160x580x900mm | |
Package Size | 1130x570x910mm | |

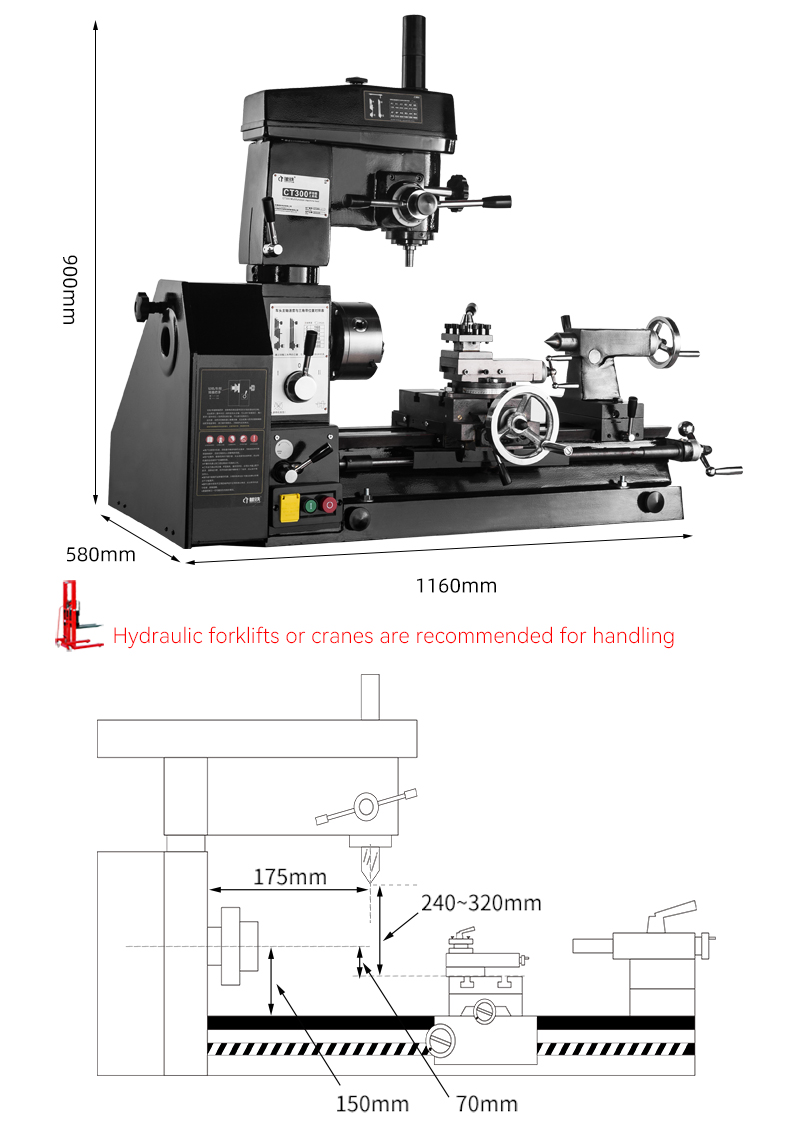

size and weight
Product appearance/packaging dimensions are measured manually and may have minor errors. It is a normal phenomenon and depends on the specific object. Machine packaging size1130x570x910mmMachine net weight/gross weight (excluding base cabinet)200/210kg
identify

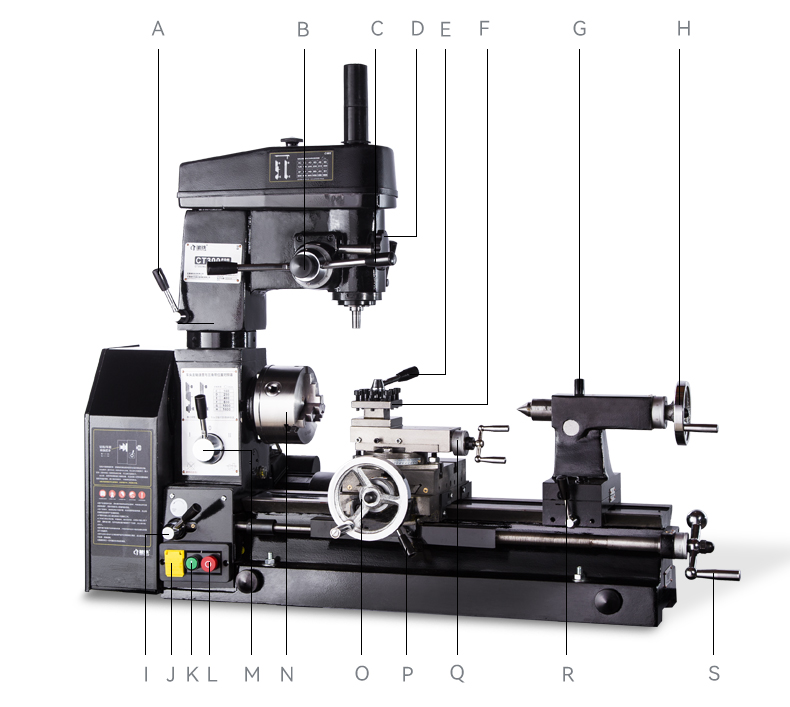

A. Locking handle B. Drilling and milling micro-feed clutch handle C. Drilling and milling axis feed handle D. Micro-feed handle E. Tool holder locking F. Four-station tool holder G. Tailstock cover locking handle H. Tailstock handwheel I. Clutch handle J. Spindle forward and reverse switch
K. Start button L. Pause button M. High-resistance switching handle N. Three-jaw chuck O. Horizontal feed handwheel P. Opening and closing nut clutch Q. Tool holder feed handwheel R. Tailstock locking handle S. Longitudinal feed handle

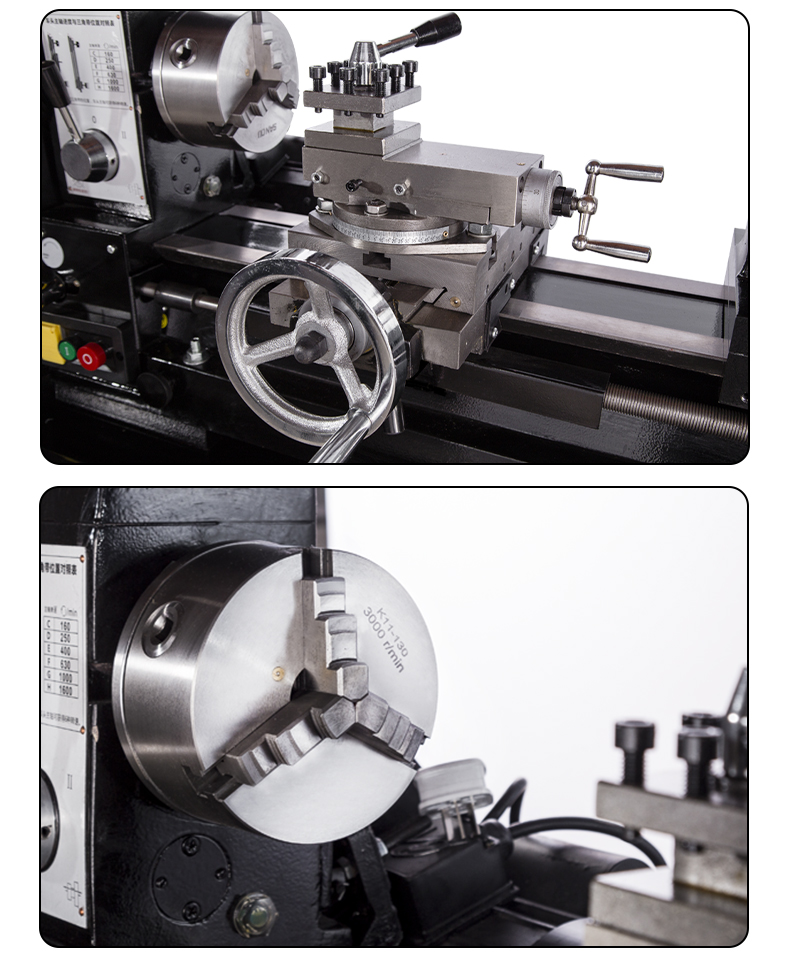

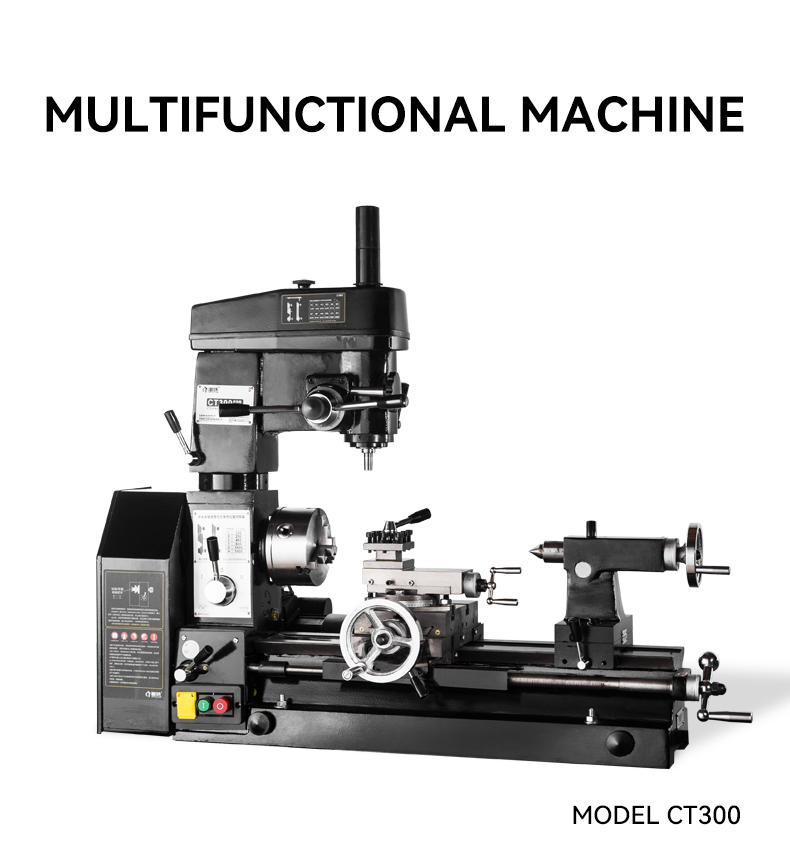

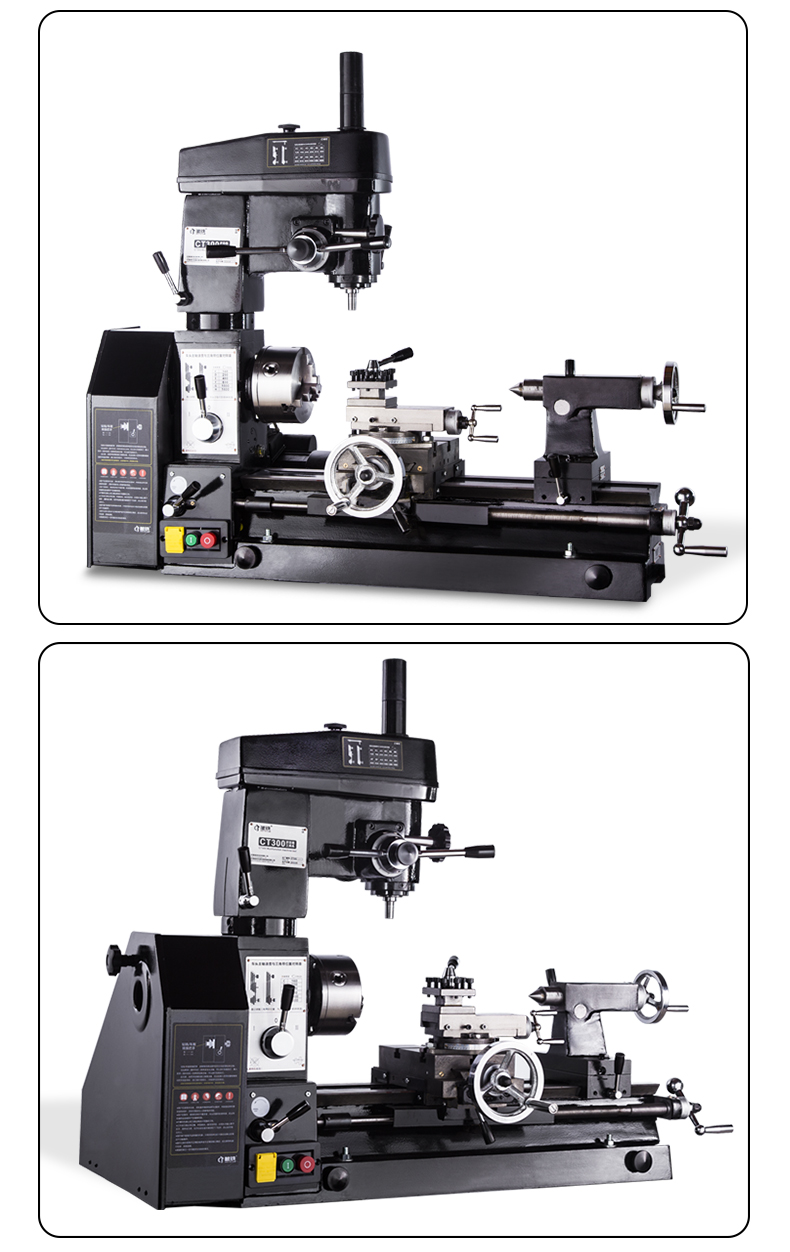

Product display

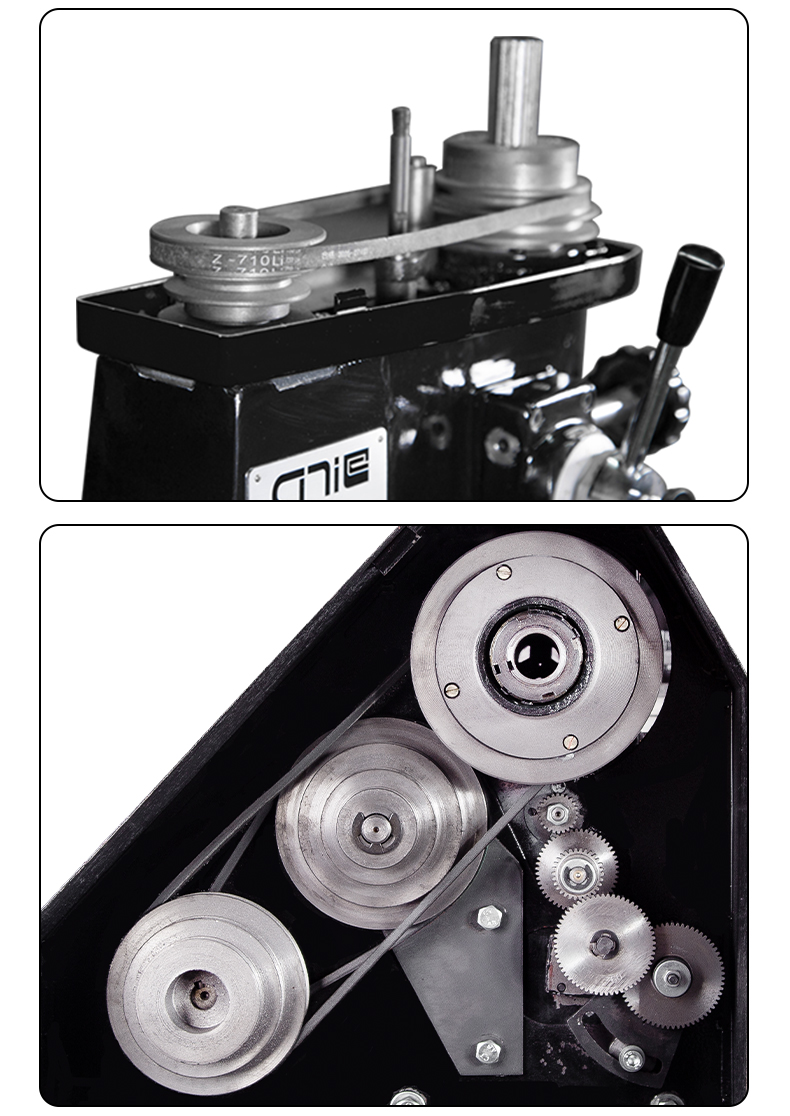

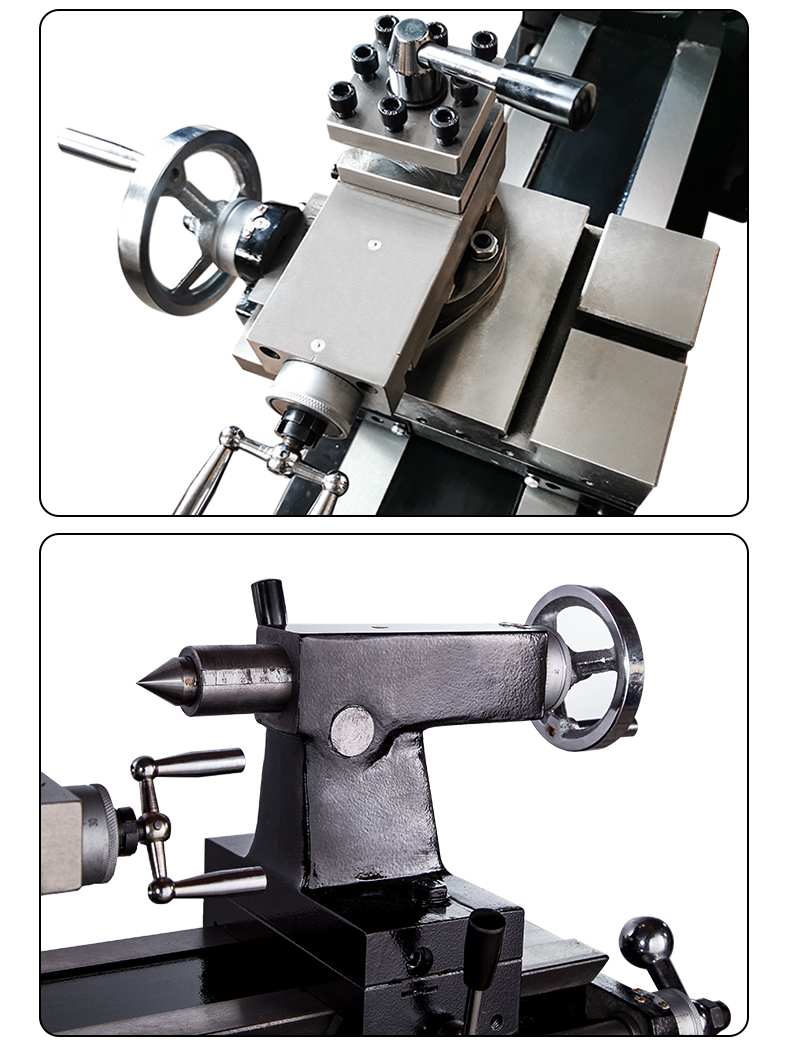

Detailed introduction

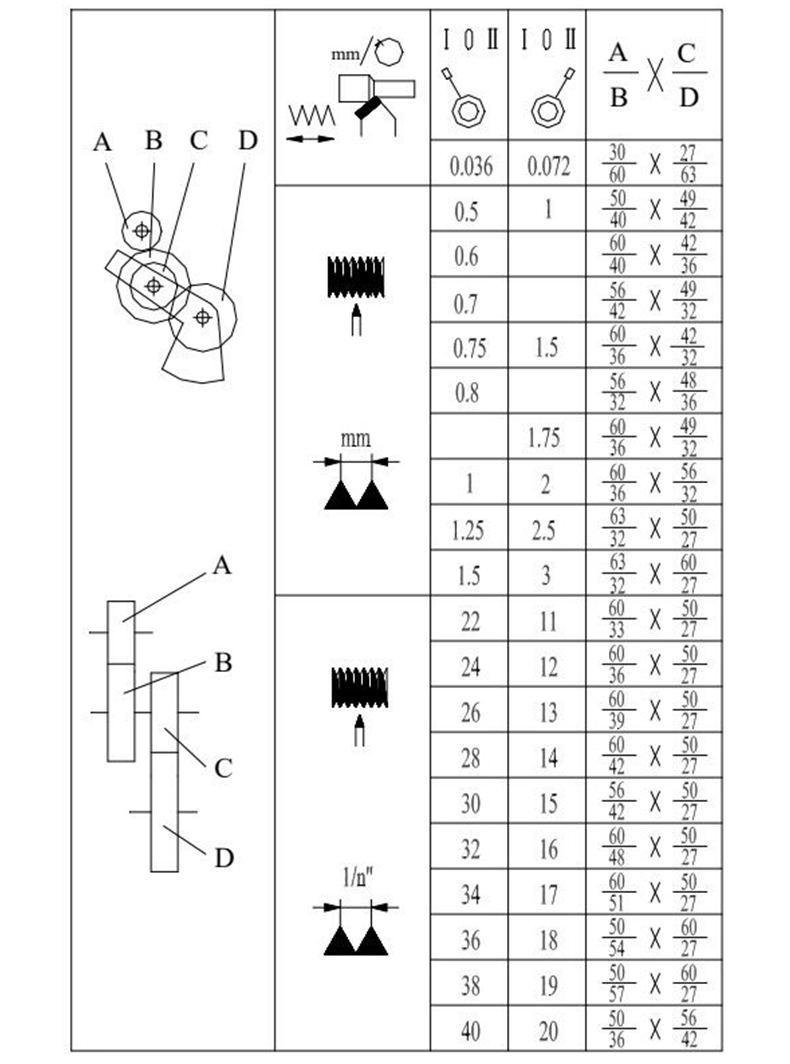

Thread (forward, reverse)
A variety of threads can be turned without frequent replacement of grinding wheels. Metric thread range: 0.5~3mm (14 types) Inch thread range: 11~40 1/n″ (20 types)

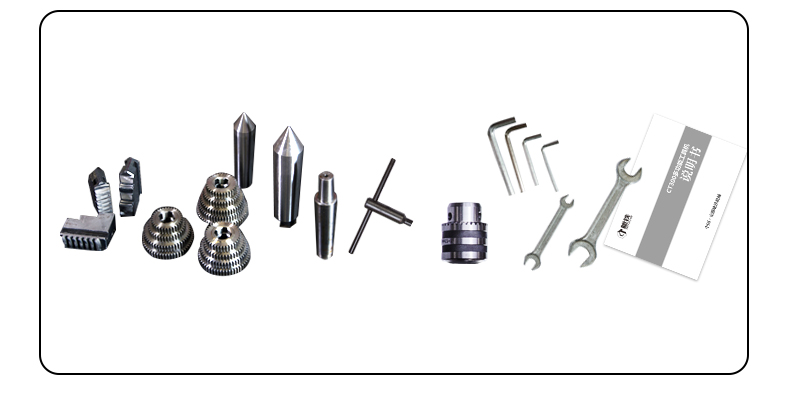

Standard accessories (randomly attached to the machine)
Sales and service network
Products are exported to more than 30 countries and regions around the world. They meet EU CE standards and are safe and reliable. ISO9001 quality system certification

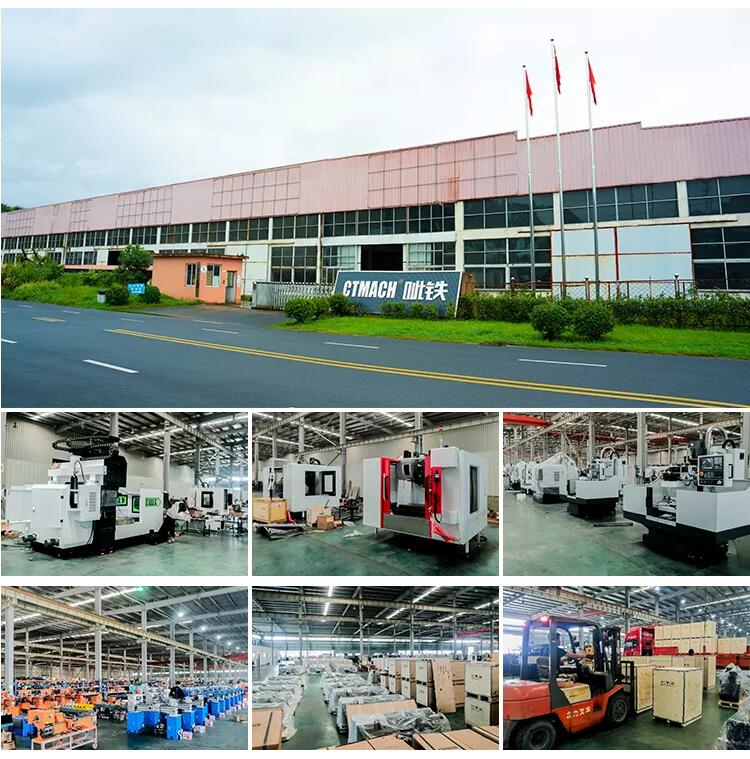

Company Profile
FAQ
Q: What is your normal delivery time? A. Usually, we have machines in stock, and for stock machines, we can send them out within 5 days after receiving payment. For customized machines it takes 20-30 days after receiving payment. Q: What is the minimum order quantity for your production? A. The MOQ depends on your requirements for color, logo, etc. For some common items, we have them in stock, and the minimum order quantity is 1 set. Q.Do you have CE certification? A. Yes, we have CE certification. Q: How about quality assurance? Answer: The warranty period is 13 months after the BL date. Before each machine is sent out, we have quality control personnel to test the machine. Q: Do you have technical support? A. Yes, we have a professional technical department who will help solve your problems at any time. Q.What kind of packages do you offer? A. Poly wooden boxes are usually used to ensure that all machines are in good condition during transportation.
