SJQ Gasoline Engine Water Well Drilling Rig/Household/Air Conditioning Well

SJQ gasoline engine water well drilling rig

1. Brief introduction of gasoline engine water well drilling rig
·This gasoline engine water well drilling rig is an ideal tool for drilling household wells, water wells, air-conditioning wells, and vegetable garden wells, and is an ideal tool for drilling and survey workers.
Diversified power configuration: Gasoline engine can be used as power, and single-phase electricity and three-phase electricity can also be used instead.
·Wide range of application: Since the floor area is less than 1 square meter, the height can be controlled at about 2.6 meters, and it can be used outdoors or indoors.
·Wide range of uses: it can not only drill holes on the drill pipe, but also use the center pipe to take samples. It can also be done with positive and negative circulating water.

2. Characteristics of gasoline engine water well drilling rig

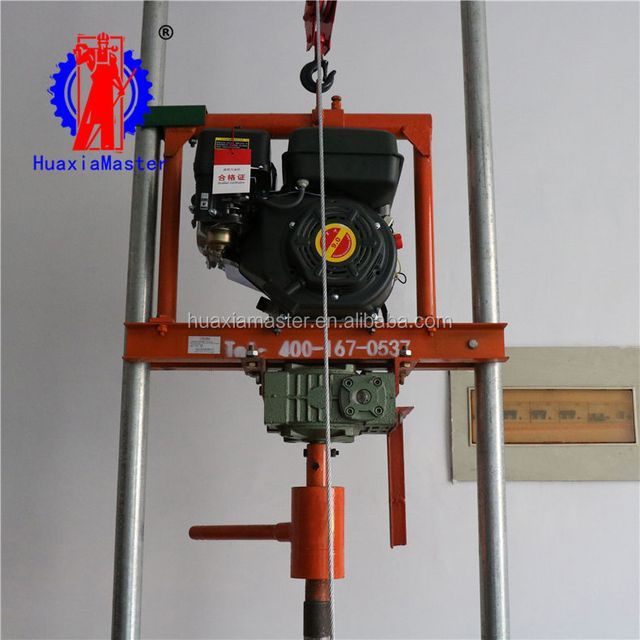

Gasoline engine water well drilling rig is composed of gasoline engine, reducer, belt, seat, movable pulley, wire rope, pipe wrench, traction device, drill bit for breaking ground, sealing water hyacinth, hanging box, lifting card, water pump, water pipe, etc.
The gasoline engine water well drilling rig has a volume of 1*0.7*0.4m and a gantry pole height of 2.6m. The total weight is about 150 kg. The main machine head (including gasoline engine, reducer, water hyacinth and frame) weighs about 50 kg, chassis 35 kg, gantry rod 17 kg, drill pipe 3 kg/m, and another 30 kg.
The diameter of the drill pipe is 28, the recommended hole diameter is 120 mm, the depth is 80 meters, and the deepest record is 100 meters (the effects of soil pumps and water pumps are different). The recommended maximum opening diameter for 34 drill pipe is 160mm and the depth is 30m. It can drill 10-20 meters in one hour, and it costs 2-3 cents per meter.
