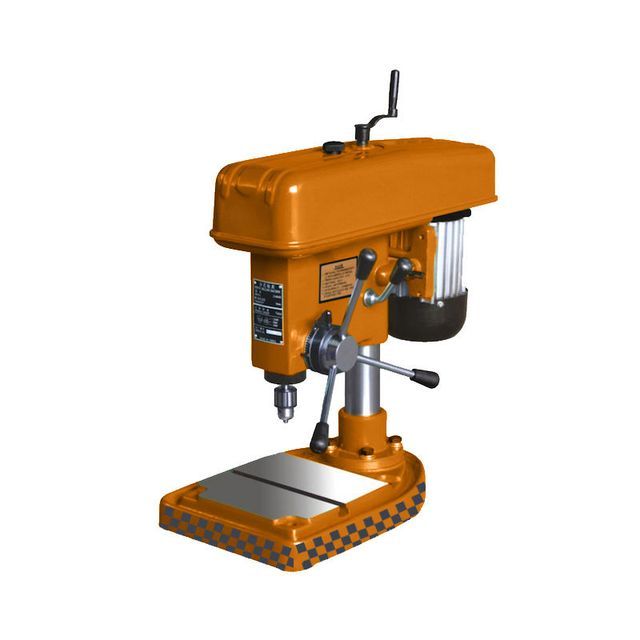

High-precision milling machine table drilling and tapping Z403 Z606 machine tool

Supplier: Dalian Nikkin Industries Co., Ltd.
Region: Liaoning, China
Contact: Ms Kelly Sun
Price: $550.00 /set
Min. Order: 1 set

Click here to contact

Product details

Applicable industries:	Building materials stores, manufacturing plants, machinery repair shops, retail, construction, energy and mining	Supply capacity:	50 sets per month
Packaging Details:	Packing Type: Plywood Box	style:	manual
type:	Drilling and Milling Machine	Origin:	Liaoning, China
brand:	Granville Machinery	Core component warranty:	1 year
weight:	38 kg	Video outbound inspection:	if
Marketing Type:	2020 New Products	Health status:	new
Weight (kg):	17.5 kg	payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram
Whether CNC:	normal	Mechanical test report:	if
port:	Dalian	model:	Z403, Z406
Showroom location:	not any	Spindle speed range (rpm):	2000 - 12000 rpm
product name:	High speed bench drill z403/z406 series	Spindle speed:	3
Warranty:	1 year	Spindle taper:	B10
Main selling points:	high accuracy	Core components:	engine
maximum. Drilling diameter (mm):	6 mm

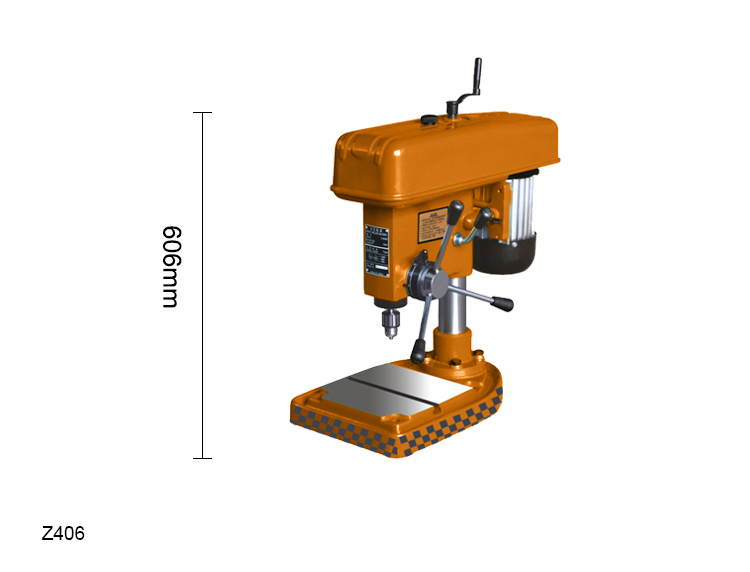

Model	Z403	Z406
drilling capacity	3 mm	6 mm
Column diameter	50 mm	50 mm
Spindle travel	40 mm	65 mm
Distance from spindle axis to column surface	140 mm	140 mm
Maximum distance from spindle nose to base	175 mm	225 mm
Spindle taper	JT0	B10
Spindle speed range	7000~18000 rpm	2000~12000 rpm
Spindle speed	3	3
base table size	200mm x 200mm	200mm x 200mm
overall height	546mm	606mm
engine	250 watts	250 watts
gross weight net weight	46/38 kg	46/38 kg
ship survey	64x33x61	53x37x27

Q1: How is your company's strength in this field?

A: We are a factory, established in 1997. We have served the Japanese market for over 25 years. Our factory is an infrastructure supplier for the venues of the Tokyo Olympic Games. Q2: Do you provide samples? Is it free or extra? A: Yes, we can provide you with free samples, but you need to bear the shipping cost. Q3. What are your payment terms? A: T/T, L/C, Alibaba Trade Assurance are available. Q4. Do you accept OEM service? A: Yes, we accept OEM and ODM. Q5. Can you produce products according to my own drawings? A: Yes, we can produce the products that satisfy you most according to your drawings. Q6: What is the package and how to ship the goods? A: Usually wooden pallet or as your request. We usually ship by sea. Air transportation is also optional.
