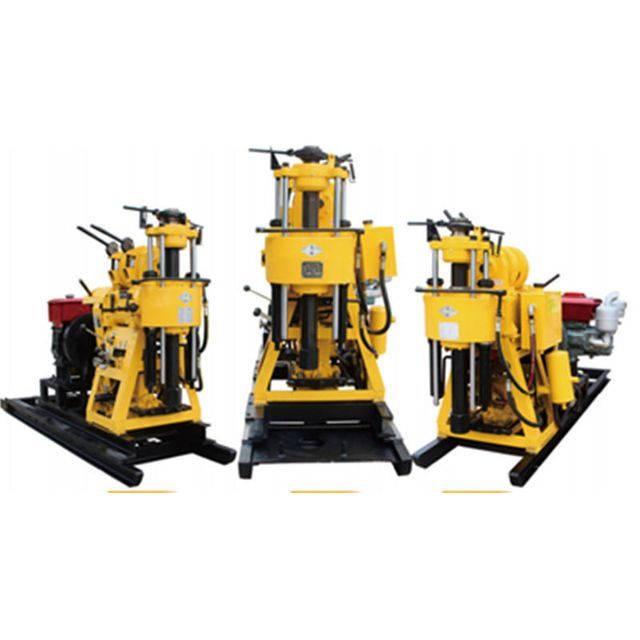

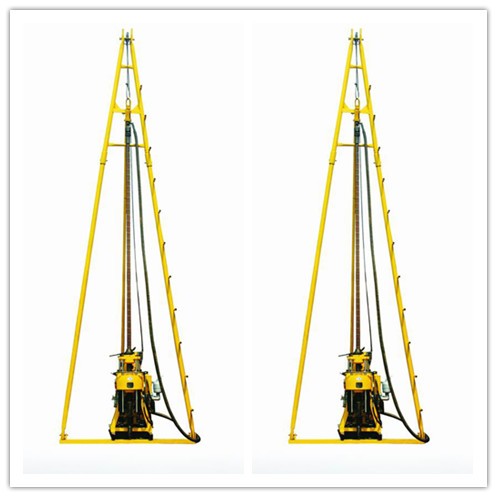

China's best artesian well drilling rig 150m deep

Supplier: Zhengzhou Yotol Machinery & Equipment Co., Ltd.
Region: Henan, China
Contact: Ms Maggie Zhang
Price: $5000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Drilling depth:	200m	product name:	China's best artesian well drilling rig 150m deep
Spindle speed:	64/128/287/557 rpm	Mud pump:	145 l/min
Packaging Details:	Sturdy wooden bag and PVC bag: Machine size: 460mm (length) * 30mm (width) * 40mm (depth) Pipe size: 251mm97mm170mm. Mast size: 262mm90mm40mm	strength:	13.2 kW
payment terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram	Supply capacity:	500 artesian drilling rigs per month
Delivery Details:	5-7 days with deposit	weight:	750 kg
Health status:	new	Drill mast:	6.5m
Voltage:	380V	Certification:	International Organization for Standardization
model:	YT130Y	After-sales service provided:	Engineers available to repair machinery overseas
port:	Qingdao/Tianjin/Shanghai/Guangzhou/Wuxi	Drilling speed:	7 million/hour
Drill pipe size:	50mmx4.2m	Dimensions (LWH):	2.4m x 0.8m x 1.4m
application:	Well Drilling and Soil Testing	Maximum pulling force of the winch:	2500 kg
Drilling angle:	65-90 degrees	Origin:	Henan, China
brand:	oilfield	Whether CNC:	normal
Drilling diameter:	75-325 mm

Product Description

Applications

Water well drilling, geological prospecting/survey, soil sampling, soil testing, SPT testing, mining projects, etc.

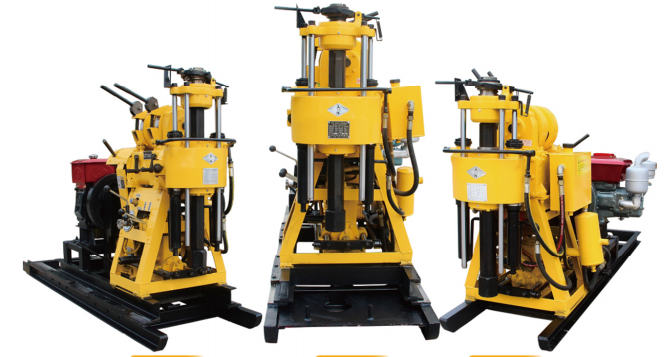

SpecificationArtesian rig
The main parameters	Model	YT-130Y	YT-180Y	YT-200Y
	Drilling depth	130m	180m	220m
	Drill diameter	75-225 mm	75-225 mm	75-325 mm
	Drill pipe size	55mm*4.2m
	Drilling angle	90-75 degrees
	strength	13.2 kW	13.2 kW	14.7 kW
	weight	740 kg	750 kg	970 kg
	size.m	2.4x0.8x1.4	2.4x0.8x1.4	2.7x0.9x1.5
Spindle	Speed (rev/min)	142/285/570	130/300/480/730/830/1045	64/128/287/557
Spindle	Stroke (mm)	450
winch	Maximum pulling force(kg)	2000	2100	2500
	Pulling speed (m/s)	0.41-1.64	0.35-2.23	0.12-0.95
	Rope diameter(mm)	9.3	9.3	12.5
	Rope capacity (m)	27	27	35
drill mast	Height (m)	6.5
drill mast	Rated load (T)	18
mud pump	Flow(l/min)	95	95	145
	Maximum pressure (MPa)	1.2	1.2	2
	times/minute	93	93	93
	Inlet hose diameter (mm)	51	51	51
	Outlet hose diameter (mm)	32	32	38

main feature

1. The depth of the drilling rig can reach 250m, the diameter is 75-300mm, and the trailer is installed.
2. Hydraulic control, diesel engine/electric motor, trailer installation.
3. Drill holes in soil, sand, gravel, thick\hard rock, marble, quartz and any other hard ground, etc.
4. In the list of accessories, there are alloy drill bits for soil, diamond drill bits for rocks, and PDC drill bits for small rocks.
5. It is a complete set of machines, and all accessories of 200m can be used upon arrival.

our service

pre-sale service

* Inquiry and consultation support.

* Sample testing support.

* Check out our factory.

After-sales service

* Training how to install the machine, training how to use the machine.

* Engineers can repair machinery overseas.

detailed image

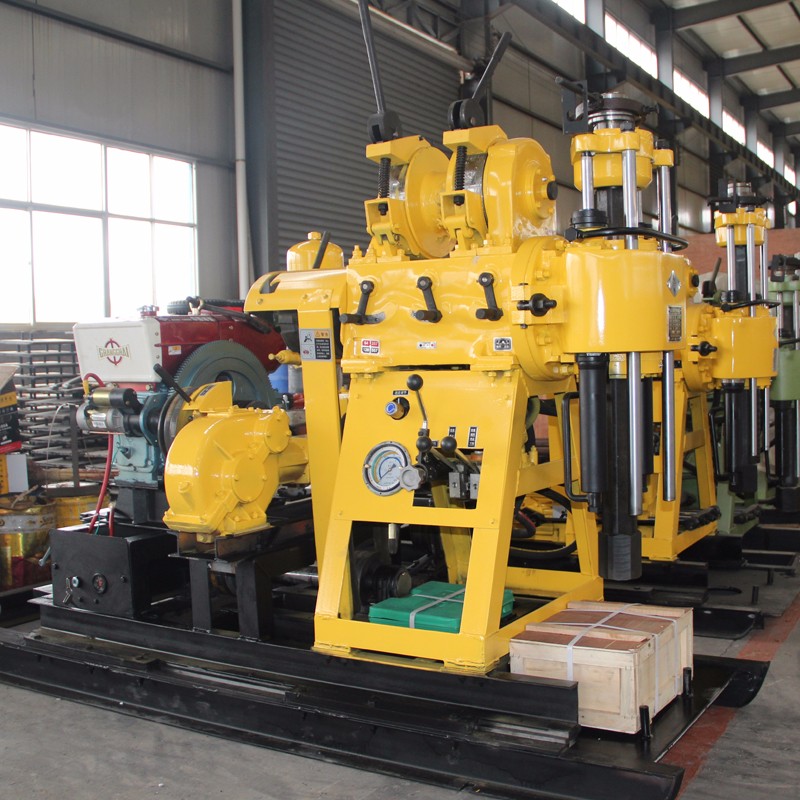

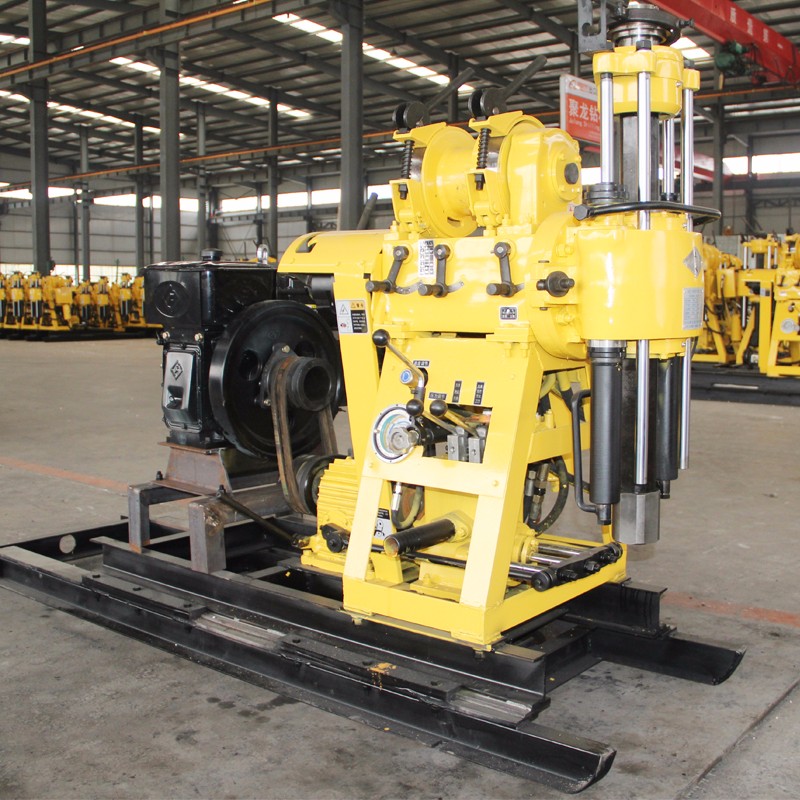

Mechanical Parts

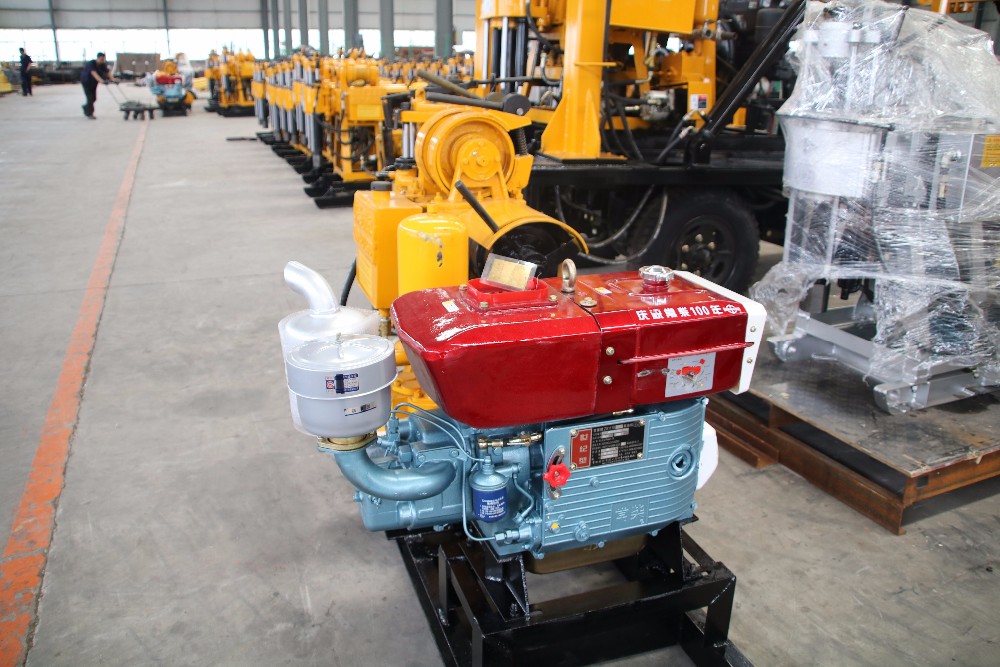

Name: Diesel engine

brand:Chang Chai

The original:China

Domestic famous brand engine, strong power, low fuel consumption, 14.7KW

main feature

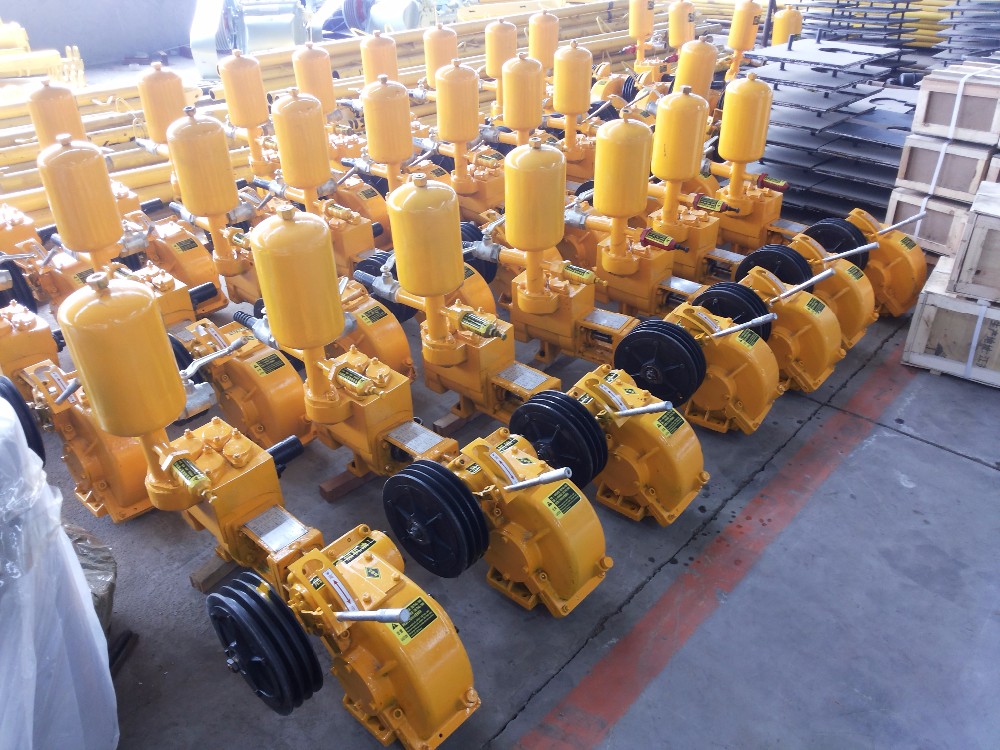

Name:mud pump
brand:oilfield
Original: China
Flow rate: 145 liters/minute

Maximum pressure: 2MPa

Times/min: 93

Inlet hose diameter: 51mm

Outlet hose diameter: 38mm

Mechanical Parts

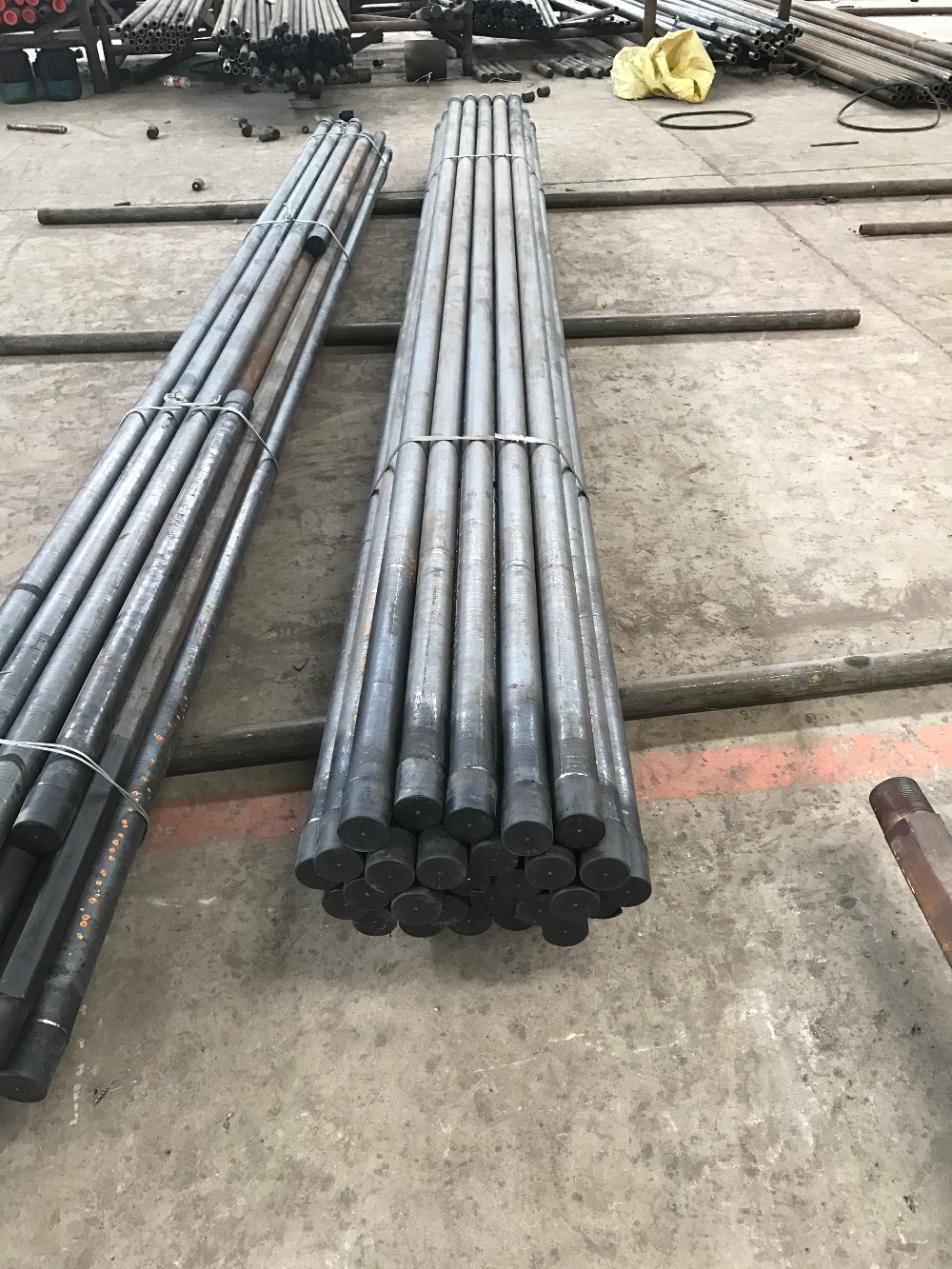

Name: drill pipe/drill pipe.

Brand: YT

50mm/60mm diameter

4.2m long

main feature

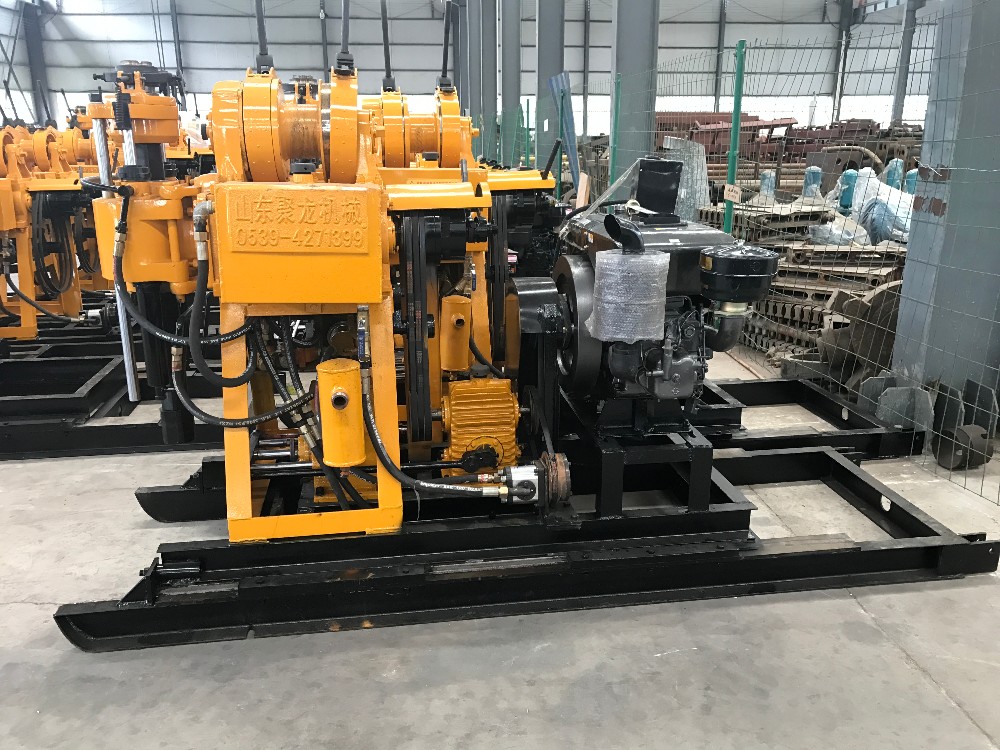

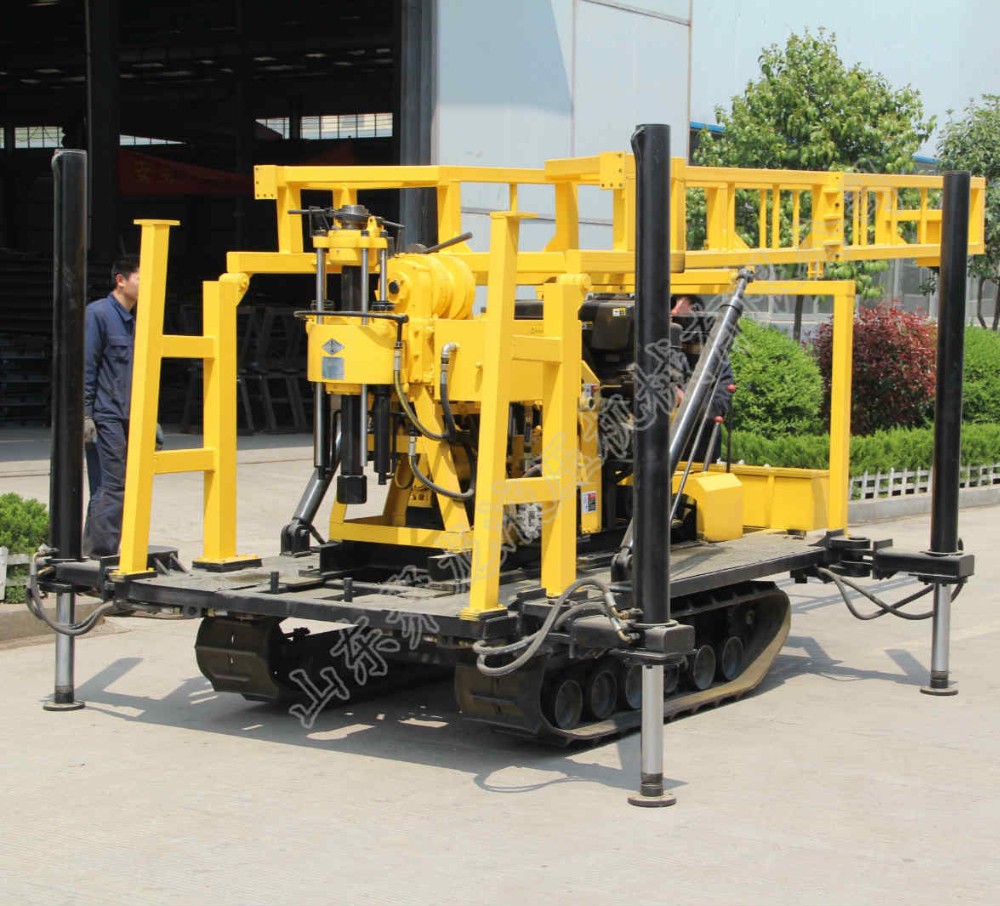

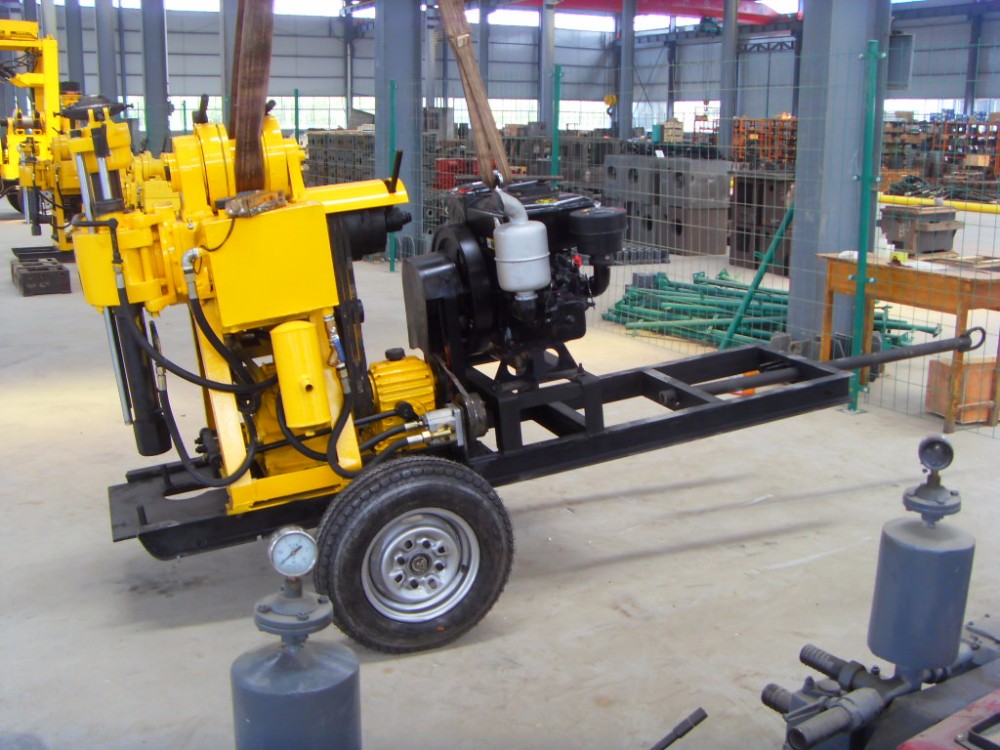

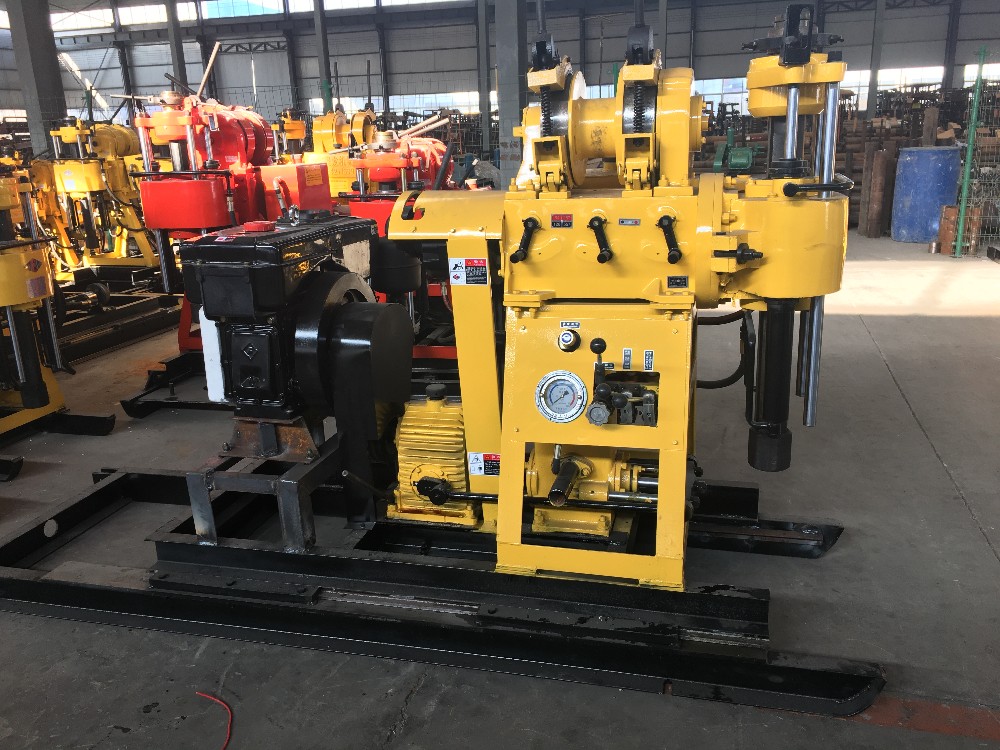

Name:skid mounted
Brand: YT
Country of Origin: China
Skid mounted and trailer mounted

machine part

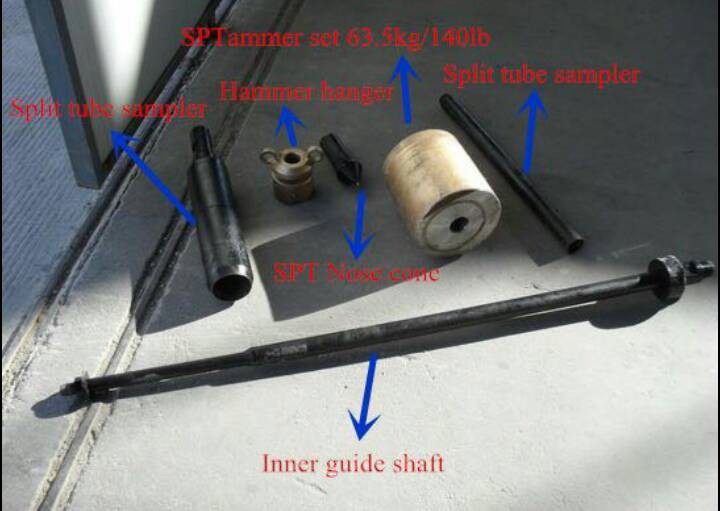

Name: SPT tool

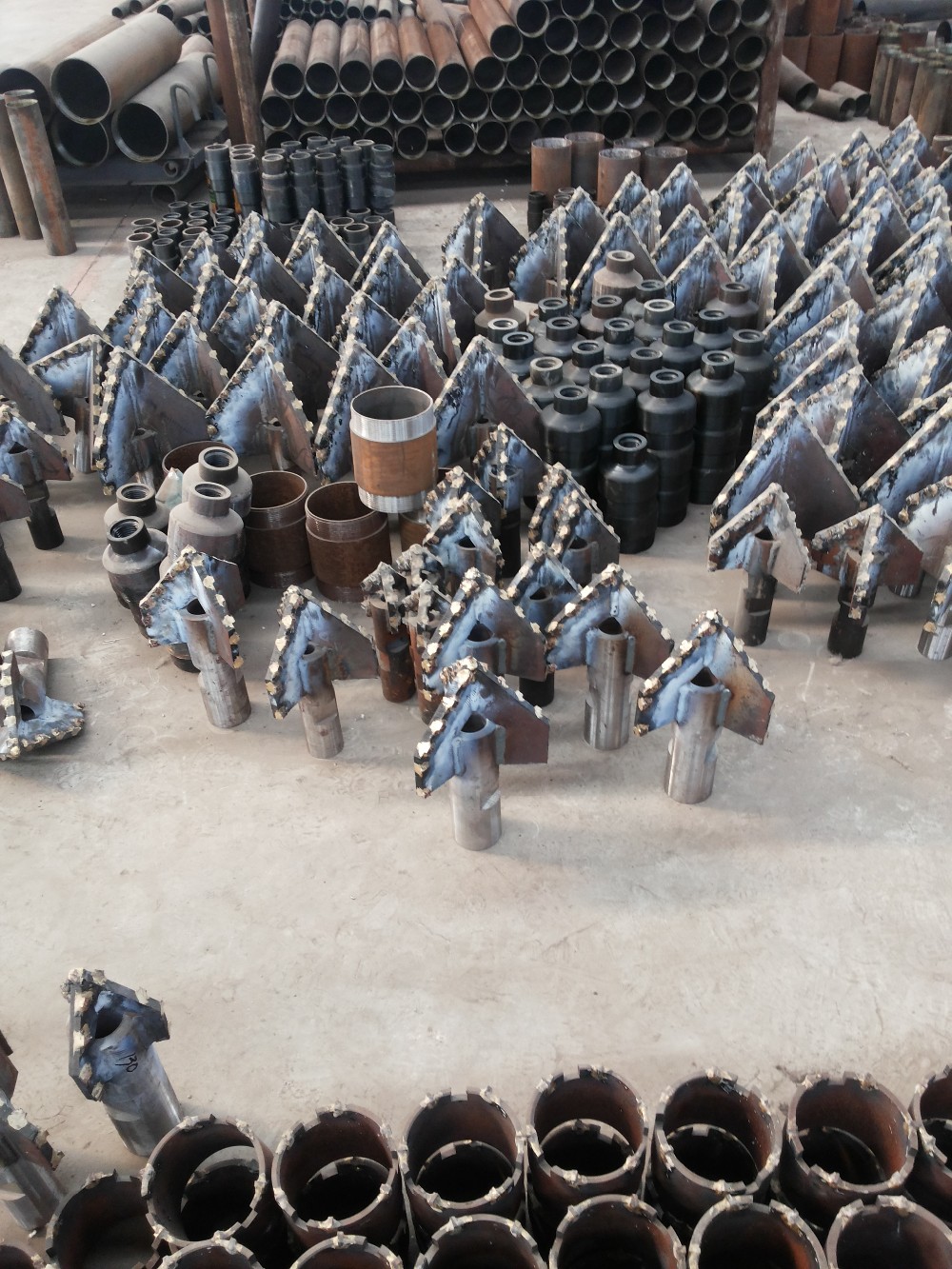

main part

Alloy drill bit: used for sandy soil and soil drilling

Diamond Drill Bits: Rock, Hard Rock, Quarry, Marble, Gold Ground Drilling

3-Wing Drill Bit: Open Hole Drilling

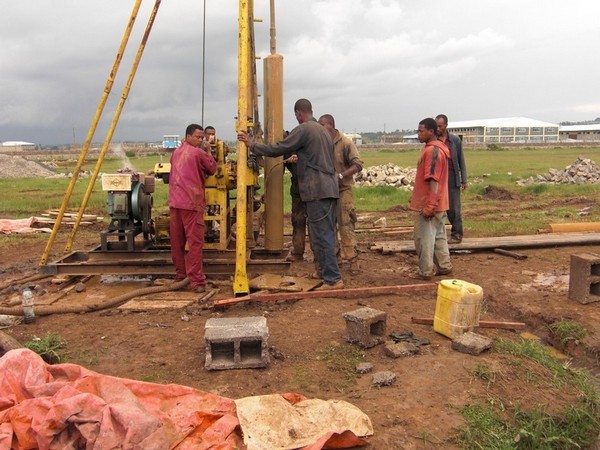

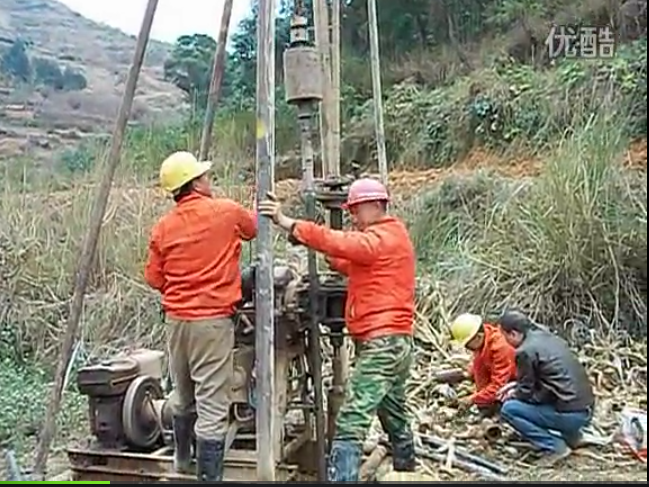

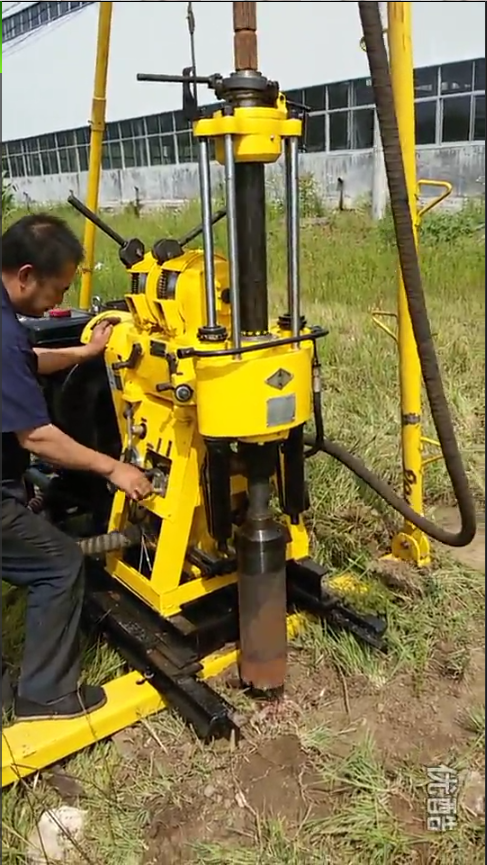

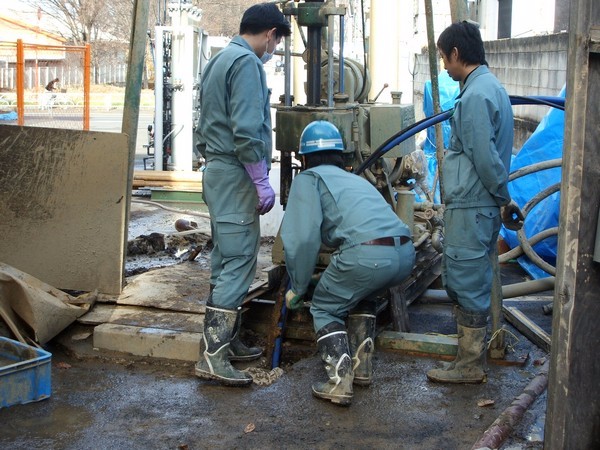

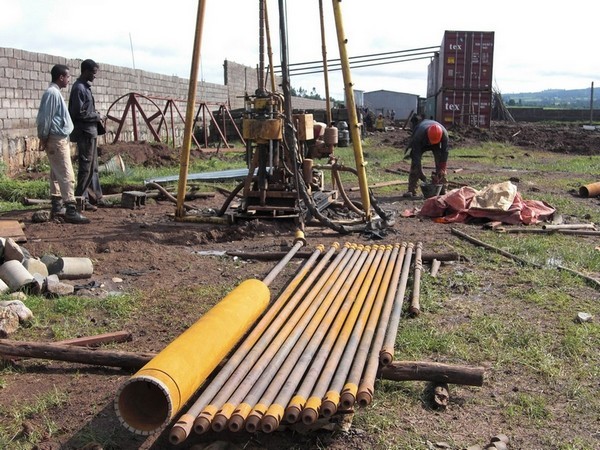

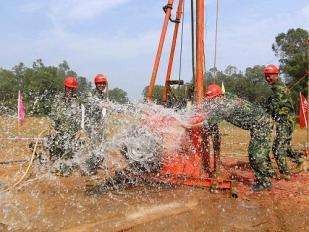

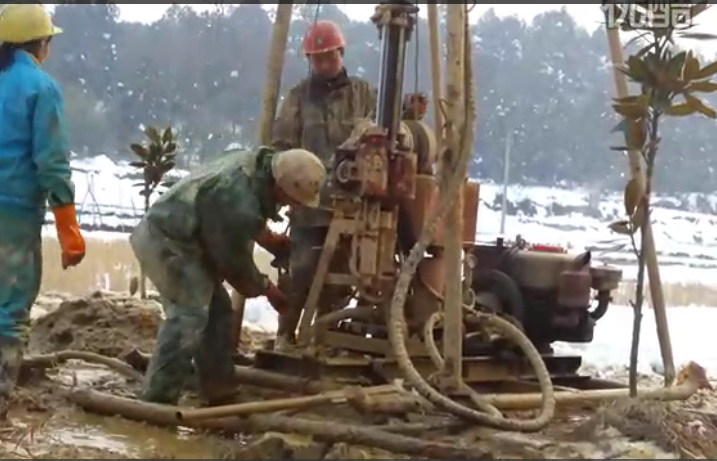

drilling site

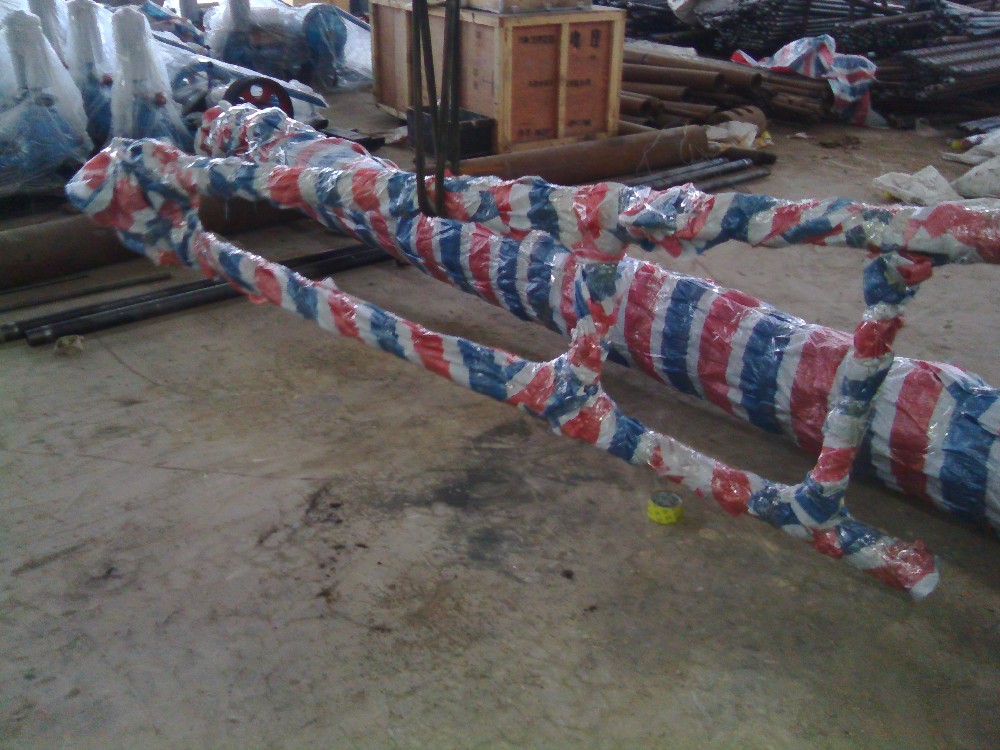

Packaging and Shipping

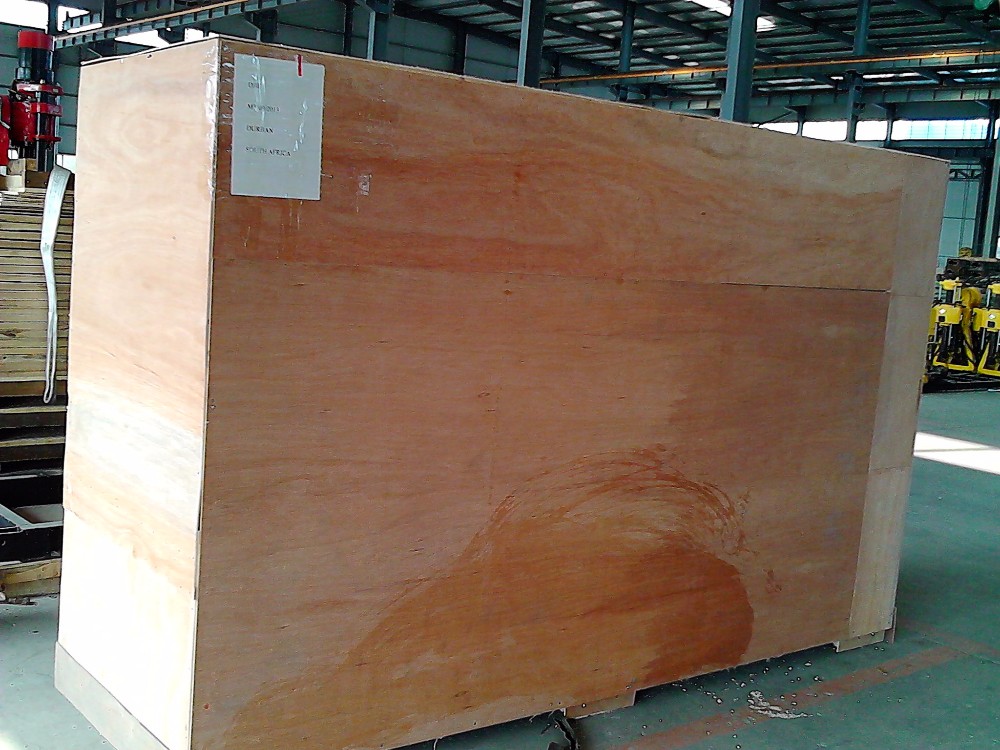

Package
size	460 mm (length) * 30 mm (width) * 40 mm (depth)
weight	1.2 tons
packaging details	The machine is packed in wood It contains a drill with attachments..

Package
size	251 mm (length) * 97 mm (width) * 170 (depth)
weight	1.2T
packaging details	Drill pipe and drill mast kits in PVC Pipe (size: 251mm97mm170mm). Mast (size: 262mm90mm40mm)

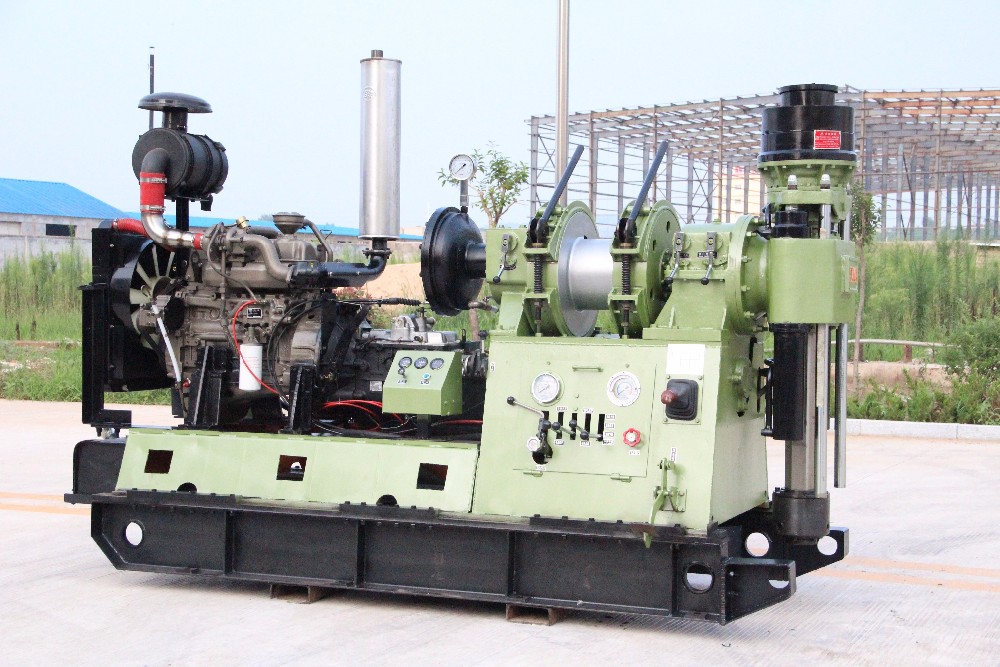

1400m core drilling rig

91.8%reaction speed

Hydraulic DTH Drilling Rig

91.8%reaction speed

anchor drilling rig

91.8% reaction speed

600m core drilling rig

91.8% response rate

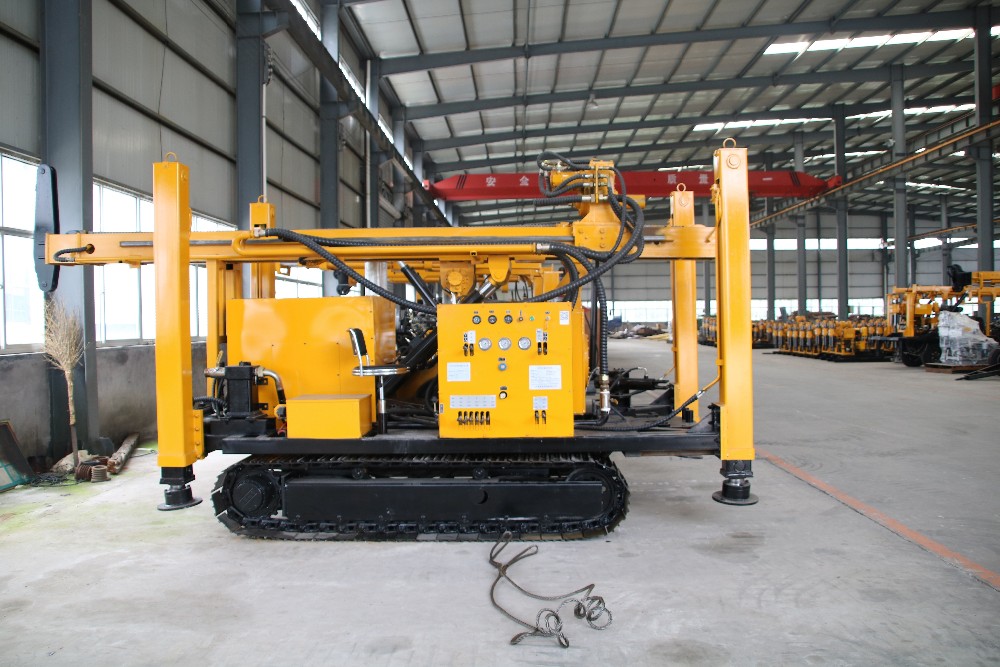

Crawler core drilling rig.

91.8% response rate

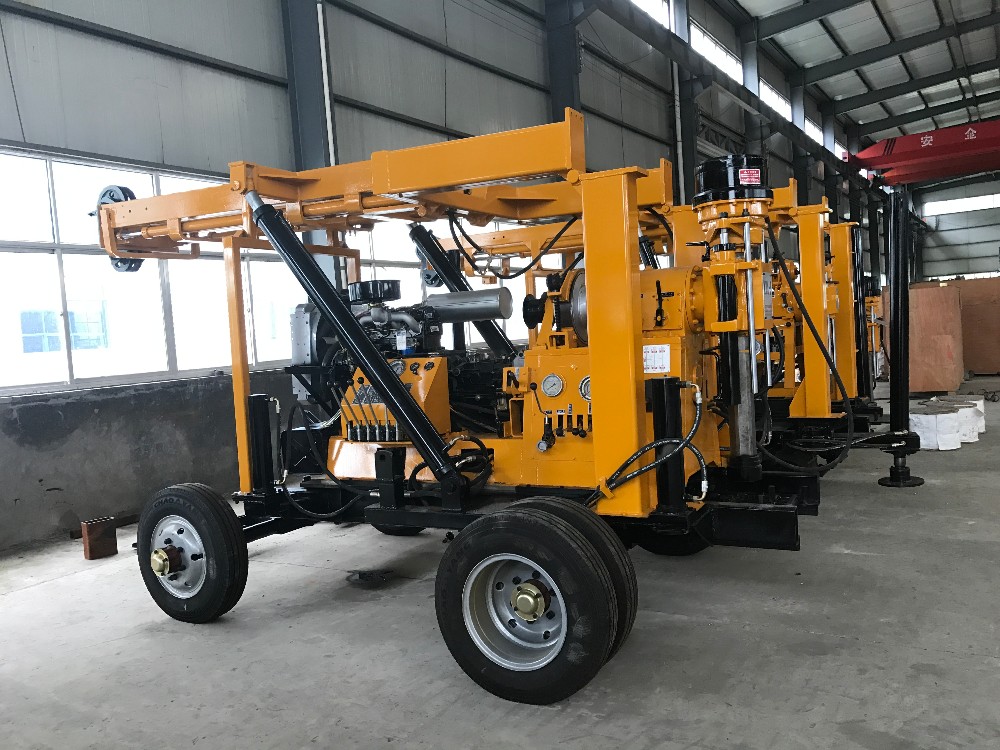

Trailed core drilling rig

91.8% response rate

FAQ

1. Free replacement of all spare parts within 12 months.

2. The machine is expected to have a service life of 10 years and has spare parts capability.

3. You can enjoy technical support by phone or email permanently. We will respond quickly to provide timely solutions.

4. If there is this clause in the contract, on-site training is available.

5. If there is this clause in the contract, we can send engineers to foreign countries for on-site service
