Vehicle-mounted water well drilling rig low price air compressor water well drilling rig for sale

Supplier: Shandong Master Machinery Group Co., Ltd.
Region: Shandong, China
Contact: Ms Ella Liu
Price: $2300.00 / 1 - 4 sets
$2200.00 / >=5 sets
Min. Order: 1 set

Click here to contact

Product details

Drill pipe length:	3 meters	Voltage:	220 volts
Drill pipe diameter:	76/89/102mm	Main selling points:	flexible manufacturing
Core component warranty:	1 year	usage:	well
Video shipment inspection:	if	product name:	CJC-200 Vehicle-mounted pneumatic water well drilling rig
place of origin; place of origin:	Shandong China	Drilling depth:	up to 200m
Drilling diameter:	300mm, 100mm, 200mm	Key words:	Water well drilling rig
Applicable industries:	Farms, construction, energy and mining	Dimensions (LWH):	390017002300mm
Power type:	diesel engine	Drilling method:	Percussion
Supply capacity:	100 sets per month	payment terms:	wire transfer
port:	Qingdao	Marketing Type:	2019 Hot Products
Drilling diameter:	140-300mm	engine:	Diesel engines
Core components:	motor, engine	Types of:	Water well drilling rig
Warranty:	1 year	application:	Drill well
Packaging Details:	wood packaging	brand:	Chinese master
Drilling depth:	200 meters	State of health:	new
Showroom location:	Pakistan	weight:	5 kg
Mechanical test report:	if	Package preview:
feature:	High drilling efficiency

Product Description

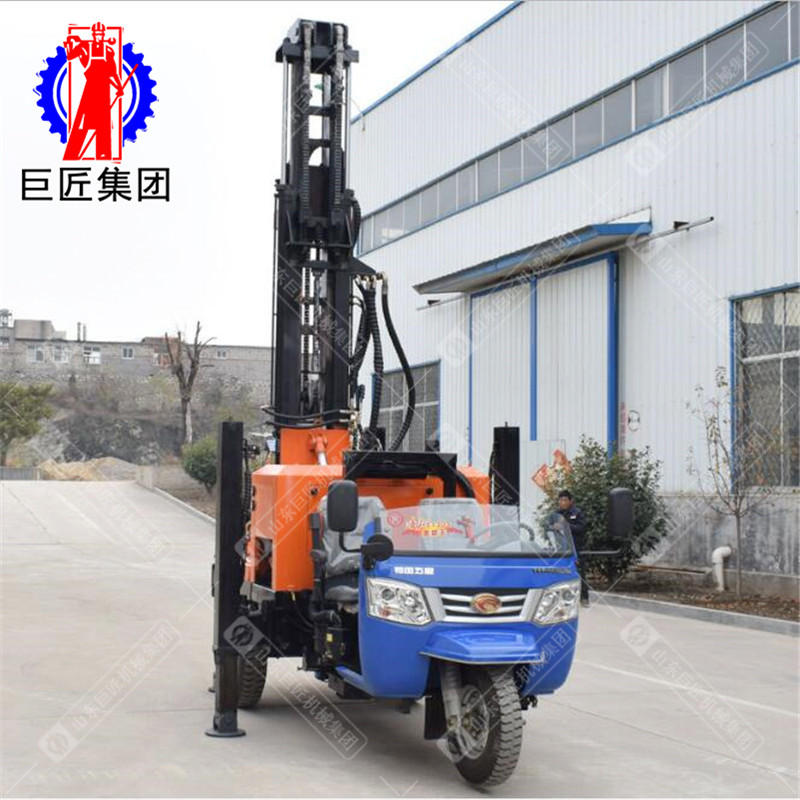

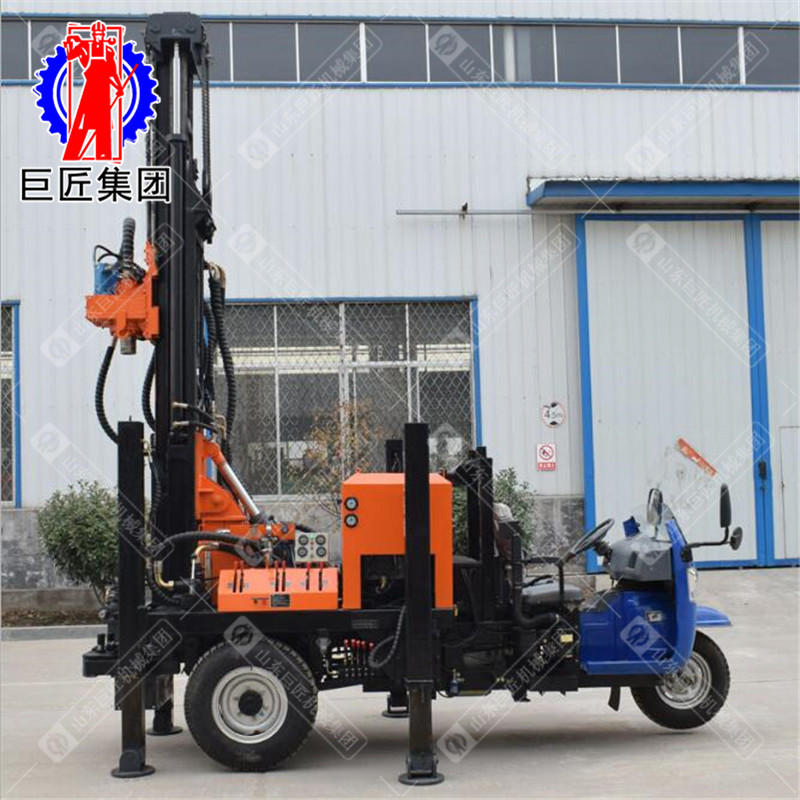

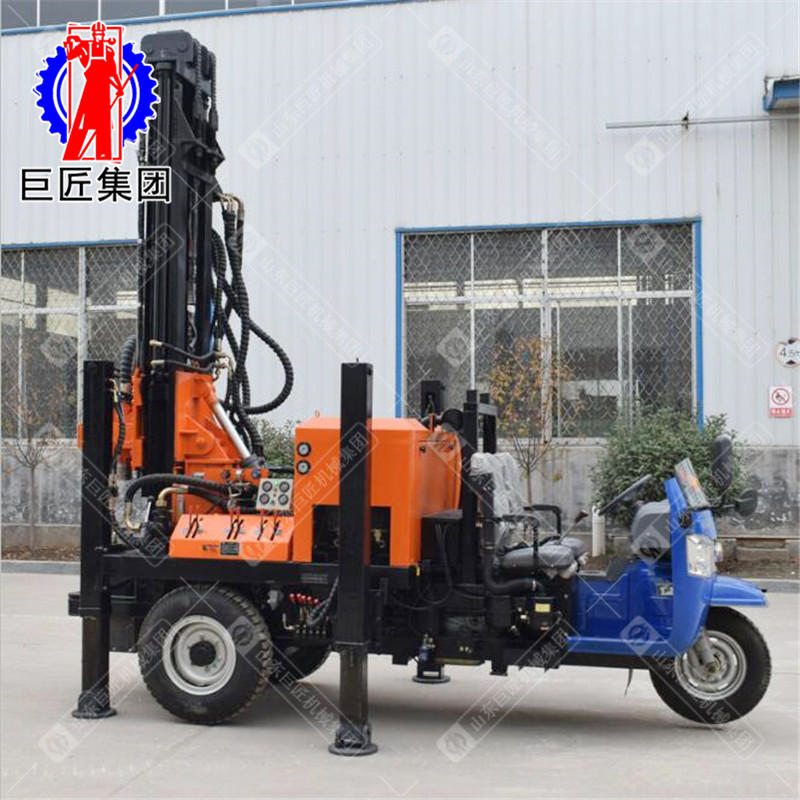

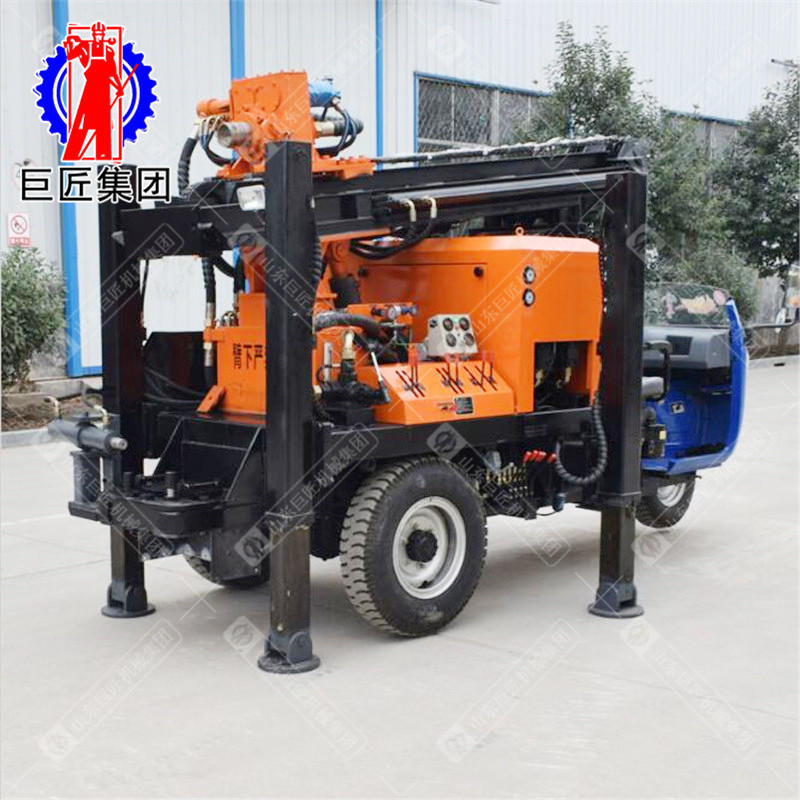

CJC-200 Vehicle-mounted pneumatic water well drilling rig

CJC-200 vehicle-mounted pneumatic water well drilling rig is a pneumatic water well drilling rig
The drilling rig jointly developed by Shandong Master Machinery Group and Jining Master Machinery Research Institute. Mainly used for drilling operations in hills, mountains and other rocky areas. With the advantages of deep drilling, fast footage, flexible movement and high efficiency, it has been widely used in industrial and civil drilling, geothermal drilling, environmental monitoring drilling and other occasions.

CJC-200 vehicle details

Pneumatic water well drilling rig

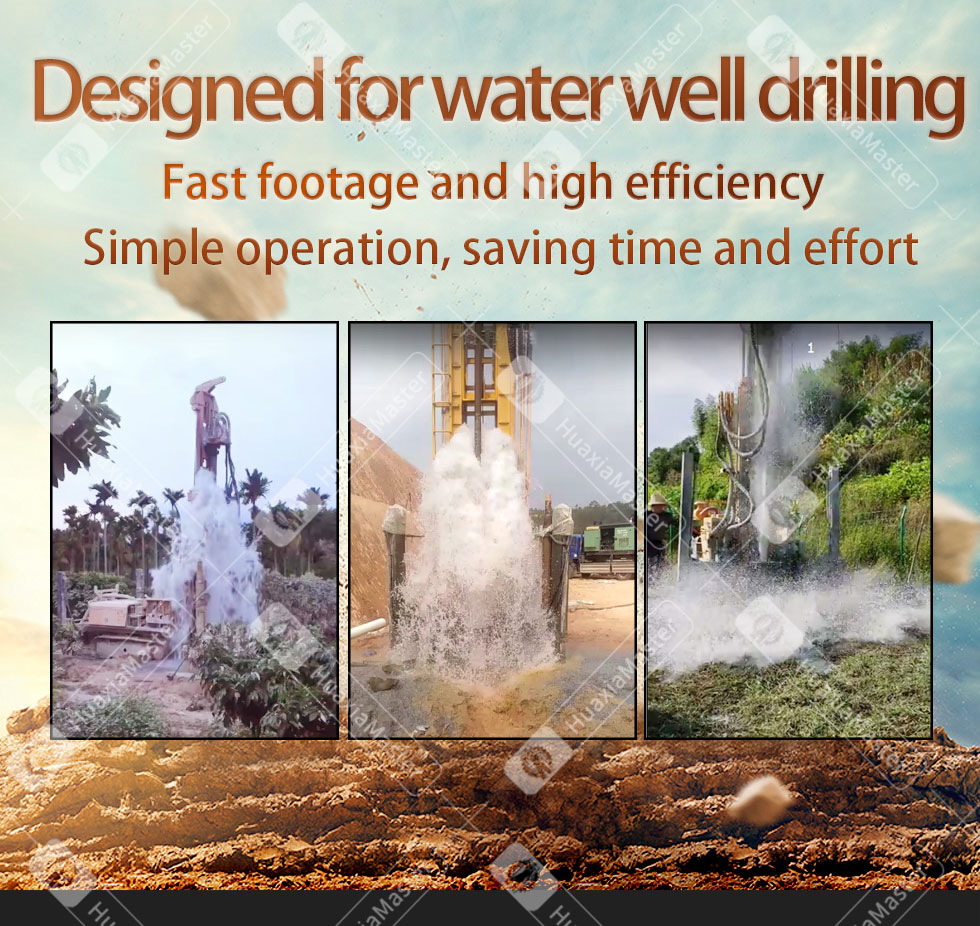

Using the principle of pneumatic impact, the footage is fast and efficient.
The chassis of the vehicle is an agricultural tricycle with a reasonable and compact layout and easy operation.
Equipped with hydraulic outriggers for leveling the rig and keeping the machine stable.
The main engine is equipped with a high-power diesel engine, which is powerful and meets the needs of work.
Equipped with a hydraulic lifting compound drill arm, which saves space and provides a strong lifting force for deep hole operations.

Features of CJC-200 Vehicle-mounted Pneumatic Water Well Drilling Rig

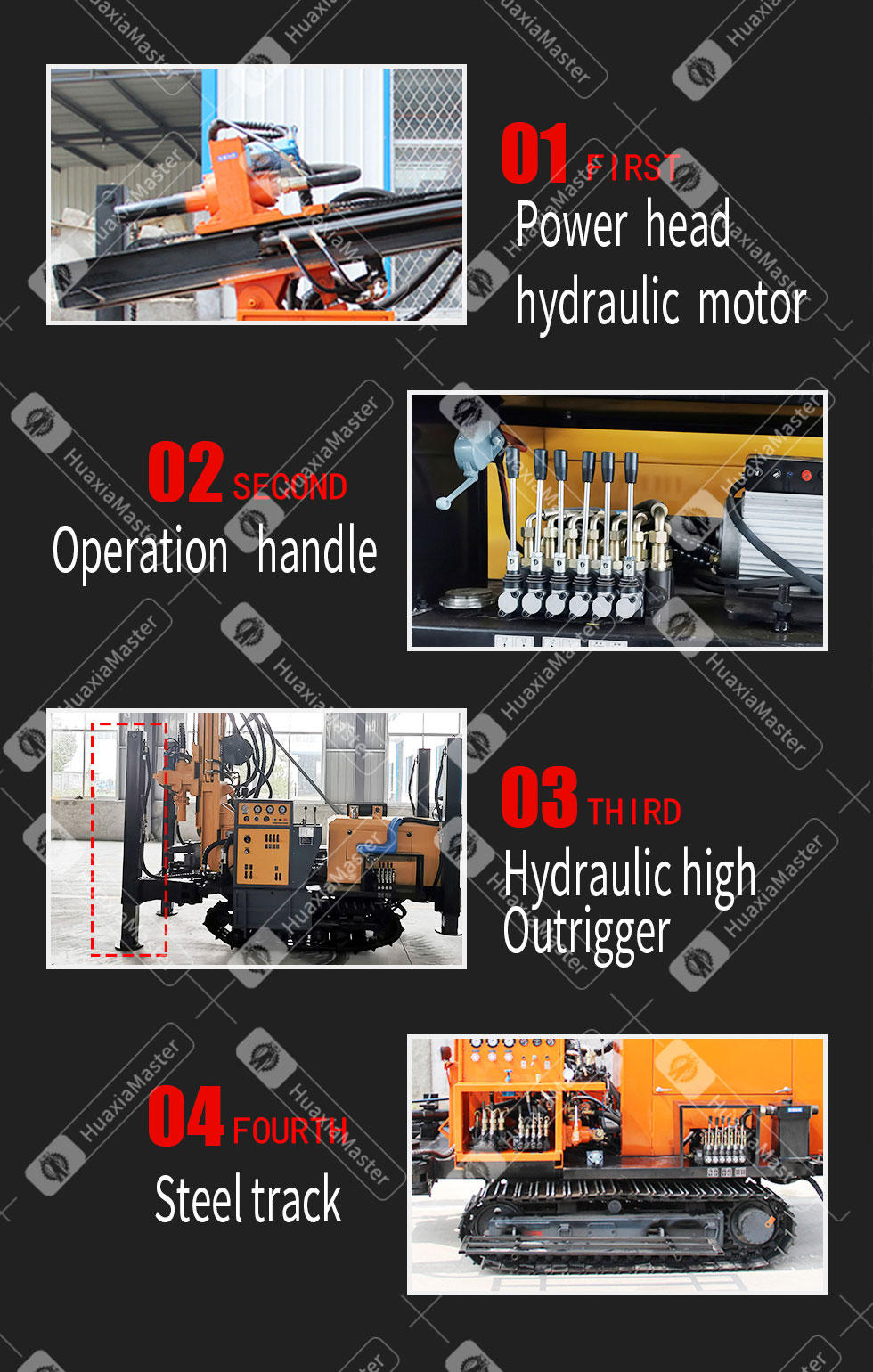

The drilling rig adopts hydraulic feed system, dual hydraulic motor power head, chain drive, hydraulic cylinder propulsion, large torque and high drilling efficiency.

Equipped with a quick rod unloading device, the drill pipe can be quickly disassembled, saving time and effort.
Centralized operation handle, reasonable layout, safe and feasible.
Well made, durable and low maintenance.

Specification

Do not	scope	unit	value
1	Drilling diameter	mm	140-203
2	Drilling depth	Meter	200
3	Drill pipe diameter	mm	φ76, φ89
4	Drill pipe length	mm	1.5, 2.0, 3.0
5	one advance length	mm	3300
6	propulsion	Ton	7
7	lifting force	Ton	15
8	work pressure	MPa	1.7-3.0
9	Air consumption	m3/min	17-30
10	engine power	kilowatt	65
11	walking speed	km/h	2.5
12	Gradeability	maximum.	30°
13	spinning speed	Rotating speed	45-65 years old
14	rotational moment	Nano	3300-4700
15	aspect	mm	390017002300
16	gross weight	Ton	5
