Hydraulic rock drilling machine hydraulic rock drilling gun price

Supplier: Shandong Master Machinery Group Co., Ltd.
Region: Shandong, China
Contact: Ms Ella Liu
Price: $1000.00 / 1 - 4 sets
$900.00 / >=5 sets
Min. Order: 1 set

Click here to contact

Product details

After-sales service provided:	Free spare parts, online support, video technical support	type:	rock splitter
Warranty:	1 year	Drilling depth:	650-1000mm
application:	rock splitter	Local service locations:	Chile
thing:	hydraulic rock crusher	Showroom location:	Pakistan
Mechanical test report:	if	feature:	fast rock splitter
Applicable industries:	Construction Engineering, Energy and Mining	Motor type:	AC motor
Origin:	Shandong Province, China	brand:	Chinese master
Work pressure:	120MPa	Packaging Details:	Wooden packing
Core components:	engine	Marketing Type:	2020 New Products
Name:	hydraulic rock splitter	Video outbound inspection:	if
Pump type:	hydraulic pump	Key words:	rock splitter
Certification:	ISO9001	payment terms:	wire transfer
usage:	rock separate	Package preview:
Core component warranty:	1 year	port:	Qingdao
Supply capacity:	100 sets per month	Dimensions (LWH):	1.20.50.6m
Working medium:	68 Anti-wear	Drilling diameter:	90-220mm
Health status:	new

Product Description

Hydraulic rock drilling machine hydraulic rock drilling gun price

1. Brief Introduction of YPB Series Static Explosion Hydraulic Splitter Rod

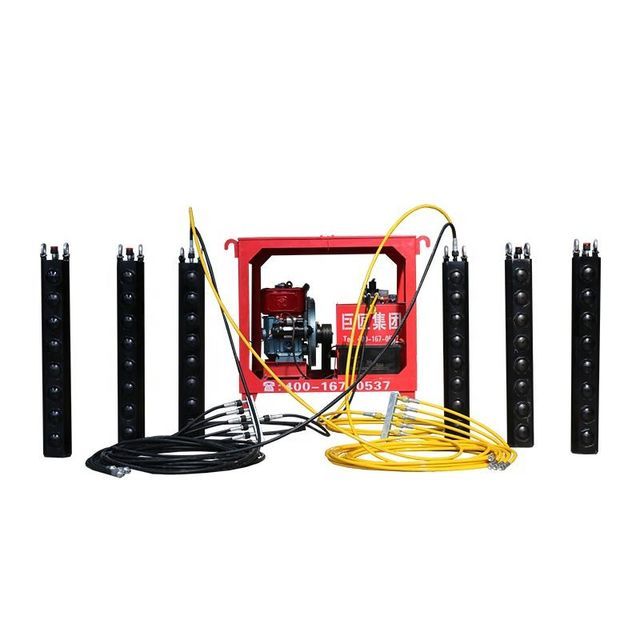

The static explosion hydraulic splitting equipment of Shandong Master Machinery Group consists of a hydraulic pump station, a flow divider, a high-pressure oil pipe and a splitting rod. The equipment has been widely used in open-pit quarrying, roadway excavation, concrete demolition and narrow site demolition operations and other fields. Depending on the power of the hydraulic pump
Static explosion hydraulic splitting equipment can be divided into diesel station type and mobile station type. When the hydraulic pump station pumps out the oil, the plunger of the hydraulic splitting rod is pushed out, exerting force on the rock from the inside to the outside, destroying the internal structure of the rock, and achieving the purpose of splitting the rock.

2. Features of YPB series static explosion hydraulic splitter bars

* Compared with the traditional operation method, the hydraulic splitting rod has the advantages of simple operation, strong controllability, high efficiency, large splitting force, low cost, safety and environmental protection, and no noise from dust.
* Modular design, easy to assemble and disassemble.
* Small size, light weight, easy to carry, and can be disassembled in narrow places.
* The hydraulic pump station is easy to start, flexible to operate, strong in power and reliable in performance.
* The hydraulic oil pipe is resistant to ultra-high pressure, has good toughness, and is not easy to burst.
* The hydraulic splitting rod is made of special steel, and the rod body is wear-resistant, impact-resistant and durable.
* The plunger jack has strong splitting force, anti-extrusion, not easy to damage, and low maintenance cost.

Specification

Model			YPB-90	YPB-110	YPB-130	YPB-150	YPB-180	YPB-220
Required aperture (mm)			90	110	130	150	180	220
Split rod length (mm)			650	850	850	850	850	1000
Required hole depth (mm)			850	1050	1050	1050	1050	1300
Splitting pole weight (kg)			28	55	79	104	128	200
Number of plugs (pieces)			8	9	8	7	6	5
Single rod splitting force (T)			450	Chapter 560	650	Chapter 760	850	960
Equipped with pump station pressure (Mpa)			120	120	120	120	120	120
bus station	Power (kW)	4	4	7.5	7.5	7.5/11	7.5/11
diesel station	Horsepower (horsepower)	8	8	18	18	18	18
