hydraulic stone separator hot sale rock separator equipment

Supplier: Henan Yugong Machinery Co., Ltd.
Region: Henan, China
Contact: Mr Karl Chan
Price: $2000.00 / 1 - 4 sets
$1500.00 / 5 - 9 sets
$1000.00 / >=10 sets
Min. Order: 1 set

Click here to contact

Product details

Video outbound inspection:	if	Wedge length:	380mm-550mm
aspect:	450410700MM	Motor type:	AC motor
Key words:	rock splitter	Origin:	Henan, China
Showroom location:	not any	Marketing Type:	2020 New Products
Warranty:	1 year	Health status:	new
work process:	5m	Piston stroke (mm):	300-800 mm
port:	Qingdao or according to your needs	type:	rock splitter
Dimensions (LWH):	300mm300mm2000mm	Drilling depth (mm):	1600 1700
Core component warranty:	1 year	brand:	Yu Gong
application:	hydraulic rock splitter, rock splitter	Weight (kg):	900
Supply capacity:	500 sets per month	Diesel engines:	8 hp
Applicable industries:	Energy & Mining, Other	Core components:	Pump
Mechanical test report:	if	No. Splitter:	up to 18 pieces
Aperture:	28-50mm	Packaging Details:	Export standard wooden box
payment terms:	Western Union, T/T

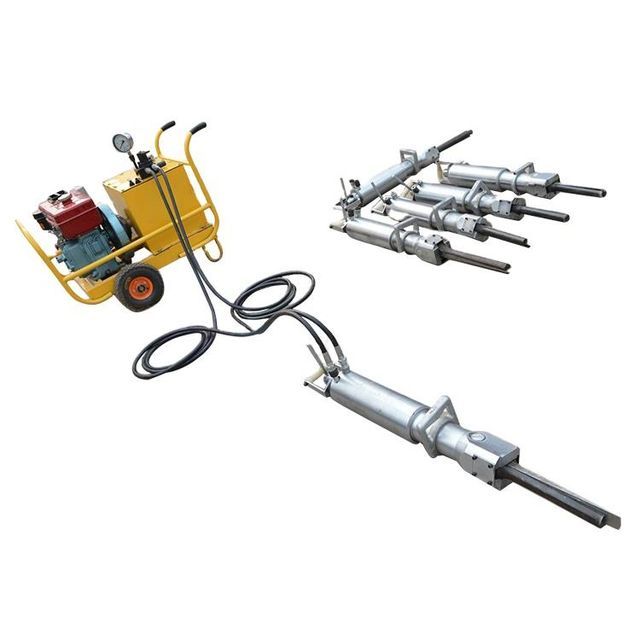

rock concrete splitter

Product Description

The splitting machine uses high-pressure oil as the energy source, and cleverly applies the wedge principle to make the splitting force reach hundreds or even thousands of tons, so that thousands of tons of boulders can be easily split in a few seconds, so that the hard and huge Ore is separated from the mountain.

Technical Parameters:

Model	YG-250	YG-350	YG-450
strength	diesel power pack
diesel power pack	Changchai 6 horsepower or 8 horsepower
hydraulic power unit	Pressure adjustable 10-60Mpa
Diverter length (mm)	1000	1100	1200
Wedge length (mm)	250	350	450
Wedge weight (kg)	30	36	43
Piston stroke (mm)	90/220	90/220	90/220
Drilling depth (mm)	>500	>700	>900
Drilling diameter (mm)	42	50	55
Crack Width (mm)	10-20 days	10-20 days	10-20 days
Split time (seconds)	10-15 days	10-15 days	10-15 days
Splitting force (T)	800	900	1000

Features:

1. Safety. Static demolition, no noise, no danger to workers.
2. Environment. The division is slow and saves electricity, and has no pollution to the environment.
3. Economy. Cost-effective, high-efficiency, continuous operation without maintenance.
4. Precise. Splitters fit into pre-drilled holes and split to precise orientation, shape and size.
5. Convenient. The device is specially designed, with pulleys and pulleys, and wedges with handles, making the operation easy and convenient.

construction site:
