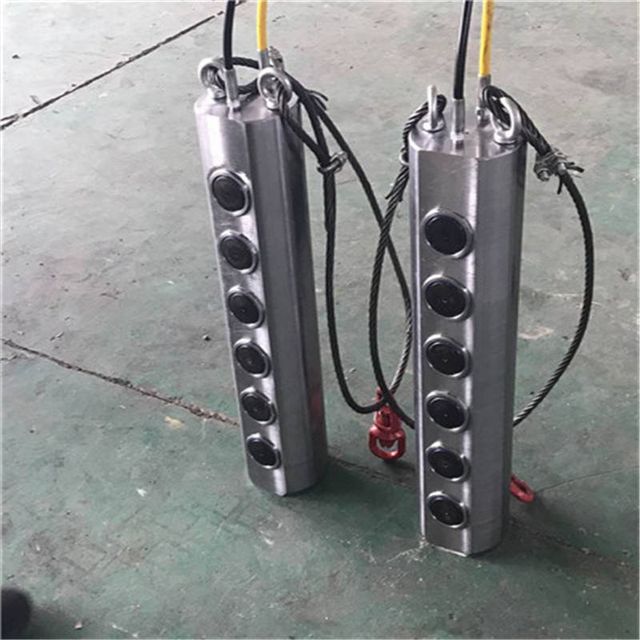

Professional Rock Crusher Diesel Rock Splitter Splitter Rod Hydraulic Rock Splitter For Sale

Click here to contact
Product details
type:stone crusherbrand:Hanfa
Marketing Type:New Products 2022Model:PXQ-180
Core component warranty:1 yearport:Qingdao, Tianjin, Shanghai
Dimensions (L*W*H):1150*180*310mmVideo shipment inspection:if
application:Rock and quarry stone cutting, rock/stone separatorscolor:customized
Supply capacity:15 sets per monthproduct name:rock splitter
Advantage:high efficiencyWeight (kg):120
Spare parts supply:lifetime timeHealth status:new
Origin:Henan, ChinaMotor type:AC motor
Install:under the guidance of engineersApplicable industries:Building material stores, manufacturing plants, energy and mining, other
Showroom location:not anyCore components:engine, motor
Warranty:1 yearDrilling depth:1.2-1.5m
Mechanical test report:ifCrack Width:2-3cm
strength:7.5kwAfter-sales service:lifetime service
payment terms:L/C, Western Union, T/T, MoneyGram
Product Description
How hydraulic splitters work
It consists of a cylinder, 10 pistons or multiple plungers, multiple seals, multiple high-pressure oil pipes and several main components. Divided into oil inlet pipe and oil return pipe. When the oil enters, the piston of the hydraulic rock breaker extends. This is a working process, which is the time when the rock is broken. Its power source is a hydraulic power station, which transmits hydraulic oil through oil pipes, with a power of up to 100mp and a theoretical splitting force of 3000t. A single 30kj, a power station can be equipped with 6 high. The standard configuration is 4.
Specification
Technical Parameters
Click here to contact us! ! !
We will provide you with detailed quotations and high-quality services! ! !
Model
Drilling diameter
Drilling depth
crack width
split time
Disintegration of theory
pumping station
electrical

4KW
5.5KW
7.5KW
diesel dye
6 hp
8 hp

18 hp
PXQ-110
110mm
1.2-1.5m
2-3cm
30-40s
2000-3000 tons
PXQ-130
130mm
1.2-1.5m
2-3cm
30-40s
2500T-3500T
PXQ-150
150mm
1.2-1.5m
2-3cm
30-40s
3500T-4500T
PXQ-180
180mm
1.2-1.5m
2-3cm
30-40s
4500T-5000T
Product advantages
✔️ Compared with cement expansion agent, the waiting time for quarrying is too long, the speed of quarrying is too slow, manual drilling, the workload is heavy, and the amount of space cannot be improved. Cannot be reused.
✔️ The hydraulic splitter is also a high-quality equipment produced by our company.
✔️ Only suitable for small batches of stone mining. As far as drilling is concerned, hydraulic splitters and manual drilling can only drill 46 small holes.
✔️Cracking rod, machine punched, need to punch 180 large holes. The rock mining speed is fast, the cost is saved, the rock mining is silent, hydraulic blasting, and good equipment.
Main areas of hydraulic splitter bars
It is suitable for static mining of all kinds of hard rock, granite, volcanic rock, quartzite, basalt, quartz porphyry, siliceous schist, sandstone, limestone, marble, dolomite, pyrite, etc. Move, the expansion agent cannot be separated, the speed of the splitter is slow, hydraulic splittingPole is a good choice.
Applicable material
Suitable for limestone, iron ore, basalt, granite, river pebbles, gold mines, etc.
If you need our products, please contact us, this is my WhatsApp. Or just click the blue font below to send
Ask for a quote and we'll help you make more money.
WeChat: +8617739786040
Email: betty@hanfagroup.com
Click here to contact us! ! !
