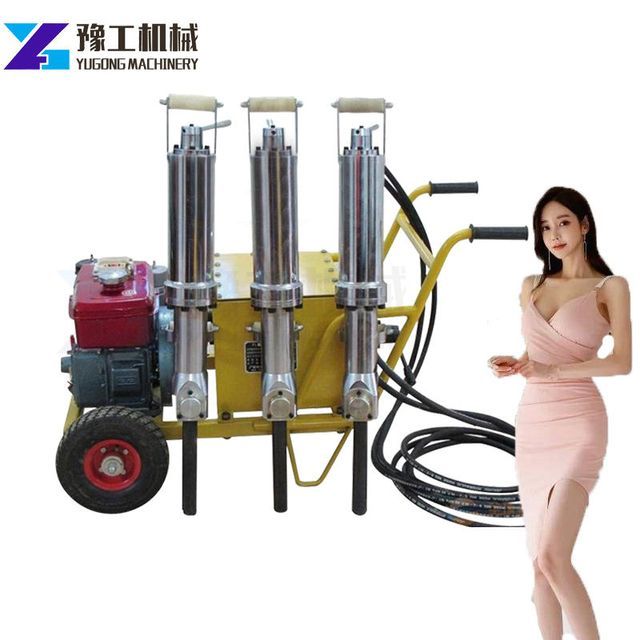

Similar high quality to hydraulic rock crushers and rock splitters

Supplier: Henan Yugong Machinery Co., Ltd.
Region: Henan, China
Contact: Mr Cludy Liu
Price: $1450.00 / 1 - 4 pieces
$850.00 / >=5 pieces
Min. Order: 1 piece

Click here to contact

Product details

brand:	Foolish Old Man Machine	Marketing type:	Hot Products of 2022
payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram	Mechanical test report:	if
Place of origin:	Shandong Province, China	Dimensions (lengthwidthheight):	450410700MM
Tank capacity:	25-45L	Warranty:	3 years
type:	rock splitting machine	Supply capacity:	10,000 pieces per month
Health status:	new	Wedge length:	380mm-550mm
Video outbound inspection:	if	Package preview:
Showroom location:	Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Vietnam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Morocco, Kenya, Argentina	Core component warranty:	3 years
Packaging details:	Plastic film packaging + wooden box	Working medium:	46 or 68 anti-wear
port:	Qingdao, Shanghai	Motor type:	AC motor, DC motor or diesel engine
Split diameter:	42-45mm	Core components:	Bearings, motors, pressure vessels, pumps
What is..Application:	0086-15515682190	Applicable industries:	Hotels, clothing stores, building materials stores, manufacturing plants, machinery repair shops, food and beverage factories, restaurants, food stores, construction projects, energy and mining, food and beverage stores
Work pressure:	55-60Mpa	No. Splitter:	Maximum 18 items
Aperture:	28-50mm	Weight (kg):	35
Motor type:	AC motor

Product Description

Specification

why notContact me?

1. Provide the most suitable machine model 2. Provide the most suitable construction plan 3. Get the latest purchase discount! Note: Scan WhatsApp QR code 1. Open WhatsApp and click Settings. 2. Click on the QR code icon that appears next to your name. 3. Click Scan > OK. 4. Use your handheld device to scan the QR code at the top. 5. Click Add Contact. 6.Open wealth~

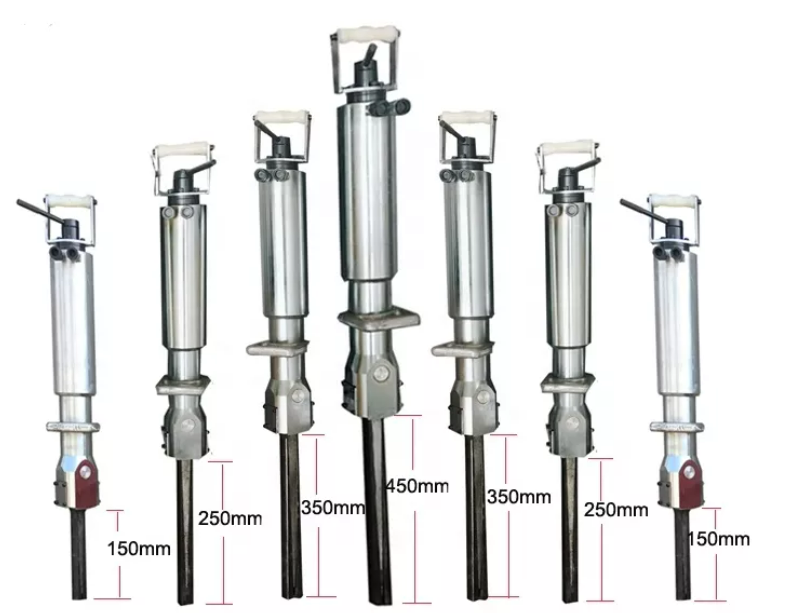

Specification for rock splitter cylinders or guns
Model/data name	YG90-250	YG90-350	YG90-450
Piston diameter	90mm	90mm	90mm
Drilling diameter	42mm	45mm	50mm
maximum. Drilling depth	500mm	600mm	700mm
wedge length	250mm	350mm	450mm
Crack width (mm)	12-14th	12-14th	12-14th
Split time	20-40 seconds	20-40 seconds	8-15 seconds
component force	800 tons	800 tons	1000 tons
weight	31kg	33kg	35kg

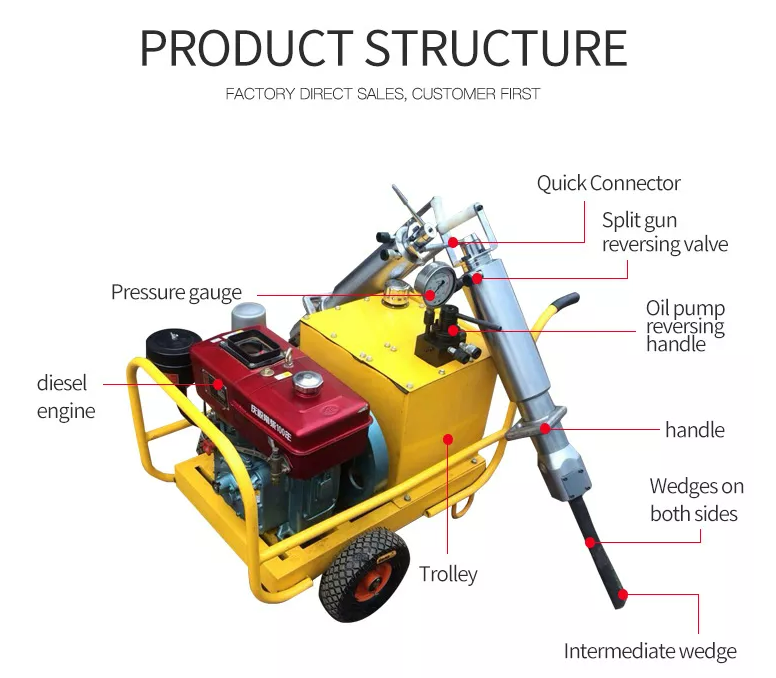

Rock splitting machine hydraulic pump station specifications
engine	electric motor			Gaolin engine/diesel engine
Motor Power	4kW	5.5KW/7.5KW	6 HP	8hp/18hp
Working pressure (Mpa	55-60	63 MPa	55-60	63 MPa
Working pressure (Mpa	55-60	63 MPa	55-60	63 MPa
Work flow (L/min)	2-13	2-13	2-13	2-13
Configurable number of dividing machines	1-5	2-7/2-10	1-3	3-8/3-18
Configurable number of dividing machines	1-5	2-7/2-10	1-3	3-8/3-18

our service

1. Full guidanceWith more than 15 years of service experience, we will spare no effort to provide support in equipment selection, production line customization, supply chain improvement, and later optimization.

2. Provide a full set of construction methods and equipment trainingProvide design and construction solutions in cost estimation/schedule improvement/quality control/safety management, etc.

3.After-sales service systemComprehensive tracking service system, paying attention to customer needs, first-class speed, skills, and attitude to provide support for customer construction.

Phone: 00 86 155 1568 2190

4.Support customizationRelying on our powerful flexible production line, we can give you the complete right to choose molds, drive methods, accessory upgrades, shell materials, appearance colors, logos, etc.

5.Extensive spare parts serviceThe spare parts warehouse of more than 50,000 square meters can meet the timely replacement and replenishment of any wearing parts.

6.Support sea, land and air transportationWe can ship products to every corner of the world. If you need it, we also support a series of tedious tasks such as customs clearance and tail delivery.
