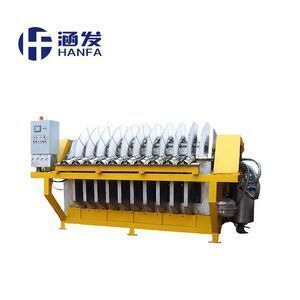

Feldspar Dewatering Unit, Sludge Dewatering/Filtration Machi

Supplier: Zhengzhou Hanfa Imp & Exp Trading Co., Ltd.
Region: Henan, China
Contact: Mr Vincent Guo
Price: $6000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Installed Power (kW):	11.5;	Main Frame (LXWXH) (m):	3.3X3.0X2.5;
Dimension(LWH):	3.3X3.0X2.5m;	Number of Filter Plate (Piece):	60;
Motor Type:	AC Motor;	Warranty:	1 Year;
Brand Name:	HANFA;	Model:	TC-15;
Certification:	ISO9001:2008;	Operation Power (kW):	8;
Filter Area (m2):	15;	Condition:	New;
Production Capacity:	1~150m2;	Tank Volume (m3):	2.7;
After-sales Service Provided:	Free spare parts,Video technical support,Field installation, commissioning and training,Field maintenance and repair service;	After-sales Service Provided:	Engineers available to service machinery overseas;
Port:	QINGDAO/SHANGHAI/NINGBO PORT;	Type:	Mining Thickener;
Place of Origin:	Henan China (Mainland);	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;
Number of Filter Disc (Circle):	5;	Supply Ability:	16 Set/Sets per Month;

Technical Parameters

Model	Filter Area (m2)	Number of Filter Disc (Circle)	Number of Filter Plate (Piece)	Tank Volume (m3)	Installed Power (kW)	Operation Power (kW)	Main Frame (LXWXH) (m)


TC-1	1	1	12	0.21	3.5	2	1.6X1.4X1.5
TC-4	4	2	24	1	7	3	2.4X2.5X2.1
TC-6	6	2	24	1.2	7	6	2.4X2.9X2.5
TC-9	9	3	36	1.7	9	7	2.7X2.9X2.5
TC-12	12	4	48	2.2	11	7.5	3.0X2.9X2.5
TC-15	15	5	60	2.7	11.5	8	3.3X3.0X2.5
TC-21	21	7	84	4	13.5	9	4.6X3.0X2.6
TC-24	24	8	96	4.5	16.5	10.5	4.9X3.0X2.6
TC-27	27	9	108	5	17	11	5.2X3.0X2.6
TC-30	30	10	120	5.5	17.5	11.5	5.5 X 3.0 X 2.6
TC-36	36	12	144	7	23	16	6.6X3.0X2.6

ADVANTAGES

High vacuum degree (vacuum degree -0.09~-0.098MPa), low moisture of cake.

High filtration precision, solid content of filtrate<50ppm, which can be recycle used in the system. Energy saving up to 90%, low energy consumption, low running cost. Filter cake cleaning system is installed. PLC and computer integrate with automatic valve control; high degree of automation and low labor intensity. Compact structure; small area taken; convenient maintenance. Advanced drainage system ensures application in any running conditions.

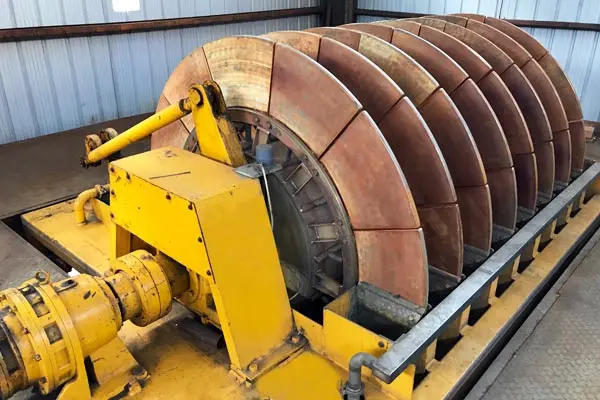

RRODUCT STRUCTURE

Pulp absorbing area: filter plate immersed in the pulp while in operation produces a surface absorption of filter cake, with the action of capillarity and integrated with vacuum pressure. Filtrate enters distributing valve and drainage tank through filter plate.

Spraying zone: filter cake receive spray washing after discharged from the slime hopper.Drying zone: continuous dewatering for filter cake is conducted with the action of high vacuum force.Discharging zone: scraper will automatically discharge materials once entering the vacuum-free condition.Back Flushing: Service water or filtrate enters the ceramic plate through distributing valve and cleaning the blocked manhole. Cleaning with ultrasonic and low density acid after ceramic plate is used for one period to maintain the efficient service life of ceramic plate.
