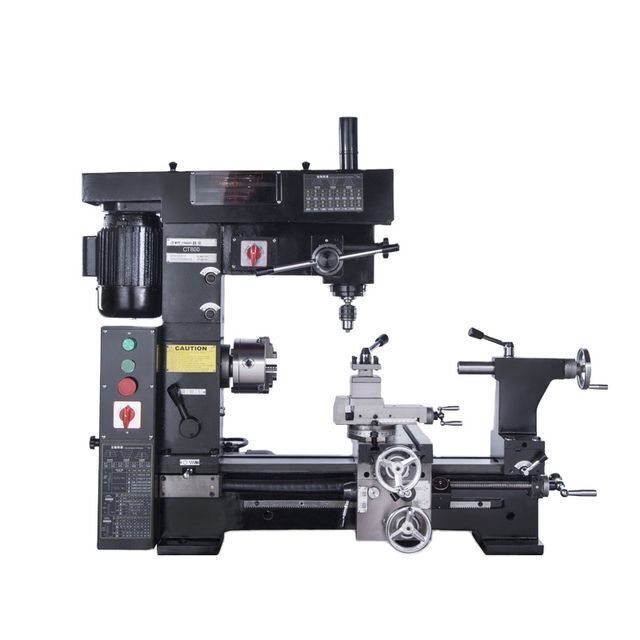

CT800 HQ800 MP800 metal turno 3 in 1 lathe combo drill mill multi purpose machine

Click here to contact

Product details

Showroom Location:	None;	Core Components:	PLC,Engine,Bearing,Gearbox,Motor,Gear;
Brand Name:	CTMACH;	Single gross weight:	280.000 KG;
Packaging Detail:	STANDARD WOODEN CASE;	Net weight:	280kg;
Package Preview:	;	Marketing Type:	New Product 2020;
Place of Origin:	Anhui, China;	Model:	CT800;
Key Selling Points:	Multifunctional;	Applicable Industries:	Building Material Shops,Manufacturing Plant,Machinery Repair Shops,Farms,Home Use,Retail,Construction works ,Energy & Mining;
Brand:	CTMACH;	Warranty:	1.5 years;
Weight (KG):	280;	Warranty of core components:	1.5 years;
Condition:	New;	MOQ:	1set;
Machinery Test Report:	Provided;	Single package size:	146X60X112 cm;
Voltage:	110V/220V/380V;	After-sales Service Provided:	Online support;
Size:	1430x580x1100mm;	Selling Units:	Single item;
Video outgoing-inspection:	Provided;	Wattage:	750w;

CT800

Model: CT800
Turning-parameters
Swing Over Bed	420mm
Distance Between Centers	800mm
Longitudinal Travel	740mm
Cross Travel	200mm
Taper of Spindle	MT4
Spindle Hole	Φ28mm
Step of Spindle Speed	7 Steps
Range of Spindle Speed	160-1360rpm
Barrel Travel	70mm
Taper of Center	MT3
Metric Thread Range	0.2-6mm
Inch Thread Range	4-120T.P.I
Longitudinal Range of Automatic Feeding	0.05-0.35mm
Cross Range Of Automatic Feeding	0.05-0.35mm
Drilling and Milling-parameters
Drilling Capacity	Φ22mm
Worktable Size	475*160mm
End Mill	Φ28mm
Face Mill	Φ80mm
Distance Between Spindle Center and Column	285mm
Distance Between Spindle And Worktable	306mm
Headstock Travel of Up and Down	110mm
Spindle Taper	MT3
Step of Spindle Speed	16 Steps
Range of Spindle Speed	120-3000rpm
Swivel degree of headstock	±360°
Motor Power	0.75KW
Other
N.W./G.W.	245KG/280KG
Packing Size	14305801100mm
