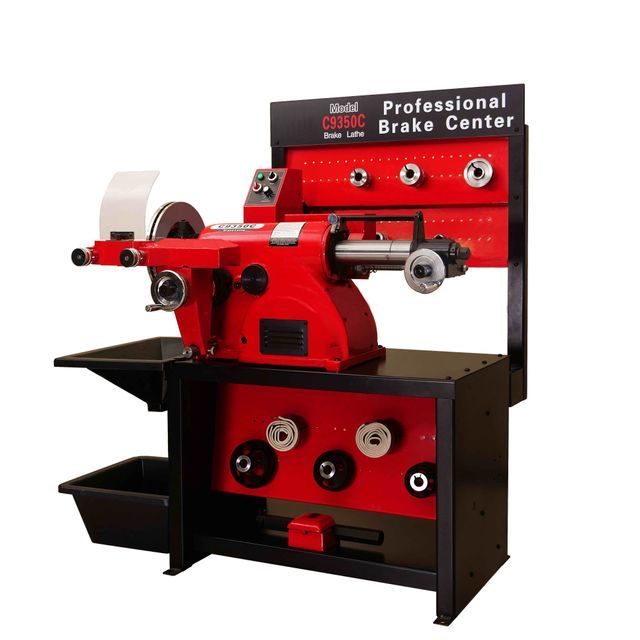

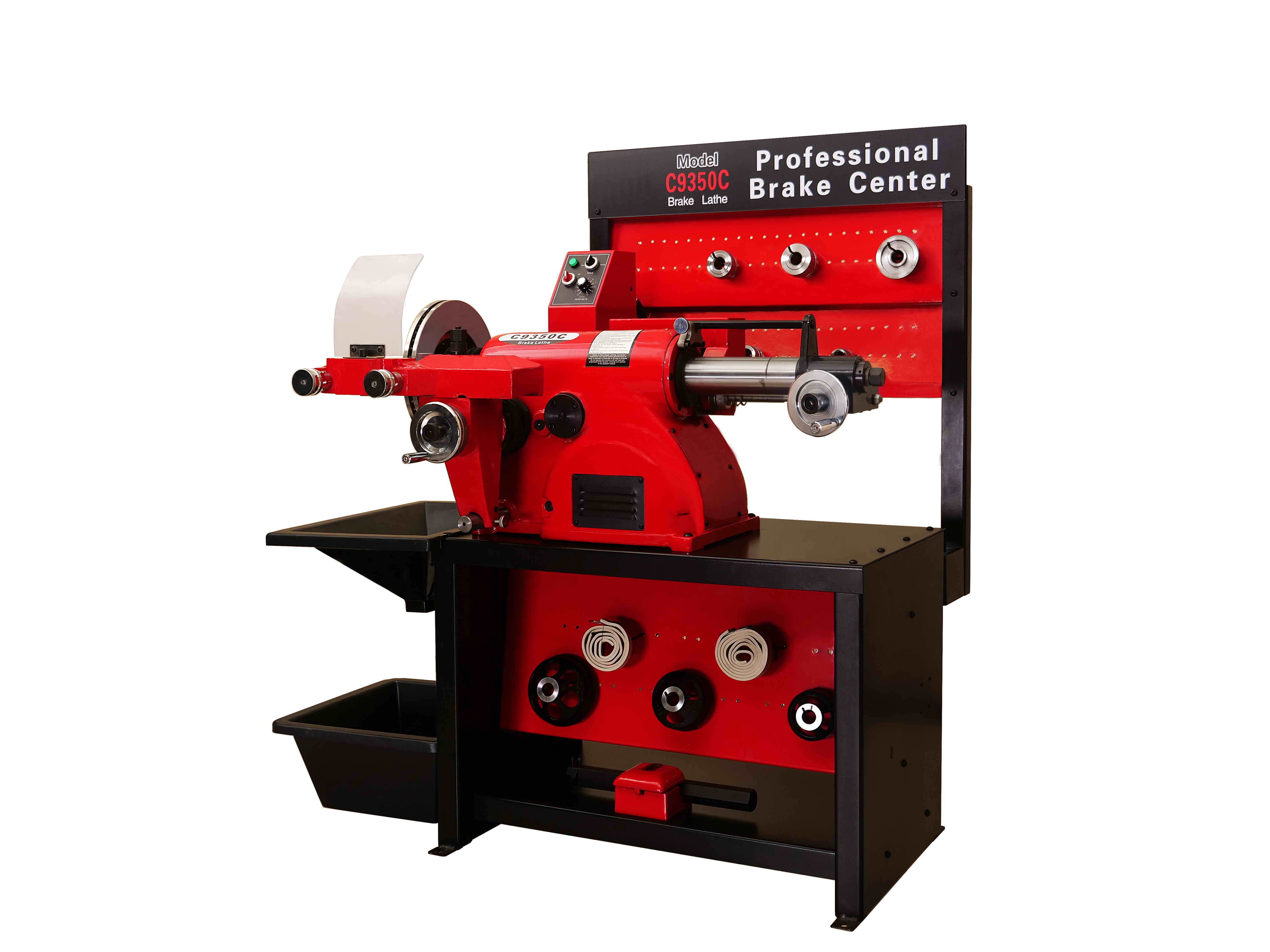

C9350C brake lathe disc drum brake disc oil skimmer with DC servo motor

Click here to contact
Product details
Health status:newFunction:Processing of automobile brake drums and brake plates
Package preview:Warranty:1 year
Mechanical test report:ifMarketing type:Hot Products of 2022
Spindle travel:6.875 inches (175 mm)Video outbound inspection:if
Core component warranty:1 yearPlace of origin:China
Spindle speed:70,88,118 rpmPackaging details:export package
Main selling points:competitive priceKey words:Automotive brake lathes, combination lathes, drum and disc brake lathes
color:custom madeSpindle feed speed:0.002"(0.05mm)- 0.02"(0.5mm) turn
usage:Generalpayment terms:L/C, Western Union, D/P, D/A, T/T, MoneyGram
Supply capacity:50 sets per monthbrand:Richang
Type of machine:brake latheWeight (kg):290
product name:Brake Drum/Disc Cutting MachineMaterial:steel
port:port of chinaCore components:Motors, others
Showroom location:not anyApplicable industries:Mechanical repair shop, household, retail, other, 4S shop, auto repair shop
Click here to get a quote
Product Description
Brake disc oil skimmer with DC servo motor
1. DC motors are specially designed to meet the demanding requirements of industrial motion control.
2. "Change Adapter" system, eliminating the need for traditional bell clamps and cones.

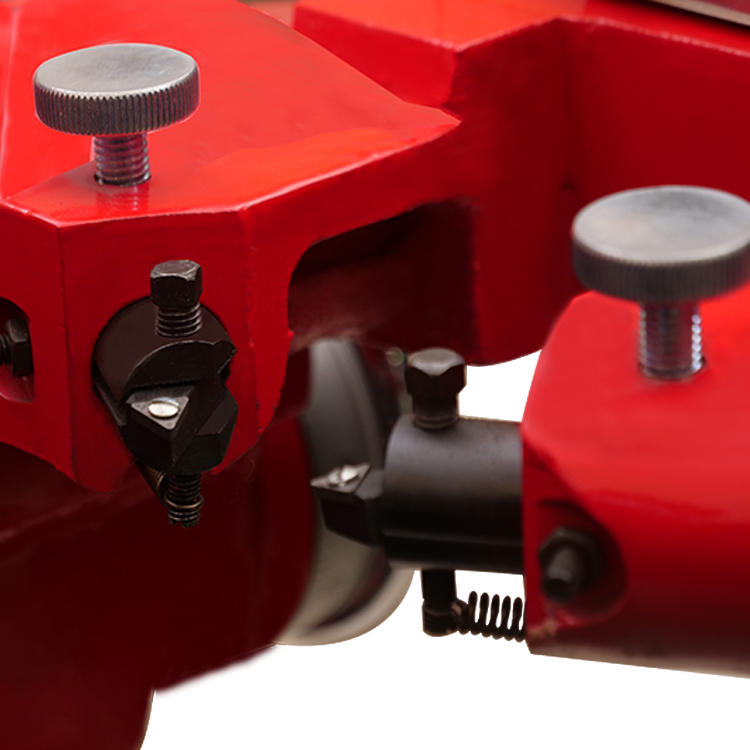

3. Precision dual cutters and fast drum to rotor conversion help improve your service capabilities. 4. Stepless spindle and transverse feed speed settings enable fast roughing and precision finishing.
5. Positive rake tip angle gets the job done almost every time, allowing you to get the job done
quickly.
Technical data
scope
Spindle travel
6.875 inches (175mm)
Spindle speed
70,88,118 rpm
Spindle feed speed
0.002″(0.05mm)- 0.02″(0.5mm) turn
Cross feed speed
0.002″(0.05mm)- 0.02″(0.5mm) turn
Hand wheel scale
0.002 inches (0.05mm)
Rotor diameter
7″-15″(180-381mm)
Rotor thickness
1.875 inches (48mm)
Drum diameter
6 inches-17.7 inches (152-450mm)
Drum depth
6.875 inches (175 mm)
Click here >>> Contact us for more information
Recommended Products
coupon
Contact us for coupons or surprise gifts!
Q1: How long warranty period do you provide? /What about the warranty?A1: The machine has a 12-month warranty after shipment.
Q2: What services can be provided during the warranty period?A2: Free replacement parts during the warranty period. Cost-effective replacement parts are provided outside the warranty period. Act quickly and respond to technical questions at any time.
Q3: Can you provide training on operating CNC machine tools?A3: Yes, free training in our factory or overseas service by engineers are available according to customer requirements (the relative cost is borne by the customer.
Q4: Can you provide customized machines or special purpose machines?A4: Yes, we provide customers with different kinds of processing solutions to meet different requirements.
Q5: Can we visit your factory before ordering?A5: Of course, we warmly welcome you to visit our factory at any time. The better you know us, the more you trust us! Therefore, you can rest assured of our high-quality products and best services.
Q6: Where is your factory located?A6: Our factory is located in Kunming City, Yunnan Province, Southwest China.
