VHM170 Siemens automatic cylinder honing machine, used for honing single-line engine cylinders

Click here to contact
Product details
Marketing type:normal productCore components:engine
application:cylinder boreHealth status:new
Whether CNC:normalApplicable industries:Machine repair shop, others
Core component warranty:1 yearPower (kW):1.5
Video outbound inspection:not availableVoltage:Customer requirements
payment terms:L/C, Western Union, D/P, D/A, T/T, MoneyGramWarranty:1 year
Dimensions (length*width*height):1640x1670x1920mmbrand:Upright
Mechanical test report:not availableSupply capacity:10 sets per month
Place of origin:Chinausage:Cylinder head boring
Packaging details:export packageWeight (kg):1000
product name:Cylindrical honing machineFunction:Honing engine cylinders
Showroom location:not anyPackage preview:
Main selling points:High productivity, high precision
Click here to get a quote
Product Description

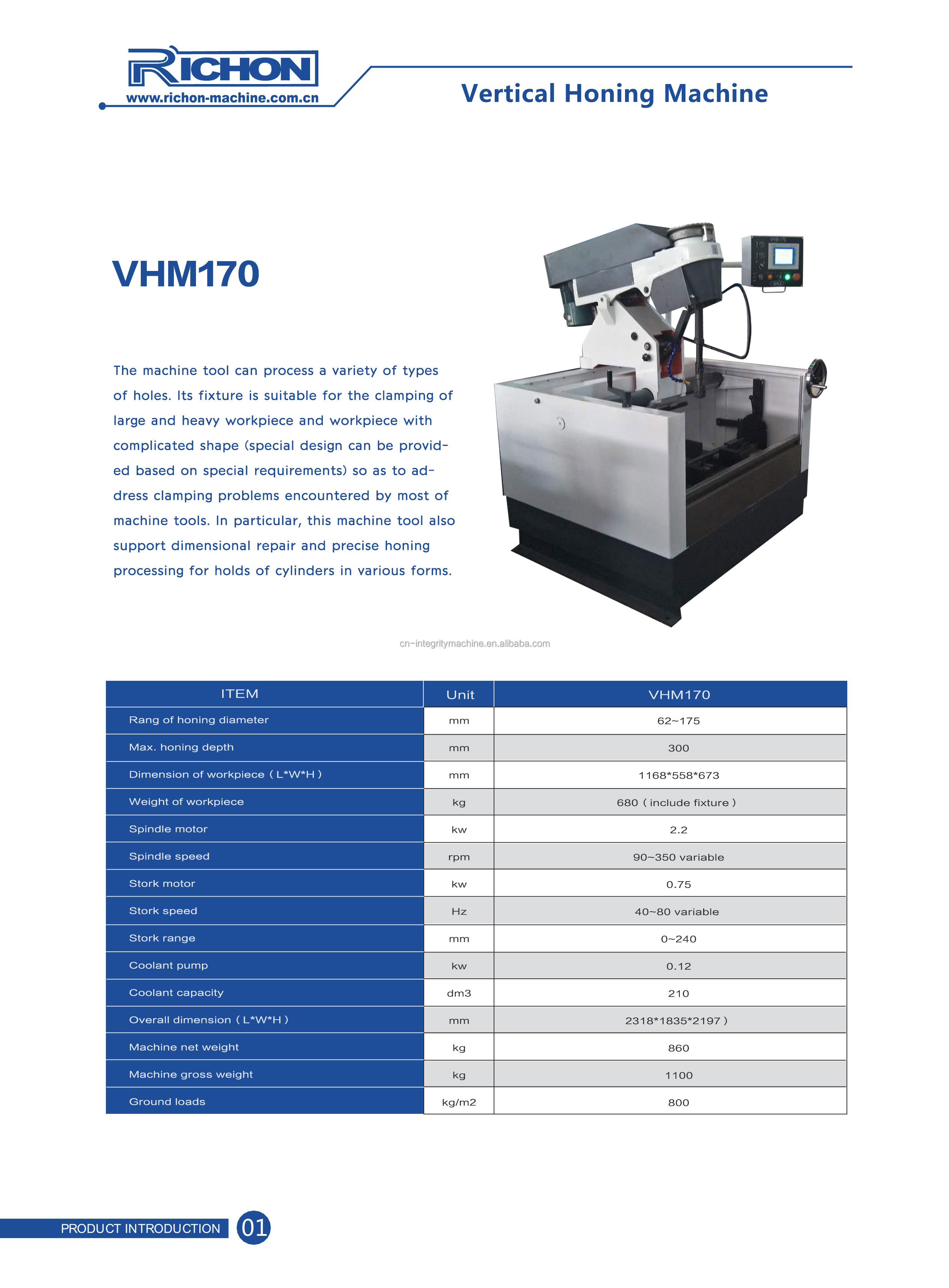

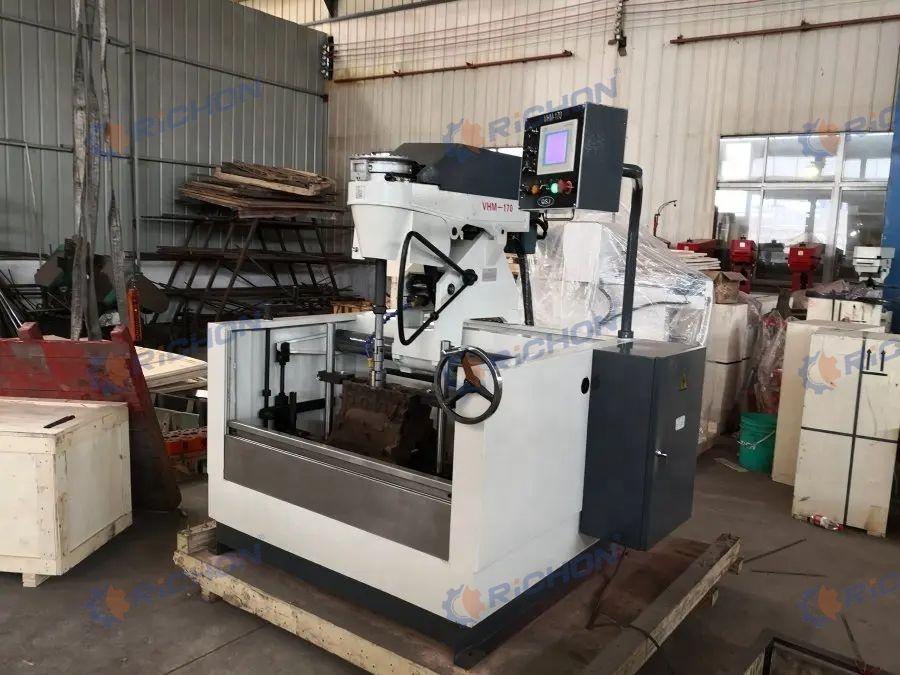

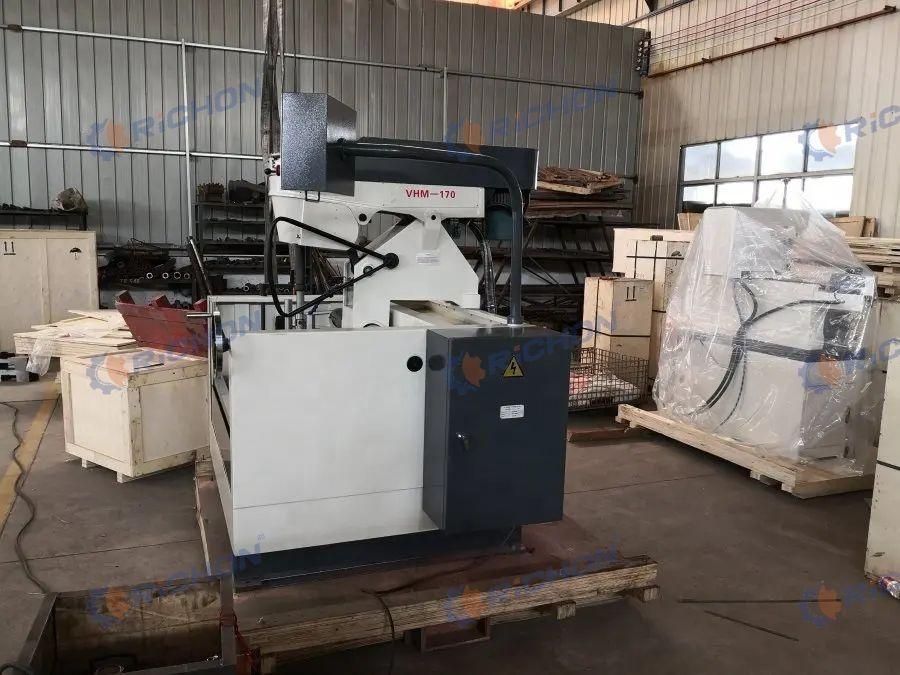

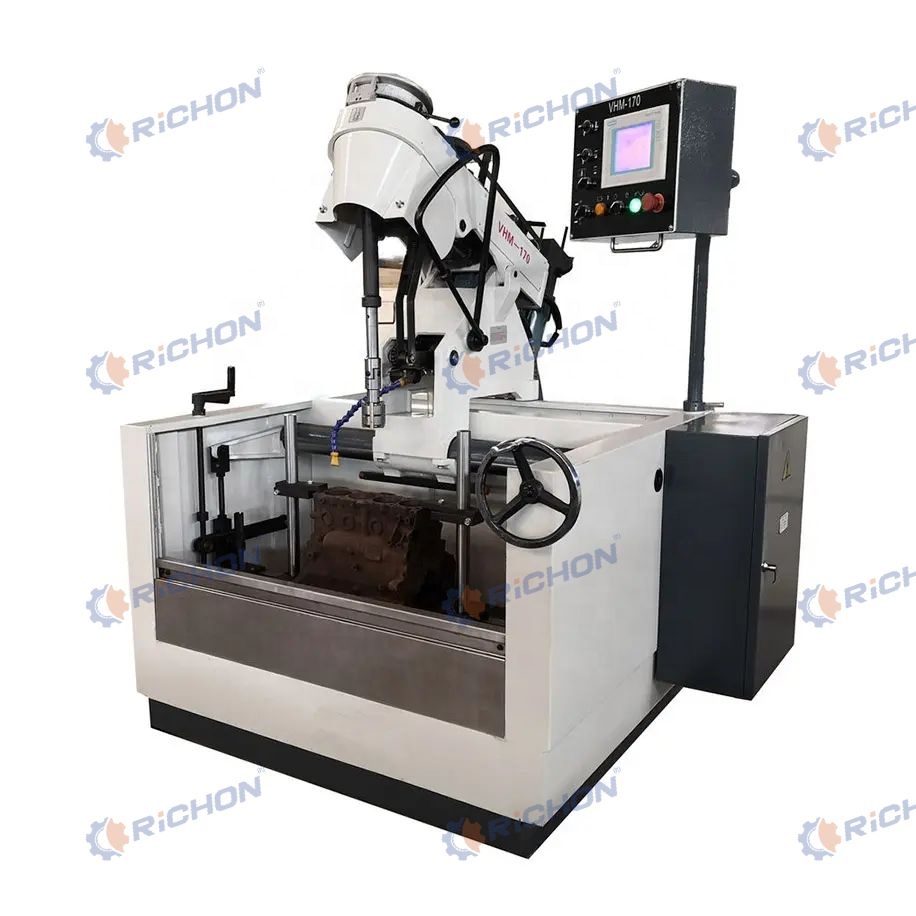

VHM170

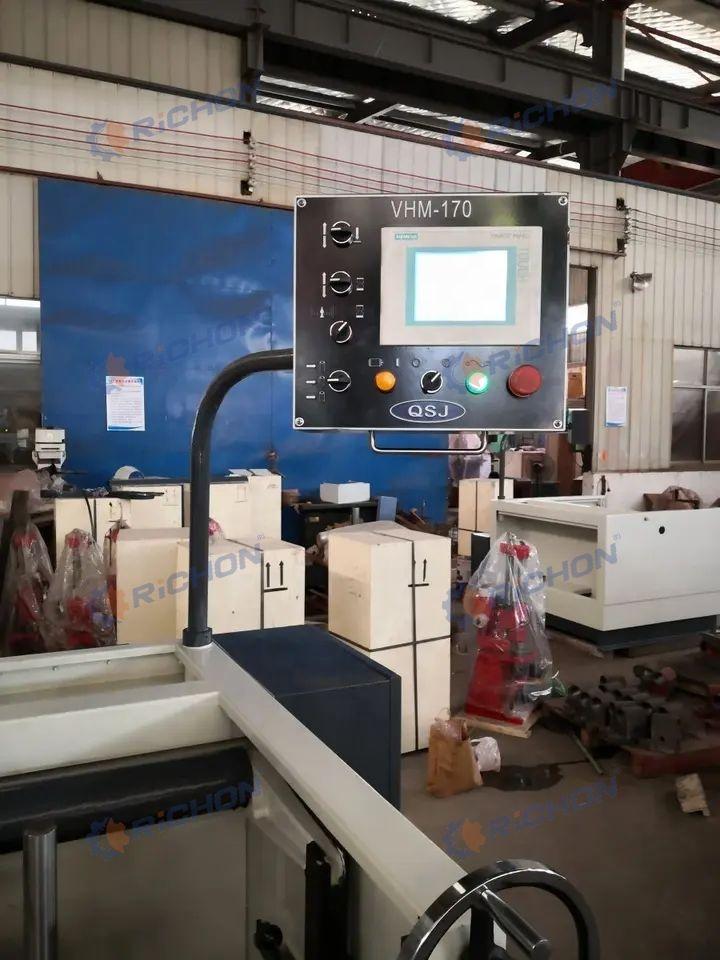

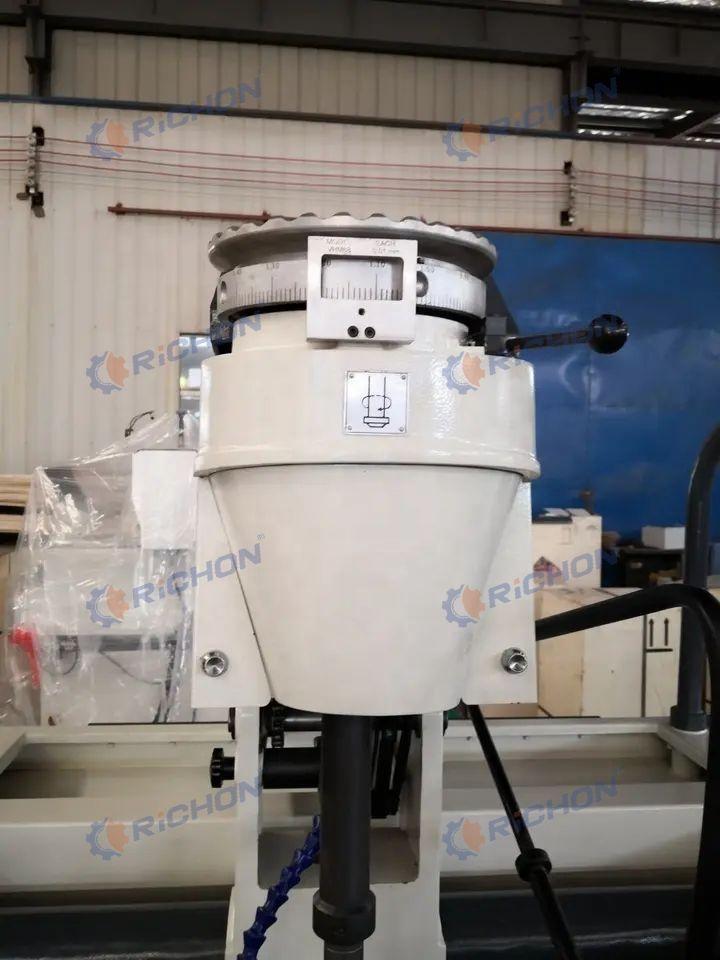

Siemens controller fully automatic----vertical cylinder honing machine
Click here >>> Contact us for more information
This machine is mainly used forHoning single line engine cylindersandCar and motorcycle V-type engine cylindersandtractorandFor other machine element holes.
No.
thing
unit
parameter
1
Honing hole diameter range
mm
62~175
2
maximum. Honing hole depth
mm
300
3
Workpiece size (length*width*height)
mm
1168*558*673
4
Workpiece weight
Kilogram
680 (including fixtures)
5
Spindle motor
kilowatt
2.2
6
Spindle speed
Rotating speed
90~350 steplessly adjustable
7
stroke motor
kilowatt
0.75
8
stroke rate
hertz
40~80 steplessly adjustable
9
Stroke length range
mm
0~240
10
cooling pump motor
kilowatt
0.12
11
coolant capacity
DM3
210
12
Floor area (length*width*height)
mm
2318*1835*2197
13
Machine tool net weight
Kilogram
860
14
Machine weight (including coolant)
Kilogram
1100
15
ground load
kg/m²
800
16
Machine tool gross weight (including packaging, excluding coolant)
Kilogram
1100
Recommended Products
coupon
Contact us for coupons or surprise gifts!

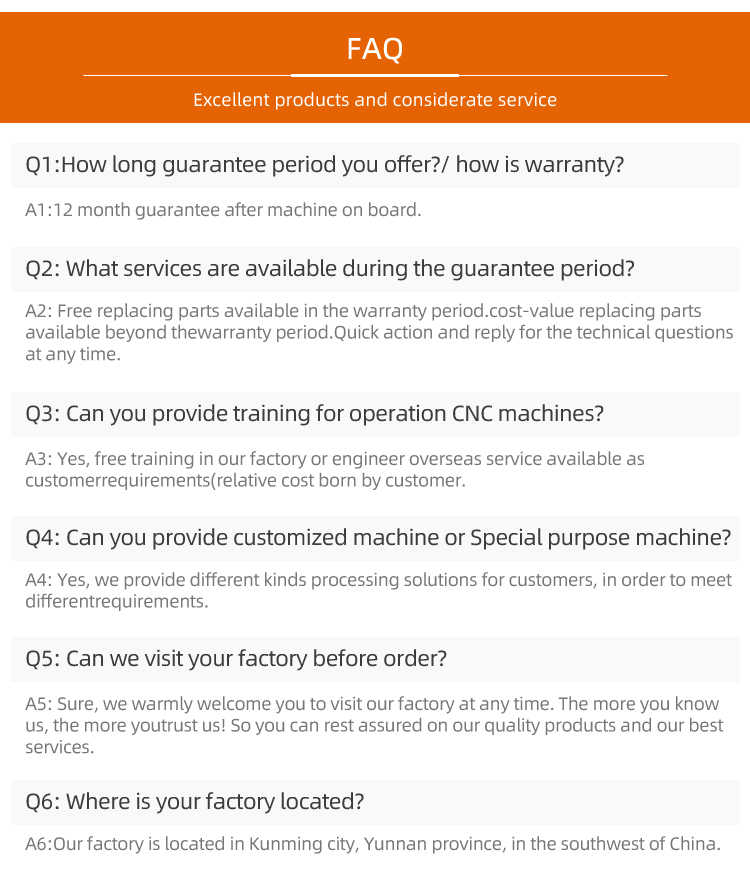

Q1: How long warranty period do you provide? /What about the warranty?A1: The machine has a 12-month warranty after shipment.
Q2: What services can be provided during the warranty period?A2: Free replacement parts during the warranty period. Cost-effective replacement parts are provided outside the warranty period. Act quickly and respond to technical questions at any time.
Q3: Can you provide training on operating CNC machine tools?A3: Yes, free training in our factory or overseas service by engineers are available according to customer requirements (the relative cost is borne by the customer.
Q4: Can you provide customized machines or special purpose machines?A4: Yes, we provide customers with different kinds of processing solutions to meet different requirements.
Q5: Can we visit your factory before ordering?A5: Of course, we warmly welcome you to visit our factory at any time. The better you know us, the more you trust us! Therefore, you can rest assured of our high-quality products and best services.
Q6: Where is your factory located?A6: Our factory is located in Kunming City, Yunnan Province, Southwest China.
