China perfect low price intelligent control 2MK2150X4 deep hole honing machine cylinder honing machine

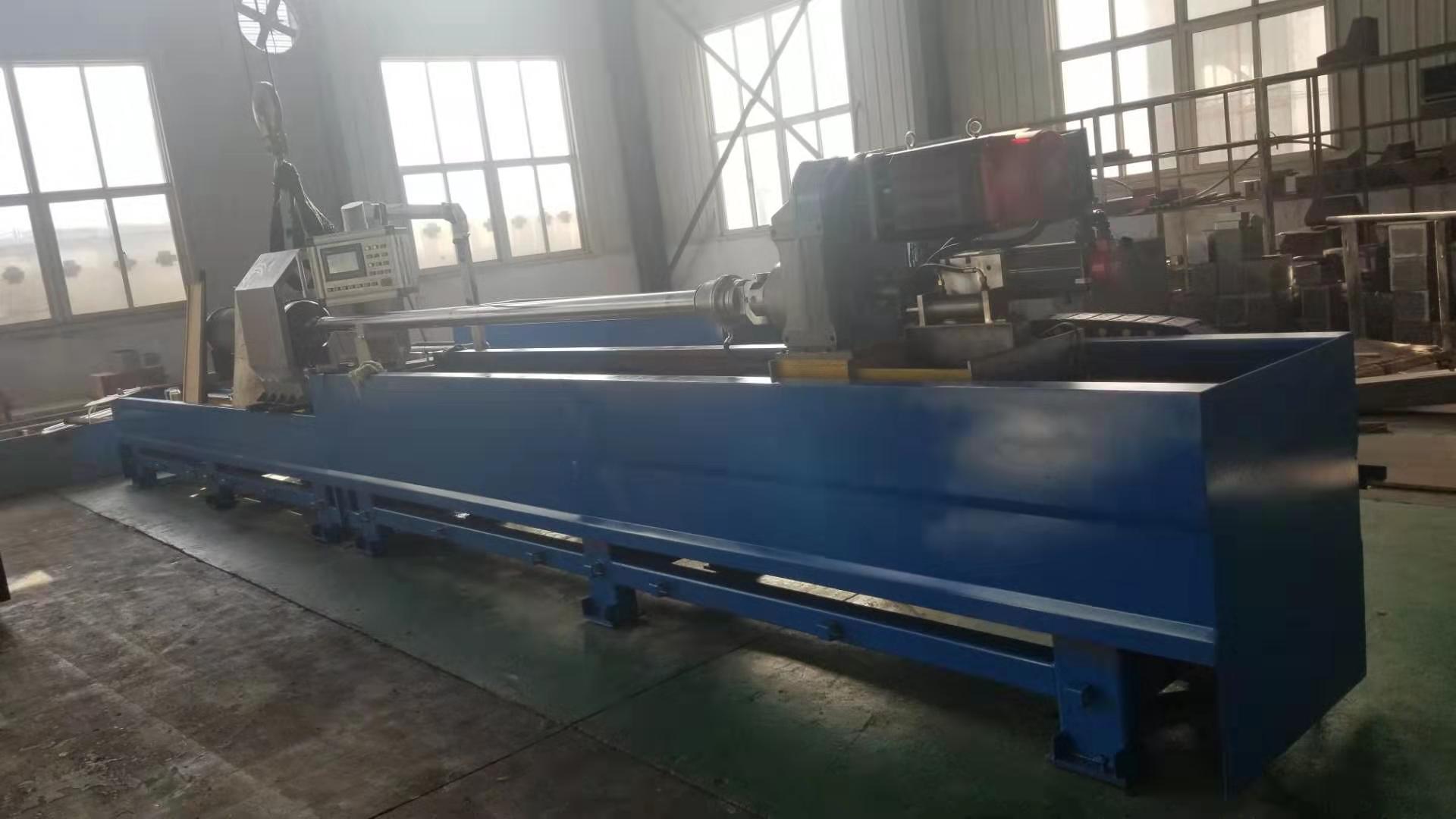

CNC deep hole strong honing machine 2MK2135/2MK2150 (TMK2135/TMK2150)

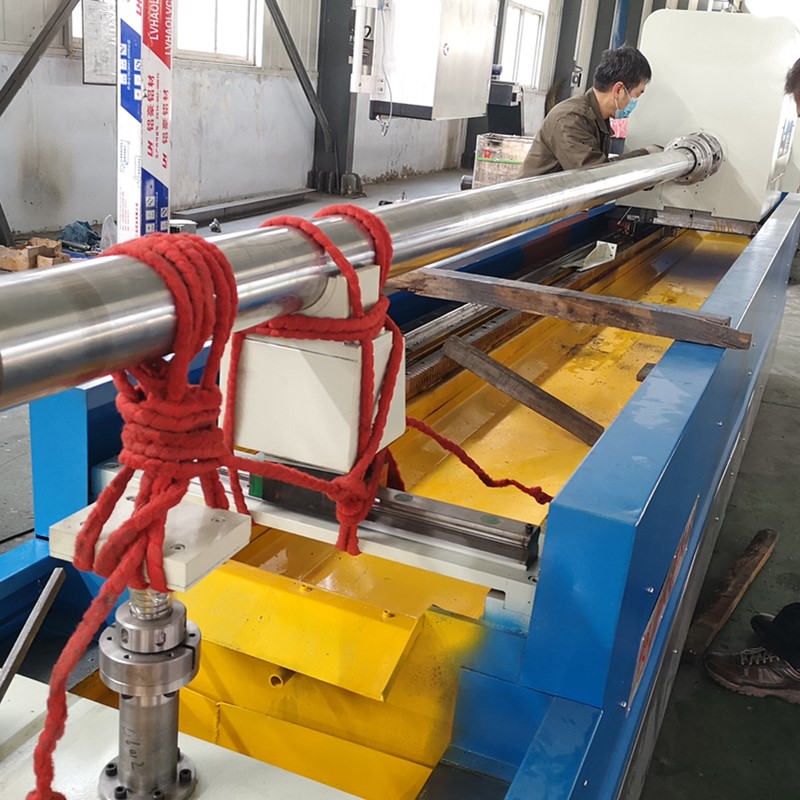

CNC deep hole honing machine is suitable for honing and polishing of cylindrical deep hole workpieces, such as: various hydraulic cylinders, other precision pipe fittings, repair cylinders, especially suitable for honing and polishing of stepped hole workpieces. .The machining aperture precision can reach above IT7~IT8, and the surface roughness can reach Ra0.2-0.4μm. Partial honing can be used to correct the taper, ovality and partial aperture errors of the workpiece. For some cold drawn steel pipes, strong honing can be performed directly. 2MK series honing machines are ideal equipment with high precision and high efficiency.

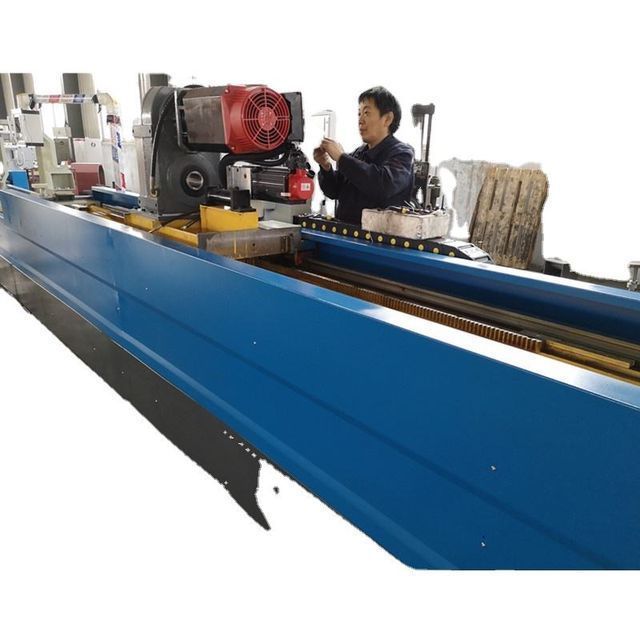

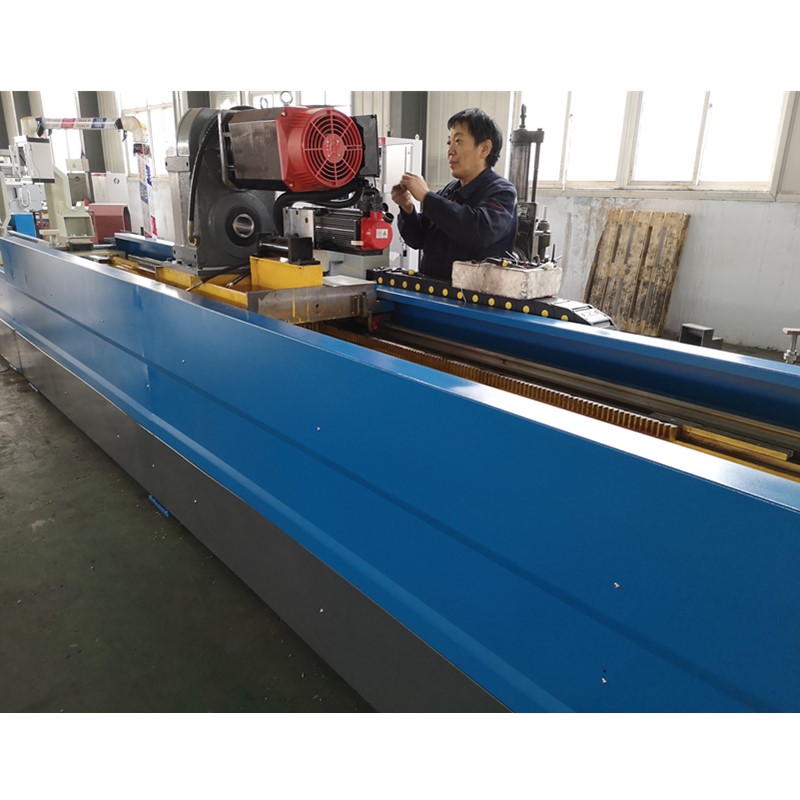

The machine is equipped with AC servo motor, and the grinding box adopts stepless speed regulation. Servo motor with sprocket chain realizes the reciprocating motion of the honing head, which can precisely control the honing position. At the same time, it adopts double linear guides, which has long service life and high precision. The honing head adopts hydraulic constant pressure expansion, and the honing force of the oilstone is stable to ensure the roundness and cylindricity of the workpiece. The honing pressure can be adjusted as required, the high and low pressure control can be set, and the rough and fine honing can be easily interchanged.
