Portable boring and honing machine sbm100 for maintenance

Supplier: Tengzhou Hoton Machinery Co., Ltd.
Region: Shandong, China
Contact: Ms Wang Andy
Price: $800.00 /set
Min. Order: 1 set

Click here to contact

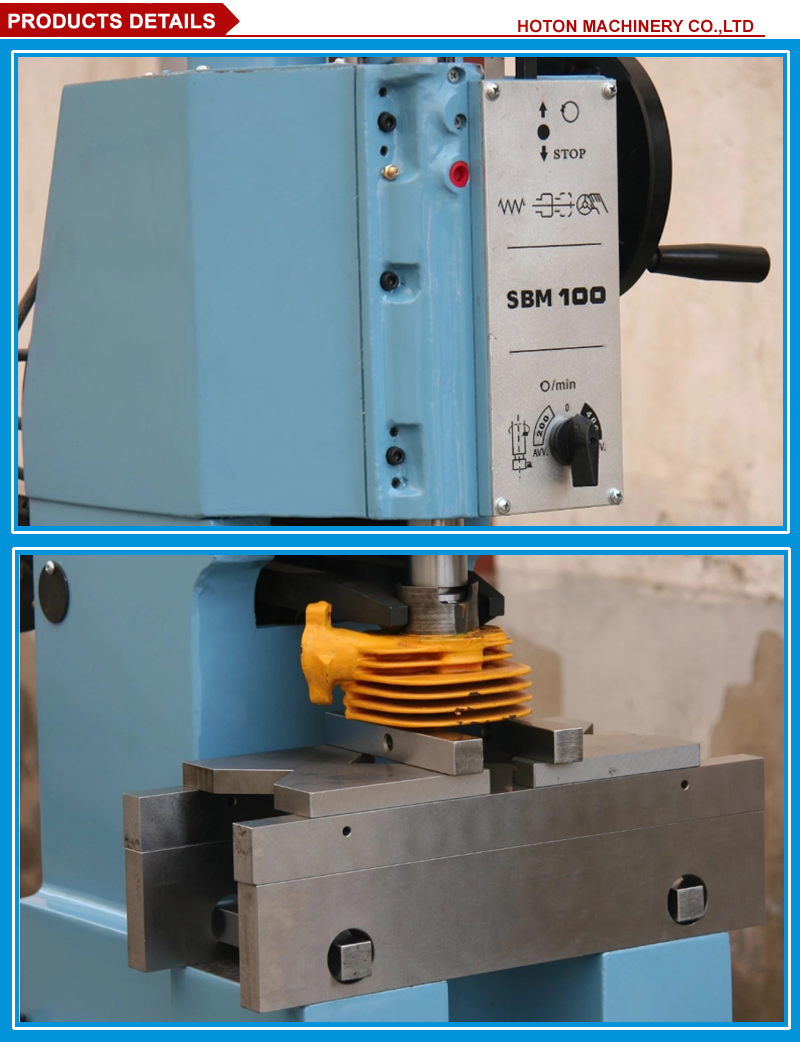

Product details

Weight (kg):	100	Product origin:	China
Packaging Details:	in plywood case	Mechanical test report:	if
product name:	Cylinder honing machine	Core component warranty:	1 year
Dimensions (LWH):	1290x880x2015mm	Main selling points:	high productivity
Marketing Type:	New Products 2020	Power (kW):	0.37
Supply capacity:	30 sets per month	usage:	motorcycle cylinder
Model:	SBM100	CNC or not:	normal
maximum. Drilling diameter:	100mm	Core components:	Bearings, motors, gears
port:	Qingdao Port Shanghai Port	Video shipment inspection:	if
Showroom location:	not any	brand:	Holden MC
payment terms:	L/C, Western Union, T/T	maximum. Spindle travel:	220mm
Applicable industries:	Machinery repair shop, manufacturing plant	Distance between column and spindle axis:	130mm
Warranty:	1 year	Drilling diameter in minutes:	36mm
Function:	Honing Engine Cylinders	Voltage:	220V/380V
Origin:	Shandong China	Health status:	new
application:	cylinder repair

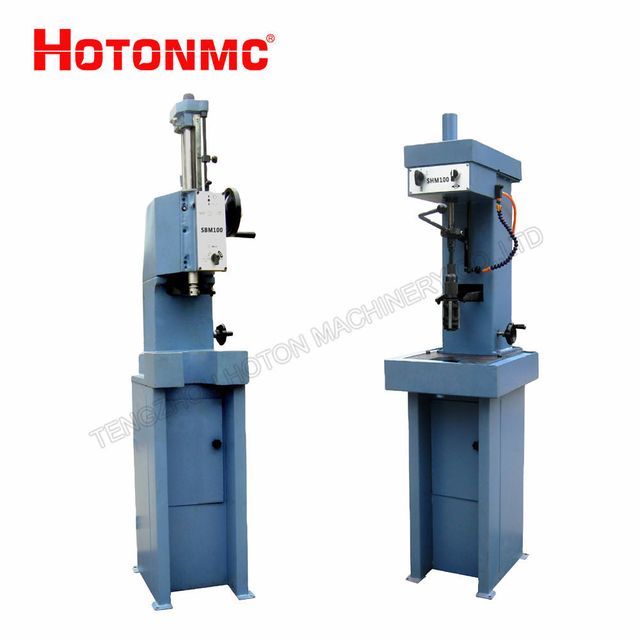

Motorcycle cylinder SbM100 boring machine

Uses and features:
*The boring machine is used for re-boring the engine block of automobiles, motorcycles, and small and medium-sized tractors
* Reliable performance, wide application, high processing precision and high productivity
*Simple operation, high efficiency *Good rigidity, large cutting capacity

Model	SBM100
maximum. Bore diameter	100mm
min bore diameter	36mm
maximum. Spindle travel	220mm
Distance between column and spindle axis	130mm
The distance between the fastening bracket and the workbench in minutes	170mm
maximum. Distance between fastening bracket and workbench	220mm
Spindle speed	200 rpm
Spindle feed	0.76mm/rotation
Motor Power	0.37/0.25kw
