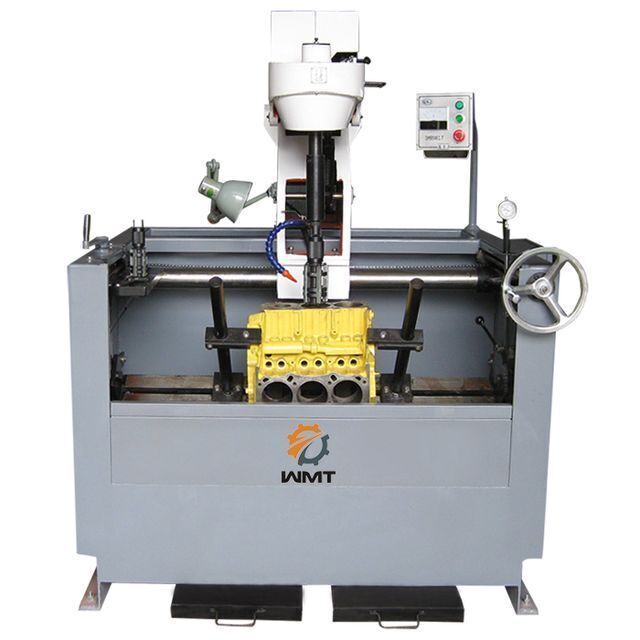

3MB9817 Vertical cylinder honing machine from China factory

Supplier: WMT CNC Industrial Co., Ltd.
Region: Anhui, China
Contact: Ms Sunny Huang
Price: $5000.00 /set
Min. Order: 1 set

Click here to contact

Product details

After Warranty Service:	Video technical support,Online support,Spare parts,Field maintenance and repair service;	Supply Ability:	50 Set/Sets per Month;
Showroom Location:	Canada,United Kingdom,United States,Italy,France,Germany,Brazil,Peru,Indonesia,Mexico,Russia,Spain,Thailand,Argentina,South Korea,Chile,Colombia,Algeria,South Africa,Japan,Malaysia,Australia;	Payment Terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram,Trade assurance;
Weight (KG):	1000;	Diameter of hole honed:	25-170mm;
Condition:	New;	Video outgoing-inspection:	Provided;
Core Components:	Engine,Motor,Gear;	Applicable Industries:	Machinery Repair Shops,Manufacturing Plant,Retail,Construction works ;
Power(W):	1.5KW;	Marketing Type:	New Product 2020;
Max depth of hole honed:	320mm;	Local Service Location:	Canada,United Kingdom,United States,Italy,France,Germany,Brazil,Peru,Indonesia,Mexico,Russia,Spain,Thailand,Japan,Malaysia,Australia,Argentina,South Korea,Chile,Colombia,South Africa;
Product Name:	Cylinder Honing Machine;	Packaging Detail:	Vertical honing machine with Plywood case in carton, international package standard.;
Port:	Shanghai Port;	Machinery Test Report:	Provided;
Power (kW):	1.5;	Functions:	Metal Deep Hole Honing;
Dimension(LWH):	1640x1670x1920;	Voltage:	220V/380V;
Certification:	CEISO;	Machine working inside dimensions:	1400x870mm;
Precision:	High;	Type:	Vertical Honing Machine;
After-sales Service Provided:	Engineers available to service machinery overseas,Online support,Video technical support,Free spare parts,Field installation, commissioning and training,Field maintenance and repair service;	CNC or Not:	Normal;
Place of Origin:	Anhui China;	Warranty of core components:	1 Year;
Usage:	Cylinder Polishing;	Warranty:	1 Year;
Brand Name:	WMTCNC;	Key Selling Points:	High Productivity;

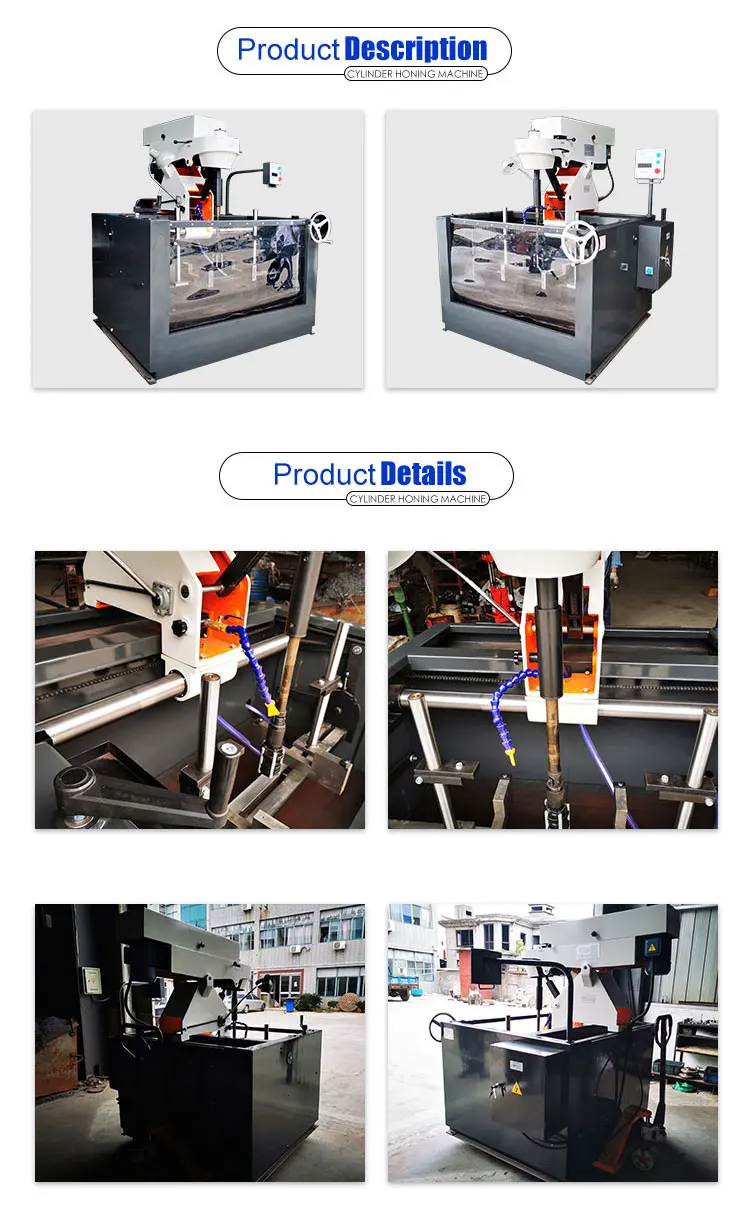

Product Description

Features

3MB9817 vertical honing machine is mainly used for honing single line engine cylinders and
V-engine cylinders of automobiles motor cycles and tractors and also for other machine element holes.
1.The machine table can shift of the fixture change 0°, 30°and 45°.
2.The machine table is easily up and down manually 0-180mm.3. Reverse precision 0-0.4mm.
4.Select mesh-wire degree 0°- 90° or non-mesh-wire.
5.Reciprocating speed of up and down 0-30m/min.
6.The machine is reliable performance widely use honing, easy operation and high productivity.
7.Good rigidity, amount of cutting.

Model	3MB9817
Max diameter of hole honed	Φ35-Φ170 mm
Max depth of hole honed	320 mm
Spindle speed (4 steps)	120, 160, 225, 290 mm
Stork (3 steps)	35, 44, 65 s/min
Power of main motor	1.5 Kw
Power of cooling pump motor	0.125 Kw
Machine working inside cavity dimensions (L x W)	1400 x 870 mm
Overall dimensions (L x W x H)	1640 x 1670 x 1920 mm
Packing dimensions (L x W x H)	1850 x 1850 x 2150 mm
N.W./G.W.	1000/1200 kg
