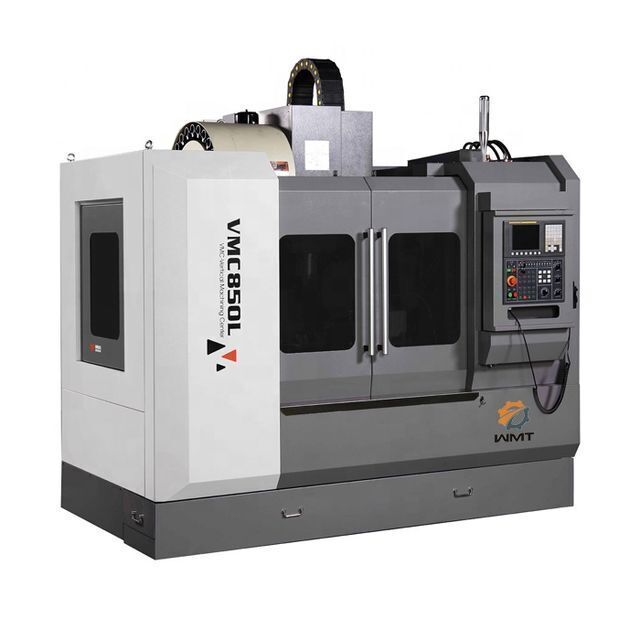

VMC850L 4 axis CNC vertical machining center for metal

Supplier: WMT CNC Industrial Co., Ltd.
Region: Anhui, China
Contact: Ms Sunny Huang
Price: $33990.00 / 1 - 1 sets
$31990.00 / >=2 sets
Min. Order: 1 set

Click here to contact

Product details

Spindle Motor Power(kW):	7.5/11;	Table Size (mm):	1000x500;
Table Travel (X) (mm):	850 mm;	Number of Axes:	3,4,5;
Warranty of core components:	1 Year;	Core Components:	PLC;
Weight:	5000kgs;	CNC Control:	Fanuc/Siemens/GSK;
cnc milling machine Spindle taper:	BT40;	Dimension(LWH):	2650x2350x2200mm;
Marketing Type:	Hot Product 2019;	Voltage:	220V 380V;
Repeatability (X/Y/Z) (mm):	0.01;	No. of Spindles:	Single;
Applicable Industries:	Building Material Shops,Machinery Repair Shops,Manufacturing Plant,Home Use,Printing Shops,Construction works ,Energy & Mining,Advertising Company;	Table Travel (Y) (mm):	500 mm;
Video outgoing-inspection:	Provided;	Min. Time of Tool Change(s):	2;
CNC Control System:	FANUC,MITSUBISHI,Siemens;	Power (kW):	7.5;
Place of Origin:	Anhui China;	Local Service Location:	Egypt,Canada,United States,Italy,France,Philippines,Peru,Pakistan,Thailand,Kenya,Colombia,South Africa,Uzbekistan;
Weight (T):	5.2;	Rapid Feed Speed(m/min):	32/32/30m/min;
Payment Terms:	L/C,T/T;	machining center:	VMC850L;
Brand Name:	WMT;	Max. Table Load(kg):	500;
After Warranty Service:	Video technical support,Online support,Spare parts;	Range of Spindle Speed(r.p.m):	1 - 8000 r.p.m;
Table Travel (Z) (mm):	600 mm;	Packaging Detail:	Plywood wooden box;
Type:	VERTICAL;	Condition:	New;
Showroom Location:	Egypt,United States,Italy,Philippines,Brazil,Peru,Pakistan,India,Thailand,Morocco,Chile,Romania,Bangladesh,Nigeria,Malaysia,Australia;	Certification:	CE ISO;
Tool Magazine Capacity:	24;	Package Preview:	;
Warranty:	One year;	Machinery Test Report:	Provided;
Spindle Taper:	BT40;	Key Selling Points:	Automatic;
Positioning Accuracy (mm):	0.01 mm;	high speed:	8000rpm;
VMC machine Logo printing:	OEM service;

Product Description

Product Application

CNC Milling machine center Product Application
VMC850L:All 3axis use class C3 precision screw,match up the nut preloading and screw prestretched,preeliminate backlash and temperature rise,so that the machine can achieve stability of the positioning and repeatability accuracy.Besides,the X/Y/Z axis use precision linear rails to ensure the control of the positioning accuracy and processing errors,so that the machine can have high accuracy and long working life.

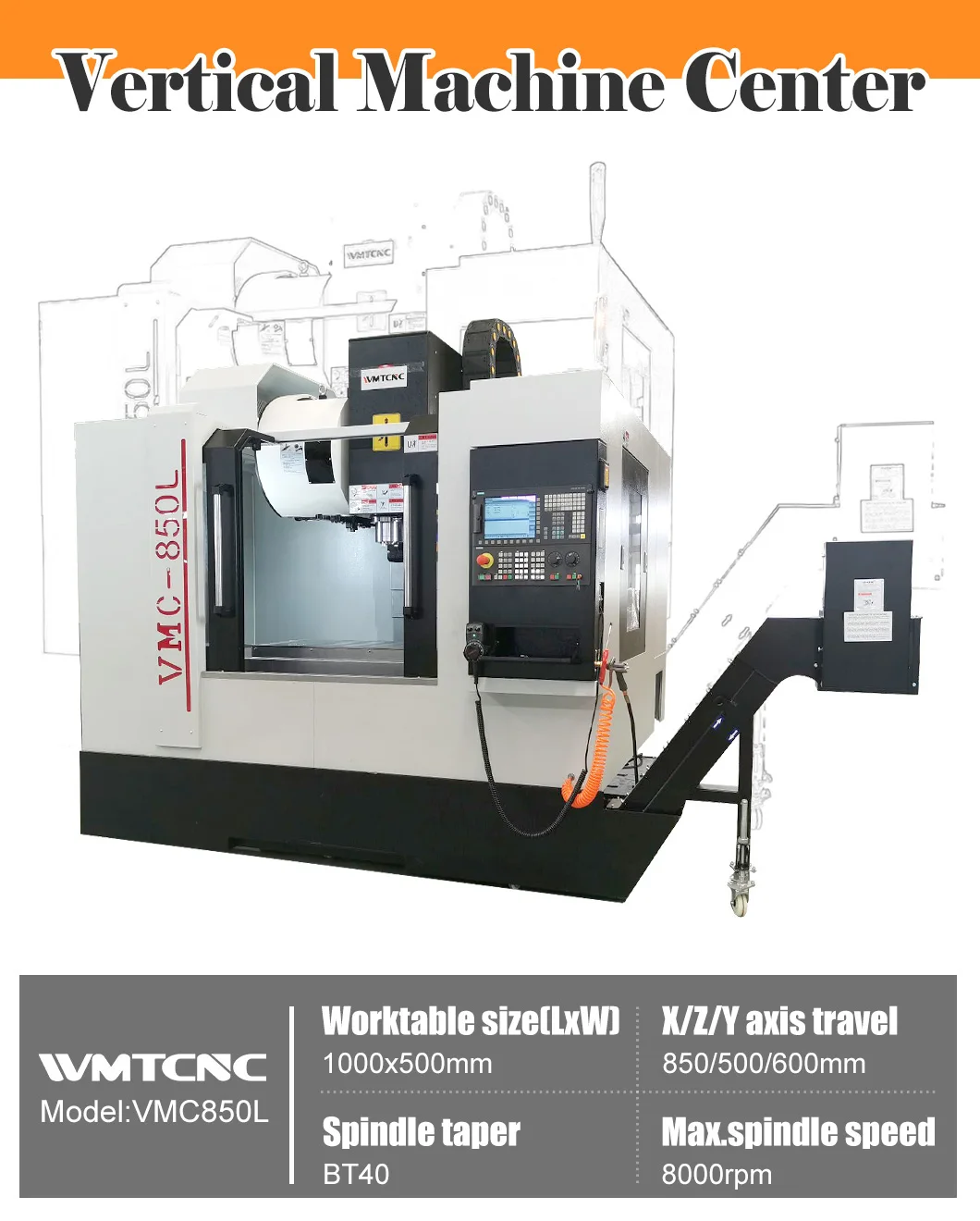

Specification	VMC850L
Worktable size(LxW)	1050x510mm
T-slot (NxWx D)	5x18x100mm
X/Y/Z axis travel	820/510/650mm
Distance from spindle center to column	575mm
Distance from spindle nose to worktable surface	130-780mm
Spindle taper	BT40
Spindle power	7.5/11kw
Max.spindle speed	8000rpm
Max.feed speed	10m/min
Rapid feed speed(X/Y/Z)	18/18/15m/min
Positioning accuracy(X/Y/Z)	±0.012mm
Re-positioning accuracy	±0.008mm
Tool magazine capacity	24T
Tool change time(T-T)	2.5s
LxWxH	2650X2420X2600mm
Max.loading of worktable	700kgs
Machine weight	5400kgs

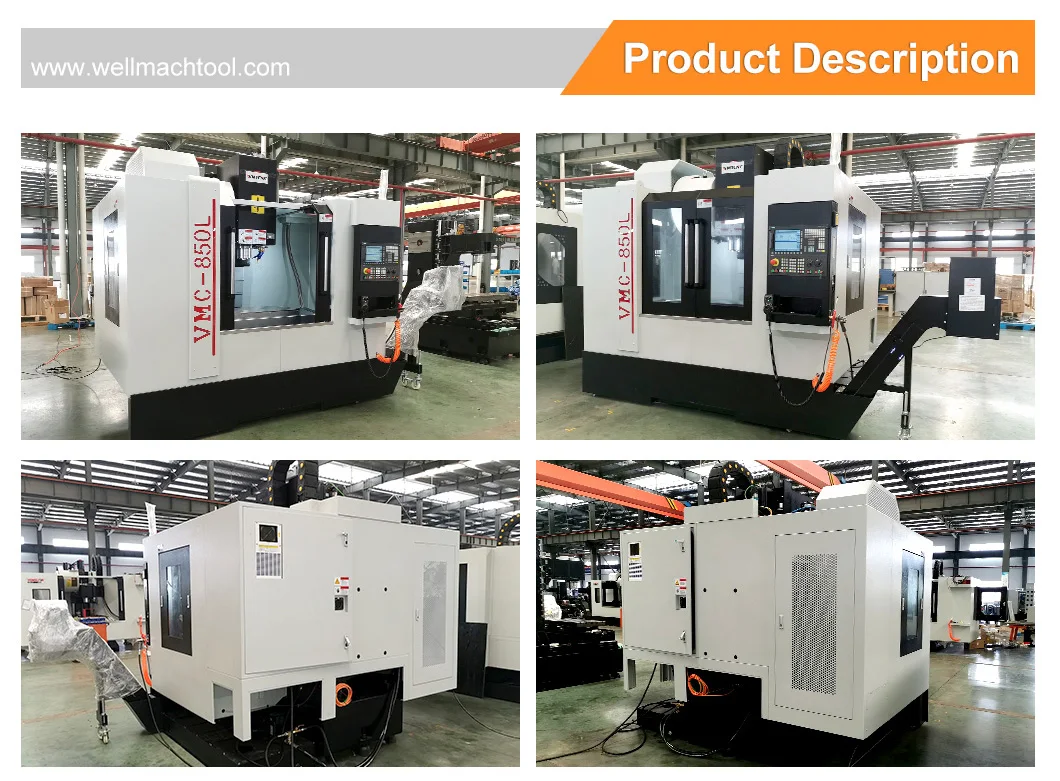

Machine Show:

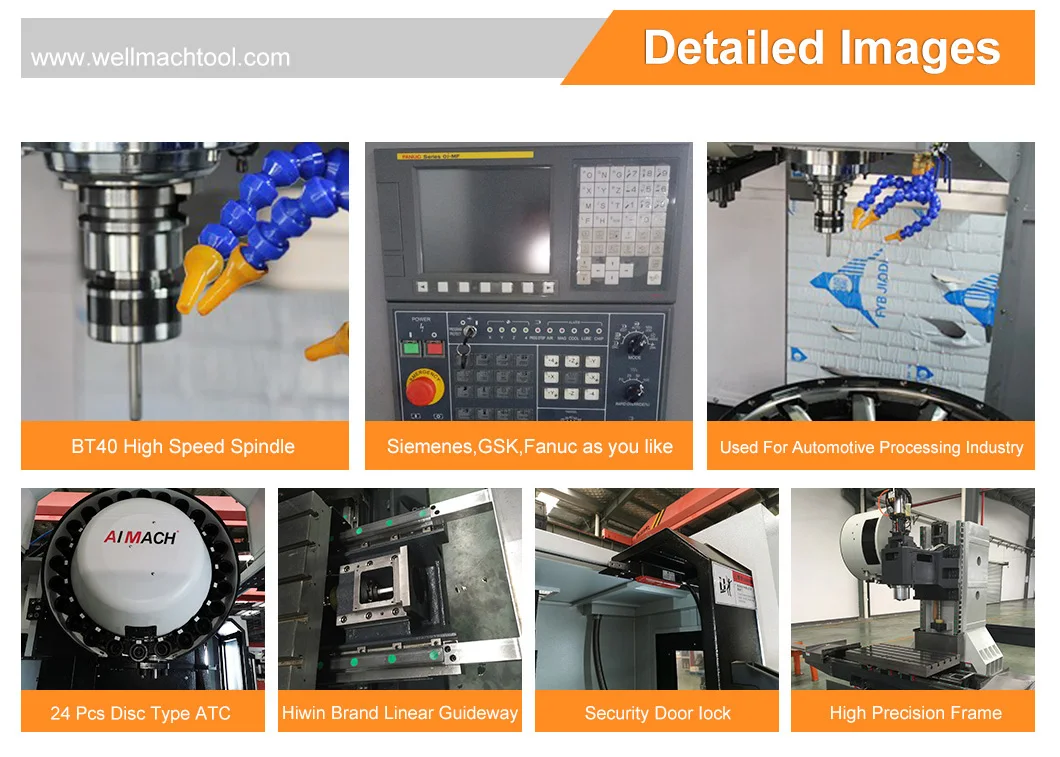

Standard accessories;

Mchining center CNC VMC850 Standard Equipment:
Servo motor spindle BT40, 7.5Kw, s=80-8000rpm
worktable size:510x1050mm;
X/Y/Z: 820X510X650mm,
Arm type ATC: 24T
X/Y/Z hard guideway
Fanuc Oi Mate MD

Optional accessories;

FANUC, Mitsubishi, Siemens, GSK CNC control systems.
Taiwan BT40 Round plate magazine of 24 tools capacity .
The 4th-axis or the 5th axis.
CF card
Auto. chip removal device.

Package detail:
