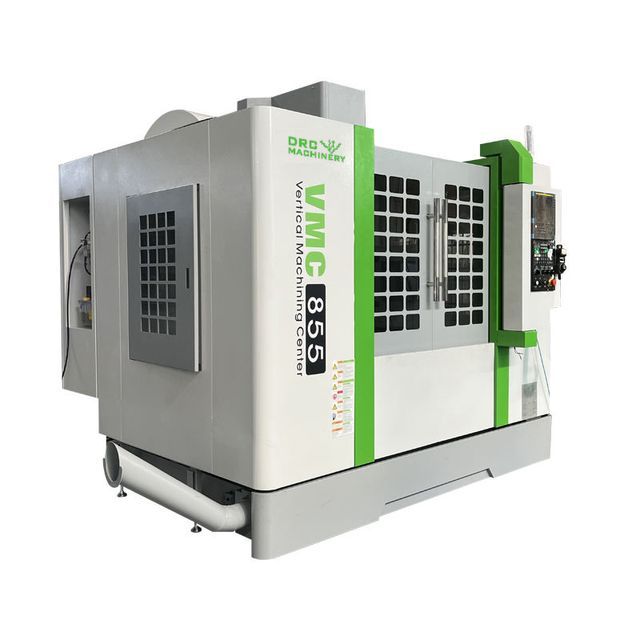

Taiwan Cnc Vertical Machining Center Vmc855 VMC850 Cnc Milling Machine

Supplier: DALIAN DRC MACHINERY CO., LTD.
Region: Liaoning, China
Contact: Ms DRC MACHINERY
Price: $23000.00 / 1 - 1 sets
$22500.00 / >=2 sets
Min. Order: 1 set

Click here to contact

Product details

Maximum load:	550 kg CNC milling machine	Servo Motor Specifications:	3/3/3 kW
Feed movement speed X, Y, Z:	1-10000mm/min	Spindle motor power (kW):	7.5
Spindle speed range (rpm):	1 - 12000 rpm	brand:	Democratic Republic of the Congo
Applicable industries:	Manufacturing plants, construction, energy and mining	Number of spindles:	single
Spindle speed:	10000/12000 rpm	Table travel (Z) (mm):	550
X/Y/Z axis travel:	800/550/550mm	Origin:	Liaoning, China
Core components:	engine	Spindle nose to table top:	120-670 mm
Table size (mm):	800*550mm	Weight (ton):	5.2 tons
CNC system:	GlaxoSmithKline, Fanuc	Voltage:	220
Warranty:	1 year	Marketing Type:	2020 New Products
Spindle taper:	BT40	Table travel (Y) (mm):	550
payment terms:	L/C, T/T	VMC850 CNC milling machine:	Taiwan Milling CNC Vertical Machining Center
Number of axes:	3,4,5	minute. Tool change time:	2
Dimensions (LWH):	240020502250mm	X/Y/Z axis rapid movement rate:	36/36/36m/minute
maximum. Table load (kg):	550 kg	Packaging Details:	The packing of our CNC milling machine is export standard plywood box with iron pallet underneath, which is very strong and durable. The CNC milling machine will be shipped to the customer by land or sea. Taiwan milling CNC vertical machining center VMC850 CNC milling machine
Core component warranty:	1 year	Video outbound inspection:	if
ATC Capability:	Knife wall type 24	port:	Dalian
Spindle taper:	BT40-140	Health status:	new
Showroom location:	United Kingdom, United States, France, Germany, Vietnam, Saudi Arabia, Indonesia, Pakistan, Mexico, Russia, Morocco, Kenya, Argentina, South Korea, United Arab Emirates, Colombia, Algeria, Sri Lanka, Romania, Bangladesh, South Africa, Kazakhstan, Ukraine, Kyrgyzstan Tan, Nigeria, Uzbekistan, Tajikistan, Malaysia, Australia	Repeatability (X/Y/Z) (mm):	±0.002
Positioning accuracy (mm):	±0.005	Tool magazine capacity:	twenty four
Main selling points:	high accuracy	Mechanical test report:	if
Supply capacity:	500 milling CNC vertical machining centers per month	type:	vertical
Table travel (X) (mm):	800

Product Description

Taiwan milling CNC vertical machining center VMC850 CNC milling machine

Model	VMC850 (GSK25i system)	VMC 1050 (GSK25i system)
3-axis stroke parameters
X/Y/Z axis travel	800/500/500 mm	1050/500/500mm
Spindle nose to table top	120-620mm	120-620mm
X/Y/Z axis AC servo motor	Torque Nm 15/15/22	Torque Nm 15/15/22
Spindle center to column surface	550 mm	550 mm
worksheet
table size	1000×550mm	1000×550mm
maximum load	600 kg	600 kg
T-shot	5 x 18 x 90 mm	5 x 18 x 90mm
Feeding parameters
X/Y/Z axis rapid feed	24/24/20 m/min	20/20/18m/minute
cutting feed	1-10m/min	1-10m/min
Spindle parameters
Spindle connection	belt	belt
Spindle taper	BT40-140	BT40-150
Spindle speed range	8000 rpm	8000 rpm
Spindle motor	7.5 kW	7.5 kW
ATC parameter
ATC Capability	24 quantity	24 quantity
Maximum Tool Diameter	Φ80/Φ150mm	Φ80/Φ150mm
tool weight	8 kg	8 kg
accurate
Position accuracy (JIS standard)	±0.008/300mm	±0.008/300mm
Repeat positioning accuracy (JIS standard)	±0.005mm	±0.005mm
shape and weight
aspect	2750×2300×2300mm	2800×2360×2450mm
weight	5200 kg	5600 kg

Certificate
