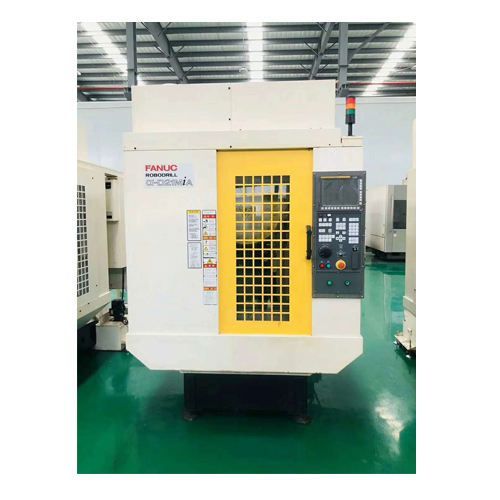

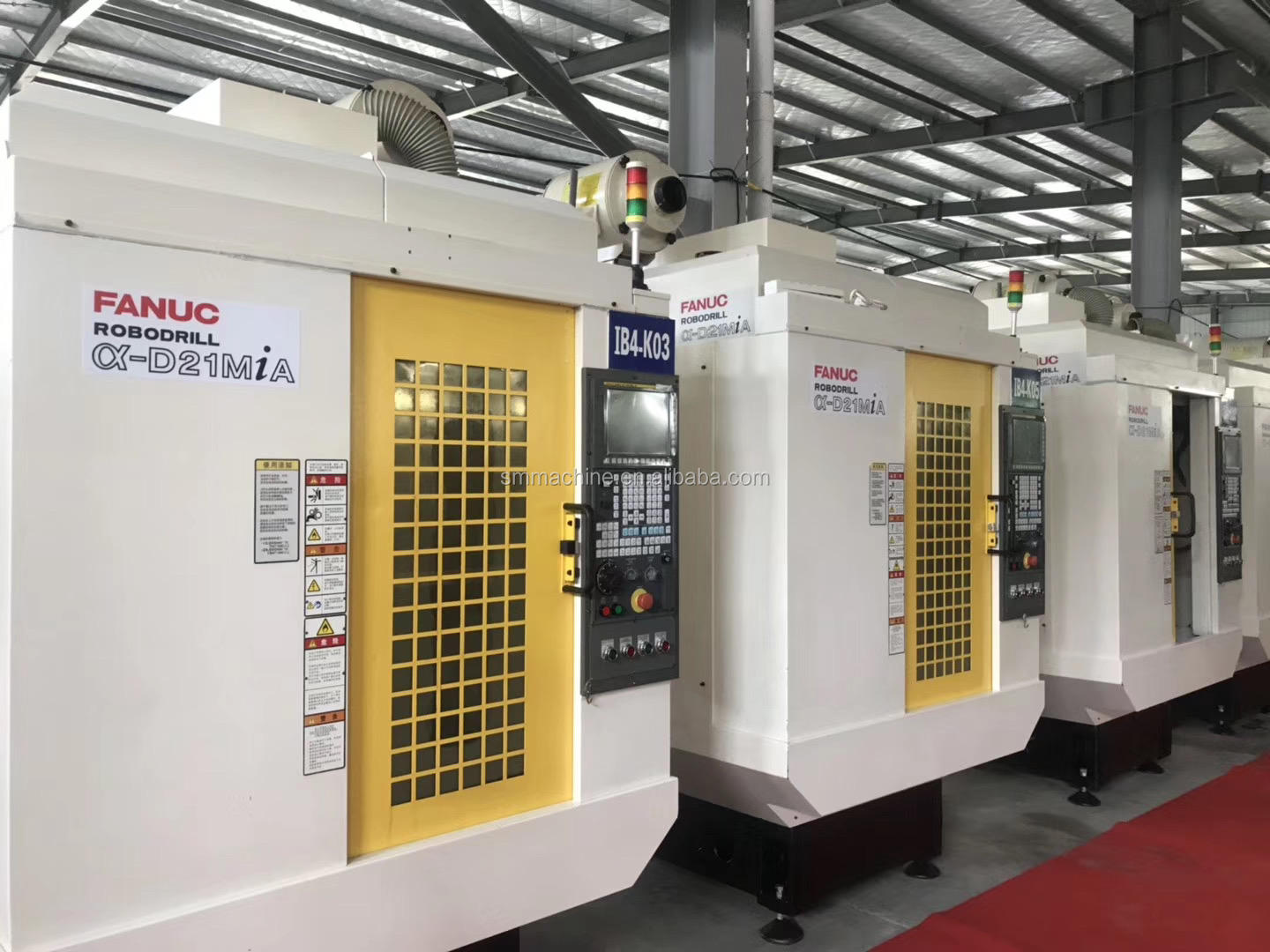

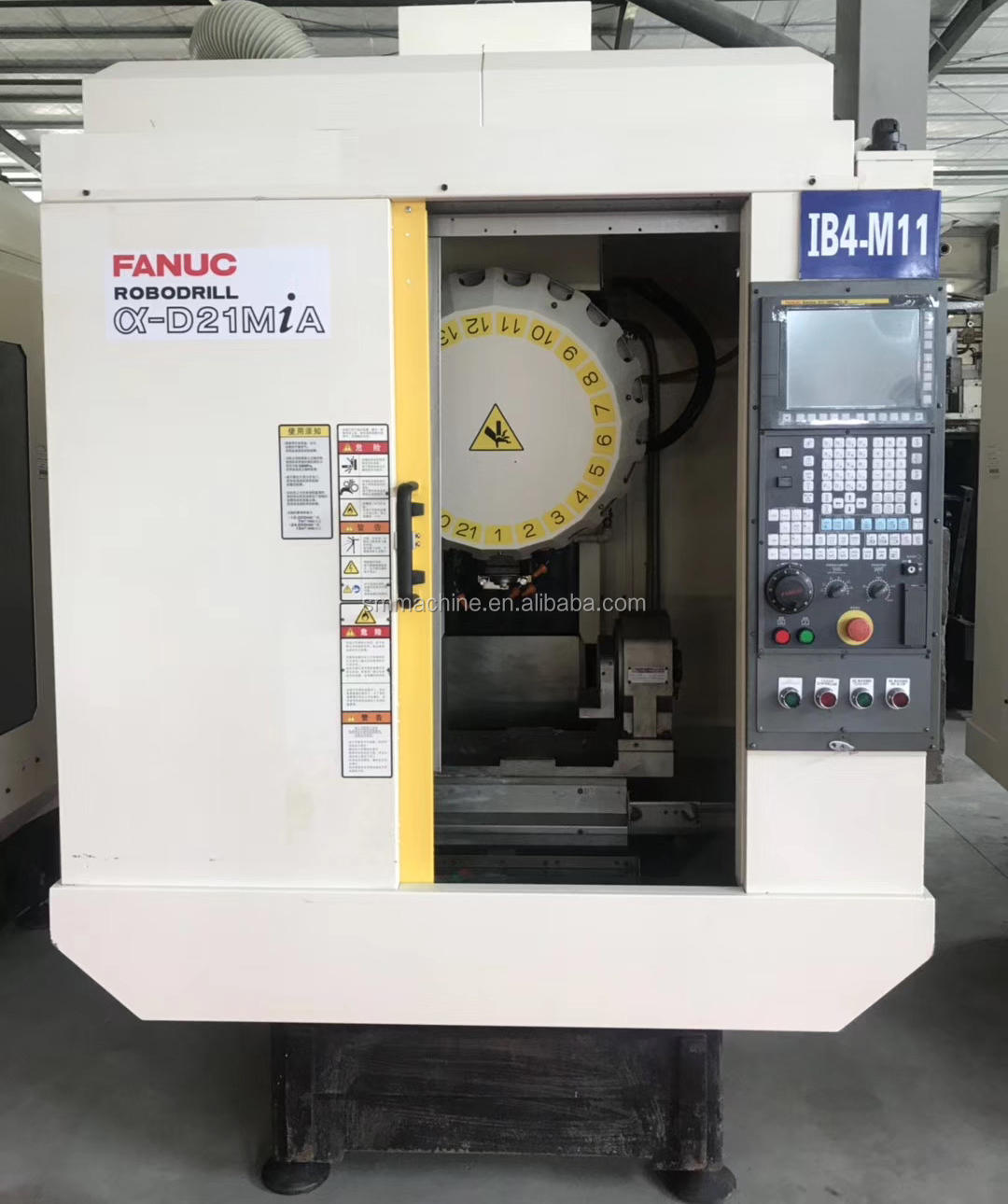

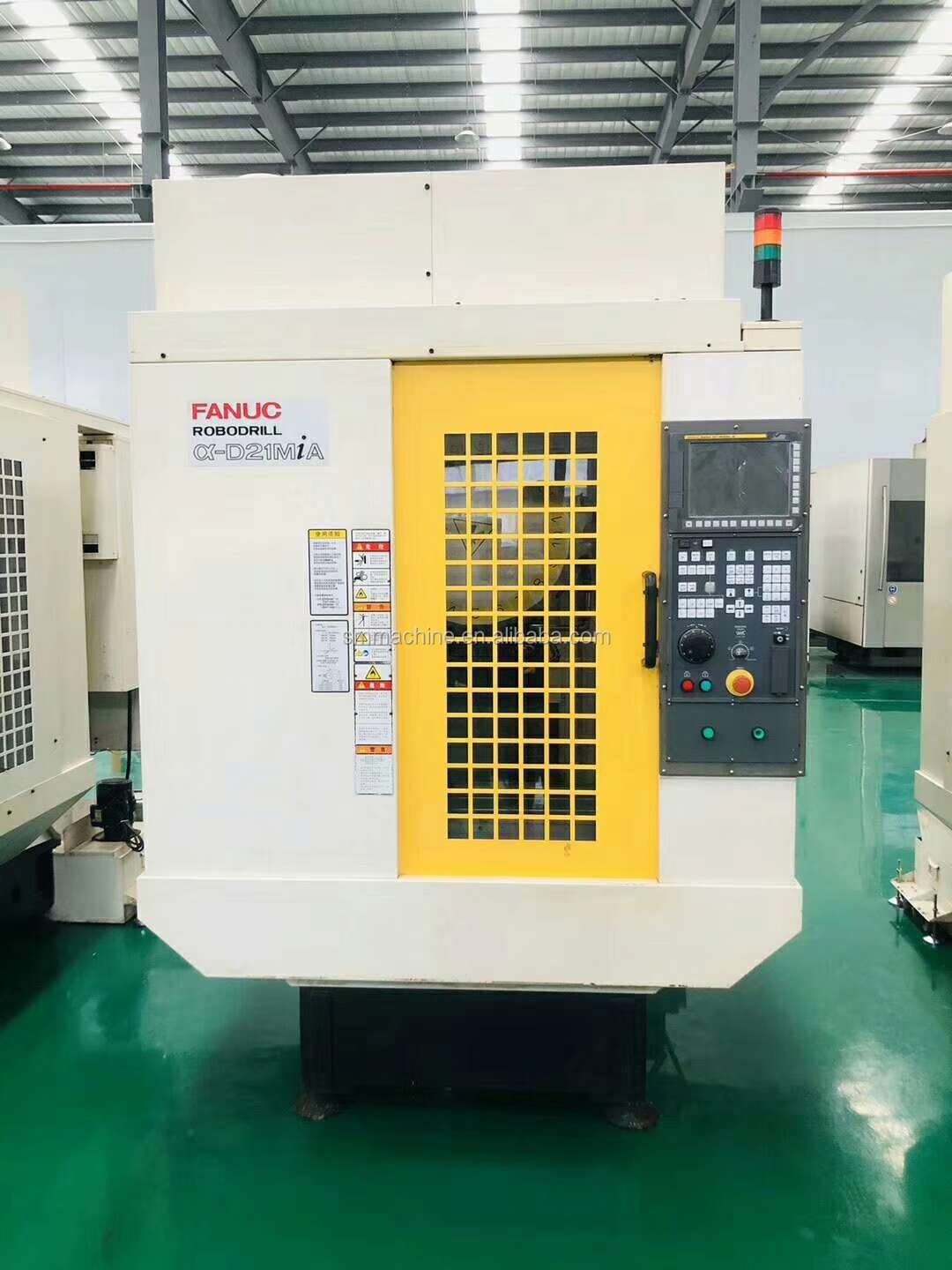

Very popular drilling and tapping center high precision FANUC system for machining precision parts
-
Supplier: Longnan County Shengming Machinery Equipment Co., Ltd. -
Region: Jiangxi, China -
Contact: Ms Eileen Ye -
Price: $15599.00 /set -
Min. Order: 1 set
Product details
| Feed rate (mm/min): | 1 - 10000 mm/min | Voltage: | 220 volts |

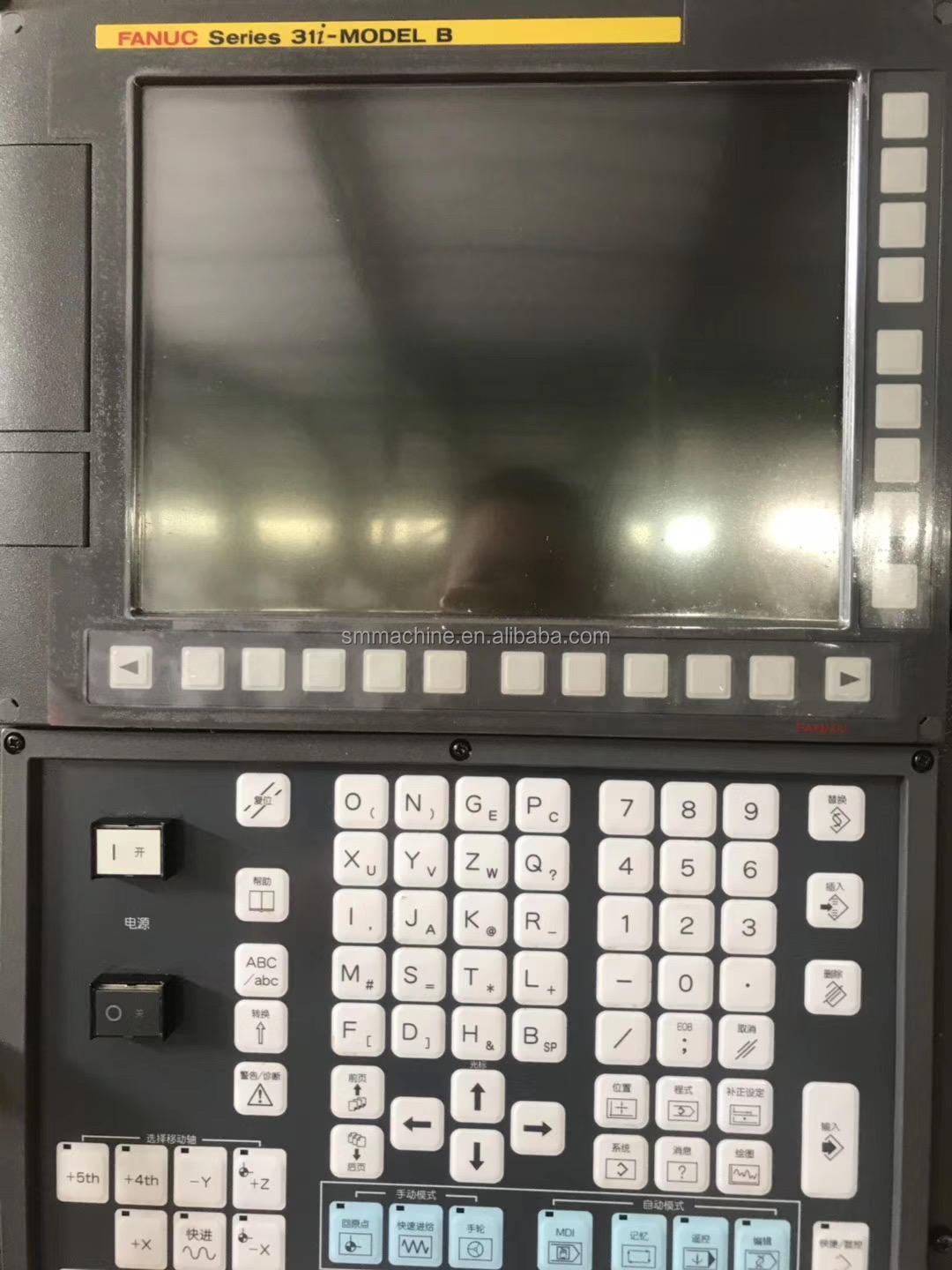

| Spindle motor power (kW): | 5.5 | CNC system: | FANUC |
| payment terms: | T/T, Western Union, MoneyGram | Origin: | Taiwan |
| Weight (ton): | 4 tons | Core components: | PLC |
| Rapid feed speed (m/min): | 36 | After Warranty Service: | Video technical support, online support |
| Local service locations: | not any | Warranty: | 1 year |
| application: | Mold processing | type: | vertical |
| Marketing Type: | hot product | Showroom location: | not any |
| Model: | D21A | Spindle taper: | BT40 |
| Core component warranty: | 1 year | Mechanical test report: | not available |
| maximum. Table load (kg): | 450 kg | Positioning accuracy (mm): | ±0.005 |
| Tool magazine capacity: | twenty one | Table travel (Z) (mm): | 520 |
| minute. Tool change time: | 4 | After-sales service provided: | Online support, video technical support |
| Number of axes: | 3 | Health status: | used |
| Spindle speed range (rpm): | 20 - 12000 rpm | Applicable industries: | manufacturing plant |
| Main selling points: | high accuracy | Repeatability (X/Y/Z) (mm): | ±0.003 |
| port: | Guangzhou | Packaging Details: | wooden box |
| Table size (mm): | 1000*450mm | Video outbound inspection: | if |
| Supply capacity: | 20 sets per month | Year: | 2015 |
| Key words: | CNC vertical machining center | Dimensions (L*W*H): | 2700*2400*2450mm |
| Number of spindles: | single | Table travel (X) (mm): | 800 |
| Table travel (Y) (mm): | 500 |
Product Description
Very popular machining center high precision FANUC system for machining precision parts
Recommended Products
Company Profile
Longnan County Shengming Machinery Equipment Co., Ltd.:Our company is located in Shenzhen, China, and has been focusing on molds and accessories since 2014. 90% of our molds are exported to more than 30 countries including Europe, North America, South America and Asia. Our company is also equipped with high-precision machining and three-coordinate testing equipment. We employ top-notch CAD/CAM technology in our designs, enabling us to develop and manufacture complex, thin-walled, precision molds. High-precision, high-quality, high-efficiency, optimal cost and high-level service are our development direction. We always adhere to the business philosophy of "integrity, innovation, and win-win".
