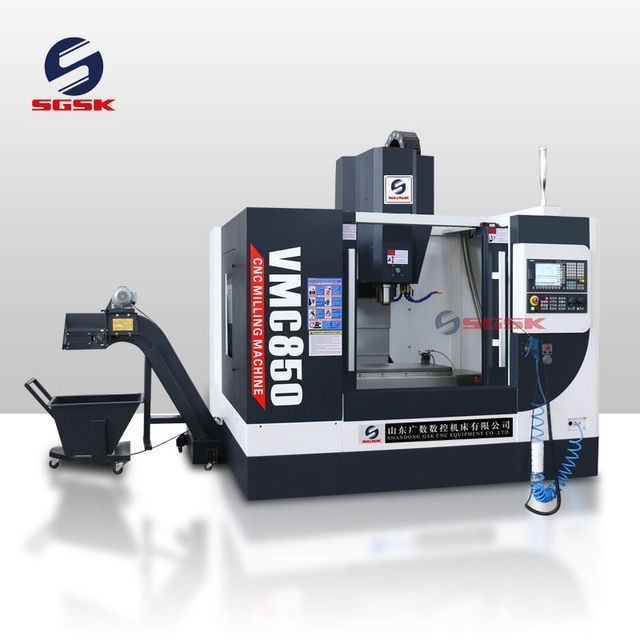

Vertical machining center cnc milling machine VMC850 cnc milling machine

Supplier: Shandong Gsk Cnc Equipment Co., Ltd.
Region: Shandong, China
Contact: Ms Amy Gao
Price: $16790.00 / 1 - 1 sets
$16590.00 / 2 - 4 sets
$15690.00 / >=5 sets
Min. Order: 1 set

Click here to contact

Product details

Feed rate (mm/min):	1 - 10000mm/min	Supply capacity:	100 milling CNC vertical machining centers VMC640 per month
Workbench size (mm):	800*300	Positioning accuracy (mm):	±0.0075
Dimensions (lengthwidthheight):	1900x1700x2100mm	maximum. Spindle speed:	8000 (10000 optional)
Core components:	engine	Weight (tons):	3 tons
Model:	VMC850	Voltage:	110v 220v 380v 415v
Applicable industries:	Machine repair shop, manufacturing plant, factory	port:	Qingdao or any port in China
Place of origin:	Shandong Province, China	Terms of trade:	EXW, FOB, CNF, CIF
Machine weight:	3000kg	Health status:	new
Core component warranty:	1 year	Number of spindles:	single
Rapid feed speed (m/min):	24.24.2020	Spindle taper:	BT40
Name:	Automatic milling CNC vertical machining center CNC milling machine	Video outbound inspection:	if
type:	vertical	Spindle motor power (kW):	5.5
Package preview:		payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram, Trade Assurance
Mechanical test report:	if	Worktable travel (Y) (mm):	360 mm
Worktable travel (X) (mm):	600mm	Packaging details:	Name: Milling CNC vertical machining center VMC640 Packing: plywood box
Spindle speed range (rpm):	1 - 8000 rpm	Warranty:	1 year
Table size:	800*300	Tool magazine capacity:	16, none, 24
Main selling points:	competitive price	minute. Tool changing time:	2
Spindle taper:	BT40	Marketing type:	2020 new products
main motor power:	7.5kW	Number of axes:	3,4
Maximum load of workbench:	300kg	maximum. Workbench load (kg):	300kg
Machine size:	190017002100mm	brand:	SGSK
Repeatability (X/Y/Z) (mm):	±0.005±	CNC system:	GSK, FANUC, Mitsubishi, KND, Siemens
Showroom location:	Indonesia, Russia	Worktable travel (Z) (mm):	450mm

Milling CNC Vertical Machining Center VMC850 CNC Milling Machine

Product Description

Detailed display

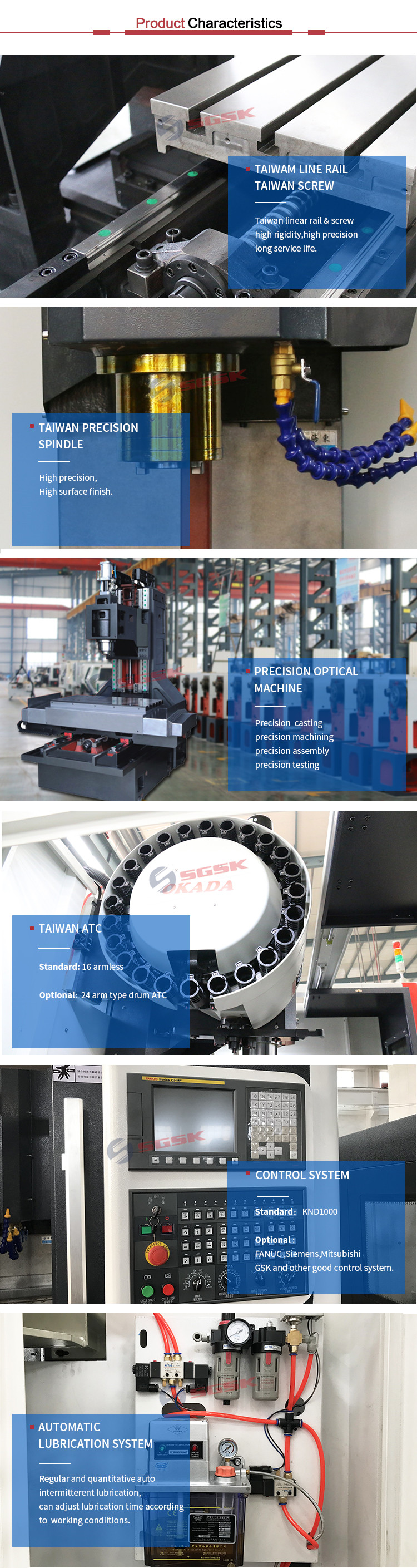

feature:
High quality resin sand
Taiwan spindle
Taiwan ball screws and locking nuts
Taiwan pressure cylinder
Japanese NSK bearings German R+W couplings
Automatic lubrication system
Optional chip conveyor
application:
This VMC is suitable for machining and mold manufacturing. It can adapt to processing requirements from rough machining to fine machining, and can also complete various processes such as milling, drilling, tapping, and boring.

Main technical specifications of the product:

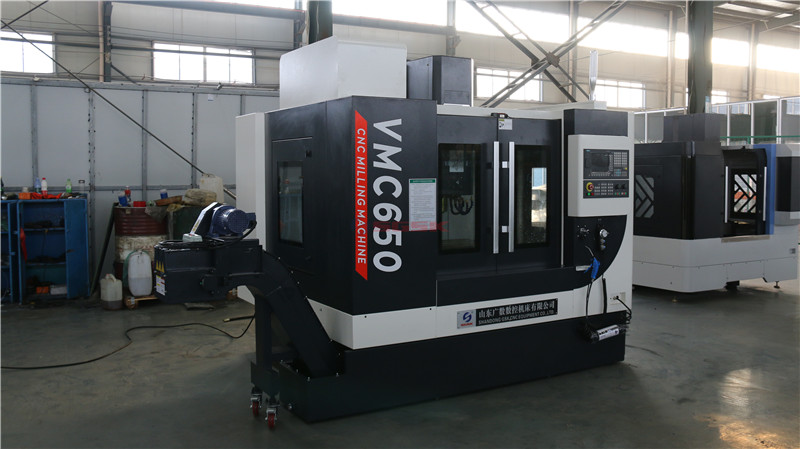

Specification	unit	VMC650	VMC850
working desk size	mm	800x400	1000x500
X-axis travel	mm	650	800
Y axis travel	mm	400	500
Z-axis travel	mm	500	500
maximum. Workbench load	Kilogram	400	500
T-slot (quantity-width-pitch)		3-18x125	5-18x125
maximum. Spindle speed	Rotating speed	8000 (optional: 10000)	8000 (optional: 10000)
Spindle taper	mm	BT40	BT40
main motor power	kilowatt	5.5	7.5
X/Y/Z rapid movement speed	m/min	24.24.2020 (optional: 48/48/36)	24.24.2020 (optional: 48/48/36)
cutting feed rate	mm/min	1-10000	1-8000
Rail type		Linear Guides	Linear Guides
Distance from spindle axis to column surface	mm	Chapter 469	Chapter 526
Distance from spindle nose to work surface	mm	100-600	90-640
positioning accuracy	mm	±0.0075	±0.0075
Repeatability	mm	±0.005	±0.005
Tool magazine		16 armless (Optional: Arm 24)	Arm 24
maximum. Tool diameter	mm	φ90	φ78 (adjacent)/φ120 (separated)
Maximum tool weight	Kilogram	8	8
Machine weight	Kilogram	4000	4000

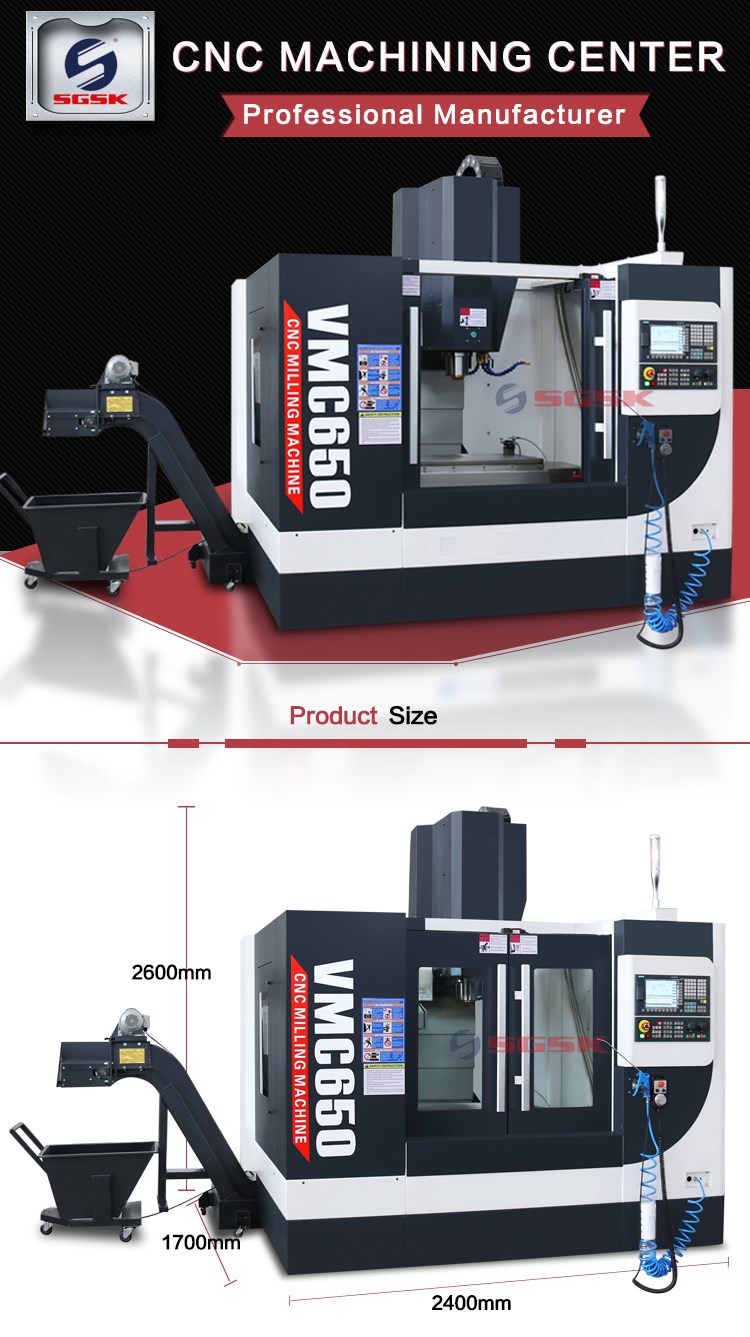

Dimensions	mm	2400x2000x2550	2600×2000×2200
