VMC600L cheap vmc milling machine center with 4 axis for sale

Supplier: WMT CNC Industrial Co., Ltd.
Region: Anhui, China
Contact: Ms Sunny Huang
Price: $25990.00 / 1 - 1 sets
$24990.00 / >=2 sets
Min. Order: 1 set

Click here to contact

Product details

No. of Spindles:	Single;	Spindle Motor Power(kW):	5.5;
vmc machine center Logo printing:	OEM service;	Type:	VERTICAL;
Payment Terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram;	Tool Magazine Capacity:	16,12;
Table Size (mm):	800x400;	Certification:	CE ISO;
CNC Control System:	GSK,FANUC,Siemens;	After Warranty Service:	Video technical support,Online support,Spare parts;
Voltage:	380V/50hz/3 phase;	After-sales Service Provided:	Engineers available to service machinery overseas;
Rapid Feed Speed(m/min):	10;	Color:	Customer's Request;
Spindle Taper:	BT40;	Positioning Accuracy (mm):	0.01 mm;
Marketing Type:	Hot Product 2021;	Port:	Shanghai port;
Warranty of core components:	1 Year;	Spindle taper:	BT40;
Weight:	5000kgs;	Place of Origin:	Anhui China;
Brand Name:	WMT;	Table Travel (X) (mm):	600 mm;

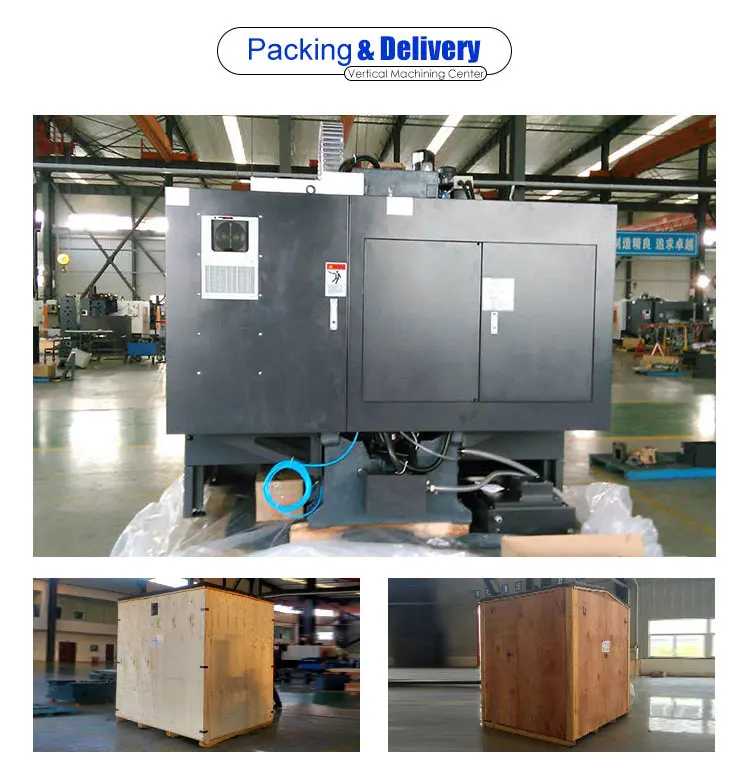

Table Travel (Y) (mm):	400 mm;	Packaging Detail:	Plywood wooden box;
Hgh speed:	Taiwan Brand;	Local Service Location:	Egypt,Canada,United States,Italy,Philippines,Brazil,Pakistan,India,Thailand,Japan,Kenya,Argentina,Colombia,South Africa,Kazakhstan,Uzbekistan;
Spindle speed:	10000rpm;	Video outgoing-inspection:	Provided;
Applicable Industries:	Machinery Repair Shops,Manufacturing Plant,Retail,Printing Shops,Construction works ,Energy & Mining,Advertising Company;	Max. Table Load(kg):	300;
Machinery Test Report:	Provided;	Table Travel (Z) (mm):	450 mm;
Key Selling Points:	High-accuracy;	Package Preview:	;
Showroom Location:	Egypt,United States,Philippines,Pakistan,Chile,Romania,Bangladesh,Kyrgyzstan,Nigeria,Malaysia,Australia;	Weight (T):	5;
Power:	5.5kw;	Warranty:	13 months;
Precision:	High Precision Machining Center;	Number of Axes:	3,4;
Core Components:	Bearing;	Condition:	New;
Range of Spindle Speed(r.p.m):	10 - 10000 r.p.m;	Supply Ability:	50 Set/Sets per Month;
CNC or Not:	CNC;	Dimension(LWH):	2260x1750x2200mm;
Repeatability (X/Y/Z) (mm):	0.01;	Min. Time of Tool Change(s):	2;

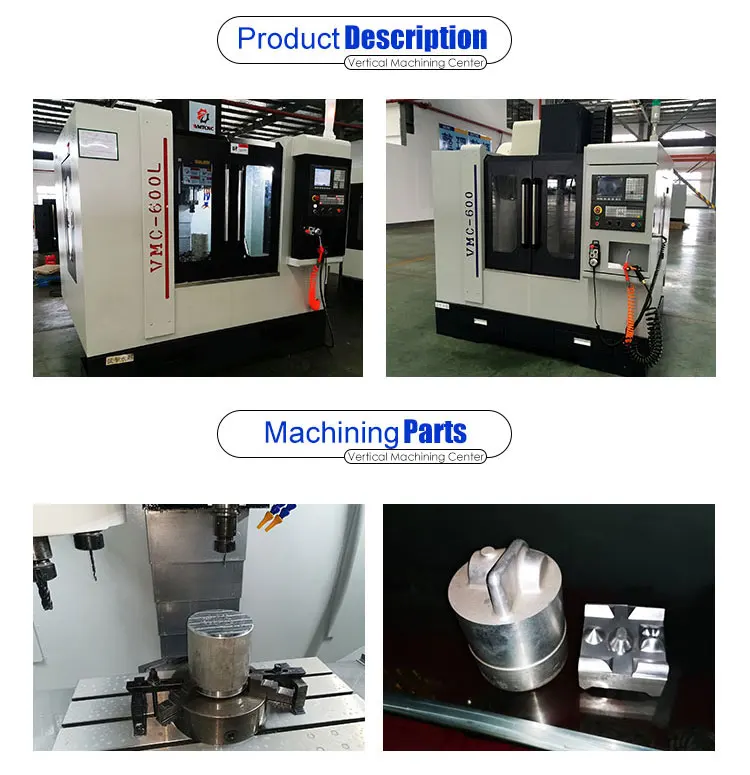

Product Description

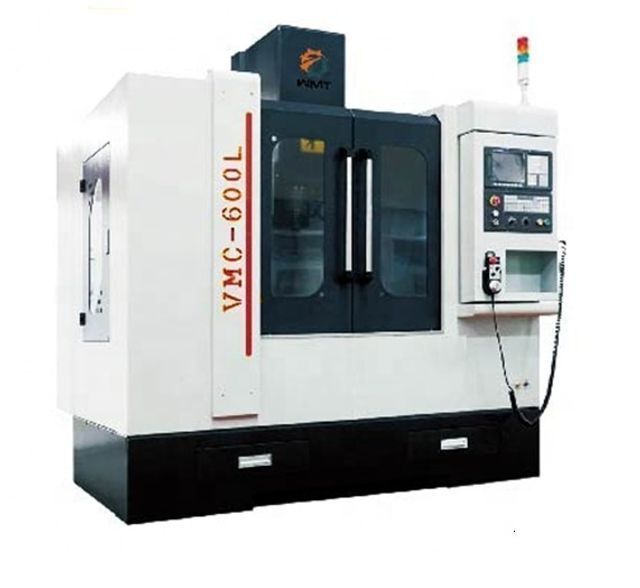

VMC600L cnc milling machine

Features:CNC milling machine price
All 3axis use class C3 precision screw,match up the nut preloading and screw prestretched,preeliminate backlash and temperature rise,so that the machine can achieve stability of the positioning and repeatability accuracy.Besides,the X/Y/Z axis use precision linear rails to ensure the control of the positioning accuracy and processing errors,so that the machine can have high accuracy and long working life.

Main specification

Specification	VMC600L
Worktable size(LxW)	800x400mm
T-slot (NxWx D)	3x14x100mm
X/Y/Z axis travel	600/400/450mm
Distance from spindle center to column	450mm
Distance from spindle nose to worktable surface	100-550mm
Spindle taper	BT40
Spindle power	5.5kw
Max.spindle speed	10000rpm
Max.feed speed	10m/min
Rapid feed speed(X/Y/Z)	30/30/25m/min
X/Y/Z axis ball screw	3210

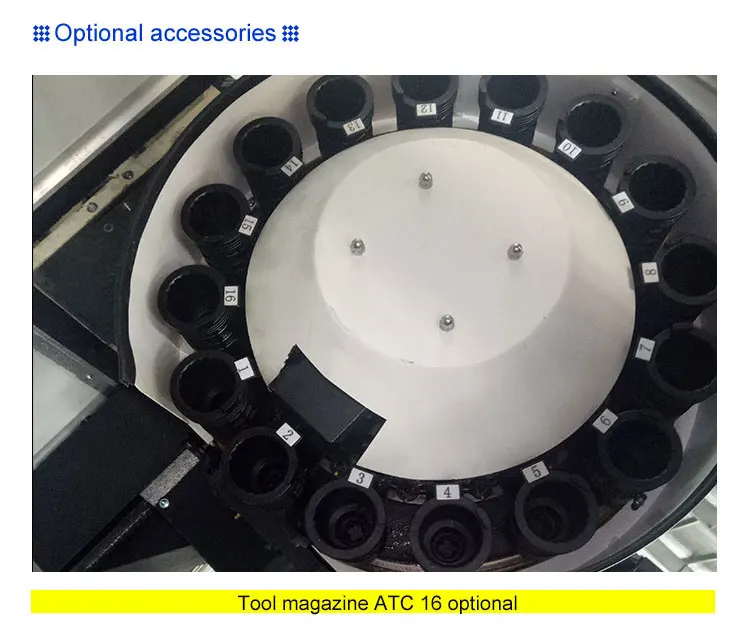

Tool magazine capacity	12T/16T(optional)
Max.length of tool	300mm
Tool change time(T-T)	2.5s
Positioning accuracy(X/Y/Z)	±.0.005mm
Re-positioning accuracy(X/Y/Z)	±.0.002mm
LxWxH	1900x1700x2240mm
Max.loading of worktable	300kgs
Machine weight	3500kgs
