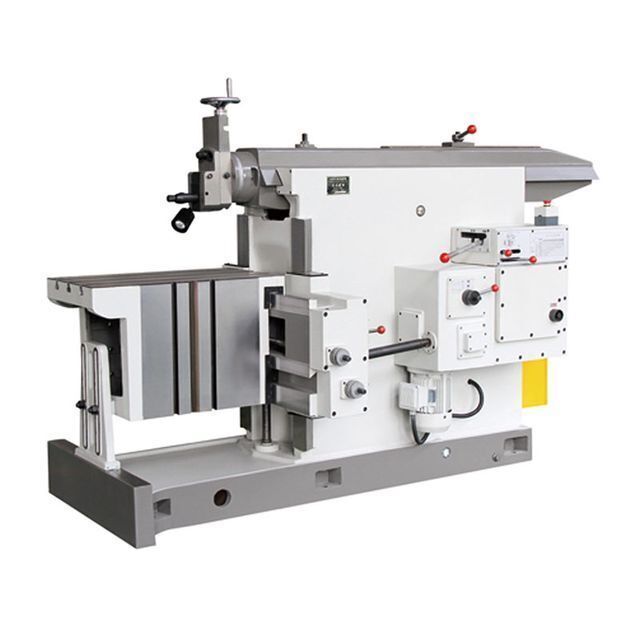

Planner BC6085 Horizontal Mechanical Metal Shaping Shaper Machine

Supplier: WMT CNC Industrial Co., Ltd.
Region: Anhui, China
Contact: Ms Sunny Huang
Price: $5000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Brand Name:	WMT;	Product Name:	Shaping Machine;
Voltage:	380;	Showroom Location:	Egypt,Canada,Turkey,United Kingdom,United States,Italy,France,Germany,Viet Nam,Brazil,Peru,Saudi Arabia,Indonesia,Mexico,Russia,Spain,Thailand,Morocco,Kenya,Argentina,South Korea,Chile,UAE,Colombia,Algeria,Sri Lanka,Romania,Bangladesh,South Africa,Kazakhstan,Ukraine,Kyrgyzstan,Nigeria,Uzbekistan,Tajikistan,Japan,Malaysia,Australia,None;
Video outgoing-inspection:	Provided;	Port:	shanghai,ningbo ,qingdao;
After Warranty Service:	Video technical support,Online support,Spare parts,Field maintenance and repair service;	Local Service Location:	Egypt,Canada,Turkey,France,Brazil,Indonesia,Mexico,Russia,Spain,Japan,Malaysia,Australia,Morocco,Kenya,South Korea,Sri Lanka,Romania,Bangladesh,Kazakhstan,Ukraine,Nigeria,Tajikistan,None;
After-sales Service Provided:	Online support,Video technical support,Field installation, commissioning and training,Field maintenance and repair service;	Machinery Test Report:	Provided;
Weight:	1650;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;
Condition:	New;	Key Selling Points:	High-accuracy;

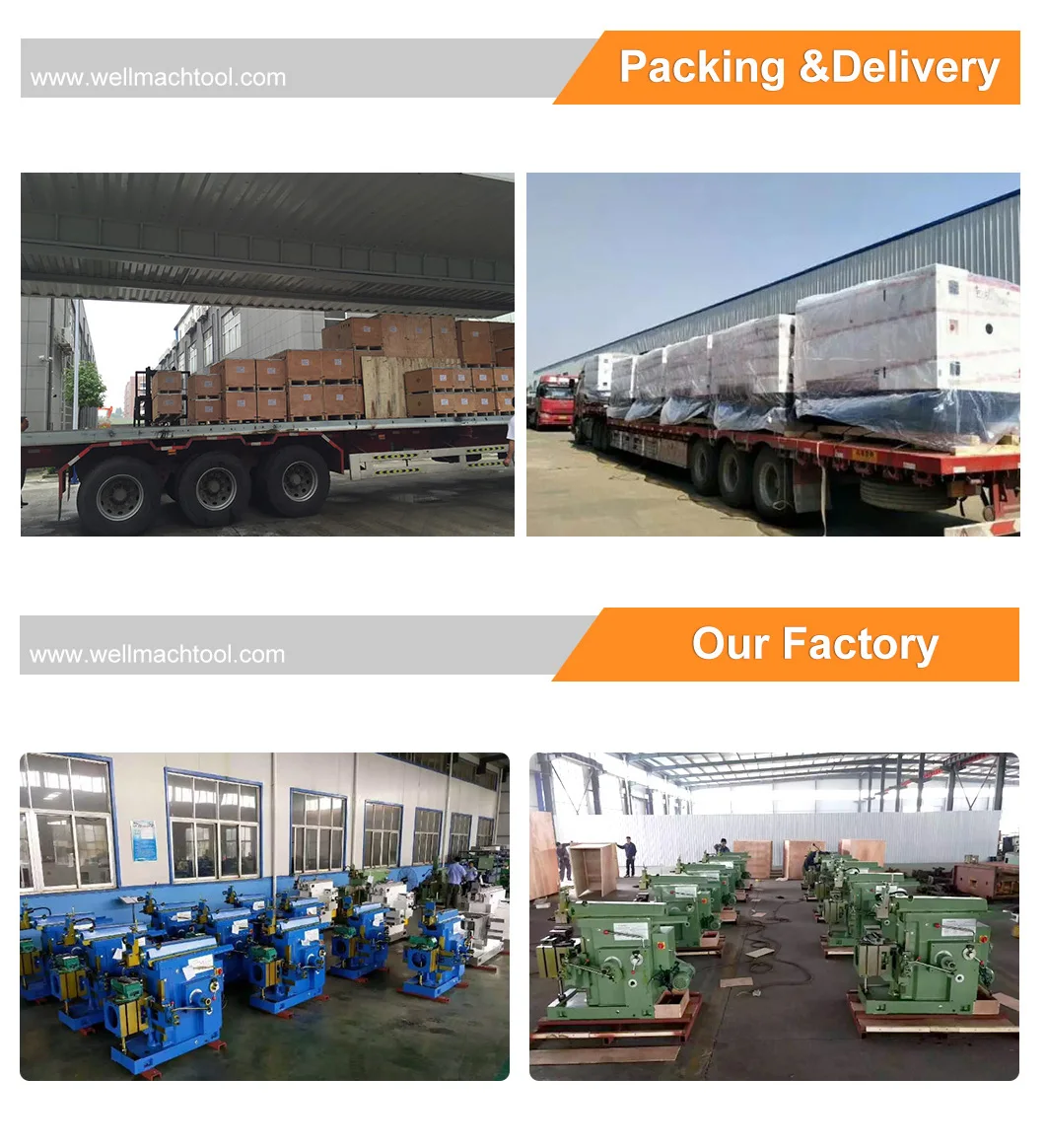

Packaging Detail:	Plywood wooden box;	Place of Origin:	Anhui China;
Applicable Industries:	Hotels,Garment Shops,Building Material Shops,Manufacturing Plant,Machinery Repair Shops,Farms,Restaurant,Retail,Printing Shops,Energy & Mining,Advertising Company;	Certification:	ISO;
Marketing Type:	New Product 2020;	Core Components:	PLC,Engine,Bearing,Gearbox,Motor,Pressure vessel,Gear,Pump;
Power (kW):	3;	Supply Ability:	50 Acre/Acres per Month;
Warranty:	1 Year;	Warranty of core components:	1 Year;
Dimension(LWH):	200012501400;

Product main features:

1. Shaper workbench can about rotational angle worktable moving structure with lateral and lifting; to planing inclined plane,thereby expanding the scope of use.
2. Feed system of shaper with a cam mechanism, adjust the feed quantity. Change the amount of knife, very convenient.
3. Shaper in knife system overload safety device is installed, when due to careless handling or by external influence and cutting overload when, take the knife itself slipping, nondestructive parts which guarantees the machine to normal operation.
4. The sliding pillow and bed rails and with speed gear pair and the main rail sliding surface, lubrication oil pump has played for circulating lubrication.
5. Shaper with parking brake mechanism, so the speed of transformation. When starting machine tools and parking, the power supply can not be cut off.

Specification	BC6050
Maximum planing length	630mm
Maximum distance from the bottom of the working table	385mm
lateral travel	630mm
Vertical stroke	360mm
Tool frame travel	120mm
Sleeper reciprocating times (per minute)	14/20/28/40/56/80
Main motor power	3W
The maximum size(width*thickness)of the handle	20×30mm
The size of the T groove in the center of the worktable	18mm
Angle of rotation	±60°(toolpost)
Workbench size	630×400/660×400mm
Shape size	2000×1300×x150mm
Machine tool weight (about)	1750/1870KG
Package dimensions	2000/1300/1650mm
