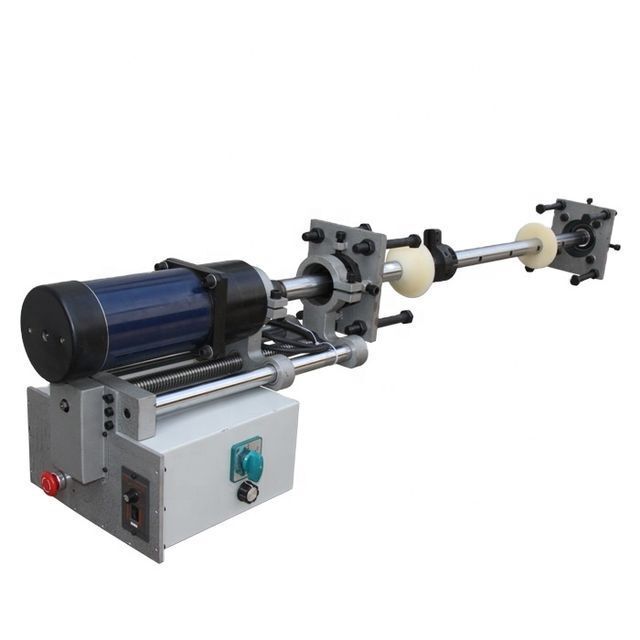

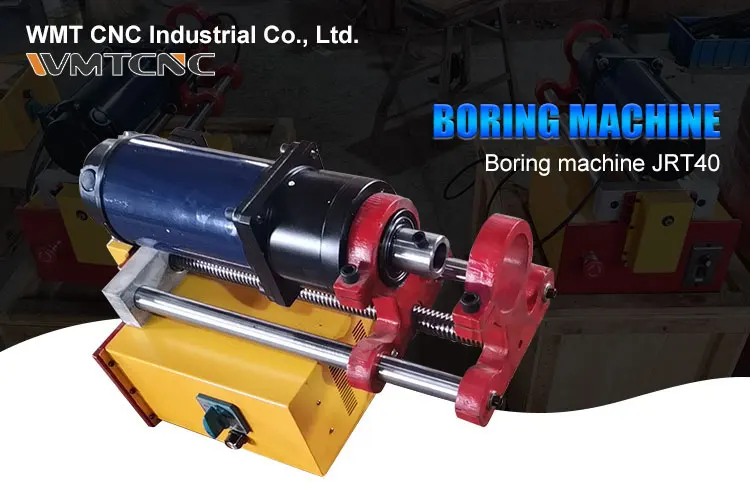

stock sale JRT40 line boring machine for construction

Supplier: WMT CNC Industrial Co., Ltd.
Region: Anhui, China
Contact: Ms Sunny Huang
Price: $1300.00 / 1 - 4 sets
$1200.00 / >=5 sets
Min. Order: 1 set

Click here to contact

Product details

Boring stroke:	450mm;	Warranty of core components:	1 Year;
Core Components:	PLC,Bearing,Motor,Pressure vessel;	Showroom Location:	Egypt,Canada,Turkey,United Kingdom,United States,Italy,France,Germany,Viet Nam,Philippines,Brazil,Peru,Saudi Arabia,Indonesia,Pakistan,India,Mexico,Russia,Spain,Thailand,Morocco,Kenya,Argentina,South Korea,Chile,UAE,Colombia,Algeria,Sri Lanka,Romania,Bangladesh,South Africa,Ukraine,Kyrgyzstan,Nigeria,Uzbekistan,Japan,Malaysia,Australia;
Travel (W-axis) (mm):	450 mm;	Boring bar dia and length:	40*1500mm;
Name:	Portable Line Boring Machine;	Marketing Type:	New Product 2020;
Payment Terms:	L/C,Western Union,D/P,D/A,T/T;	Range of Spindle Speed(r.p.m):	100 r.p.m;
Dimension(LWH):	750X 650X550MM;	Number of Axes:	2;
Brand Name:	WMT;	Voltage:	110V/220V/380V;
Key Selling Points:	Easy to Operate;	Packaging Detail:	Steel plate package.;
Type:	Horizontal;	Table Travel (X) (mm):	45 mm;
Spindle Motor Power(kW):	1.5;	Table Travel (Y) (mm):	260 mm;
Power unit:	DC motor 1.5KW;	Port:	Shanghai;
Applicable Industries:	Building Material Shops,Manufacturing Plant,Machinery Repair Shops,Home Use,Retail,Construction works ,Energy & Mining;	Table Travel (Z) (mm):	1500 mm;
Machinery Test Report:	Provided;	Package Preview:	;
Weight (T):	0.11 T;	Place of Origin:	Anhui, China;
COLOR:	Meet Customer's Requirement;	Product name:	Boring Machine Tool;
Production Capacity:	50 Sets / Month;	Warranty:	1 Year;
Facing dia.:	50-260mm;	No. of Spindles:	Single;
Certification:	CE;	CNC or Not:	Normal;
Boring dia.:	45-200mm;	Condition:	New;
Video outgoing-inspection:	Provided;	Supply Ability:	50 Sets per Month;
Table Size (mm):	960x1100;	Rotating speed:	0-100rpm variable speed;

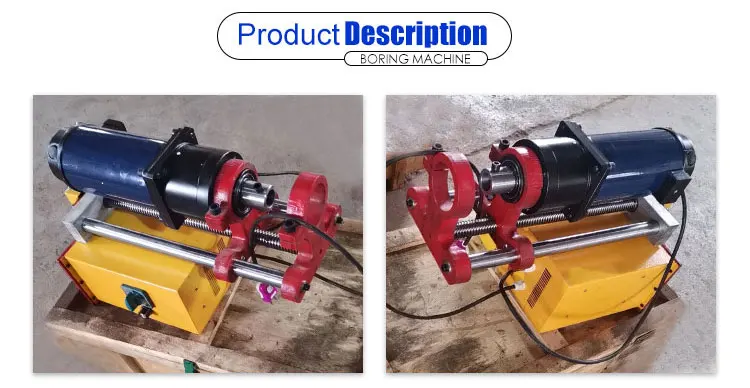

Product Description

Machine Main Features:

1. Modular components make setup quick and easy;
2. Flexible and high quality design, aluminum alloy frame make the machine portable;
3. Optional face tool make the machine more Versailles;
4. Spherical bearing mounts system allow quick setup;
5. Gear box allow manual and automatic feed;
6. Drive power provide by a brush-less DC motor,powerful and stable ;
7. Could use on repairing the inner wall of the pipes,crane rotary holes,stern shaft holes and rudder holes and so on.

Item	JRT40
Boring bar dia.and length	dia.40X1500mm
Boring dia.range	dia.45-200mm
Facing dia.	dia. 50-260
Power unit	1.5KW
Boring bar rotate speed variable	0-87rpm
Axial feed per revolution variable	0-0.6mm/r
Axial feed travel	390mm
Machining hole face roughness	RA3.2
Machining hole roundness tolerance	≤0.04mm

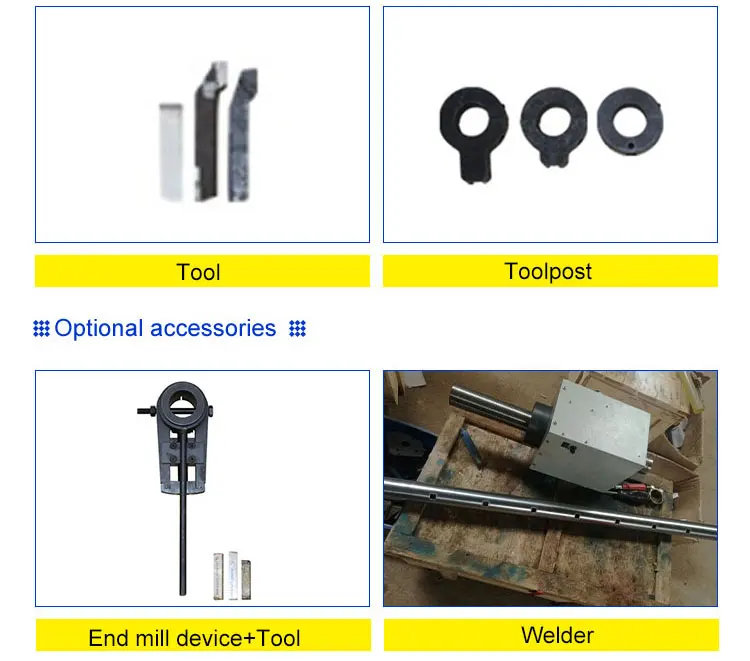

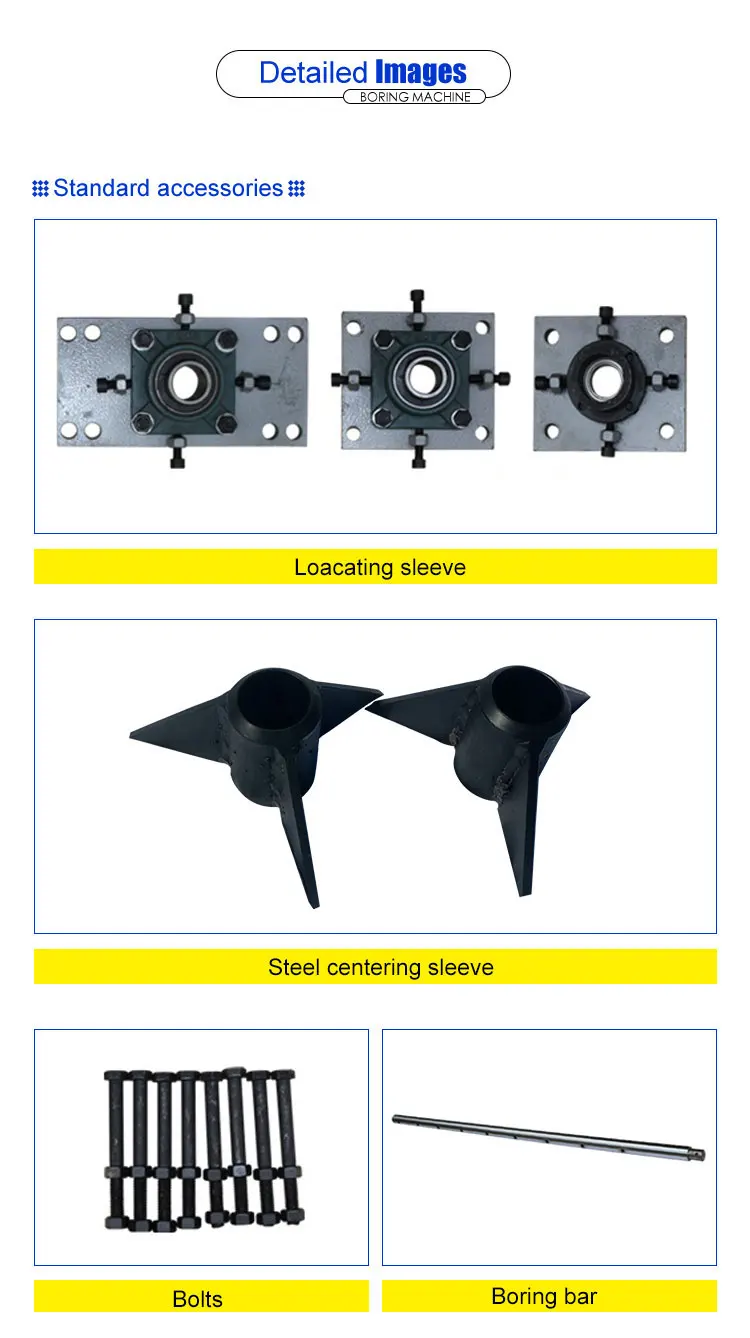

Detailed Images

Company Profile

FAQ

Q1: How is the warranty?

A1: Warranty time is 13 months after BL date.

Q2:Can we visit your factory before order?

A2:Sure.All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.

Q3:Do you have a stock?

A3:Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.

Q4:What’s the MOQ?

A4:One set only.

Q5:How about your quality?

A5:We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.

Q6:Do you have professional engineers?

A6:Yes.we have professional engineers and designers. We can provide OEM services.

Q7:Can you provide customized machines?

A7:Yes, we can design and manufacture according to your specific requirements.
