Multifunctional 2 in 1 Portable Wire Drilling and Welding Machine, 220V or380v, 55~160mm

Supplier: Wenzhou Shenrui Machinery Equipment Co., Ltd.
Region: Zhejiang, China
Contact: Ms Alice Qin
Price: $2650.00 / 1 - 2 sets
$2500.00 / 3 - 5 sets
$2360.00 / >=6 sets
Min. Order: 1 set

Click here to contact

Product details

Applicable industries:	Building Materials Stores, Manufacturing Plants, Mechanical Repair Shops, Retail, Construction, Energy and Mining, Other	type:	horizontal
Drilling and Welding Diameters:	55mm~160mm	Video shipment inspection:	if
strength:	3 kW servo motor	Packaging Details:	wooden box
port:	Ningbo, Shanghai, Shenzhen	Core component warranty:	1 year
Voltage:	Single-phase 220v / Three-phase 380v, 50/60HZ	delivery time:	5-7 days
Showroom location:	United Arab Emirates	Health status:	new
Number of axes:	12	payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram
Weight (ton):	0.15 tons	product name:	Portable Wire Drills and Welders
Core components:	PLC, motor	automation:	automatic
brand:	Shen Rui	Table travel (X) (mm):	300 mm
Wire specification:	0.8mm/1.0mm/1.2mm.	Drilling length:	50X1600MM or customized
Table size (mm):	other	Function:	Line Boring and Welding in One
Boring bar speed:	40-300/turn	Spindle speed range (rpm):	300 rpm
Table travel (Y) (mm):	300 mm	Travel (W axis) (mm):	300 mm
Table travel (Z) (mm):	300 mm	Main selling points:	multifunctional
Package preview:		Warranty:	1 year
Mechanical test report:	if	Marketing Type:	New Products 2020
Origin:	Zhejiang, China	Supply capacity:	100 sets per month

Product Description

Multifunctional 2 in 1 Portable Wire Drilling and Welding Machine, 220V or380v, 55~160mm

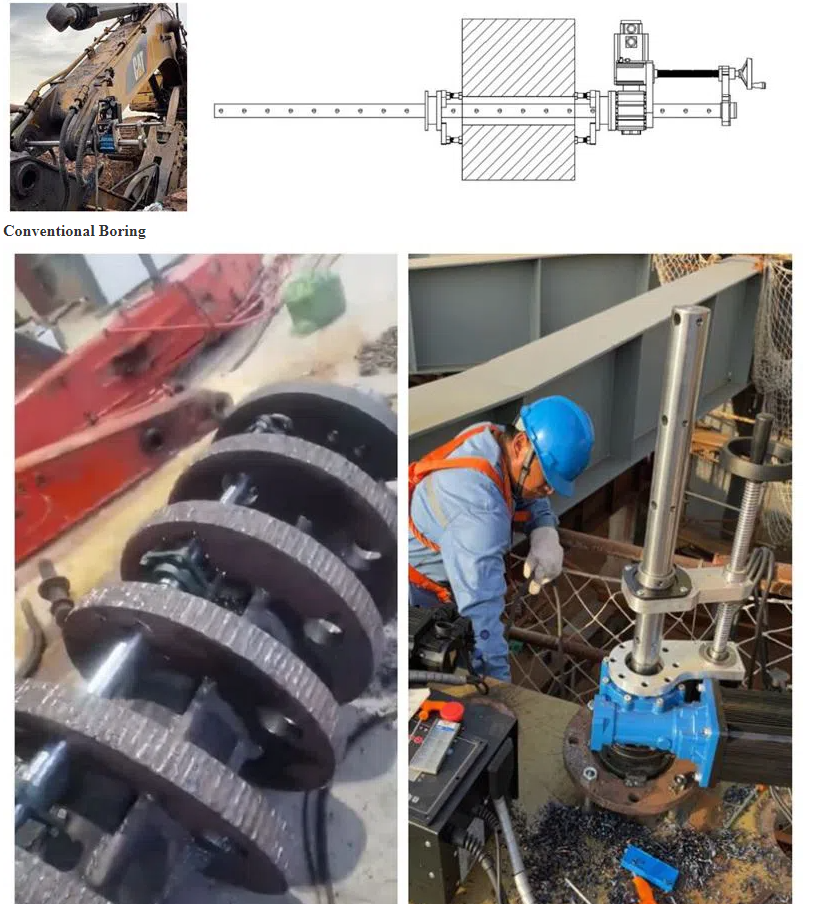

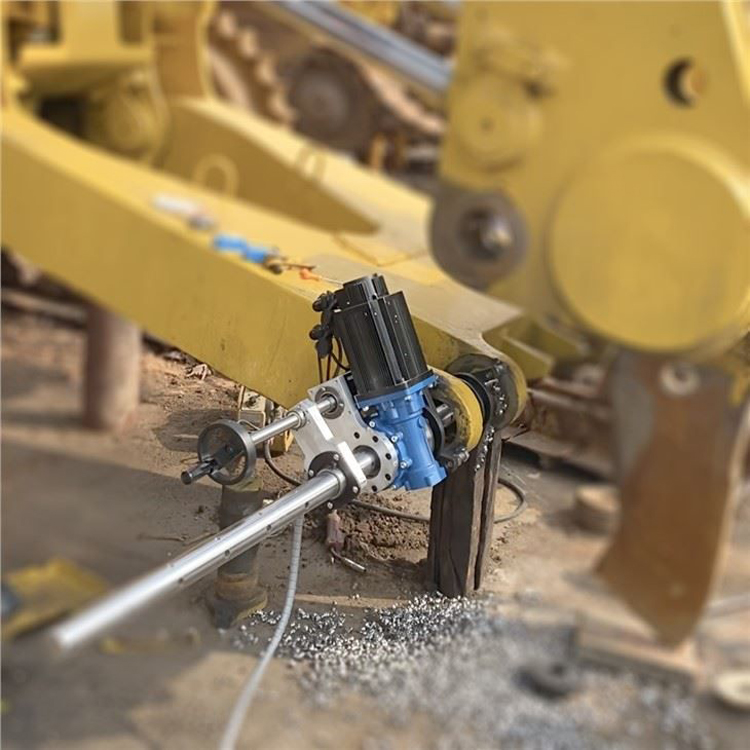

The Portable Wire Boring Welder is an on-site portable machining/welding machine used to repair worn, oversized or irregularly shaped holes. It combines the functions of line boring and welding into one. For the modular design, the welding rod allows direct mounting on the line boring machine frame. Make it switch immediately after drilling and start welding work, saving a lot of time and higher efficiency. Our wire boring machines are exported to India, Malaysia, Vietnam, Indonesia, Philippines, Thailand, Russia, etc.

Wire drilling and welding diameters are 40mm~600mm; Modular design, easy disassembly and assembly on site, less affected by site location and space. The largest piece weighs 27KG and can be operated by one person. The two functions of boring and welding are combined into one, and customers can easily operate and switch the boring and welding modes on one machine. To protect the system, install intelligent power supply technology, when the voltage fluctuates, the control box can stabilize the output. If there is overvoltage/current/overload, the protection will be activated to shut down the machine. Remote control, can be operated by remote control operation.

Product Details:

application

The diameter of drilling and welding is 40mm~300mm; it combines linear boring and welding into one, light in weight, small in size and powerful in power, making all maintenance processes very easy to install and operate.

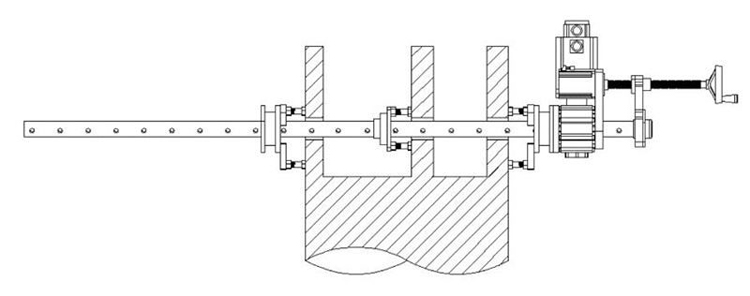

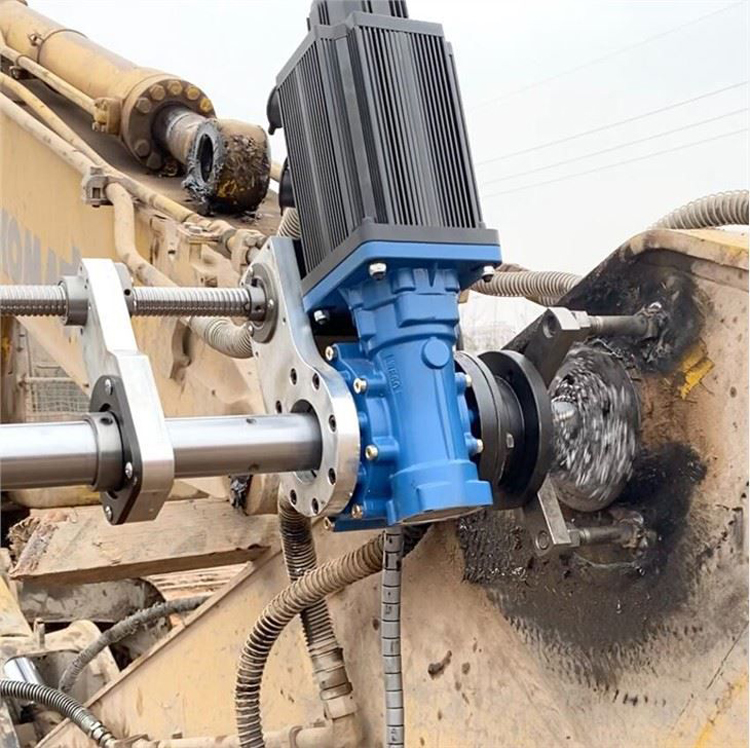

line boring

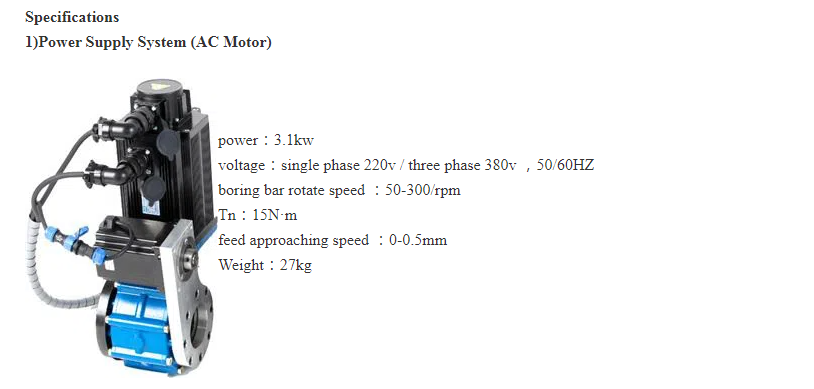

The feed of the line boring bar is controlled by a manual gearbox and automatically fed by motor speed regulation.

The rotation speed of the rod is 50-300 rpm, which can be switched between forward and reverse, and remote control.

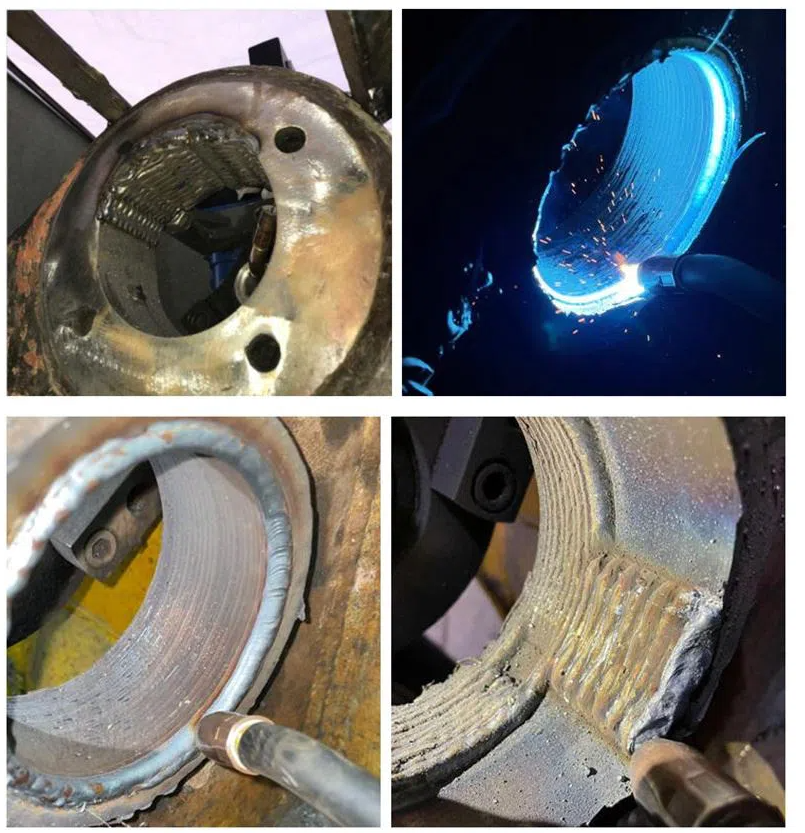

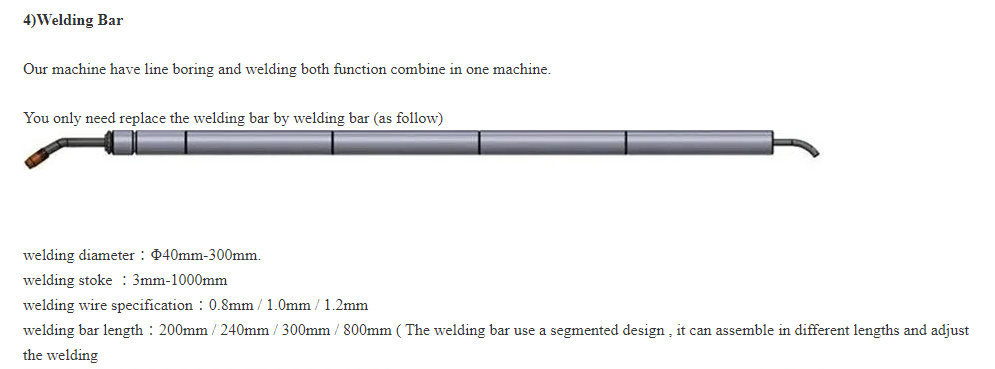

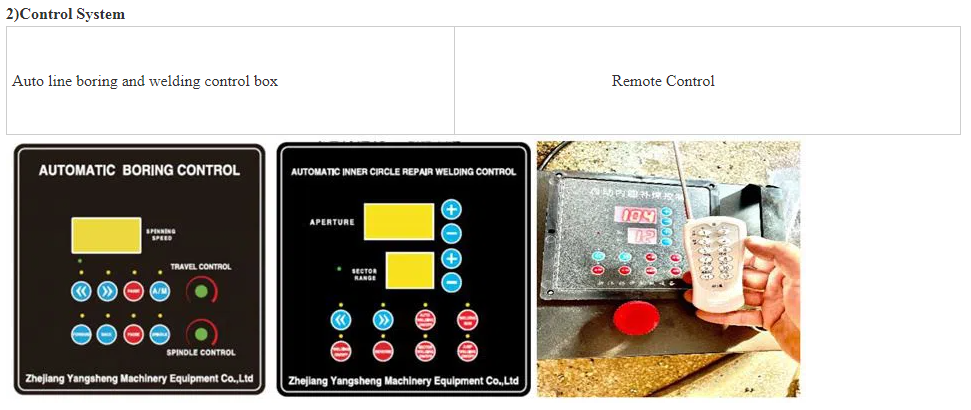

Automatic inner hole repair welding system, remote control welding torch can be fed into place, and the diameter of the hole machine can be set. Adjust the torch head to control the sector welding area.

Automatic inner hole repair welding can be set to jump welding, sector welding, full circle welding, slot welding, etc.
