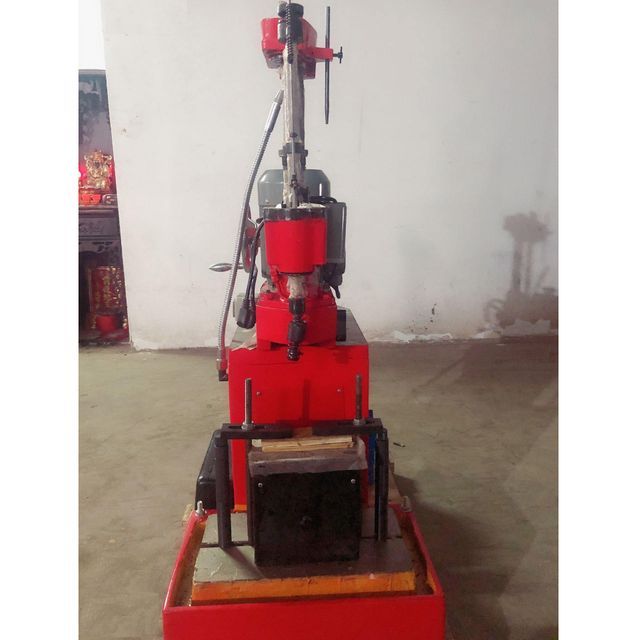

TM807A motorcycle cylinder deburring and honing machine

Supplier: Shanghai THL Machine Tool Co., Ltd.
Region: Shanghai, China
Contact: Mr xu li
Price: $1400.00 /unit
Min. Order: 1 unit

Click here to contact

Product details

After Warranty Service:	Video technical support	payment terms:	wire transfer
port:	Shanghai	Number of axes:	2
Core components:	bearing	Warranty:	1 year
Weight (ton):	0.1 tons	Applicable industries:	Building materials store, machinery repair shop
Origin:	China Shanghai	Certification:	ISO9001:2008
Main selling points:	multifunctional	Video outbound inspection:	not available
Dimensions (LWH):	680x480x1160mm	Number of spindles:	single
Marketing Type:	Hot Products of 2019	strength:	550 watts
Table travel (Z) (mm):	100mm	Showroom location:	Russia, Ukraine
Core component warranty:	3 months	Local service locations:	Peru, Russia, Ukraine
Voltage:	220V/380V	Table travel (X) (mm):	100mm
Travel (W axis) (mm):	0mm	Table travel (Y) (mm):	100mm
Packaging Details:	worden box	Supply capacity:	1 unit per day
Mechanical test report:	not available	Spindle speed range (rpm):	50 rpm
maximum. Table load (kg):	100	brand:	THL
Table size (mm):	other	Health status:	new
Whether CNC:	normal	After-sales service provided:	Engineers can repair machinery overseas, online support, video technical support
type:	vertical

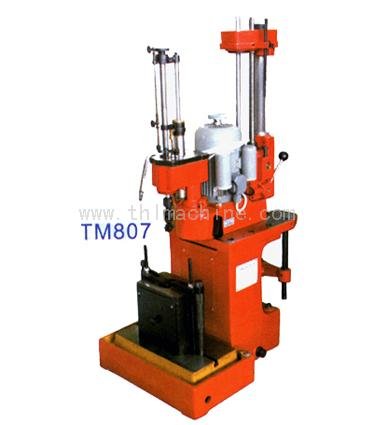

TM807 type is mainly used for the maintenance of motorcycles and other cylinders. After determining the center of the cylinder hole, place the cylinder to be bored under the bottom plate or on the plane of the machine base, and fix the cylinder, and then perform maintenance such as boring and honing. Motorcycle cylinders with a diameter of 39-72mm and a depth of 160mm can be bored and honed. If equipped with suitable fixtures, other cylinder blocks with corresponding requirements can also be bored and honed.

Specification		TM807
Boring and honing hole diameter		39-72mm
bore honing depth		160mm
Spindle speed		480 rpm
Boring shaft shifting stages		1 step
Boring spindle feed		0.09mm/rotation
Boring shaft return and rising method		manual operation
Hoe shaft speed		300 rpm
Honing spindle honing speed		6.5m/min
electric motor	strength	0.75 kW
	Rotating speed	1440 rpm
	Voltage	220v or 380v
	frequency	50 Hz
Centering device Centering range		39-46 mm 46-54 mm
		54-65 mm 65-72 mm
Dimensions (length x width x height)		680×480×1160mm
Main unit weight (approximately)		170 kg
