Cylinder Honing Machine 3M9814A

Supplier: Shanghai THL Machine Tool Co., Ltd.
Region: Shanghai, China
Contact: Mr xu li
Price: $2900.00 /unit
Min. Order: 1 unit

Click here to contact

Product details

Dimension(LWH):	18001401280 mm;	Core Components:	Motor;
Voltage:	380v;	Packaging Detail:	Wooden Box;
Warranty:	1 Year;	Weight (KG):	680;
Applicable Industries:	Machinery Repair Shops;	Video outgoing-inspection:	Provided;
Marketing Type:	Hot Product 2019;	Payment Terms:	T/T;
After Warranty Service:	Video technical support,Online support,Spare parts;	Supply Ability:	1 Unit/Units per Day;
Local Service Location:	United States,Russia,Ukraine;	Port:	Shanghai;
Machinery Test Report:	Provided;	Key Selling Points:	Multifunctional;
Power (kW):	1.5;	Brand Name:	THL;
Condition:	New,New;	CNC or Not:	Normal;
Warranty of core components:	1 Year;	Showroom Location:	Russia,Ukraine;
After-sales Service Provided:	Engineers available to service machinery overseas;	Place of Origin:	Shanghai China;

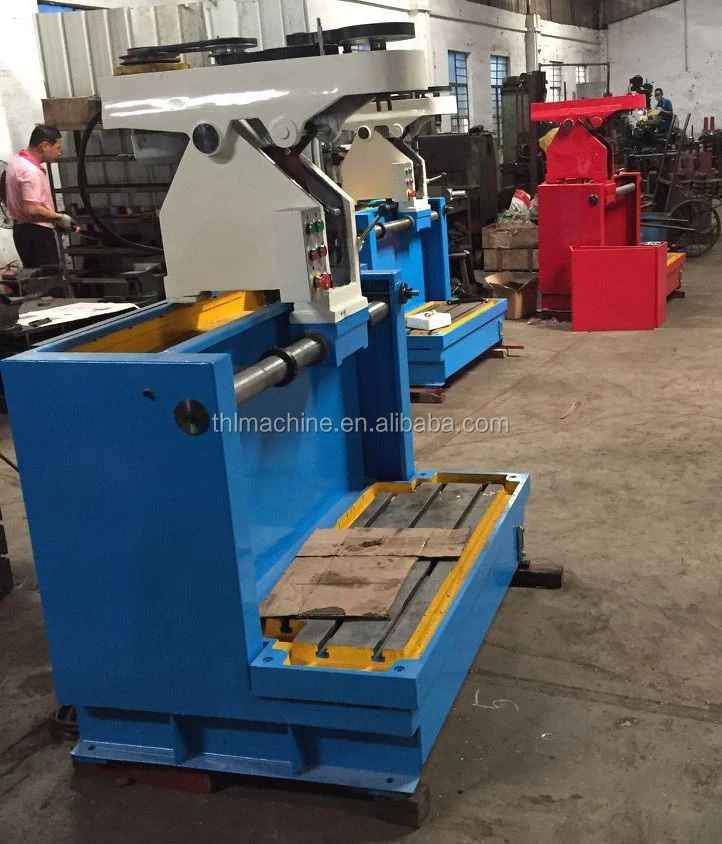

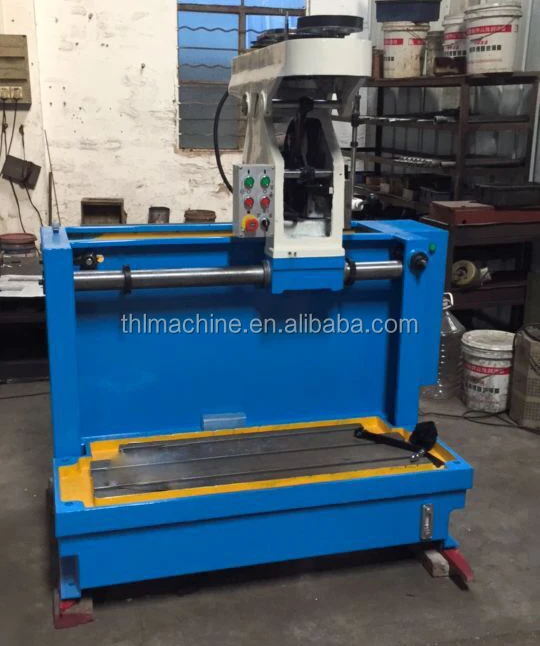

The machine tool is mainly used for honing automobile and tractor cylinders with diameters from 40 to 140 arter boring process. The machine tool is small in size, light in weight. The machine tool proper can be slid longitudinal at will to facilitate operation. The up-and-down reciprocating by hydraulic. Motion of which can be adjusted randomly. Honing process can be carried out arter the cylinder block to be honed is placed on the worktable, abjusted to centre position and secured.

Main specifications

Model	3M9814A
Dia. Of hole honed	40-140 mm
Max. depth of hole honed	320 mm
Spindle speed	128; 240 r/min
Longitudinal travel of honing head	720 mm
Spindle lifting and lowering speed (stepless)	0 - 10 m/min
Power of honing head motor	0.75 Kw
Overall dimensions (L× W× H)	1440×960×1655 mm
Packing dimensions (L×W×H)	1800×140×1280 mm
N.W./G.W.	510/680 kg
