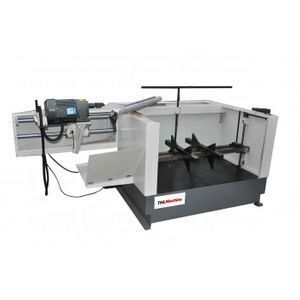

Cylinder Line Honing Machine/LH100/U.S model Products from Shanghai THL Machine Tool Co., Ltd.

Product Details

Payment Terms:	L/C,T/T;	Weight:	760 kg;
Packaging Detail:	wooden box;	Port:	shanghai;
Voltage:	220V/380V;	Brand Name:	THL;
Condition:	New;	Power(W):	1.5kw;
Place of Origin:	Shanghai China (Mainland);	Supply Ability:	5 Unit/Units per Day;
Certification:	ISO9001;	After-sales Service Provided:	Overseas third-party support available;
CNC or Not:	Normal;	Warranty:	1 Year;

MACHINE SPECIFICATIONS

Main Bearing Bore Diameter Range: 46 – 178 mm (1.800 – 7.000 in) Special tooling required for 127 – 178 mm (5.000 to 7.000 in)

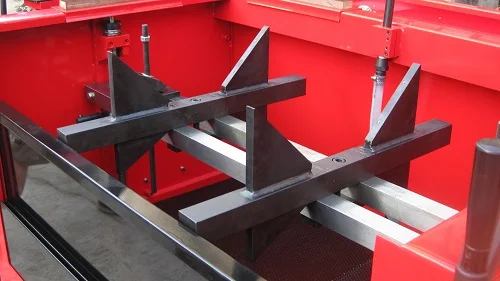

Capacity: V blocks, both 90 and 60; overhead and L-head in-line blocks; up to 1140 mm (45 in) long, 710 mm (28 in) from head deck to main bearing centerline.

FEATURES & BENEFITS

Minimum stock removal, usually less than .003" (.076 mm) off the caps compared to as much as .010" (.254 mm) with boring
Maximum precision, corrects distortion caused by warpage and cap stretch
Meets or exceeds original factory accuracy for alignment, roundness and size
Fast, easy setup
Ease of operation, no special training required
Profitable: Make $90-$120 in 30 minutes on a typical V-8 block
Lifetime application service with every machine purchase

Hone Unit Selection

COMPLETE HONE UNIT						REPLACEMENT STONES & SHOES
HONE UNIT	APPROX. SHIP. WEIGHT		DIAMETER RANGE		COMMENTS	STONES (5 per Box) Ship Wt. 1 1/4lbs (0,57 kg) per Box	SHOES (5 per Box) Ship Wt. 2 lbs (0,9 kg) per Box
HONE UNIT	lbs.	kg	inches	millimeters	COMMENTS	RY24-J49	RG-D
10RY-1800F	34	15,4	1.800 - 2.100	46 - 54	Hone Unit includes 1 set of 10 stones and 20 shoes	RY24-J49	RG-D
10RY-2100F	45	20,4	2.100 - 2.400	54 - 61		RY24-J49	RG-D
10RY-2400G	40	18,1	2.400 - 2.700	61 - 69		RY24-J49	RG-D
10RY-2700G	45	20,4	2.700 - 3.000	69 - 77		RY24-J49	RG-D
10RY-3000H	50	22,6	3.000 - 3.500	77 - 89		RY24-J49	RG-D
10RY-4500H	60	27,2	4.500 - 5.000	115 - 127		RY24-J49	RG-D
15RY-3500H	85	38,5	3.500 - 4.000	89 - 102	Hone Unit includes 1 set of 15 stones and 30 shoes	RY24-J49	RG-D
15RY-4000H	105	47,6	4.000 - 4.500	102 - 115		RY24-J49	RG-D
15RY-4500H	120	54,4	4.500 - 5.000	115 - 127		RY24-J49	RG-D
10RY-5000H	70.5	32,0	5.000 - 5.500	127 - 140	Hone Unit includes 1 set of 10 stones and 20 shoes	RY24-J49	RG-D
10RY-5500H	80.5	36,6	5.500 - 6.000	140 - 152		RY24-J49	RG-D
10RY-6000H	97	44,1	6.000 - 6.500	152 - 165		RY24-J49	RG-D
10RY-6500H	113.5	51,6	6.500 - 7.000	165 - 178		RY24-J49	RG-D
15RY-5000H	107	48,6	5.000 - 5.500	127 - 140	Hone Unit includes 1 set of 15 stones and 30 shoes	RY24-J49	RG-D
15RY-5500H	122	55,4	5.500 - 6.000	140 - 152		RY24-J49	RG-D
15RY-6000H	147	66,8	6.000 - 6.500	152 - 165		RY24-J49	RG-D
15RY-6500H	172	78,2	6.500 - 7.000	165 - 178		RY24-J49	RG-D
