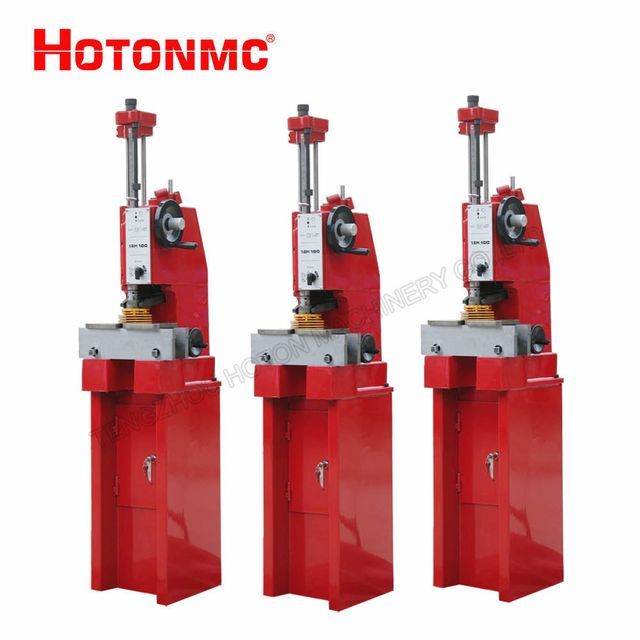

SBM100 Motorcycle Engine Cylinder Boring Machine

Supplier: Tengzhou Hoton Machinery Co., Ltd.
Region: Shandong, China
Contact: Ms Wang Andy
Price: $800.00 /set
Min. Order: 1 set

Click here to contact

Product details

Weight (kg):	100	product name:	Cylinder honing machine
maximum. Drilling diameter:	100mm	Function:	Honing Engine Cylinders
Supply capacity:	30 sets per month	Product origin:	China
usage:	motorcycle cylinder	Dimensions (LWH):	1290x880x2015mm
port:	Qingdao Port Shanghai Port	payment terms:	L/C, Western Union, T/T
maximum. Spindle travel:	220mm	application:	cylinder repair
Packaging Details:	in plywood case	Model:	SBM100
Showroom location:	not any	Health status:	new
Distance between column and spindle axis:	130mm	Power (kW):	0.37
Warranty:	1 year	Marketing Type:	New Products 2020
Voltage:	220V/380V	CNC or not:	normal
Mechanical test report:	if	Drilling diameter in minutes:	36mm
Main selling points:	high productivity	Video shipment inspection:	if
Applicable industries:	Mechanical repair shop, manufacturing plant	Core components:	Bearings, motors, gears
Origin:	Shandong China	Core component warranty:	1 year
brand:	Holden MC

Motorcycle cylinder SbM100 boring machine

Uses and features:
*The boring machine is used for re-boring the engine block of automobiles, motorcycles, and small and medium-sized tractors
* Reliable performance, wide application, high processing precision and high productivity
*Simple operation, high efficiency *Good rigidity, large cutting capacity

Model	SBM100
maximum. Bore diameter	100mm
min bore diameter	36mm
maximum. Spindle travel	220mm
Distance between column and spindle axis	130mm
The distance between the fastening bracket and the workbench in minutes	170mm
maximum. Distance between fastening bracket and workbench	220mm
Spindle speed	200 rpm
Spindle feed	0.76mm/rotation
Motor Power	0.37/0.25kw
