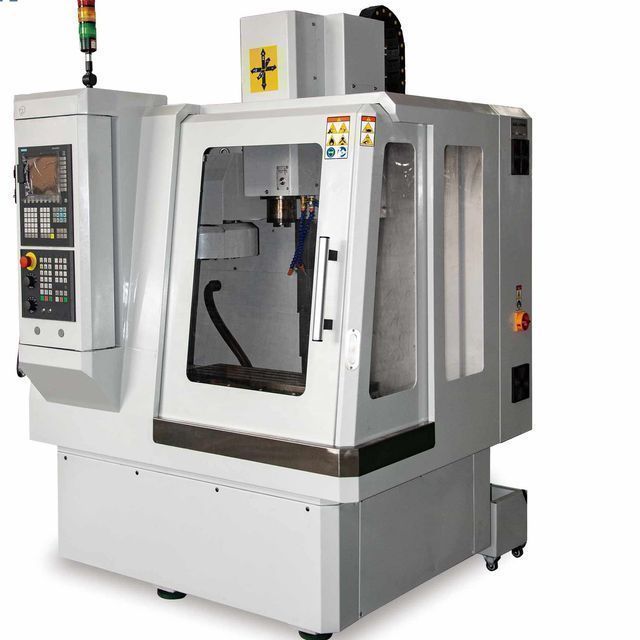

Xk7121 CNC milling machine with tool changer Economical CNC milling machine

Supplier: Shenzhen Integrity Industry Co., Ltd.
Region: Guangdong, China
Contact: Ms Wong Lynda
Price: $3000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Applicable industries:	Mechanical repair shop, manufacturing plant	maximum. Table load:	100 kg
Package preview:		Core components:	others
Function:	Milling Drilling Tapping Routing Chamfer	Key words:	CNC milling machine
Core component warranty:	1 year	Mechanical test report:	if
Voltage:	220V/380V/415V	Bench portrait:	225mm
Spindle taper:	ISO40, BT40	Weight (kg):	650
type:	common	Number of axes:	3
Table travel (Y) (mm):	224mm	Year:	new
Table travel (X) (mm):	395 mm	port:	Shenzhen, Shanghai, Qingdao
Table travel (mm):	660x210	Video shipment inspection:	if
Type of machine:	Vertical universal milling machine	Processing capacity:	medium
Table Vertical:	335mm	Supply capacity:	10 sets per month
Spindle taper:	BT30	CNC or not:	normal
Table cross travel:	395mm	payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram
Packaging Details:	export package	Warranty:	1 year
Showroom location:	Argentina, South Africa, Indonesia, Mexico	Table travel (Z) (mm):	335mm
Main selling points:	high accuracy	model:	XK7121
Origin:	China	Health status:	new
Marketing Type:	normal product	brand:	Upright
Spindle speed range (rpm):	1 - 6000 rpm	table size:	660x210mm

Click here to get a quote

Product Description

thing	unit	XK7121
table size	mm	660x210
T slot/width/quantity/pitch	/mm/piece/mm	31463
maximum. table load	Kilogram	100
X-axis travel	mm	395
Y-axis travel	mm	225
Z axis travel	mm	335
Spindle taper		VT30
Spindle speed	Rotating speed	6000
end milling width	mm	125
Distance from spindle center to column	mm	260
Distance from spindle nose to worktable	mm	45-375
Spindle motor power	kilowatt	2.2
X axis feed motor power	Nano	2.39
Y axis feed motor power	Nano	2.39
Z axis feed motor power	Nano	3.18
Feeding speed	mm/min	0-2400
Minute setting unit	mm	0.001
northwest	Kilogram	650
Dimensions	centimeter	202X171X199.4

Click here >>> Contact us for more information

Recommended Products

coupon

Contact us for coupons or surprise gifts!

Q1: How long the warranty period do you offer? / How about the warranty?A1: 12 months guarantee after machine on board.

Q2: What services can you enjoy during the warranty period?A2: Free replacement parts during the warranty period. Replacement parts at cost value are available beyond the warranty period. Act fast and respond to technical questions anytime.

Q3: Can you provide training for operating CNC machines?A3: Yes, free training or engineer overseas service can be provided in our factory according to customer requirements (the relative cost is borne by the customer.

Q4: Can you provide customized machine or special machine?A4: Yes, we provide customers with different kinds of processing solutions to meet different requirements.

Q5: Can we visit your factory before order?A5: Of course, we warmly welcome you to visit our factory at any time. The more you know us, the more you trust us! Therefore, you can rest assured to use our high-quality products and best service.

Q6: Where is your factory located?A6: Our factory is located in Kunming City, Yunnan Province, Southwest China.
