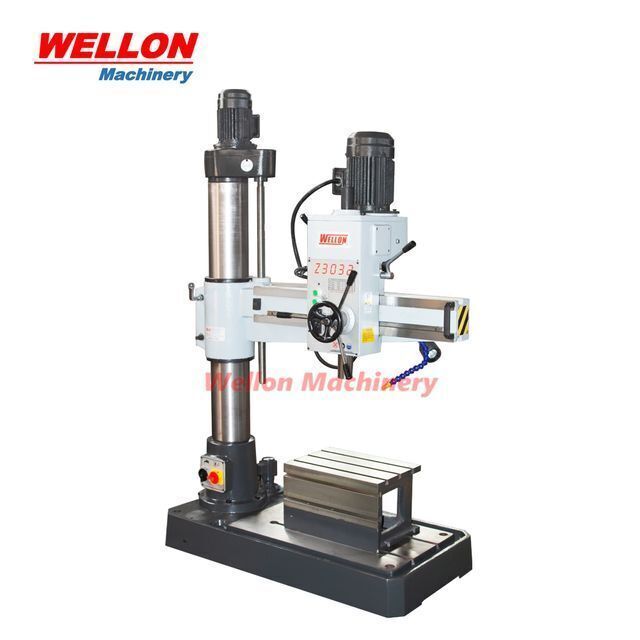

Mechanical radial drilling machine price/small radial drill machine Z3032X10

Click here to contact

Product details

Place of Origin:	Shandong China;	Certification:	ISO,CE,SGS;
Color:	Customizable;	Power:	2.2kw;
Dimensions:	1235x600x1780 mm;	Showroom Location:	None;
After-sales Service Provided:	Overseas third-party support available,Online support,Video technical support,Free spare parts;	Model Number:	Z3032x10;
Video outgoing-inspection:	Provided;	Product name:	radial drilling machine price/small radial drill machine Z3032X10;
Key Selling Points:	Competitive Price;	Marketing Type:	Hot Product 2019;
Weight:	800kg;	Payment Terms:	L/C,T/T;
Spindle taper:	MT4;	Port:	Shanghai;
type:	Radial Drilling Machine;	CNC or Not:	Normal;
Supply Ability:	100 Unit/Units per Month;	Dimension(LWH):	1235x600x1780mm;
After Warranty Service:	Video technical support,Online support;	Spindle travel:	120mm;
Machinery Test Report:	Provided;	Applicable Industries:	Manufacturing Plant,Machinery Repair Shops,Energy & Mining;
Brand Name:	WELLON;	Weight (KG):	800;
Voltage:	220V/240V/380V;	Rocker rotary angle:	360 degree;
Condition:	New;	Max. Drilling Dia. (mm):	32;
Warranty of core components:	1 Year;	Range of Spindle Speed(r.p.m):	108 - 1000 r.p.m;
Max. drilling Dia:	32mm;	Drilling Speed:	108-1000RPM;
Packaging Detail:	Plywood case;	Warranty:	1 Year;
Local Service Location:	India,Russia;	Core Components:	Pump,Gear,Motor,Gearbox;

Product Description

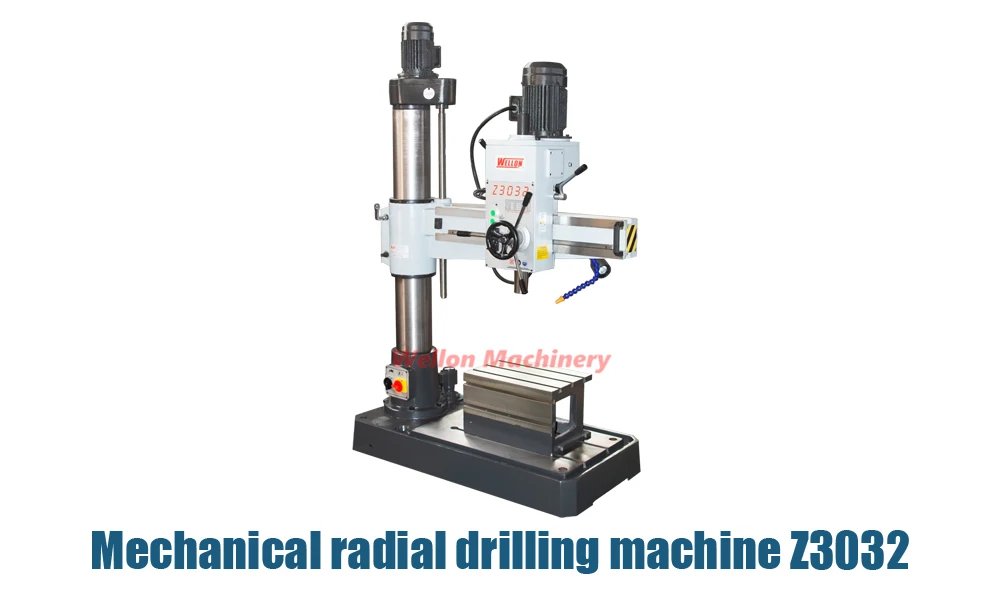

Mechanical radial drilling machine price

small radial drill machine Z3032X10

The large weight and stiff construction of the drill ensures stability and vibration free operation

The cube table ensures easy adjustment and filling of the workpiece

Height adjustment of the arm by motor

Control panel located on the front of the drill for better performance and ergonomics

The polished surface of the column ensures easy, free and precise travel of the arm

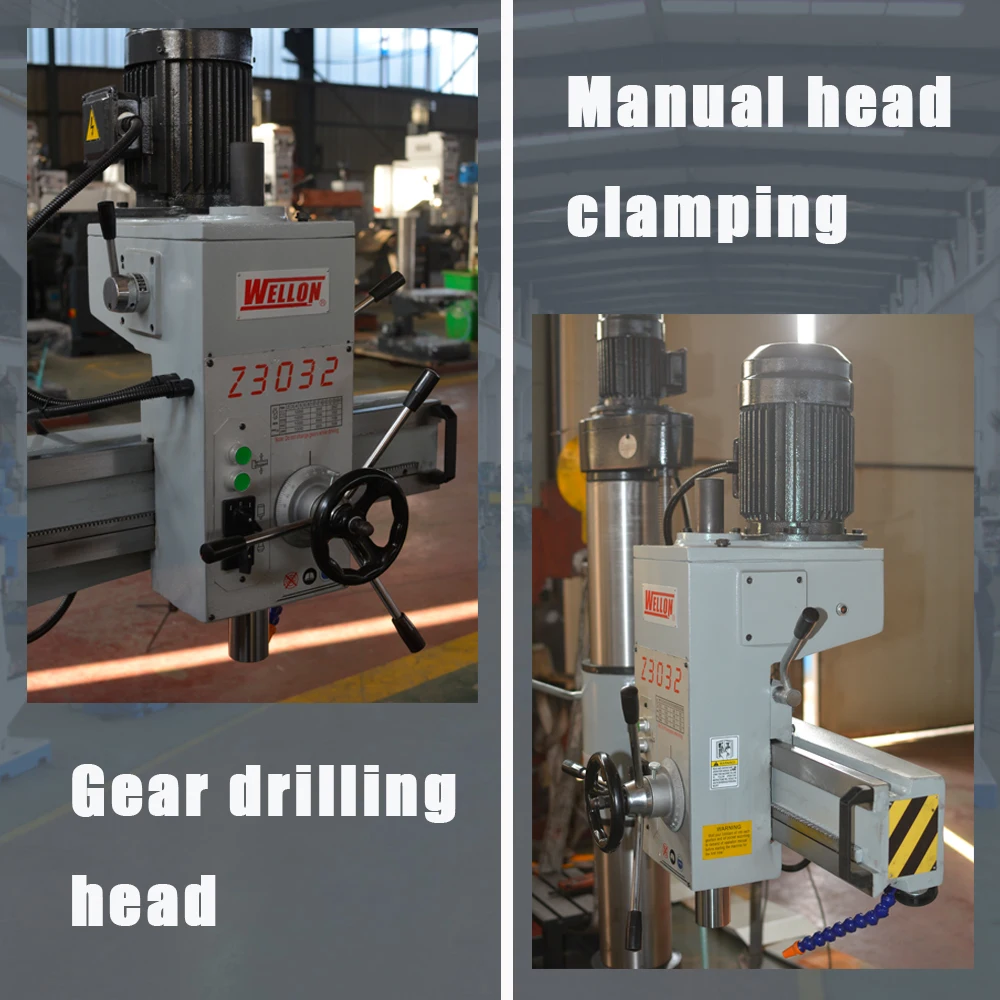

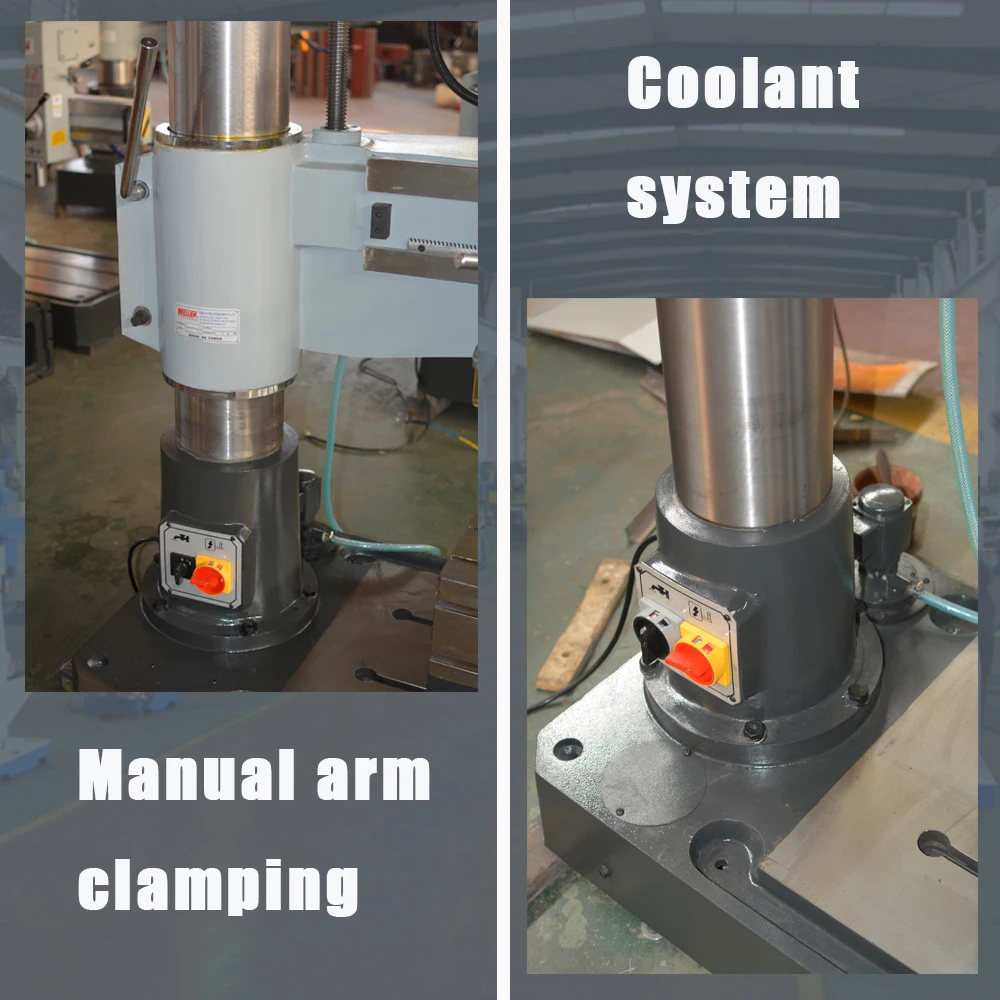

Drill equipped with manual blocking of the head and arm of the column

The large speed range ensures precise and fast processing

Model	Z3032
Max. drilling capacity	32 mm
Distance from spindle to column	260 - 1000 mm
Distance from spindle to table	220 - 980 mm
Spindle travel	120 mm
Spindle taper	MT4

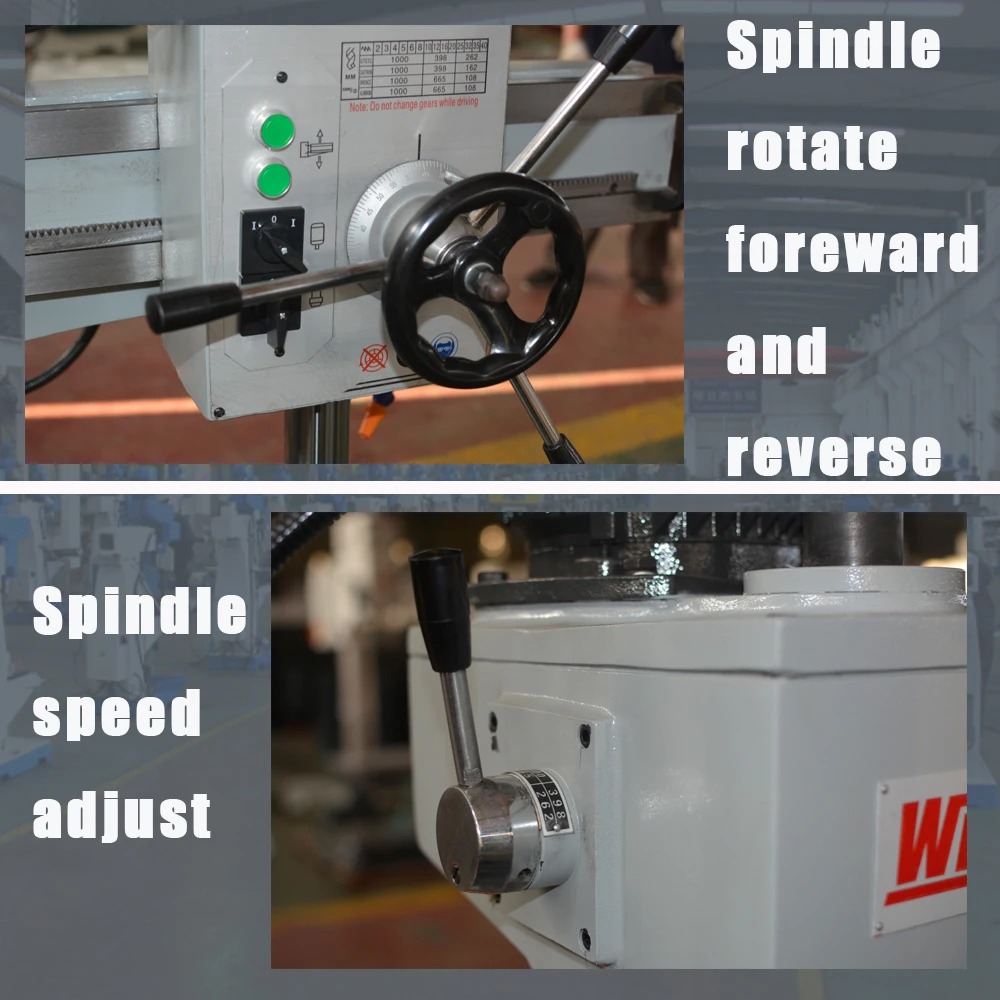

Spindle speed	108, 162, 262, 398, 665, 1000 rpm
Spindle speed steps	6 steps
Rocker rotary angle	360 degree
Motor power	1.5/2.2 kw
Lifting motor power	0.75 kw
Dimensions	1235x600x1780 mm
Weight	800 kg
