Small cylindrical grinder M1408/cheap cylindrical grinder/grinder

Click here to contact

Product details

Applicable industries:	Restaurants, Farms, Home Use, Manufacturing Plants, Food and Beverage Stores, Construction Works, Clothing Stores, Retail, Mechanical Repair Stores, Building Materials Stores, Printing Stores, Advertising Agencies, Food and Beverage Stores	Table stroke (Y) (mm):	0
Cylindricity (mm):	0	year:	2021
payment terms:	letter of credit, wire transfer	motor:	4
place of origin; place of origin:	Shandong China	maximum. Workpiece weight (kg):	10
accurate:	high precision	Main selling point:	high productivity
Name:	grinder	Core Components Warranty:	2 years
Voltage:	220V/380V, 2.34	maximum. Workpiece length (mm):	300
Health status:	new	Grinding length (mm):	300
Packaging Details:	PLY wooden box	Key words:	grind
Local service location:	not any	color:	Customized optional
Model:	M1408	Mechanical test report:	if
Wheel size (mm):	25X75	After-sales service provided:	Online support, video technical support
Video external inspection:	if	Warranty:	2 years
Surface roughness (μm):	0.25	Weight (kg):	1500
After Warranty Service:	Video technical support	Center Height (mm):	115
Function:	grind	Grinding Diameter (Outer Diameter) (mm):	80
Roundness (mm):	0	Type of machine:	Universal horizontal
Grinding diameter (inner diameter) (mm):	0	Table stroke (X) (mm):	0
Power (kW):	0	brand:	Veyron
Certification:	Chief Executive	Dimensions (LWH):	0
CNC or not:	normal	application:	Grinding rail surface
Core components:	motor	Wheel speed (rpm):	1600
Showroom location:	Indonesia, Spain	Marketing Type:	New Products 2020

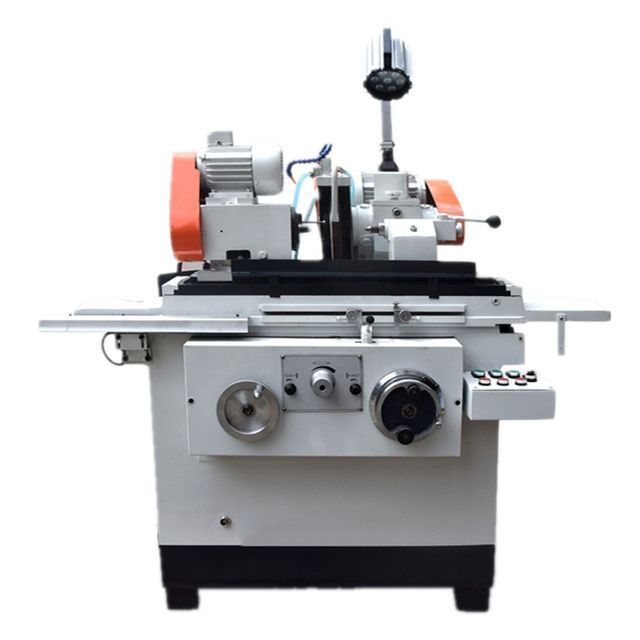

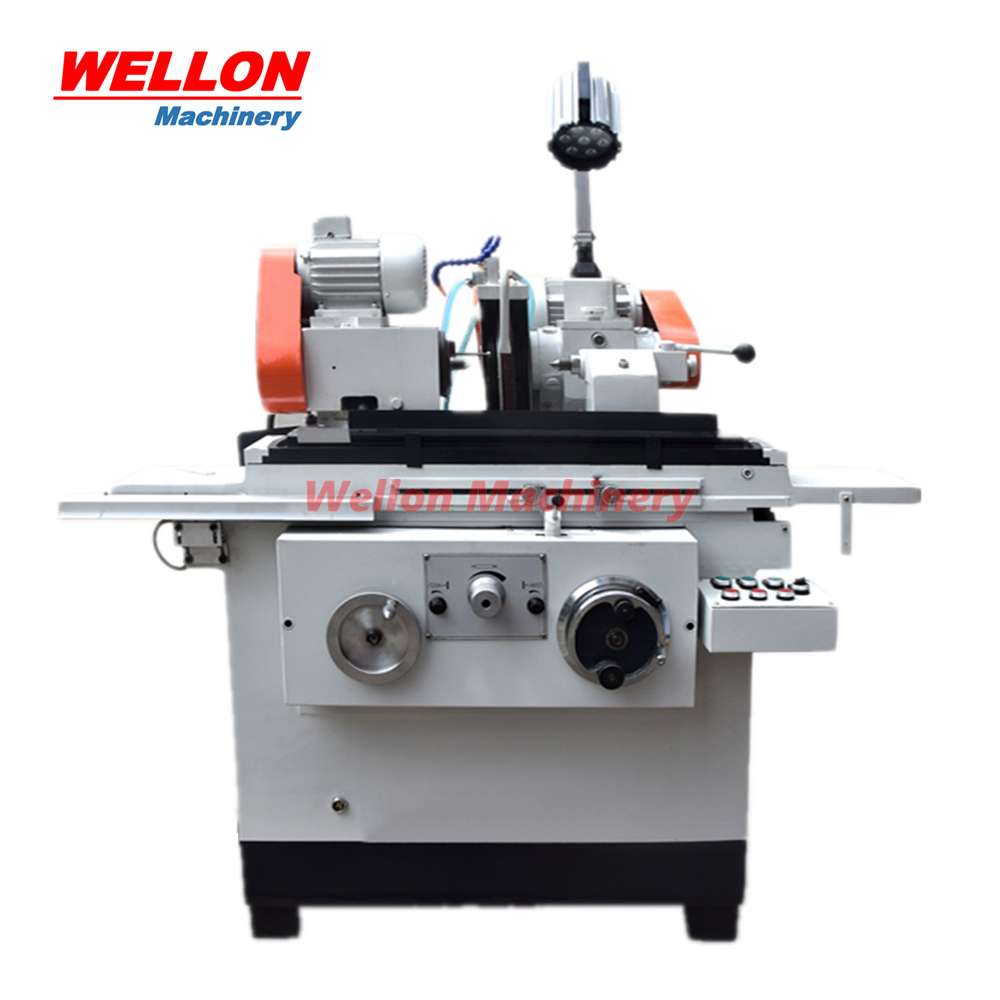

Small cylindrical grinder M1408/cheap cylindrical grinder

feature:

1. Mainly used for grinding small shafts, circles, needle valves, plunger groups and conical surfaces

2. The tooling method can be selected from the top, the three-jaw chuck, and the special clamp for the spring clip;

3. Suitable for instrumentation, automotive electromechanical, bearings, textiles, ships, sewing

Machines, machinery and other industries process small parts,

4. The vertical moving table is hydraulic and manual, the grinding wheel frame and the head are rotated,

The hydraulic system adopts the good performance of gears,

5. Tools, machining workshops and workshops suitable for small and medium batch production,

6. The machine is divided into 300mm according to the top.

technical parameter:

Model	M1408
Grinding diameter	Diameter 2-80mm/10-60mm
Center grinding length	300mm
center height	115mm
Maximum workpiece weight	10 kg
table speed	0.1-4m/min
Wheel peripheral speed	35 m/s
Maximum travel of the table	340mm
Table rotation range	-3-+7 degrees
Outer wheel size	180-250mm2575mm
Inner wheel spindle speed	1600 rpm
tail center	MT3
Machine size	136012401000
weight	1500kg
Motor Power	2.34kW
roundness	1.5/2.5 (outer diameter, inner diameter)
Surface roughness	RA0.25/0.63 (outer diameter; inner diameter)
Longitudinal Diameter Uniformity	5/8UM (outer diameter; inner diameter)
