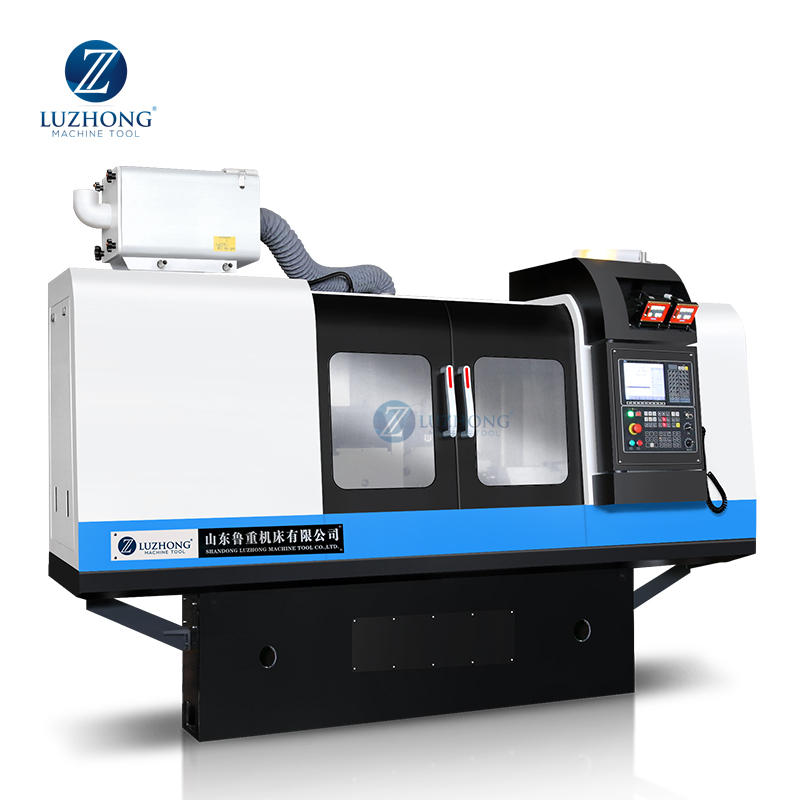

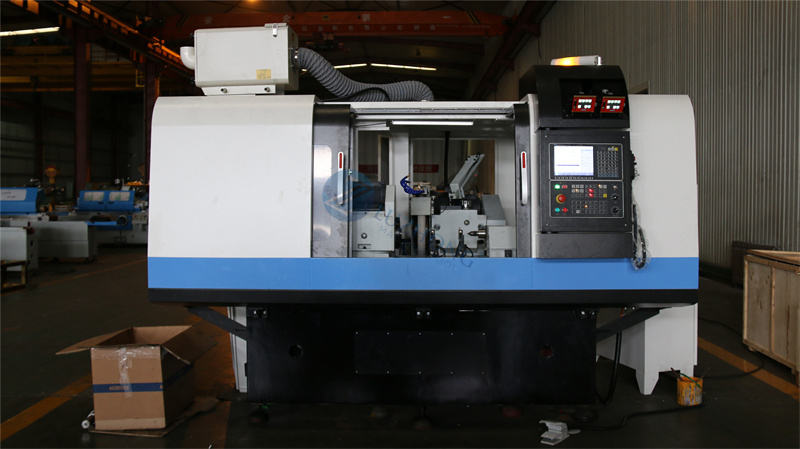

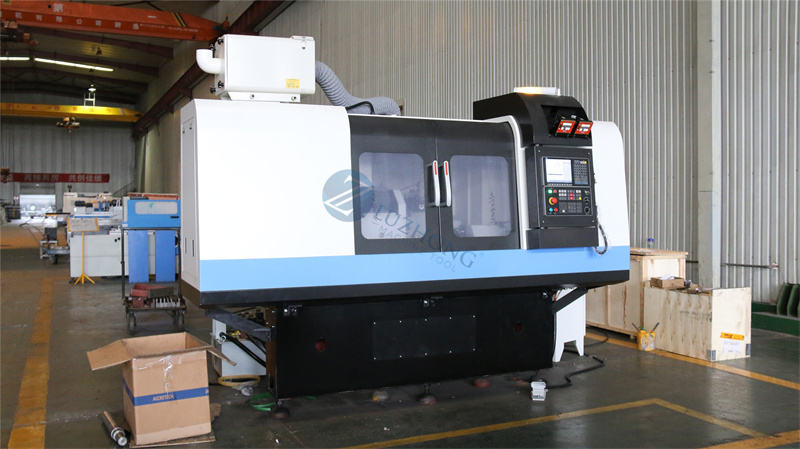

MK1320 MK1332 CNC Cylindrical Grinder

Click here to contact
Product details
Voltage:220V/380VWhether CNC:normal
Marketing Type:2020 New ProductsWarranty:13 months
Packaging Details:The packaging of our cylindrical grinder is an export standard plywood box with an iron pallet underneath, which is very strong and durable. Cylindrical grinding machines will be shipped to customers by land or sea.Health status:new
Core components:engine, pumpMechanical test report:if
Showroom location:Indonesia, United Arab Emirates, Russia, ItalyCore component warranty:13 months
product name:MK1320 MK1332 CNC Cylindrical GrinderApplicable industries:manufacturing plant
Grinding diameter (outer diameter) (mm):200Weight (kg):3200
Main selling points:high accuracyVideo outbound inspection:if
port:Qingdao Portpayment terms:L/C, Western Union, D/P, D/A, T/T, MoneyGram, Trade Assurance
brand:LuzhongOrigin:China
Supply capacity:200 sets of MK1320 MK1332 CNC cylindrical grinding machines per month
Product Description
Recommended Products
Specification
unit
MK1320B
MK1332
MK1620
MK1632
MMK1320
distance between centers
mm
500/750
500/750/1000/1500
500/750
500/750/1000/1500
500/750
Center height
mm
135
180
135
180
135
diameter. Ground (OD)
mm
8-200
8-320
8-200
8-320
8-200
maximum. Workpiece weight
Kilogram
50
100
100
100
50
Working head center taper (MT)

MT4
MT4
MT4
MT4
MT4
Working head spindle speed/stepless
rpm
50HZ:25~260
50HZ:25~260
50HZ:25~260
50HZ:25~260
50HZ:25~260
Grinding head maximum wheel size (ODxWxlD)
mm
400x50x203
500x50x203
500x75x203
500x75x203
400x50x203
Grinding wheel peripheral speed
multiple sclerosis
35
35
35
35
35
Grinding head minimum setting unit
mm
0.0001
0.0001
0.0001
0.0001
0.0001
maximum. Table rotation angle (clockwise)
oh
5°(500),3°(750)
3°
3°
3°
5°(500),3°(750)
maximum. Table rotation angle (counterclockwise)
oh
9°
9°(500)
8°(750)
7°(1000)
6°(1500)
9°(500)
8°(750)
9°(500)
8°(750)
7°(1000)
6°(1500)
9°(500)
6°(750)
Tailstock center taper (MT)

MT4
MT4
MT4
MT4
MT4
Tailstock sleeve travel
mm
30
30
30
30
30
CNC system

HNC-808DG, Siemens 808D, Fanuc or others
HNC-808DG, Siemens 808D, Fanuc or others
HNC-808DG, Siemens 808D, Fanuc or others
HNC-808DG, Siemens 808D, Fanuc or others
Siemens 808D, Fanuc or others
Grinding head motor power
kilowatt
4
5.5
7.5
7.5
5.5
Workbench motor power
kilowatt
1.5
1.5
1.5
1.5
1.5
Roundness
Um
2
2 (500/750)
3 (1000/1500)
2
2 (500/750)
3 (1000/1500)
1
Cylindricity
afternoon
5
5(500/750)
8(1000/1500)
5
5(500/750)
8(1000/1500)
2(500)
3(750)
roughness
afternoon
RA0.2
RA0.2
RA0.2
RA0.2
RA0.1
gross weight
time
3.2 (500)
3.6(750)
4.3 (500)
4.6(750)
5(1000)
5.6 (1500)
4.3 (500)
4.6(750)
4.3 (500)
4.6(750)
5(1000)
5.6 (1500)
5.54(500)
6.5(750)
Package Size
centimeter
285x190x220(500)
340x190x220 (750)
360x230x220(500)
395x230x220(750)
465x230x220(1000)
585x230x220(1500)
360x230x220 (500)
395x230x220 (750)
360x230x220(500)
395x230x220(750)
465x230x220(1000)
585x230x220(1500)
340x230x220(500)
400x230x220(750)
